046232103103800 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 046232103103800

046232103103800: Descriptionconn ffc/fpc 3pos 1mm R/A smd; CategoryThe connector The connector; File Size242KB，8 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

046232103103800 Overview

conn ffc/fpc 3pos 1mm R/A smd

046232103103800 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AVX
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	LIF
Board mount options	SOLDER HOLDING FLANGE
body width	0.118 inch
subject depth	0.197 inch
body length	0.26 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN COPPER
Contact completed and terminated	Tin/Copper (Sn/Cu)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	10 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	LIF N
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e2
MIL compliance	NO
Plug contact pitch	0.039 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.5 A
reliability	COMMERCIAL
Terminal length
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	3
Evacuation force-minimum value	LIF N
Base Number Matches	1

Preview

Download Datasheet

View All

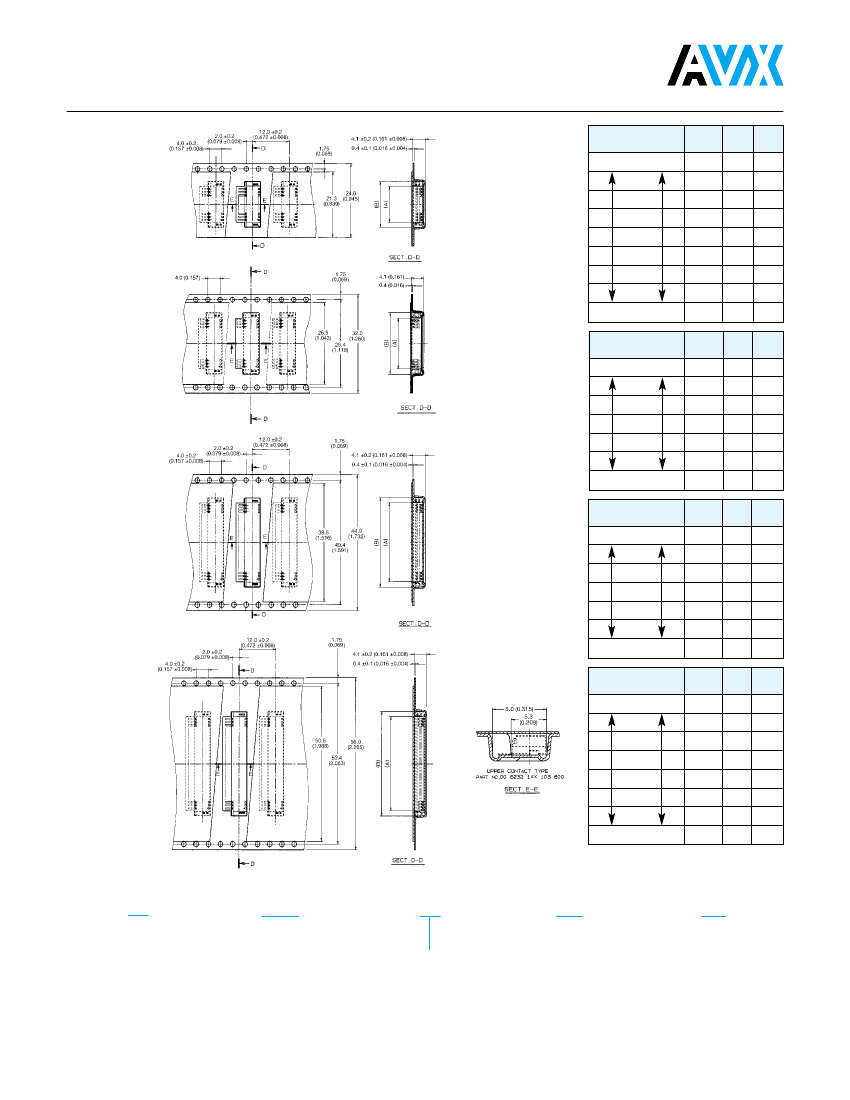

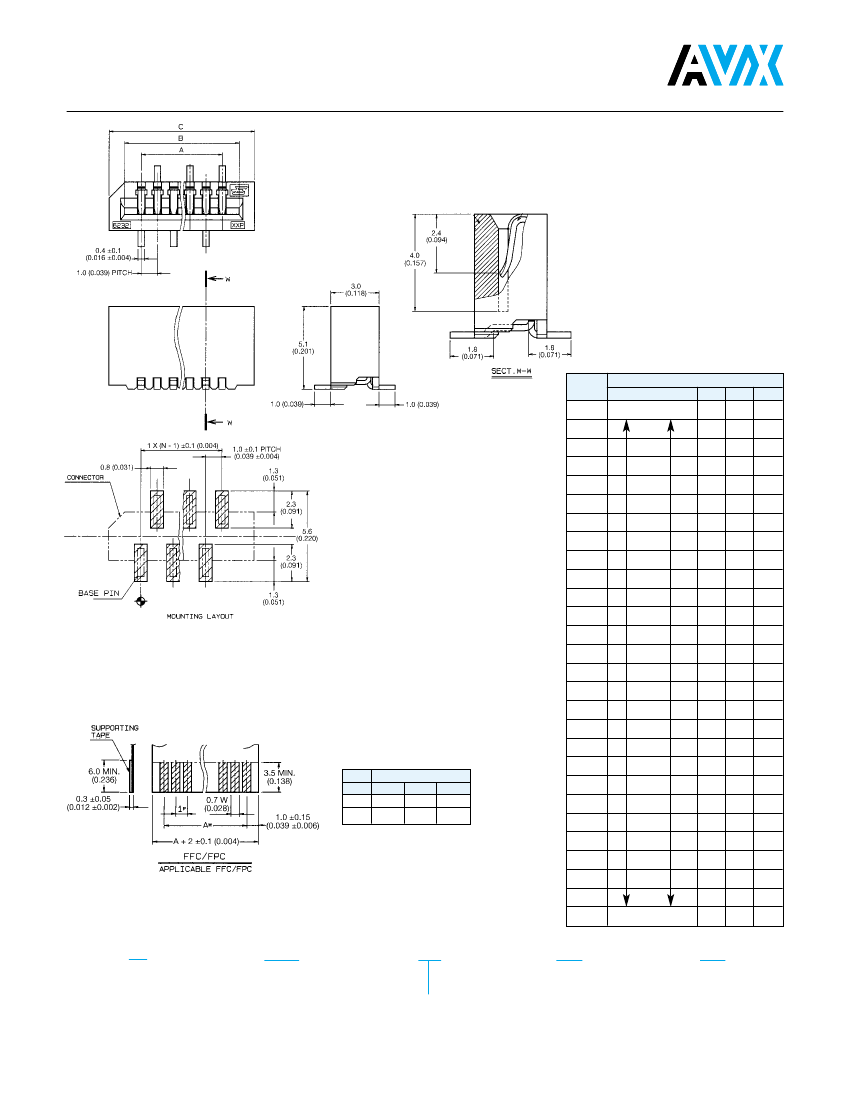

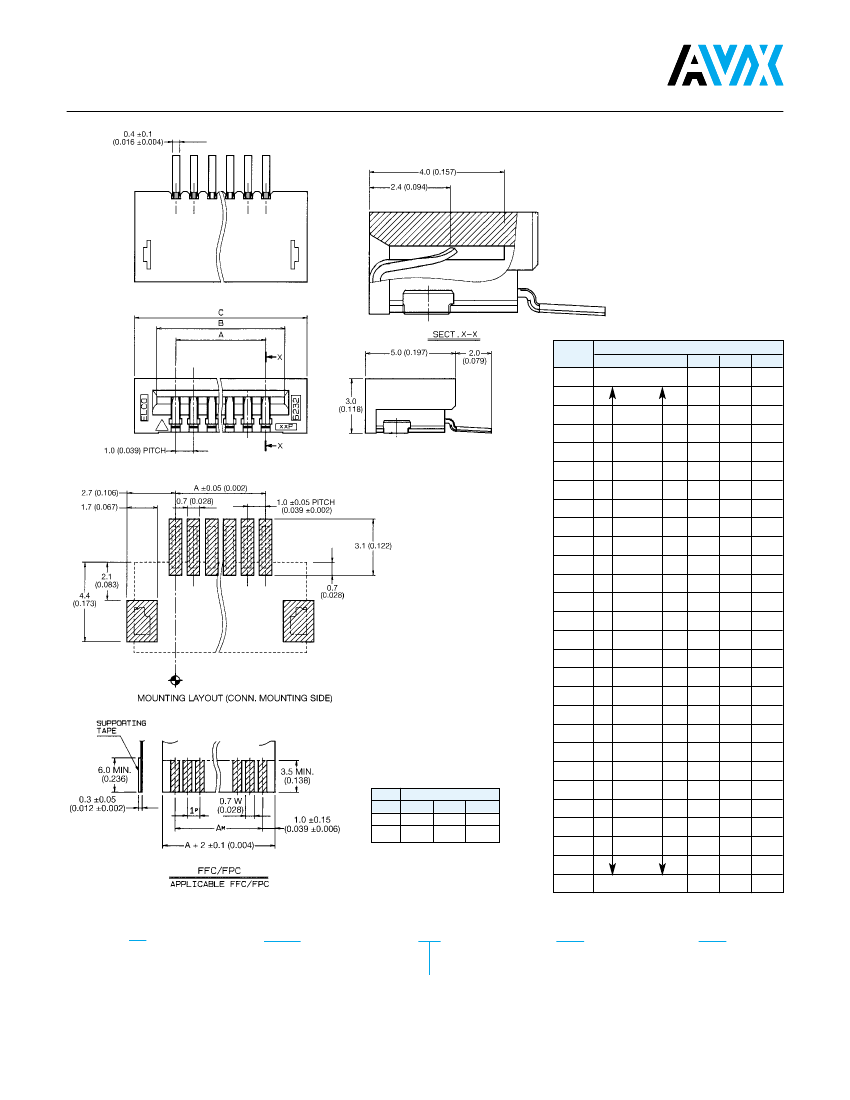

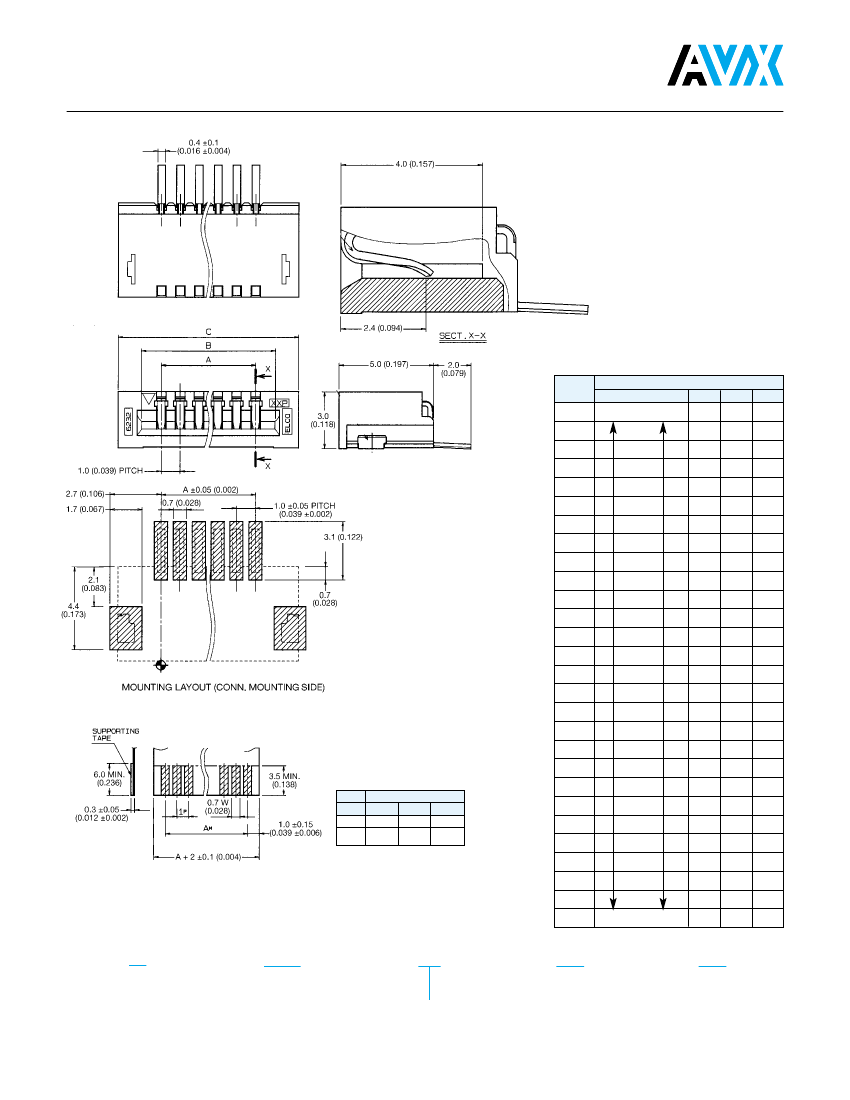

1.00mm Pitch

Series 6232 - LIF Right Angle SMT (Bottom Contact Type)

No. of

Contacts

Assembly Number

04 6232 103 102 800

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

04 6232 130 102 800

2.0

(0.079)

3.0

(0.118)

4.0

(0.157)

5.0

(0.197)

6.0

(0.236)

7.0

(0.276)

8.0

(0.315)

9.0

(0.354)

10.0

(0.394)

11.0

(0.433)

12.0

(0.472)

13.0

(0.512)

14.0

(0.551)

15.0

(0.591)

16.0

(0.630)

17.0

(0.669)

18.0

(0.709)

19.0

(0.748)

20.0

(0.787)

21.0

(0.827)

22.0

(0.866)

23.0

(0.906)

24.0

(0.945)

25.0

(0.984)

26.0

(1.024)

27.0

(1.063)

28.0

(1.102)

29.0

(1.142)

4.1

(0.161)

5.1

(0.201)

6.1

(0.240)

7.1

(0.280)

8.1

(0.319)

9.1

(0.358)

10.1

(0.398)

11.1

(0.437)

12.1

(0.476)

13.1

(0.516)

14.1

(0.555)

15.1

(0.594)

16.1

(0.634)

17.1

(0.673)

18.1

(0.713)

19.1

(0.752)

20.1

(0.791)

21.1

(0.831)

22.1

(0.870)

23.1

(0.909)

24.1

(0.949)

25.1

(0.988)

26.1

(1.028)

27.1

(1.067)

28.1

(1.106)

29.1

(1.146)

30.1

(1.185)

31.1

(1.224)

6.6

(0.260)

7.6

(0.299)

8.6

(0.339)

9.6

(0.378)

10.6

(0.417)

11.6

(0.457)

12.6

(0.496)

13.6

(0.535)

14.6

(0.575)

15.6

(0.614)

16.6

(0.654)

17.6

(0.693)

18.6

(0.732)

19.6

(0.772)

20.6

(0.811)

21.6

(0.850)

22.6

(0.890)

23.6

(0.929)

24.6

(0.969)

25.6

(1.008)

26.6

(1.047)

27.6

(1.087)

28.6

(1.126)

29.6

(1.165)

30.6

(1.205)

31.6

(1.244)

32.6

(1.283)

33.6

(1.323)

Tolerance

Kind

FFC

±0.05 ±0.03 ±0.1

+0.1

FPC

±0.02

-0.05

±0.05

HOW TO ORDER

6232

1XX

102

800

Number of Contacts

ELCO

Recommended Resources

AN8290NS CD player spindle driver-Typical application circuit

Add a music timekeeping function circuit to the quartz clock (2)

Low noise video amplifier circuit with very small input capacitance

New DC speed control system loss of excitation protection circuit

XQ-1 electrocardiograph circuit

FCA84C640 (television) remote control microprocessor
