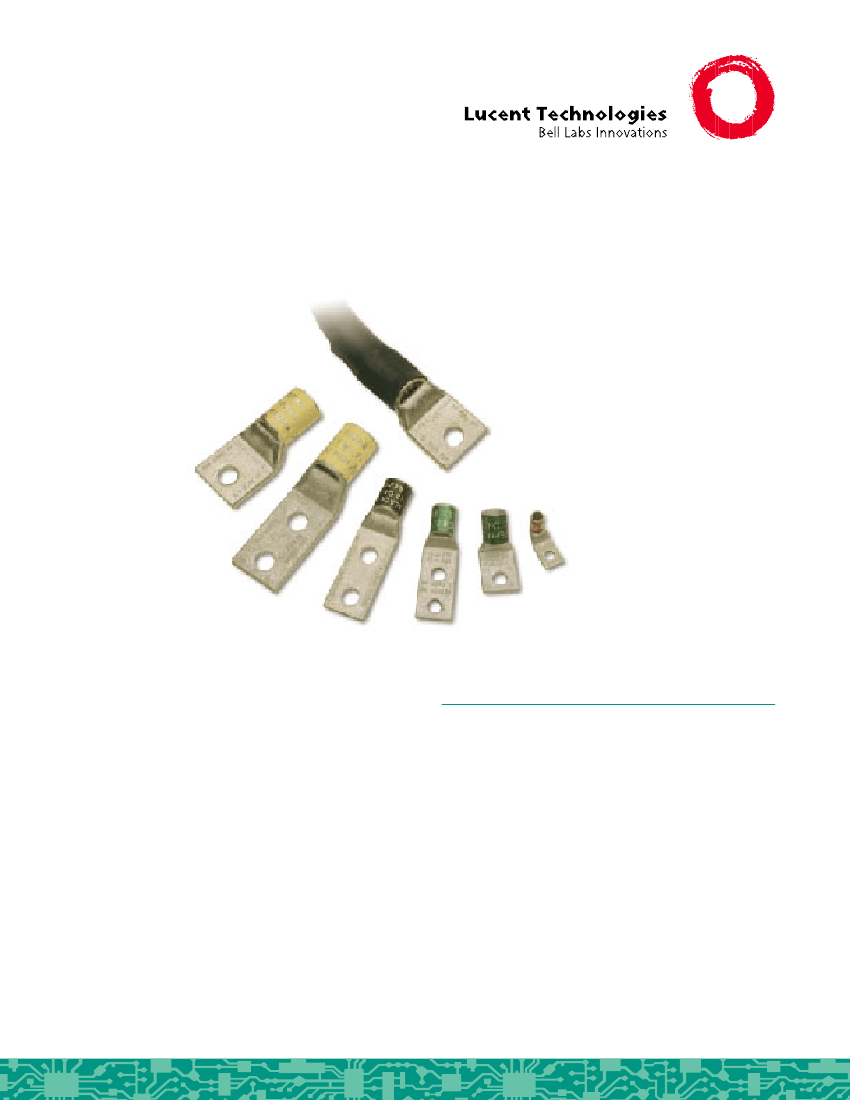

WP91412 Connectors
The reliable, high-strength WP91412
connectors are designed for use with
standard and flexible stranded power wire
used in power equipment or central office
applications.
The WP91412
Connectors are
one-hole or two-
hole, tubular
compression-type
terminators. They are
available in straight, 45°
bend, or 90° bend configurations
and are intended for use with copper
power wires sizes ranging from 14 AWG to
750 kcmil.
They can be used with flexible power wires classified
as Class I stranding and standard Class B stranding.
n
To help reduce the
incidence of errors and
ensure proper
installation, a color coding
scheme matches terminal
and die sets to provide the
correct number and location of
crimps. Color-coded barrels are
matched with I and B stranding, which are
UL-listed
with tooling, as indicated by the
specification.
Benefits
High Conductivity
Provides highly reliable electromechanical
connections for high energy applications
Minimizes the risk of overheating
Designed for fast, simplified, error-free installation
The connectors are fabricated using seamless,
electrolytic wrought copper for excellent conductivity
and reliability; electro-tin plating helps preserve
connector integrity and also prevents corrosion.
n
n
n
In addition, the connectors are specified for extra
margins of safety to minimize the risk of
overheating.
n
n
Ensures high quality through strict testing and
qualification procedures
Meets applicable Bellcore requirements
UL-listed
with Lucent’s KS power wires for Class I
stranding and standard Class B stranding
n
Easy, Accurate Installation
Intended for use in power equipment and central
office power system installations, WP91412
Connectors are designed to be installed using
UL*-
or
CSA
†
-approved compression tools and dies (as
necessary). The economical, standard length barrel is
ideal for space-restrictive applications.
n
n
Suited for limited-space
applications
Compatible with
UL-
or
CSA-
approved crimp
compression tools
UL-listed
with tooling identified in the power data
sheets of the WP91412 specification
*
UL
is a registered trademark of Underwriters Laboratories Inc.
†
CSA
is a registered trademark of the Canadian Standards Association
Features
n
n
High conductivity
n
n
Accurate color coding scheme
n
Seamless, electrolytic, wrought
copper construction
n
Economical, standard length
barrel
n
n
n
Exceeds commercial and
UL
requirements
Narrow tongue feature available
in some sizes
Corrosion-resistant, electro-tin
plating
n
Single or dual mounting holes
Wire-seat inspection window
High-compression termination
design
Outline Drawings
TWO HOLES
TWO HOLES
ONE HOLE
CABLE
INSPECTION
HOLE
DIE
COLOR BAND
TOP VIEW
DIE
45°
SIDE VIEW
TOP VIEW
COLOR BAND
CABLE INSPECTION HOLE
90°
TOP VIEW
DIE
COLOR BAND
SIDE VIEW
SIDE VIEW
WP91412 Connector (Straight)
WP91412 Connector (45°)
WP91412 Connector (90°)
