5207828-3

Description
HD-20 RCPT 25P VERT
CategoryThe connector    The connector
File Size143KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

5207828-3 Online Shopping

Suppliers Part Number Price MOQ In stock
5207828-3 - - View Buy Now

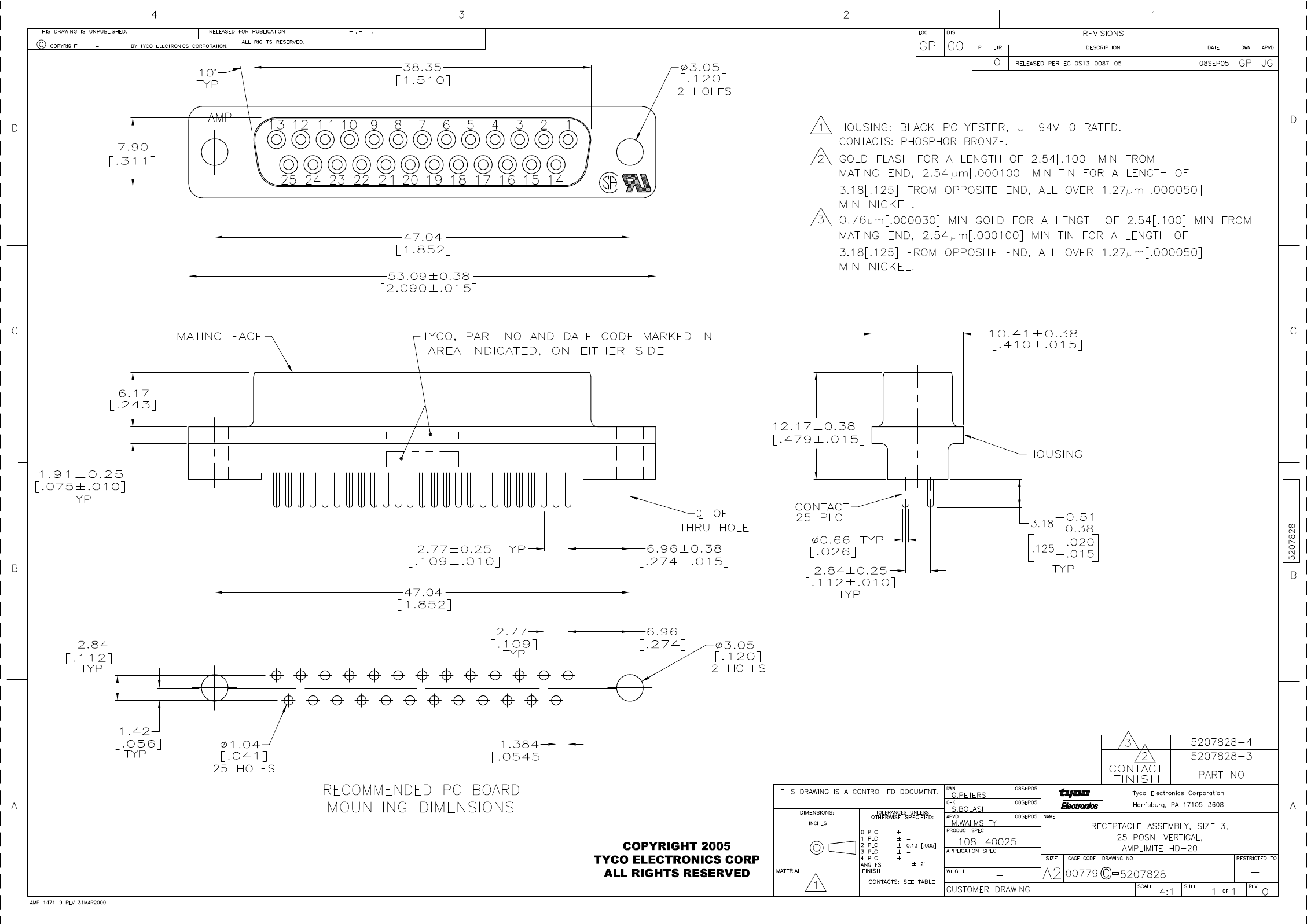

5207828-3 Overview

HD-20 RCPT 25P VERT

5207828-3 Parametric

Parameter NameAttribute value
Brand NameAMP
Is it Rohs certified?conform to
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time11 weeks
body width0.41 inch
subject depth0.236 inch
body length2.09 inch
Body/casing typeRECEPTACLE
Connector typeD SUBMINIATURE CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedMatte Tin (Sn) - reflowed over Nickel (Ni) barrier
Contact point genderFEMALE
Contact materialNOT SPECIFIED
contact modeSTAGGERED
Contact resistance20 mΩ
Contact styleRND PIN-SKT
Dielectric withstand voltage1000VAC V
maximum insertion force2.224 N
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialPOLYESTER
JESD-609 codee3
Manufacturer's serial number5207828
Installation option 1HOLE .112-.124
Installation option 2LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
PCB contact patternSTAGGERED
PCB contact row spacing2.8448 mm
Plating thicknessFLASH inch
Rated current (signal)1.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.125 inch
Terminal pitch2.7686 mm
Termination typeSOLDER
Total number of contacts25
Evacuation force-minimum value2.224 N
Base Number Matches1
