CPD SERIES - 250 WATT

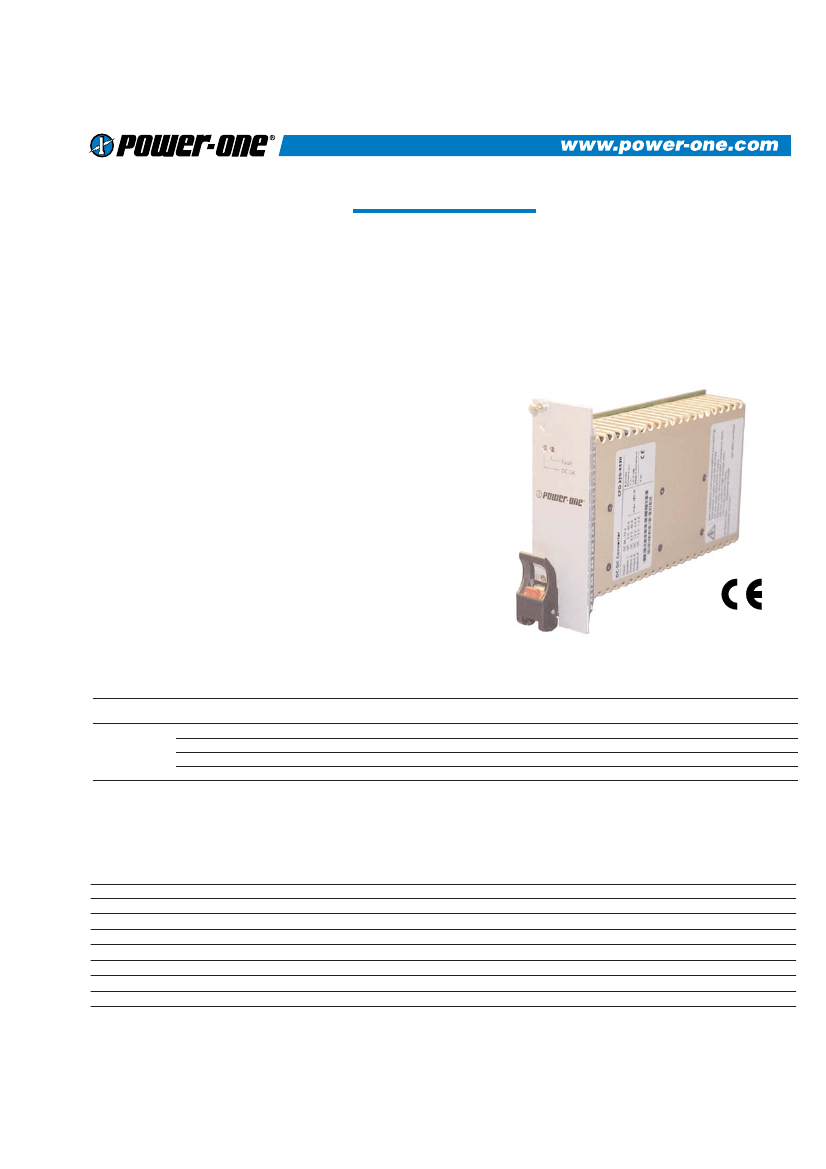

The DC input CPD250-4530 is the first in a series of hot-
swap, CompactPCI
®
power supplies that are fully compliant to
the PICMG
®
2.11 Power Interface Specification using a
standard Positronic 47-pin connector. Extra-high current density
using innovative Power-One EDGE technology allows this unit
to deliver up to 40 amperes on both the +5 and +3.3 volt outputs
at 50ºC.
FEATURES
•
Wide Input Range (36-75 VDC)
•
Delivers 40A for the +5V and +3.3V Outputs (No Restrictions)
•
Single-wire Current Share on Outputs V1, V2, and V3
•
Remote Sense on Outputs V1, V2, and V3
•
Overtemperature, Overvoltage, and Overcurrent Protection
•
Input Good and Power Fail LED Indicators
•
Power Fail and Temperature Warning Signals
•
Inhibit and Enable Inputs
•
Fully Compliant to PICMG
®
2.11 CompactPCI
®
Specification
•
Extra-High Current Density in Industry-Standard 3U x 8HP x
160mm Package
Advanced Produc
t
Release
Remote sense and active current share on the +5, +3.3 and
+12 volt outputs along with ORing FETs allow these units to be
used in redundant, hot-swap applications.
The CPD250-4530 is feature rich, meets international
safety standards, and displays the CE Mark for the Low Voltage
Directive (LVD).
DC INPUT MODEL SELECTION CHART
MODEL
OUTPUT
VOLTAGE
ADJUSTMENT
RANGE
OUTPUT
CURRENT
LINE
REGULATION
LOAD
REGULATION
RIPPLE & NOISE
%pk-pk (NOTE 1)
CPD250-4530
+5V
+3.3V
+12V
-12V
N/A
N/A
N/A
N/A
40A
40A
5.5A
1.5A
0.5%
0.5%
0.5%
0.5%
1%
1%
1%
1%
1.2%
2%
1%
1%
NOTES:
1) Maximum peak-to-peak expressed as a percentage of output voltage, 20 MHz bandwidth.
INPUT SPECIFICATIONS
PARAMETER
CONDITIONS/DESCRIPTION
MIN
NOM
MAX
UNITS
Input Voltage - DC
Hold-up Time
Input Current
Input Protection
Inrush Surge Current
Operating Frequency
Input Transient Protection
Continuous input range.
From 48 VDC Input.
At full rated load; 36 VDC, 48 VDC.
Non-user serviceable, internally-located input line fuse.
Internally limited by thermistor and electronic switch.
Switching frequency of main output transformer.
Varistor.
36
4
7.6, 5.4
75
VDC
mS
A
A
kHz
125
12
145
CompactPCI and PICMG are registered trademarks of the PCI Industrial Computer Manufacturers Group.
REV. 10/25/01
1
CPD SERIES - 250 WATT
OUTPUT SPECIFICATIONS
PARAMETER
CONDITIONS/DESCRIPTION
MIN
NOM
MAX
UNITS
Efficiency
Minimum Load; V1, V2, V3
Minimum Load, V3
Ripple and Noise
Output Power
Output Power
Overshoot /Undershoot
Regulation
Turn-on Delay
Initial Setting Accuracy
Full rated load, 48 VDC Input.
Minimum load required to maintain regulation with no load on V4.
Minimum load on V3 required to maintain regulation on V4.
Full load, 20 MHz bandwidth.
250 LFM forced-air cooling.
400 LFM forced-air cooling.
Output voltage overshoot/undershoot at turn-on.
Varies by output. Total regulation includes: line changes over the specified
input range, changes in load starting at 50% load and changing to 100% load.
Time required for initial output voltage stabilization.
80
None
50% OF V4 Load
See Model Selection Chart
200
250
0
See Model Selection Chart
150
±1
%
A
A
W
W
%
ms
%
INTERFACE SIGNALS AND INTERNAL PROTECTION
PARAMETER
CONDITIONS/DESCRIPTION
MIN
NOM
MAX
UNITS
Latch style overvoltage protection.
120
130
Fully protected against output overload and short circuit. Automatic recovery upon removal of overload condition.
System shutdown due to excessive internal temperature, automatic reset.
TTL compatible signal, open collector active low signal. Indicates any output below
90% and/or a low input <36VDC.
Current Share
Accuracy of shared current with up to 6 parallel units. Single wire current share on V1, V2, and V3.
10
Remote Sense
Available on V1, V2, and V3. Total voltage compensation for cable losses with
150
respect to the main output.
Inhibit (INH#)
TTL-compatible signal inhibited with GND or TTL "0".
Enable (EN#)
Contact closure to external ground to start unit. On shortest pin (last make, first break).
Overtemperature Warning (DEG#) Provides warning when power supply temperature exceeds rating. TTL-compatible open.
Front Panel LED Status Indicators
Input OK (Green), Output Failure (Red).
Overvoltage Protection
Overload Protection
Overtemperature Protection
Power Fail (FAL#)
%Vnom
%
mV
SAFETY, REGULATORY, AND EMI SPECIFICATIONS
PARAMETER
CONDITIONS/DESCRIPTION
MIN
NOM
MAX
UNITS
Agency Approvals
Dielectric Withstand Voltage
Electromagnetic Interference
ESD Susceptibility
Radiated Susceptibility
EFT/Burst
Input Surge
Conducted Disturbance
Insulation Resistance
UL1950.
cUL1950.
EN60950 (TÜV).
Input to Output per EN60950.
EN55022 / CISPR 22 -
Conducted.
Radiated.
Per EN61000-4-2, level 4.
Per EN61000-4-3, level 3.
Per EN61000-4-4, level 3.
Per EN61000-4-5, level 3.
Per EN61000-4-6, level 2.
Input to Output.
Approved
4243
A
A
8
10
±2
1
2
3
10
VDC
Class
kV
V/M
kV
kV
V
M
Line to Line
Line to Ground
ENVIRONMENTAL SPECIFICATIONS
PARAMETER
CONDITIONS/DESCRIPTION
MIN
NOM
MAX
UNITS
Altitude
Operating Temperature
Storage Temperature
Relative Humidity
Shock
Vibration
Operating.
Non-Operating.
With 400 LFM forced-air cooling
Derate linearly above 50°C by 2.5% per °C.
Non-Condensing.
Peak acceleration.
Random vibration, 10 Hz to 2 kHz, 3 axis.
At 100% load:
At 50% load:
0
-40
5
10k
40k
50
70
85
95
20
6
ASL Ft.
ASL Ft.
°C
°C
°C
%RH
G
PK
G
RMS
2

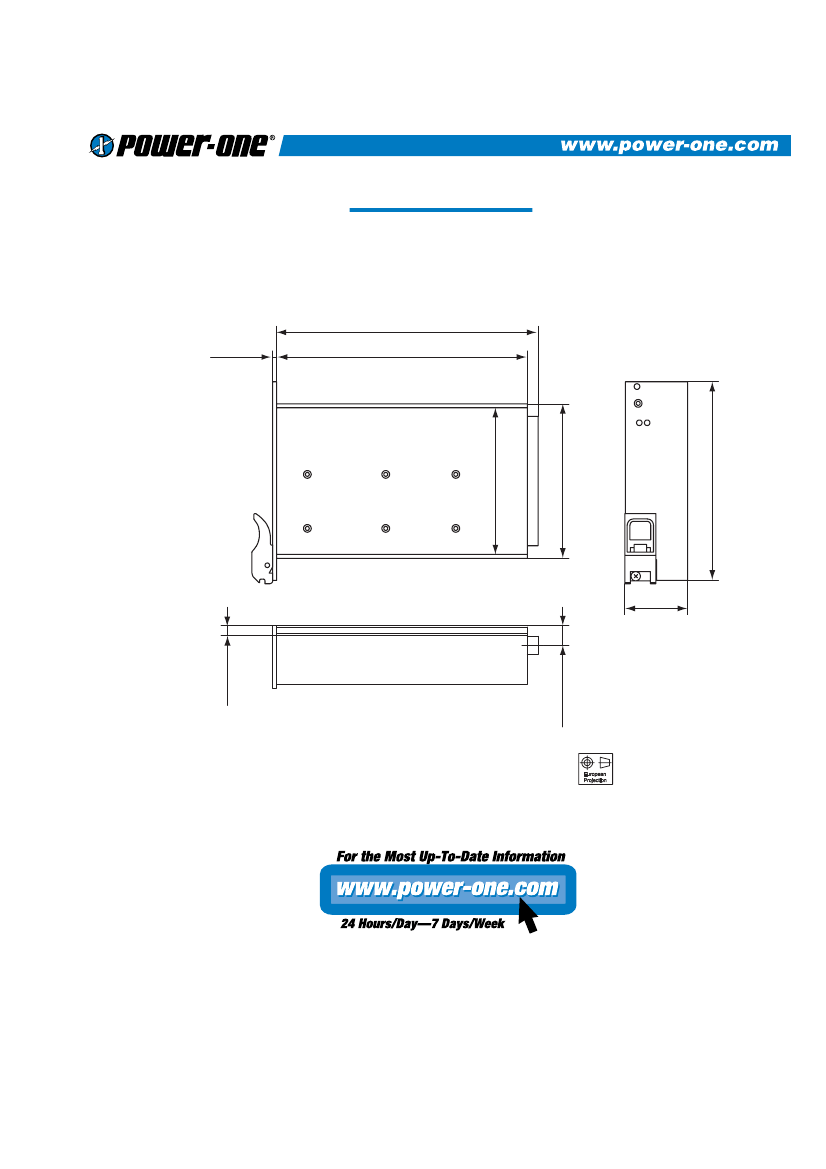

CPD SERIES - 250 WATT
PIN ALLOCATION CHART
PIN
1-4
5-12
13-18
19
20
21
22
23
24
25
26
27
28
29
30
31
NOTE 1)
PIN-LENGTH
TYPE (NOTE 1)
M
M
M
M
M
M
M
M
M
M
M
S
M
M
M
M
SIGNAL
NAME
V1
RTN
V2
RTN
V3
V4
RTN
RESERVED
RTN
NC
RESERVED
EN#
NC
NC
V1SENSE
NC
DESCRIPTION
V1 OUTPUT
V1 and V2 RETURN
V2 OUTPUT
V3 RETURN
V3 OUTPUT
V4 OUTPUT
SIGNAL RETURN
RESERVED
V4 RETURN
NOT CONNECTED
RESERVED
ENABLE
NOT CONNECTED
NOT CONNECTED
V1 REMOTE SENSE
NOT CONNECTED
PIN
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
PIN-LENGTH
TYPE (NOTE 1)
M
M
M
M
M
M
M
M
M
M
M
M
M
L
M
M
SIGNAL
NAME
NC
V2 SENSE
S RTN
V1SHARE
V3SENSE
NC
DEG#
INH#
NC
V2SHARE
FAL#
NC
V3SHARE
CGND
+DCIN
-DCIN
DESCRIPTION
NOT CONNECTED
V2 REMOTE SENSE
SENSE RETURN
V1 CURRENT SHARE
V3 REMOTE SENSE
NOT CONNECTED
DEGRADE SIGNAL
INHIBIT
NOT CONNECTED
V2 CURRENT SHARE
FAIL SIGNAL
NOT CONNECTED
V3 CURRENT SHARE
CHASSIS GROUND
+ DC INPUT
- DC INPUT
L = Long-Length Pins, M = Medium-Length Pins, S= Short-Length Pins
NUCLEAR AND MEDICAL APPLICATIONS Power-One products are not authorized for use as critical components in life support systems,
equipment used in hazardous environments, or nuclear control systems without the express written consent of the President of Power-One, Inc.
TECHNICAL REVISIONS The appearance of products, including safety agency certifications pictured on labels, may change depending on the
date manufactured. Specifications are subject to change without notice.
4
