2225CC224K4Z1A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > 2225CC224K4Z1A

2225CC224K4Z1A: DescriptionCeramic Capacitor, Multilayer, Ceramic, 600V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.22uF, Surface Mount, 2225, CHIP, ROHS COMPLIANT; File Size76KB，2 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

2225CC224K4Z1A Overview

Ceramic Capacitor, Multilayer, Ceramic, 600V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.22uF, Surface Mount, 2225, CHIP, ROHS COMPLIANT

2225CC224K4Z1A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1799064742
package instruction	, 2225
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	0
capacitance	0.22 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
JESD-609 code	e3
Manufacturer's serial number	2225
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, 7 INCH
positive tolerance	10%
Rated (DC) voltage (URdc)	600 V
size code	2225
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND

Preview

Download Datasheet

View All

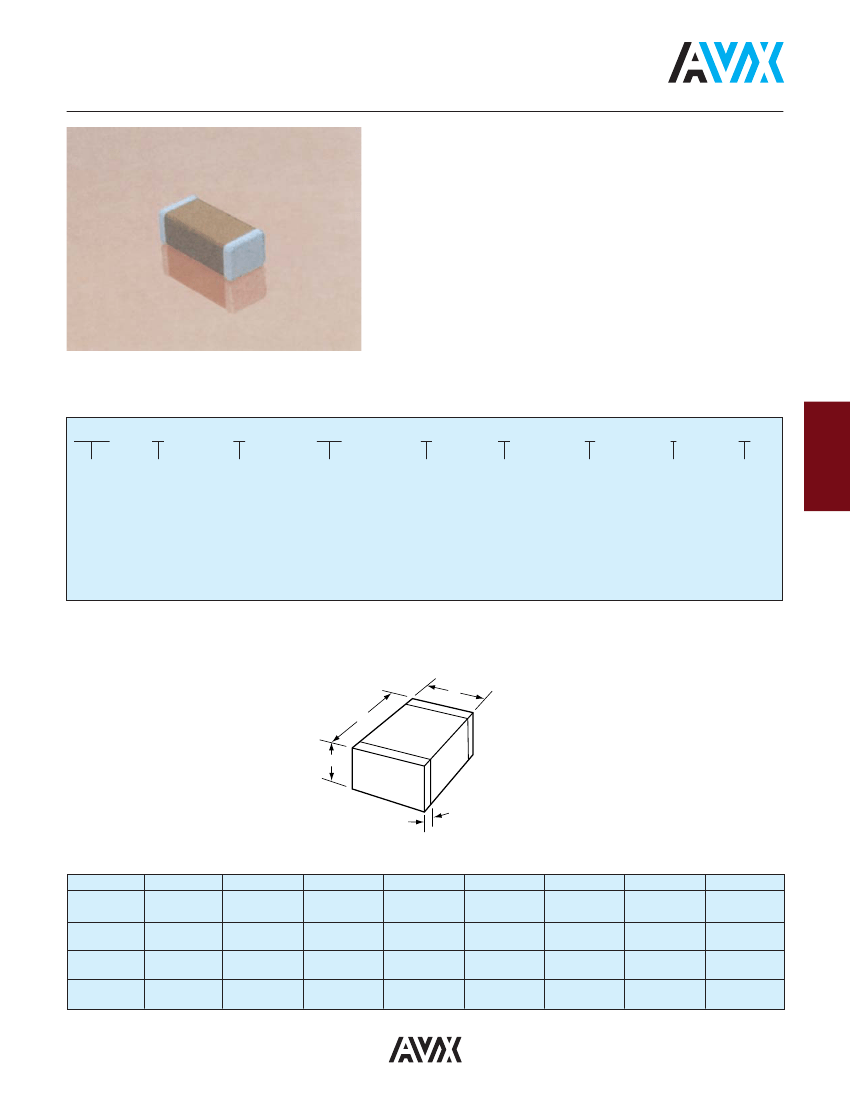

High Voltage MLC Chips FLEXITERM

For 600V to 3000V Applications

High value, low leakage and small size are difficult parameters to obtain

in capacitors for high voltage systems. AVX special high voltage MLC

chips capacitors meet these performance characteristics and are

designed for applications such as snubbers in high frequency power

converters, resonators in SMPS, and high voltage coupling/DC blocking.

These high voltage chip designs exhibit low ESRs at high frequencies.

To make high voltage chips, larger physical sizes than are normally

encountered are necessary. These larger sizes require that special pre-

cautions be taken in applying these chips in surface mount assemblies.

In response to this, and to follow from the success of the FLEXITERM

range of low voltage parts, AVX is delighted to offer a FLEXITERM

high

voltage range of capacitors, FLEXITERM

The FLEXITERM

layer is designed to enhance the mechanical flexure

and temperature cycling performance of a standard ceramic capacitor,

giving customers a solution where board flexure or temperature cycle

damage are concerns.

HOW TO ORDER

1808

AVX

Style

0805

1206

1210

1808

1812

1825

2220

2225

***

Voltage

600V/630V =

1000V =

1500V =

2000V =

2500V =

3000V =

272

Test Level

Termination*

Z = FLEXITERM

100% Tin

(RoHS Compliant)

Temperature Capacitance Code Capacitance

Coefficient

(2 significant digits

Tolerance

C0G = A

+ no. of zeros)

C0G: J = ±5%

X7R = C

Examples:

K = ±10%

10 pF = 100

M = ±20%

100 pF = 101 X7R: K = ±10%

1,000 pF = 102

M = ±20%

22,000 pF = 223

Z = +80%,

220,000 pF = 224

-20%

1 µF = 105

Packaging

Special

1 = 7" Reel

Code

3 = 13" Reel A = Standard

9 = Bulk

Notes: Capacitors with X7R dielectrics are not intended for applications across AC supply mains or AC line filtering with polarity reversal. Contact plant for recommendations.

Contact factory for availability of Termination and Tolerance options for Specific Part Numbers.

***

AVX offers nonstandard chip sizes. Contact factory for details.

DIMENSIONS

SIZE

(L) Length

0805

1206

3.20 ± 0.20

(0.126 ± 0.008)

1.60 ± 0.20

(0.063 ± 0.008)

1.52

(0.060)

0.25 (0.010)

0.75 (0.030)

1210*

3.20 ± 0.20

(0.126 ± 0.008)

2.50 ± 0.20

(0.098 ± 0.008)

1.70

(0.067)

0.25 (0.010)

0.75 (0.030)

1808*

4.57 ± 0.25

(0.180 ± 0.010)

2.03 ± 0.25

(0.080 ± 0.010)

2.03

(0.080)

0.25 (0.010)

1.02 (0.040)

1812*

4.50 ± 0.30

(0.177 ± 0.012)

3.20 ± 0.20

(0.126 ± 0.008)

2.54

(0.100)

0.25 (0.010)

1.02 (0.040)

1825*

4.50 ± 0.30

(0.177 ± 0.012)

6.40 ± 0.30

(0.252 ± 0.012)

2.54

(0.100)

0.25 (0.010)

1.02 (0.040)

2.01 ± 0.20

(0.079 ± 0.008)

(W) Width

1.25 ± 0.20

(0.049 ± 0.008)

(T) Thickness

1.30

Max.

(0.051)

(t) terminal min. 0.50 ± 0.25

max. (0.020 ± 0.010)

millimeters (inches)

2220*

5.7 ± 0.40

(0.224 ± 0.016)

5.0 ± 0.40

(0.197 ± 0.016)

3.30

(0.130)

0.25 (0.010)

1.02 (0.040)

2225*

5.72 ± 0.25

(0.225 ± 0.010)

6.35 ± 0.25

(0.250 ± 0.010)

2.54

(0.100)

0.25 (0.010)

1.02 (0.040)

*Reflow Soldering Only
