LMMN0605M151MTCR datasheet, PDF

Datasheet> All Categories > LMMN0605M151MTCR

LMMN0605M151MTCR: DescriptionGeneral Purpose Inductor, 150uH, 20%, Ferrite-Core, 2220; File Size109KB，6 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

LMMN0605M151MTCR Overview

General Purpose Inductor, 150uH, 20%, Ferrite-Core, 2220

LMMN0605M151MTCR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1340779458
package instruction	2220
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	6.1
uppercase and lowercase codes	2220
structure	Chip
core material	Ferrite
DC Resistance	2.66 Ω
Nominal inductance(L)	150 µH
Inductor type	GENERAL PURPOSE INDUCTOR
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package height	4.7 mm
Package length	5.7 mm
Package form	SMT
Package width	5 mm
method of packing	TR, 7 Inch
Maximum rated current	0.42 A
self resonant frequency	5 MHz
Tolerance	20%

Preview

Download Datasheet

View All

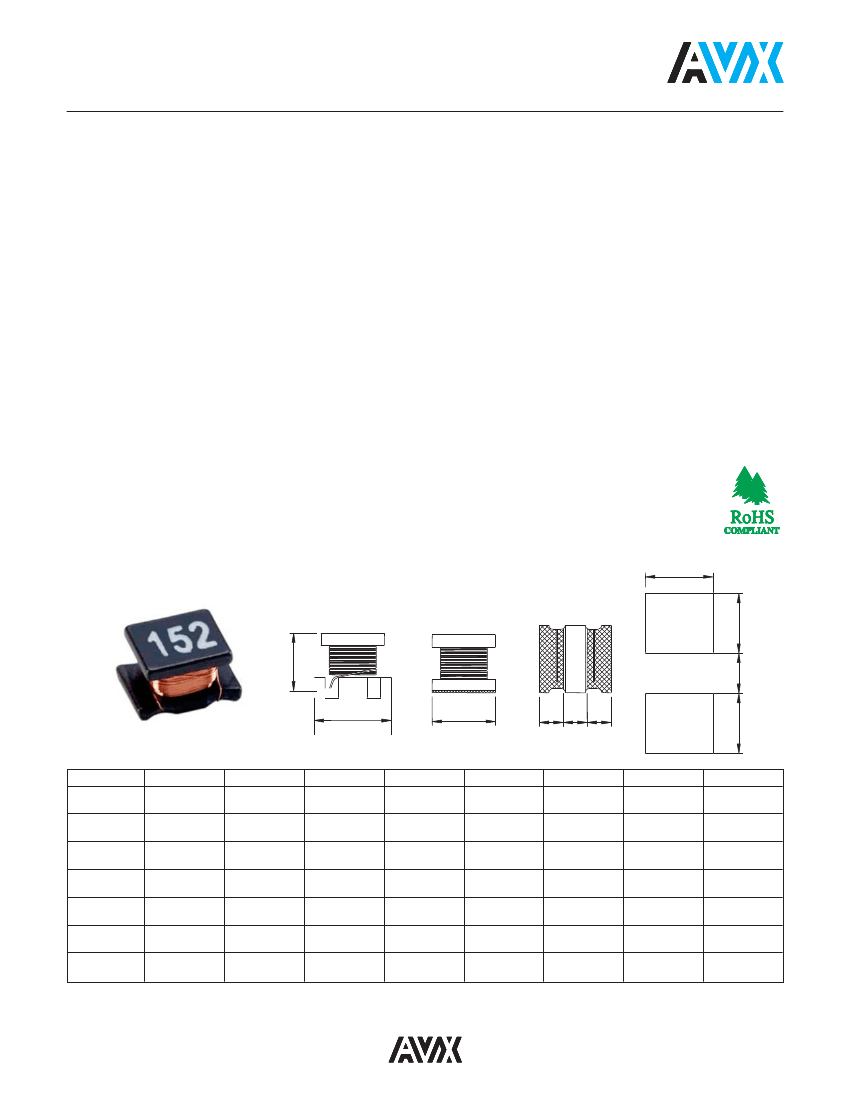

LMax SMD Power Inductor

LMMN Series – Miniature Style M

FEATURES

• The miniature chip inductors is wound on a special ferrite core.

• 0302/ 03A2/ 0403 are high Q value at high frequency and low

DC resistance.

• 03A2/ 0403/ 0605 are low DC resistance, high current

capacity, and high impedance characteristics. They are

excellent for using as a choke coil in DC power supply circuits.

CHARACTERISTICS FOR

0202/02A2/02B2/0302

• Rated DC Current (Isat): The current when the inductance

becomes 30% typical its initial value (Ta=25°C)

• TemperatureRise Current(I rms): The actual currentwhen the

temperature of coil becomes A T=40°C (Ta=25°C)

• Operating temperature range: -40

105°C

APPLICATIONS

• Pagers, Cordless Phone

• High Frequency Communication Products

• Personal Computers

• Disk Drives And Computer Peripherals

• DC Power Supply Circuits

INDUCTANCE AND RATED

CURRENT RANGES

• 0202

1.00

10µH

2.80

0.65A

• 02A2

1.00

10µH

3.70

0.90A

• 02B2

1.00

22µH

2.30

0.51A

• 0302

1.00

100µH

1.00

0.1A

• 03A2

1.00

560µH

0.445

0.04A

• 0403

1.00

2200µH

0.50

0.03A

• 0302 (C) 0.47

120µH

3.40

0.17A

• 03A2 (C) 1.00

560µH

1.00

0.06A

• 0403 (C) 1.00

470µH

1.08

0.09A

• 0605 (C) 0.12

10000µH 6.00

0.05A

• Electrical specifications at 25°C

CHARACTERISTICS

Except 0202/02A2/02B2/0302

• Rated DC Current: The current when the inductance becomes

10% lower than its initial value or the current when the

temperature of coil increases A T20°C. The smaller one is

defined as Rated DC Current. (Ta=25°C)

• Operating temperature range: -40

85°C

DIMENSIONS

PAD

LAYOUT

mm (inches)

2.50 ± 0.20

0202

(0.098 ± 0.008)

2.50 ± 0.20

02A2

(0.098 ± 0.008)

2.50 ± 0.20

02B2

(0.098 ± 0.008)

3.20 ± 0.30

0302 / 0302 (C)

(0.126 ± 0.012)

3.20 ± 0.30

03A2 / 03A2 (C)

(0.126 ± 0.012)

4.50 ± 0.30

0403 / 0403 (C)

(0.177 ± 0.012)

5.70 ± 0.30

0605 (C)

(0.224 ± 0.012)

Type

2.00 ± 0.20

(0.079 ± 0.008)

2.00 ± 0.20

(0.079 ± 0.008)

2.50 ± 0.20

(0.098 ± 0.008)

2.50 ± 0.20

(0.098 ± 0.008)

2.50 ± 0.20

(0.098 ± 0.008)

3.20 ± 0.20

(0.126 ± 0.008)

5.00 ± 0.30

(0.197 ± 0.012)

1.00 max.

(0.039)

1.25 max.

(0.049)

1.05 max.

(0.041)

1.55 ± 0.30

(0.061 ± 0.012)

2.00 ± 0.30

(0.079 ± 0.012)

2.60 ± 0.30

(0.102 ± 0.012)

4.70 ± 0.50

(0.185 ± 0.020)

0.40 ± 0.20

(0.016 ± 0.008)

0.40 ± 0.20

(0.016 ± 0.008)

0.85 ref

(0.033)

1.05 ± 0.30

(0.041 ± 0.012)

1.05 ± 0.30

(0.041 ± 0.012)

1.00 min.

(0.039)

1.30 min.

(0.051)

1.00 min.

(0.039)

1.00 min.

(0.039)

0.85 ref

(0.033)

1.05 ± 0.30

(0.041 ± 0.012)

1.05 ± 0.30

(0.041 ± 0.012)

1.00 min.

(0.039)

1.70 min.

(0.067)

2.10

(0.083)

2.10

(0.083)

2.50

(0.098)

2.00

(0.079)

2.00

(0.079)

3.00

(0.118)

5.00

(0.197)

0.90

(0.035)

0.90

(0.035)

1.20

(0.047)

1.50

(0.059)

1.50

(0.059)

2.00

(0.079)

2.00

(0.079)

0.80

(0.031)

0.80

(0.031)

0.80

(0.031)

1.00

(0.039)

1.00

(0.039)

1.20

(0.047)

2.00

(0.079)
