REVISION Q
DO NOT
SCALE FROM
THIS PRINT
HTSS-1XX-XX-XX-D-XX-XX
No OF POSITIONS
-02 (STRAIGHT ONLY)
-03 THRU -18, -20, -24,
-25, -28, -30, -32 & -36
LEAD STYLE
-01,-02,-03 (SEE TABLE 1)
-04, -05 (SEE TABLE 2)
((No OF POS x .100) + .150) REF
[2.54] [3.81]
((No OF POS x .100) + .050) REF
[2.54] [1.27]
02 04
C
L
POLARIZATION OPTION
-XX: INDICATES POSITION OMITTED
OPTION
BLANK: STRAIGHT (STYLES -04 & -05 N/A)
-RA: RIGHT ANGLE (STYLES -01, -02 & -03 N/A)
-LL: LOCKING LEAD (STRAIGHT ONLY)
-LA: -RA OPTION WITH -LL OPTION
(SEE TUBE TABLE FOR PACKAGING)
ROW SPECIFICATION
-D: DOUBLE ROW
(USE HTSS-XX-D)
.100 2.54 REF
.250 6.35
REF
01
03
.365 9.27
REF
.100 2.53
POS #1 INDICATOR
HTSS-111-01-XX-D-LL SHOWN
.160[4.06] REF (-03 POS)
.200[5.08] REF (ALL OTHER POS)
.165 4.19 REF
GOLD PLATE
(SEE NOTE 3)

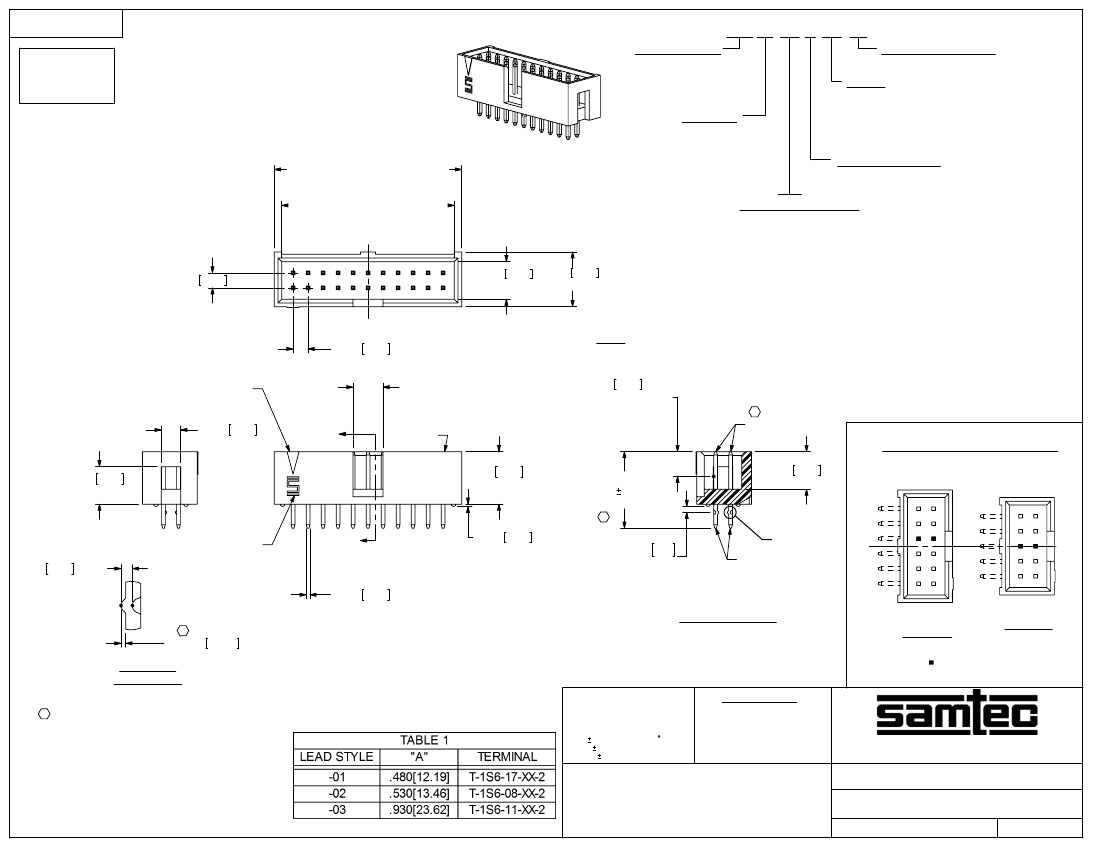

FIG 1
PLATING SPECIFICATION
-G: GOLD, 10 Au / 50 Ni MIN ON CONTACT, 3 Au / 50 Ni MIN ON TAIL
-T: MATTE TIN CONTACT AND TAIL
-S: SELECTIVE, 30 Au / 50 Ni MIN ON CONTACT, MATTE TIN TAIL
-L: LIGHT SELECTIVE, 10 Au / 50 Ni MIN ON CONTACT, MATTE TIN TAIL
-H: HEAVY GOLD, 30 Au / 50 Ni MIN ON CONTACT, 3 Au / 50 Ni MIN ON TAIL
-F: FLASH SELECTIVE, 3 Au / 50 Ni MIN ON CONTACT, MATTE TIN TAIL
-TM: MATTE TIN CONTACT AND TAIL
-SM: SELECTIVE, 30 Au / 50 Ni MIN ON CONTACT, MATTE TIN TAIL
-LM: LIGHT SELECTIVE, 10 Au / 50 Ni MIN ON CONTACT, MATTE TIN TAIL
-FM: FLASH SELECTIVE, 3 Au / 50 Ni MIN ON CONTACT, MATTE TIN TAIL
-SS: STRIPE SELECTIVE, 30 Au / 50 Ni MIN ON CONTACT, MATTE TIN TAIL
(SEEN NOTE 7)
.130 3.30
REF
.250 6.35
REF
"A"
HTSS-XX-D
.350 8.89
REF
SEE NOTE 4
C
-LL & -LA CRIMP LOCATIONS
"A"
(SEE NOTE 4)
C
.010[0.25]
.000[0.00]
.250 6.35 REF
SEE NOTE 6
*.019 0.48 MIN
"A"
.015 0.38
REF
*.04 1.0
(TYP)
'B'
TERMINAL
(SEE TABLE 1)
C
L
.025 0.64 SQ
REF (TYP)
*.0080 0.203
C
SECTION "A"-"A"
EVEN POS
ODD POS
DETAIL 'B'
SCALE 6 : 1
NOTES:
= CRIMP LOCATION
* DIMENSIONS APPLY WHEN USING -LL OPTION ONLY
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. TERMINAL PUSHOUT FORCE: 3 lbs.
3. ASSEMBLE GOLD PLATED END AS SHOWN.
4. TERMINALS TO BE FLUSH TO .010[.25] BELOW
TOP OF SHROUD.
5. HTSS-1XX-04-XX-D-XA-XX ASSEMBLIES ARE TO
BE PACKAGED IN A PT-1-24-01-40 TUBE WITH
TWO TP-13 PLUGS PER TUBE (ALL POSITIONS).
6. SAMTEC LOGO MAY VARY IN LOCATION.
7. AVAILABLE ON STRAIGHT LEAD STYLES -01, -02, -03
AND ON -RA LEAD STYLE -04. MATES ONLY WITH SSW,
SSQ, SSM, BCS, ESW, ESQ.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 1.5:1
INSULATOR: LCP, UL 94 VO
COLOR: NATURAL
TERMINAL: PHOS BRONZE
F:\DWG\MISC\MKTG\HTSS-1XX-XX-XX-D-XX-XX-MKT.SLDDRW
HIGH TEMP TOP SHROUD TERMINAL STRIP
BY:
BRATCHER 01/20/04
HTSS-1XX-XX-XX-D-XX-XX
SHEET
1
OF
2
REVISION Q
"B" REF
90°
C

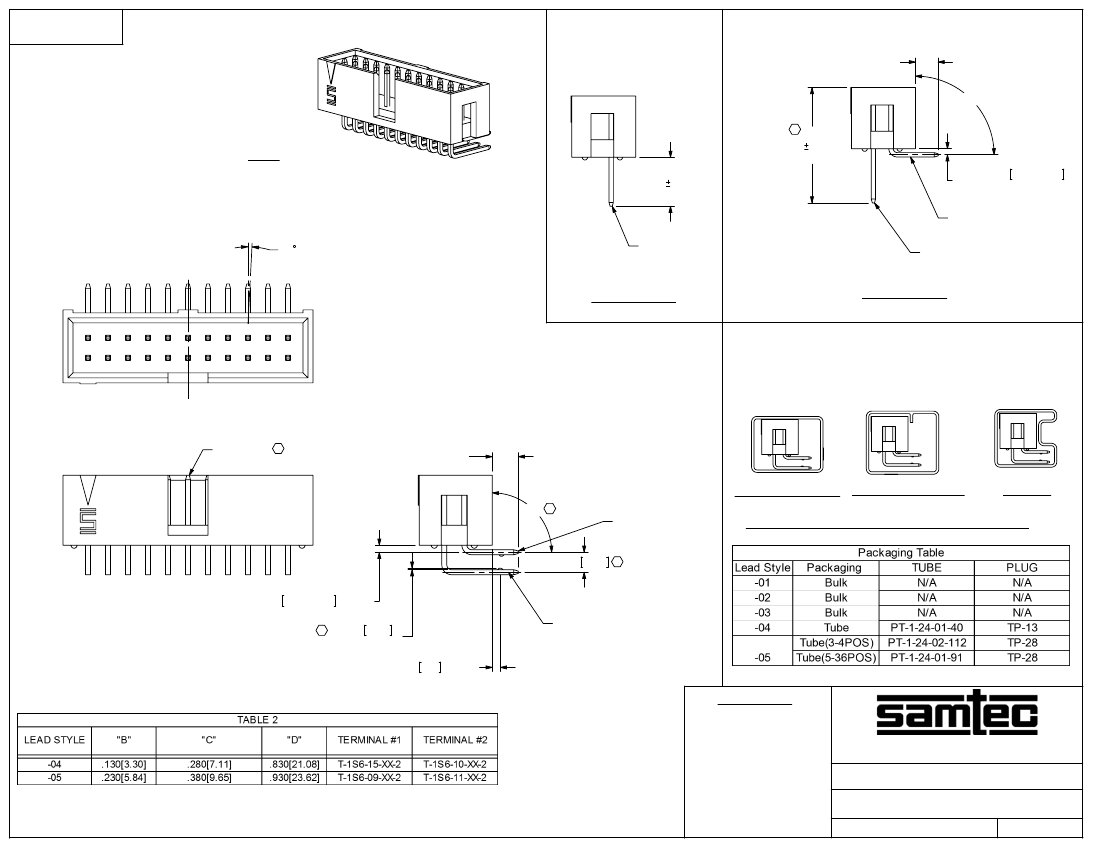

FIG 2
-RA & -LA OPTIONS
(HTSS-111-04-XX-D-LA SHOWN)
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
"C"
.010[0.25]
.000[0.00]
"D"
.010[0.25]
.000[0.00]
(SEE NOTE 4)
.035±.010 0.89±0.25
(TYP)
TERMINAL #1
(SEE TABLE 2)
02
04
C
L
2 MAX SWAY
(EITHER DIRECTION)
TERMINAL #1
(SEE TABLE 2)
TERMINAL #2
(SEE TABLE 2)
IN-PROCESS 1
IN-PROCESS 2
01
03
TUBE: PT-1-24-02-112
PLUG: TP-28
TUBE: PT-1-24-01-91
PLUG: TP-28
TUBE: PT-1-24-01-40
PLUG: TP-13
SEE NOTE 4
C
"B" REF
FOR -05(3-4) POS FOR -05(5-36) POS
90°
C
FOR -04
TERMINAL #1
(SEE TABLE 2)
.100 2.54
C
PACKAGING VIEW FOR LEAD STYLES -04 & -05
.035±.010 0.89±0.25 (TYP)
C
*.0080 0.20
(TYP)
*.04 1.0 (TYP)
TERMINAL #2
(SEE TABLE 2)
* DIMENSIONS APPLY WHEN USING -LA OPTION ONLY
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
HIGH TEMP TOP SHROUD TERMINAL STRIP
F:\DWG\MISC\MKTG\HTSS-1XX-XX-XX-D-XX-XX-MKT.SLDDRW
BY:
BRATCHER 01/20/04
HTSS-1XX-XX-XX-D-XX-XX
SHEET
2
OF
2
