SPECIFICATIONS
Current rating:
Contact material:
Contact plating:
Contact resistance:
Insulation resistance:
Withstanding:
Housing material:
Front shell material:
Front shell plating:
Operating temperature:
1 amp
Copper alloy
Selective gold
35 milliohms max.
500 megohms min.
500VAC for 1 min.
PBT, UL94V-0, black
Steel
Nickel over copper
-55°C to +105°C
A
B
C
C
D
D
E
F
RoHS compliant
Rev.
A PNT
Description
Date
5/6/08
Contacts
26
36
40
50
68
100
Dimensions
A
B
24.00 19.65
30.40 25.96
32.95 28.50
39.30 34.85
50.70 46.35
71.05 66.68
C
09.30
08.50
09.30
09.30
09.30
09.30
D
15.24
21.59
24.13
30.48
41.90
62.23
E
Series
CMDD

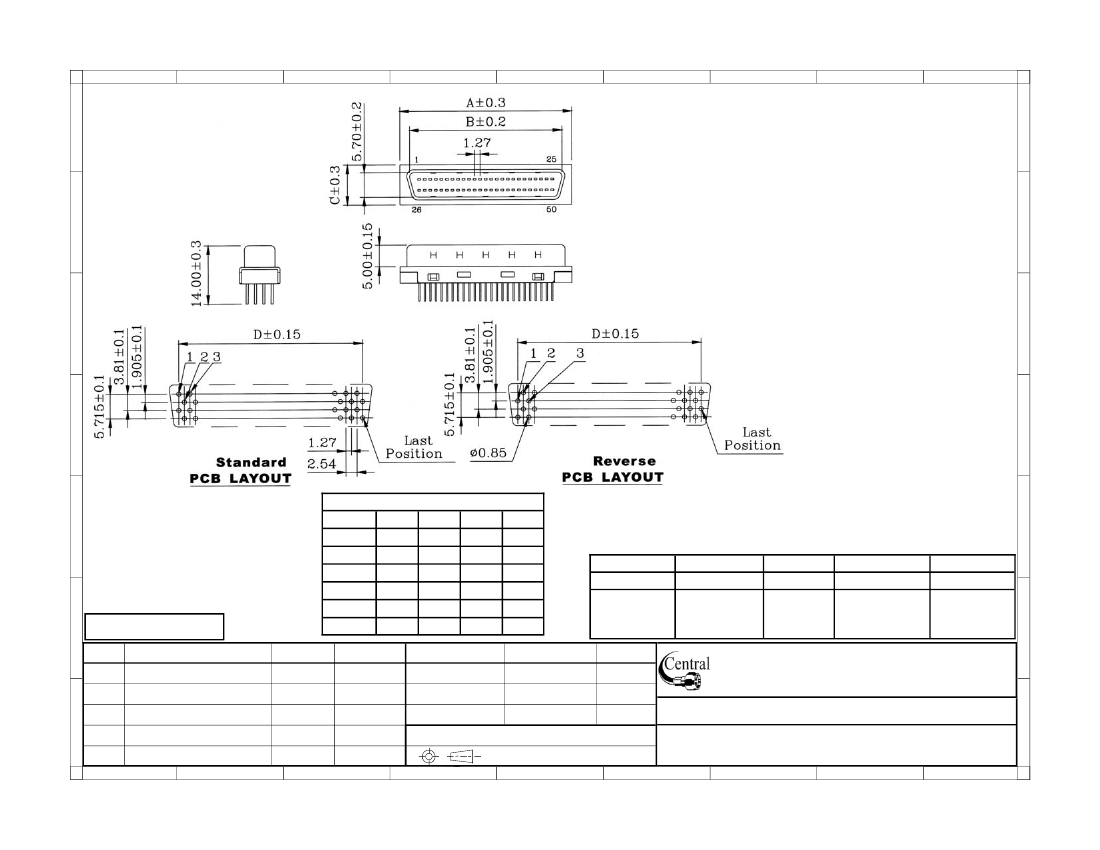

1.27mm SCSI
header
No. of Contacts
Gender
XX
X
26, 36, 40, 50, M=Male
68, 100
F=Female
Contact Plating
PCB Layout
SGXX
X
SG5=5µ” gold
S=Standard
SG15=15µ” gold R=Reverse
SG30=30µ” gold
F
Approved
Greg
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
Date
04/02/07
04/02/07
04/02/07 Part No.:
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
G
CMDD-50-M-SGXX-X
7
8
9
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6
Description: 1.27mm SCSI header, male
