Datasheet> All Categories > A1-02-RSD-57

Preview

A1-02-RSD-57: DescriptionBoard Connector, 2 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT; File Size124KB，1 Pages; ManufacturerAntelec; Websitehttp://www.antelec.fr; Environmental Compliance

Download Datasheet Parametric View All

A1-02-RSD-57 Overview

Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT

A1-02-RSD-57 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8036101312
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	2
UL Flammability Code	94V-0

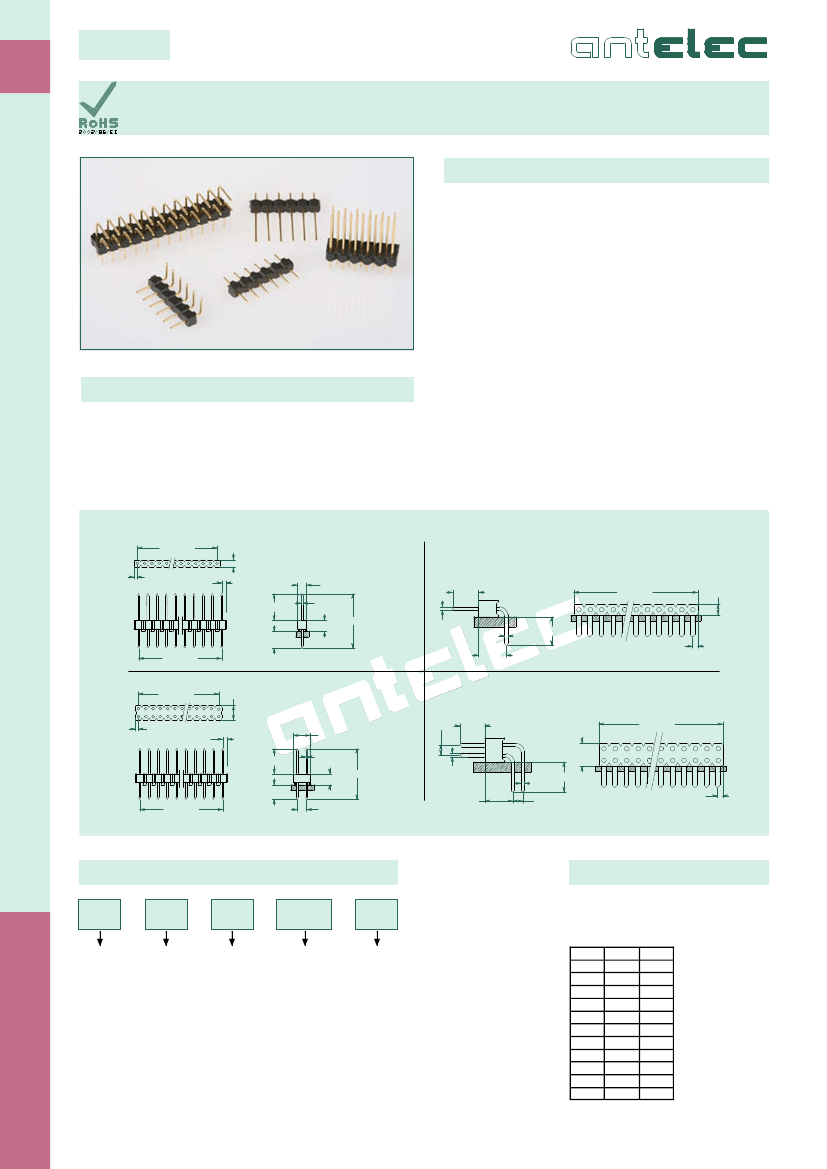

Preview

Download Datasheet

View All

BTB

2.54 mm

www.antelec.fr

Pin header straight & right angle DIP type pin Ø 0.50 mm

Product specifications

Current rating : 3.0 A

Dielectric withstanding voltage : > 1500 Volts RMS

Insulation resistance : > 10^12

Ω

Operating temperature : -55°C to +125°C

Max processing temperature : 260°C during 5 sec

Mechanical cycles : 500 cycles min

Contact : brass

Plating : gold (standard) or tin

Insulator : PCT, UL94V-0

Mates with

A(1 or 2)-XX-BSE

A(1 or 2 or 3)-XX-(BSE-X, TPB or BXE)

A(1 or 2 or 3)-XX-(BSE or BSD)-XX

AGPS1-XX-(BSE or BCZXX or BCZ-TPB)

A(1 or 2)-XX-BSE-CMS-254

N x 2.54

2.45

1 Row, straight

1.2

B (3.7)

2.5

Ø 0.50

2.5

C (3.0)

N x 2.54

3.7

A (9.2)

Ø 0.5

3.7

1 Row, right angle

N x 2.54

2.45

Ø 0.5

3.0

1.2

N x 2.54

5.0

2 Rows, right angle

2 Row, straight

2.54

3.7

N x 2.54

4.95

B (3.7)

Ø 0.50

2.5

C (3.0)

3.7

2.54

A (9.2)

Ø 0.5

3.0

1.2

5.0

1.2

N x 2.54

2.54

Create your part number

Product range

A1

BOARD TO BOARD 2.54

Antelec

1 row

or A2 for

2 rows

XX

Total

number

of contacts

Straight

or C for

right angle

RSD

Type of

Terminals

RSD

(gold)

or RSE for

tin plated

37

Dimension

B = 3.7 mm

(standard),

for other

dimension

see table

(straight

version

only)

Number of pins :

1 row : 1 to 32 pins

2 rows : 2 to 64 pins

A

9.2

10.2

11.4

12.4

13.5

15.2

16.5

17.5

18.6

20.3

23.5

B

3.7

4.7

5.7

6.7

7.7

9.7

10.7

11.7

12.7

14.7

17.7

C

3.0

3.2

3.25

3.3

3.0

3.3

3.4

3.1

3.3

100

info@antelec.fr

tel: +33 (0)1 49 80 14 14

fax: +33 (0)1 49 80 14 15
