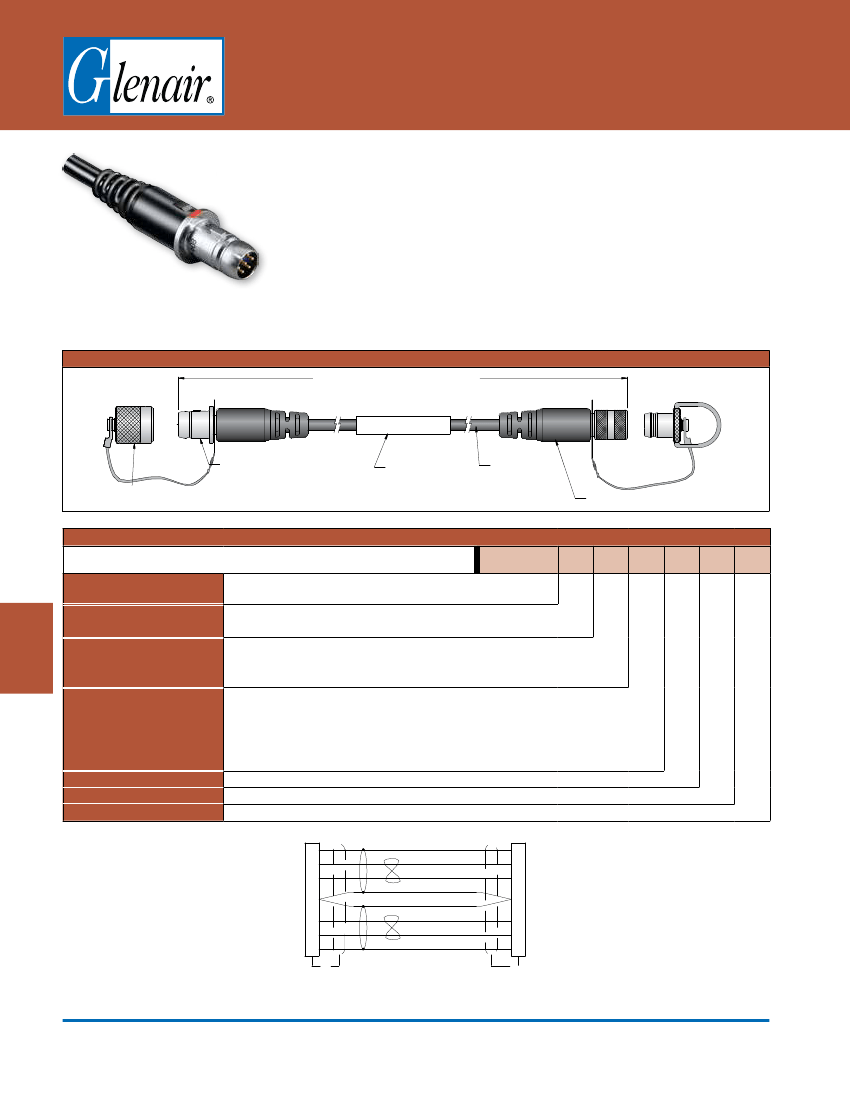

Series 804 eSATA Cordsets
Mighty Mouse Back-to-Back
High-Speed
Push-Pull Connectors
804-070 Ordering Information
Series 804 High-Speed cordsets
For optimal data transmission performance and environmental sealing, choose
Glenair high-speed cordsets. Factory-terminated connectors have their rear
grommets removed to maintain the construction of the matched-impedance pair
cable through the connector for improved high-speed performance. Choose “Back
to Back” versions with Series 80 Mighty Mouse
High-Speed
connectors on both
ends, or cordsets terminated to industry-standard commercial connectors. Order
with or without metal protective covers. All cordsets are 100% electrically tested.
100 Ohm differential parallel pair
cordsets optimized for eSATA,
Ethernet, and USB protocols
804-070: Series 804 Mighty Mouse
High-Speed
eSata Overmolded Cordset
"LENGTH" MIN (SEE P/N DEVELOPMENT)
Series 804
High-Speed
P1
PROTECTIVE COVER,
809-198 OR 667-202
"PART NUMBER"
GLENAIR YYWW 06324
P2
GLENAIR BULK
eSATA CABLE,
963-013
POLYAMIDE OVERMOLD
GLENAIR HIGH-SPEED CONNECTOR,
804-026-06 PLUG OR
804-028-01 RECEPTACLE
6-7 INSERT ARRANGEMENT
(GROMMETS REMOVED)
BRADY LABEL,
LAT-18 OR EQ.
APPROX LOCATION:
CENTER OF CABLE
How To Order
Sample Part Number
Series
P1 Connector
804-070
-A
D
NF
N
A
-48
804-070
= Back-to-Back Series 804 Mighty Mouse eSATA Overmolded
cordset
-A
= Plug with Pin Contacts
-B
= Plug with Socket Contacts
-C
= Receptacle with Pin Contacts
-D
= Receptacle with Socket Contacts
A
= Plug with Pin Contacts
C
= Receptacle with Pin Contacts
N
= No Connector (Single-Ended)
B
= Plug with Socket Contacts
D
= Receptacle with Socket Contacts
Q
P2 Connector
Shell Material / Finish
M
= Aluminum / Electroless Nickel RoHS Compliant
NF
= Aluminum / Cadmium with Olive Drab Chromate
ZNU
= Aluminum / Zinc-Nickel with Black Chromate
MT
= Aluminum / Nickel-PTFE, RoHS Compliant
Z1
= Stainless Steel / Passivated RoHS Compliant
P
= Metal Protective Covers Included
N
= No Covers Supplied
A
(Normal),
B, C, D, E, F
Overall Length In Inches 78" Max
P1
6
1
2
7
5
4
3
WIRING DIAGRAM
DRAIN
WHT 28 AWG
BLU 28 AWG
DRAIN
DRAIN
WHT 28 AWG
ORN 28 AWG
DRAIN
7
5
4
3
P2
6
1
2
Protective Cover
Shell Key Pos. (See Page N3)
Length
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
Q-12
