TYPE 199D
Solid Tantalum Capacitors
Solid-Electrolyte T
ANTALEX
®
Capacitors
Resin-Coated, Radial-Lead
Economy and high performance are combined in the Type
199D resin-coated, radial-lead, solid-electrolyte T
ANTALEX
®
capacitor. These are rugged, reliable capacitors featuring
low leakage current and low dissipation factor.
Type 199D capacitors are available in six miniature case
sizes and three lead styles suitable for a broad range of
consumer, commercial and industrial equipment. All case
sizes are available in standard tape and reel packaging per
EIA-RS-468.
Standard ratings include replacements for Type 196D
capacitors.
PERFORMANCE CHARACTERISTICS
Operating Temperature:
- 55°C to + 85°C. (To + 125°C
with voltage derating.)
Capacitance Tolerance:
At 120 Hz, + 25°C.
±
20%,
±
10%
standard.
±
5%, special order.
Dissipation Factor:
At 120 Hz, + 25°C. Dissipation factor,
as determined from the expression 2πfRC, shall not exceed
the values listed in the Standard Ratings Tables.
DC Leakage Current (DCL Max.):
At + 25
°
C:
Leakage current shall not exceed the values
listed in the Standard Ratings Tables.
At + 85
°
C:
Leakage current shall not exceed 10 times the
values listed in the Standard Ratings Tables.
At + 125
°
C:
Leakage current shall not exceed 15 times
the values listed in the Standard Ratings Tables.
Life Test:
Capacitors shall withstand rated DC voltage
applied at + 85°C for 1000 hours with a circuit resistance
no greater than 3 ohms.
Following the life test:
1. DCL shall not exceed 125% of the initial requirement.
2. Dissipation Factor shall meet the initial requirement.
3. Change in capacitance shall not exceed
±
10%.

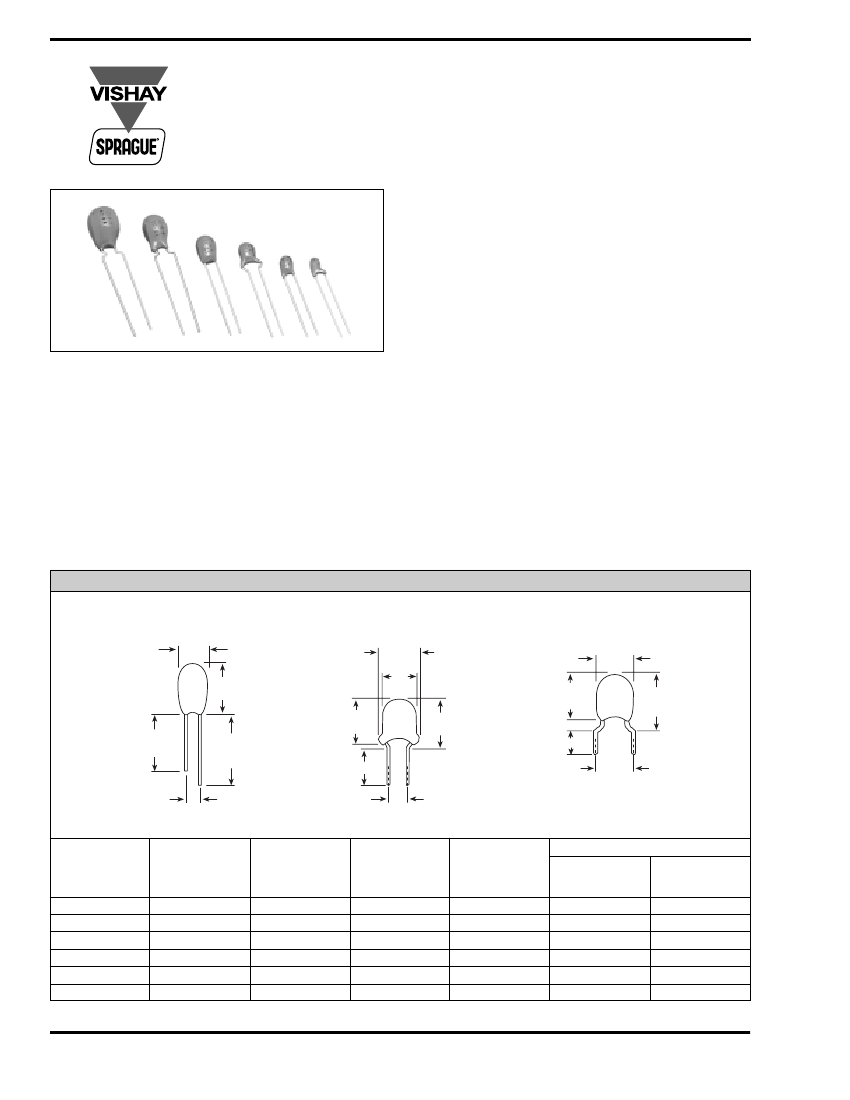

DIMENSIONAL CONFIGURATIONS
[Numbers in brackets indicate millimeters]
Lead Style "A1"
"Long/Short"
D
Max.
Lead Style "B1"
"Hairpin"
0.250
[6.35]
Max.
D
Max.
Lead Style "E2"
"Outside Hockeystick"
D
Max.
L
Max.
L
Max.
Cathode
Length
Anode
Length
Lead Length
L
Max.
H
Max.
Lead Length
S
.200
±
.030
[5.1
±
.76]
S
.100
±
.030
[2.5
±
.76]
H
Max.
S
.100
±
.030
[2.5
±
.76]
LEAD SIZE
CASE
CODE
A
B
C
D
E
F
DIAMETER
D
(Max.)
0.177 [4.40]
0.196 [5.00]
0.216 [5.50]
0.236 [6.00]
0.340 [8.60]
0.380 [9.60]
LENGTH
L
(Max.)
0.280 [7.11]
0.300 [7.62]
0.360 [9.14]
0.400 [10.16]
0.492 [12.50]
0.650 [16.50]
SEATED HEIGHT
H
(Max.)
*
0.340 [8.64]
0.360 [9.14]
0.420 [10.67]
0.460 [11.68]
0.552 [14.02]
0.710 [18.03]
LEAD SPACING
All
All
All
All
E2**
E2**
AWG NO.
24
24
24
24
24
24
NOM. DIA.
0.020 [0.51]
0.020 [0.51]
0.020 [0.51]
0.020 [0.51]
0.020 [0.51]
0.020 [0.51]
* Maximum Seated Height is identical to Maximum Length for units ordered with Lead Style 'A'. ** Lead spacing Tol.
±
.050 ( ).
Vishay Sprague 678 Main Street, Sanford, ME 04073 • Phone (207) 324-4140 • Fax 207-324-7223 • Internet www.vishay.com
132
Major Vishay Brands Dale • Draloric • Foil Resistors • Lite-On PSC • Measurements Group • Roederstein • Sfernice • Siliconix • Sprague • Telefunken • Thin Film • Vitramon
TYPE 199D
STANDARD RATINGS
Max. DCL
@ + 25
°
C
(
µ
A)
Max. DF
@ + 25
°
C
120 Hz
(%)
CAPACITANCE
(
µ
F)
CASE
CODE
PART NUMBER*
CAP. TOL.
±
20%
PART NUMBER*
CAP. TOL.
±
10%
3 WVDC @ + 85
°
C, SURGE = 3.6 V . . . 2 WVDC @ + 125
°
C, SURGE = 2.4 V
4.7
6.8
10.0
15.0
22.0
33.0
47.0
68.0
100.0
150.0
220.0
330.0
470.0
680.0
A
A
A
A
B
B
C
C
D
D
E
E
F
F
199D475X0003A_ _
199D685X0003A_ _
199D106X0003A_ _
199D156X0003A_ _
199D226X0003B_ _
199D336X0003B_ _
199D476X0003C_ _
199D686X0003C_ _
199D107X0003D_ _
199D157X0003D_ _
199D227X0003E_ _
199D337X0003E_ _
199D477X0003F_ _
199D687X0003F_ _
199D475X9003A_ _
199D685X9003A_ _
199D106X9003A_ _
199D156X9003A_ _
199D226X9003B_ _
199D336X9003B_ _
199D476X9003C_ _
199D686X9003C_ _
199D107X9003D_ _
199D157X9003D_ _
199D227X9003E_ _
199D337X9003E_ _
199D477X9003F_ _
199D687X9003F_ _
0.5
0.5
0.5
0.5
0.6
1.0
1.4
2.0
3.0
4.0
5.0
6.0
8.0
10.0
6
6
8
8
8
8
8
8
10
10
10
10
10
10
6.3 WVDC @ + 85
°
C, SURGE = 8 V . . . 4 WVDC @ + 125
°
C, SURGE = 5 V
4.7
6.8
10.0
15.0
22.0
33.0
47.0
68.0
100.0
150.0
220.0
330.0
A
A
B
B
C
C
D
D
D
E
E
F
199D475X06R3A_ _
199D685X06R3A_ _
199D106X06R3B_ _
199D156X06R3B_ _
199D226X06R3C_ _
199D336X06R3C_ _
199D476X06R3D_ _
199D686X06R3D_ _
199D107X06R3D_ _
199D157X06R3E_ _
199D227X06R3E_ _
199D337X06R3F_ _
199D475X96R3A_ _
199D685X96R3A_ _
199D106X96R3B_ _
199D156X96R3B_ _
199D226X96R3C_ _
199D336X96R3C_ _
199D476X96R3D_ _
199D686X96R3D_ _
199D107X96R3D_ _
199D157X96R3E_ _
199D227X96R3E_ _
199D337X96R3F_ _
0.5
0.5
0.6
0.9
1.3
2.0
2.9
4.0
5.0
6.0
7.0
8.0
6
6
8
8
8
8
8
8
10
10
10
10
10 WVDC @ + 85
°
C, SURGE = 13 V . . . 7 WVDC @ + 125
°
C, SURGE = 9 V
3.3
4.7
6.8
10.0
15.0
22.0
33.0
47.0
68.0
100.0
150.0
220.0
A
A
B
B
C
C
D
D
D
E
E
F
199D335X0010A_ _
199D475X0010A_ _
199D685X0010B_ _
199D106X0010B_ _
199D156X0010C_ _
199D226X0010C_ _
199D336X0010D_ _
199D476X0010D_ _
199D686X0010D_ _
199D107X0010E_ _
199D157X0010E_ _
199D227X0010F_ _
199D335X9010A_ _
199D475X9010A_ _
199D685X9010B_ _
199D106X9010B_ _
199D156X9010C_ _
199D226X9010C_ _
199D336X9010D_ _
199D476X9010D_ _
199D686X9010D_ _
199D107X9010E_ _
199D157X9010E_ _
199D227X9010F_ _
0.5
0.5
0.6
1.0
1.5
2.0
3.0
4.0
5.0
6.0
7.0
8.0
6
6
6
8
8
8
8
8
8
10
10
10
16 WVDC @ + 85
°
C, SURGE = 20 V . . . 10 WVDC @ + 125
°
C, SURGE = 12 V
2.2
3.3
4.7
6.8
10.0
15.0
22.0
33.0
47.0
68.0
100.0
150.0
A
A
B
B
C
C
D
D
E
E
F
F
199D225X0016A_ _
199D335X0016A_ _
199D475X0016B_ _
199D685X0016B_ _
199D106X0016C_ _
199D156X0016C_ _
199D226X0016D_ _
199D336X0016D_ _
199D476X0016E_ _
199D686X0016E_ _
199D107X0016F_ _
199D157X0016F_ _
199D225X9016A_ _
199D335X9016A_ _
199D475X9016B_ _
199D685X9016B_ _
199D106X9016C_ _
199D156X9016C_ _
199D226X9016D_ _
199D336X9016D_ _
199D476X9016E_ _
199D686X9016E_ _
199D107X9016F_ _
199D157X9016F_ _
0.5
0.5
0.7
1.0
1.5
2.4
3.5
4.0
5.0
6.0
7.0
8.0
6
6
6
6
8
8
8
8
8
8
10
10
* Insert capacitance tolerance code "X5"; for
±
5% units (special order). To specify Lead Style/Spacing insert the last two characters in the
Part Number: Use the appropriate codes shown in the How to Order and Lead Style/Spacing Table.
