50153-07011-002 datasheet, PDF

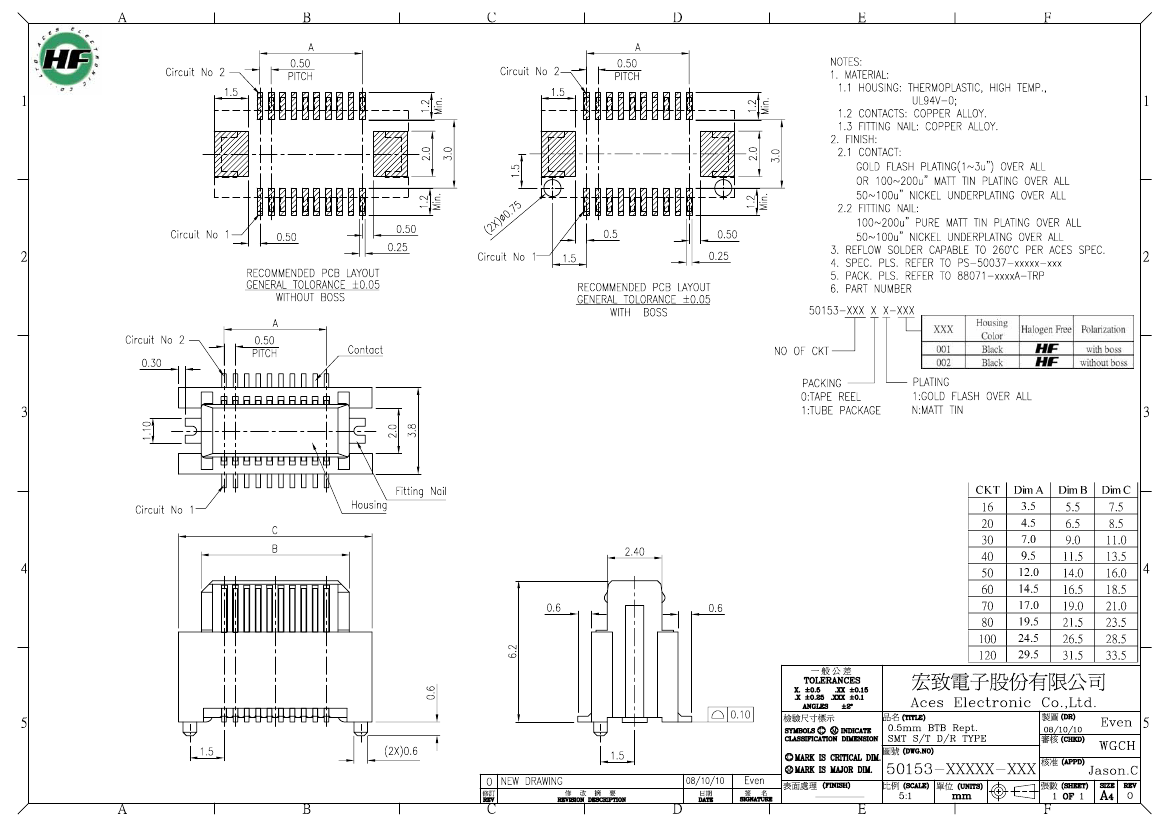

50153-07011-002: DescriptionBoard Connector, 70 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle; CategoryThe connector The connector; File Size144KB，1 Pages; ManufacturerAces Electronics Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

50153-07011-002 Overview

Board Connector, 70 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	305563558
Reach Compliance Code	unknown
ECCN code	EAR99
Board mount options	PEG
body width	0.15 inch
subject depth	0.205 inch
body length	0.827 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	55 mΩ
Dielectric withstand voltage	300VAC V
Durability	30 Cycles
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE
JESD-609 code	e4
Plug contact pitch	0.02 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.191 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	70
