American Power Design, Inc.
"The best high voltage design solution"

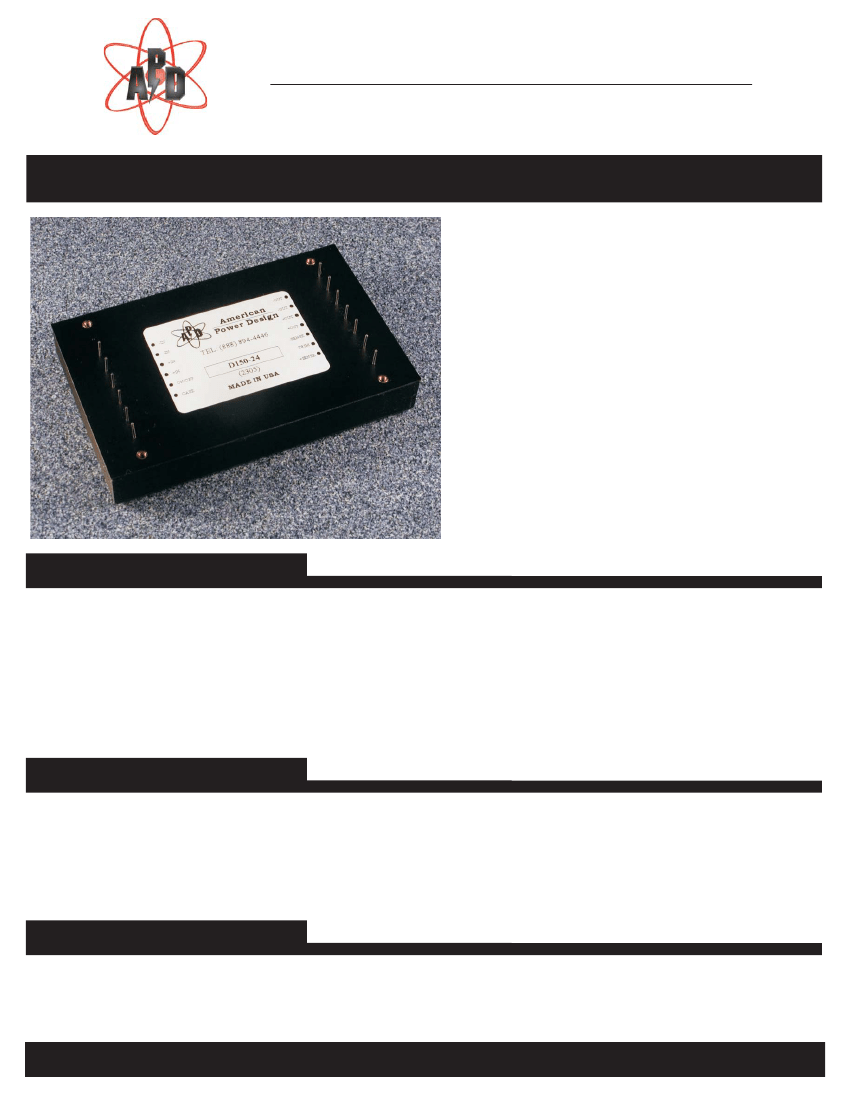

D150 SERIES 150 WATT DC/DC CONVERTERS
FEATURES
*
Customer Selects Output Voltage
*
*
*
*
*
*
*
*
Outputs to 28 Vdc
Wide Input Ranges
(10-20Vdc, 18-36Vdc, 20-60Vdc, 36-72Vdc)
Excellent Line & Load Regulation
Low Output Ripple
130 kHz Switching Frequency
500 Vdc Output Isolation
Continuous Short Circuit Protected
Available in Chassis Mount
The D150 Series of DC/DC converters is available with
single , dual , and triple outputs which are isolated from
the input. They are enclosed in a six-sided metal case.
Their small size, low output ripple, and excellent
regulation characteristics make them ideally suited for
applications such as telecommunications, process
control equipment, and transportation. All models will
tolerate a short circuit indefinitely.
ELECTRICAL SPECIFICATIONS
Voltage Accuracy ............................................................ +/-1%
Line Regulation ........................................................... +/- 0.2%
Load Regulation ............................................................. +/-1%
Output Ripple .......................................................... < 75mVp-p
* 18-36 Vdc input add suffix /A
* 20-60 Vdc input add suffix /B
* 36-72 Vdc input add suffix /C
Output Trim (Single Output) .......................................... +/-10%
Input Filter .............................................................. PI Network
Short Circuit Protection .......................................... Continuous
Switching Frequency ................................................... 130 kHz
Isolation ...................................................................... 500 Vdc
GENERAL SPECIFICATIONS
Temp. Stability ..................................................... +/-0.02%/°C
Temp. (Operating , Case) ...................................... -25 to +85°C
Temp. (Storage) ..................................................-40 to +125°C
* Industrial Operating Temp. Range (
-40 to +85°C) add suffix -I
EMI/RFI...........................................................Six Sided Shield
Cooling .............................................. Convection or Forced Air
Thermal Shut Down ............................................ 100°C/+/- 5°C
* All models designed to meet UL 60950
* For RoHS Compliant part, add suffix /Y
PHYSICAL SPECIFICATIONS
Dimensions ............................................ 3.5 x 5.5 x 0.92 inches
Weight ......................................................................... 20.1 Oz
Case Material ............................................ Black Coated Metal
(With Non-Conductive Base Plate)
Tel (888) 894-4446
WWW.APOWERDESIGN.COM
Fax (603) 898-6534
American Power Design, Inc.
"The best high voltage design solution"
D150 SERIES 150 WATT DC/DC CONVERTERS
REPRESENTATIVE MODEL LISTING
MODEL
NUMBER
D150-5
D150-5/5
D150-12
D150-12/12
D150-15
D150-15/15
D150-24
D150-12/5
D150-15/5
D150-5/12/12
D150-5/15/15
D150-5/A
D150-5/5/A
D150-12/A
D150-12/12/A
D150-15/A
D150-15/15/A
D150-24/A
D150-12/5/A
D150-15/5/A
D150-5/12/12/A
D150-5/15/15/A
D150-5/C
D150-5/5/C
D150-12/C
D150-12/12/C
D150-15/C
D150-15/15/C
D150-24/C
D150-12/5/C
D150-15/5/C
D150-5/12/12/C
D150-5/15/15/C
INPUT SPECIFICATIONS
OUTPUT SPECIFICATION
OUTPUT #1
VOLTAGE
CURRENT
INPUT
VOLTAGE
10V - 20Vdc
10V - 20Vdc
10V - 20Vdc
10V - 20Vdc
10V - 20Vdc
10V - 20Vdc
10V - 20Vdc
10V - 20Vdc
10V - 20Vdc
10V - 20Vdc
10V - 20Vdc
18V - 36Vdc
18V - 36Vdc
18V - 36Vdc
18V - 36Vdc
18V - 36Vdc
18V - 36Vdc
18V - 36Vdc
18V - 36Vdc
18V - 36Vdc
18V - 36Vdc
18V - 36Vdc
36V - 72Vdc
36V - 72Vdc
36V - 72Vdc
36V - 72Vdc
36V - 72Vdc
36V - 72Vdc
36V - 72Vdc
36V - 72Vdc
36V - 72Vdc
36V - 72Vdc
36V - 72Vdc
INPUT
CURRENT
10.4 A
10 A
12.8 A
12.24 A
12.8 A
12.21 A
12.4 A
10 A
10 A
11.2 A
11.2 A
7.4 A
7.4 A
8.8 A
8.8 A
8.8 A
8.8 A
9.5 A
7.3 A
7.3 A
8.6 A
8.6 A
3.7 A
3.7 A
4.4 A
4.4 A
4.4 A
4.4 A
4.7 A
4.4 A
4.4 A
4.6 A
4.6 A
OUTPUT #2
VOLTAGE
CURRENT
OUTPUT #3
VOLTAGE
CURRENT
5 Vdc
+5 Vdc
12 Vdc
+12 Vdc
15 Vdc
+15 Vdc
24 Vdc
+12 Vdc
+15 Vdc
5 Vdc
5 Vdc
5 Vdc
+5 Vdc
12 Vdc
+12 Vdc
15 Vdc
+15 Vdc
24 Vdc
+12 Vdc
+15 Vdc
5 Vdc
5 Vdc
5 Vdc
+5 Vdc
12 Vdc
+12 Vdc
15 Vdc
+15 Vdc
24 Vdc
+12 Vdc
+15 Vdc
5 Vdc
5 Vdc
20 A
10 A
10.4 A
5.2 A
8.3 A
4.15 A
5A
4.1 A
3.2 A
12 A
12 A
30 A
15 A
15 A
7.5 A
12 A
6A
8A
6.15 A
4.8 A
15 A
15 A
30 A
15 A
15 A
7.5 A
12 A
6A
8A
7.5 A
6A
15 A
15 A
-
-5 Vdc
-
-12 Vdc
-
-15 Vdc
-
5 Vdc
5 Vdc
+12 Vdc
+15 Vdc
-
-5 Vdc
-
-12 Vdc
-
-15 Vdc
-
5 Vdc
5 Vdc
+12 Vdc
+15 Vdc
-
-5 Vdc
-
-12 Vdc
-
-15 Vdc
-
5 Vdc
5 Vdc
+12 Vdc
+15 Vdc
-
10 A
-
5.2 A
-
4.15 A
-
10 A
10 A
3A
2.5 A
-
15A
-
7.5 A
-
6A
-
15 A
15 A
4A
3.3 A
-
15A
-
7.5 A
-
6A
-
15 A
15 A
4A
3.3 A
-
-
-
-
-
-
-
-
-
-12Vdc
-15 Vdc
-
-
-
-
-
-
-
-
-
-12Vdc
-15 Vdc
-
-
-
-
-
-
-
-
-
-12Vdc
-15 Vdc
-
-
-
-
-
-
-
-
-
3A
2.5 A
-
-
-
-
-
-
-
-
-
4A
3.3 A
-
-
-
-
-
-
-
-
-
4A
3.3 A
* 18-36 Vdc input add suffix /A
* 20-60 Vdc input add suffix /B
* 36-72 Vdc input add suffix /C
* RoHS Compliant add suffix /Y
PART NUMBERING SYSTEM
D150-5/12/12/A/Y
Product Series
Output Power
Output #1
RoHS Compliant
Alternate Input Range
Output #3
Output #2
Customer Selects Output Voltage
Tel (888) 894-4446
WWW.APOWERDESIGN.COM
Fax (603) 898-6534
