17DM537425 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> 17DM537425

17DM537425: DescriptionCONNECTOR ACCESSORY; CategoryThe connector Connector bracket; File Size441KB，5 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

17DM537425 Overview

CONNECTOR ACCESSORY

17DM537425 Parametric

Parameter Name	Attribute value
Objectid	1925492108
Reach Compliance Code	unknown
Factory Lead Time	18 weeks
Connector bracket type	CONNECTOR ACCESSORY
Manufacturer's serial number	C146A

Preview

Download Datasheet

View All

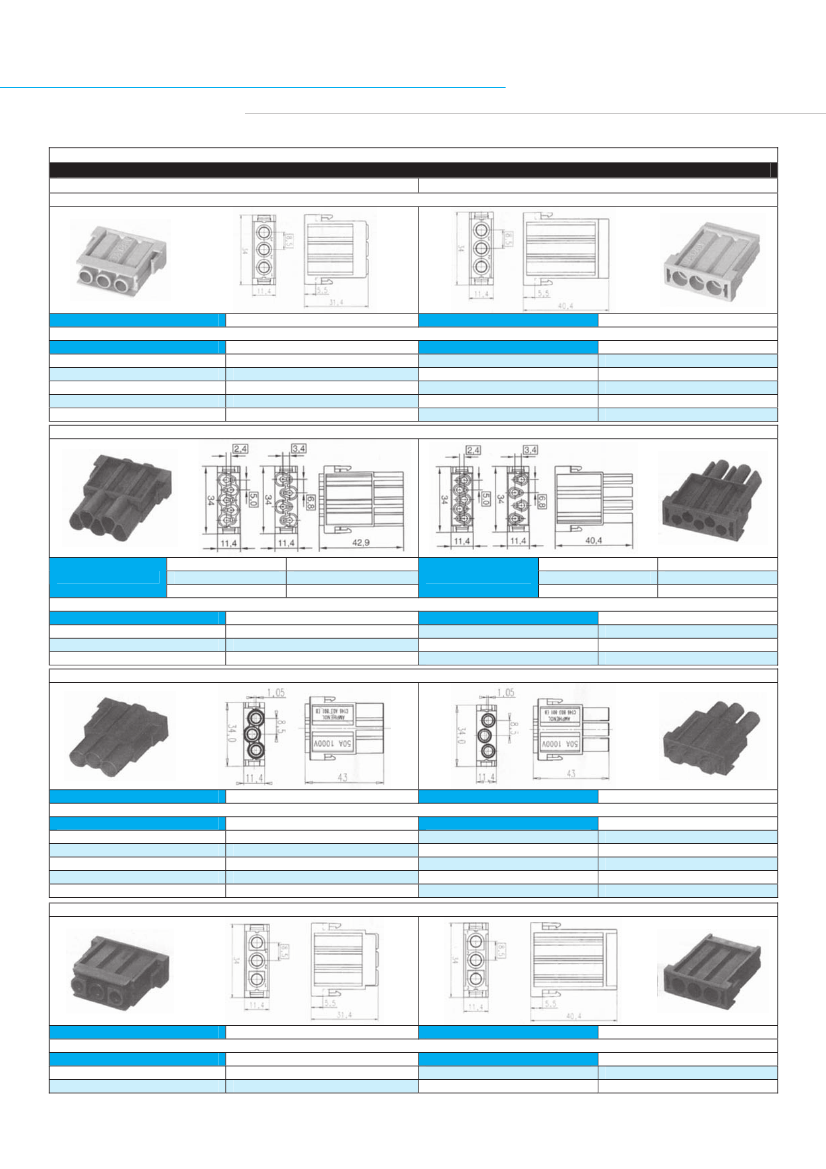

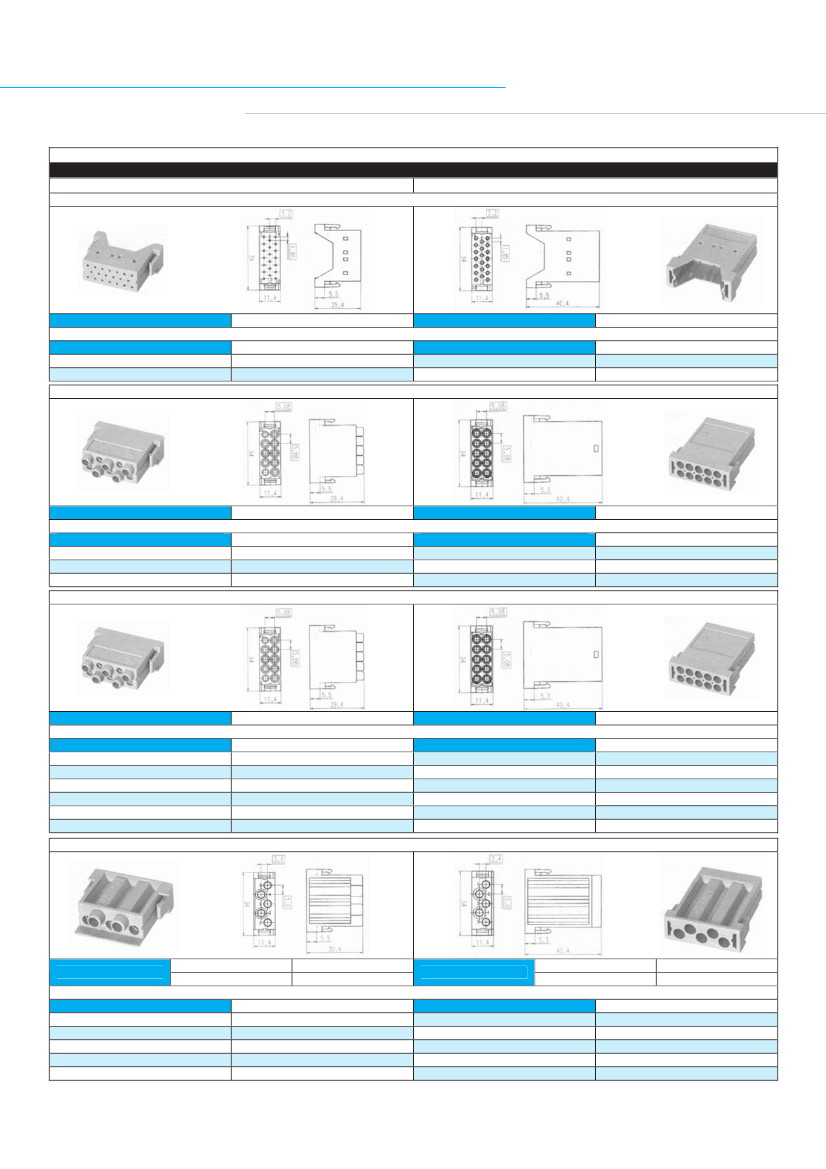

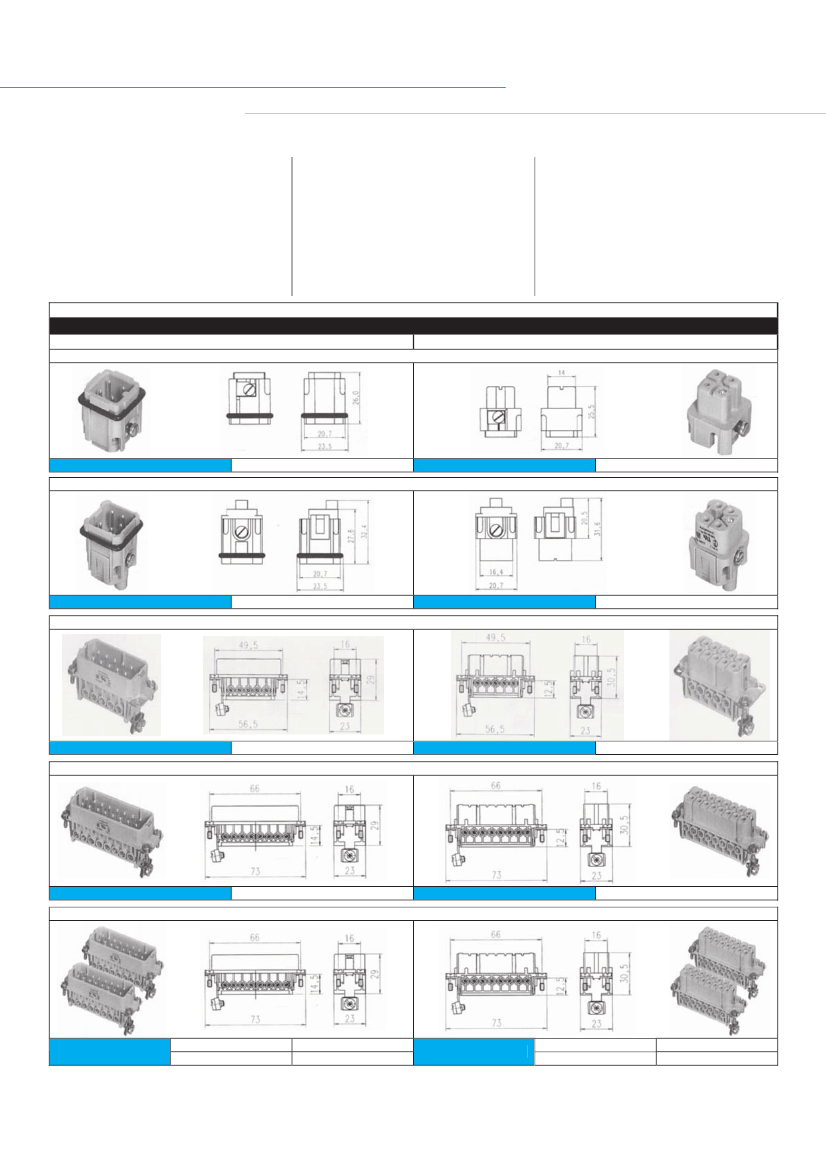

Amphenol

Rectangular Interconnects

C146A

Heavy Duty Industrial Screw Terminal Connector Inserts

- Electrical Rating

- 18 A @ 400 V

- 16 A @ 250 V

- 14 A @ 250 V

Contacts & Electrical Rating

No of Contacts

3/4 + PE

10 + PE

16 + PE

32 + PE

Materials

Insert

3/ 4 + PE

10 + PE

16 + PE

32 + PE

Colour

- PA

- PPO

- Grey

Climatic

Temp Range

Lower Temp

Upper Temp

- -40°C / +100°C

- -40°C / 16 h

- +100°C / 1000 h

Mechanical

Mating Cycles - + 500 Cycles

Termination

Termination Method- Screw

Wire Gauge

- 0.25 – 2.5 mm²

Screw Terminal

Contacts

- Brass

Contact Plating - Silver

A Complete Connector includes Housing (Base & Hood)

pg K-5/K-6

and Insert on

This Page

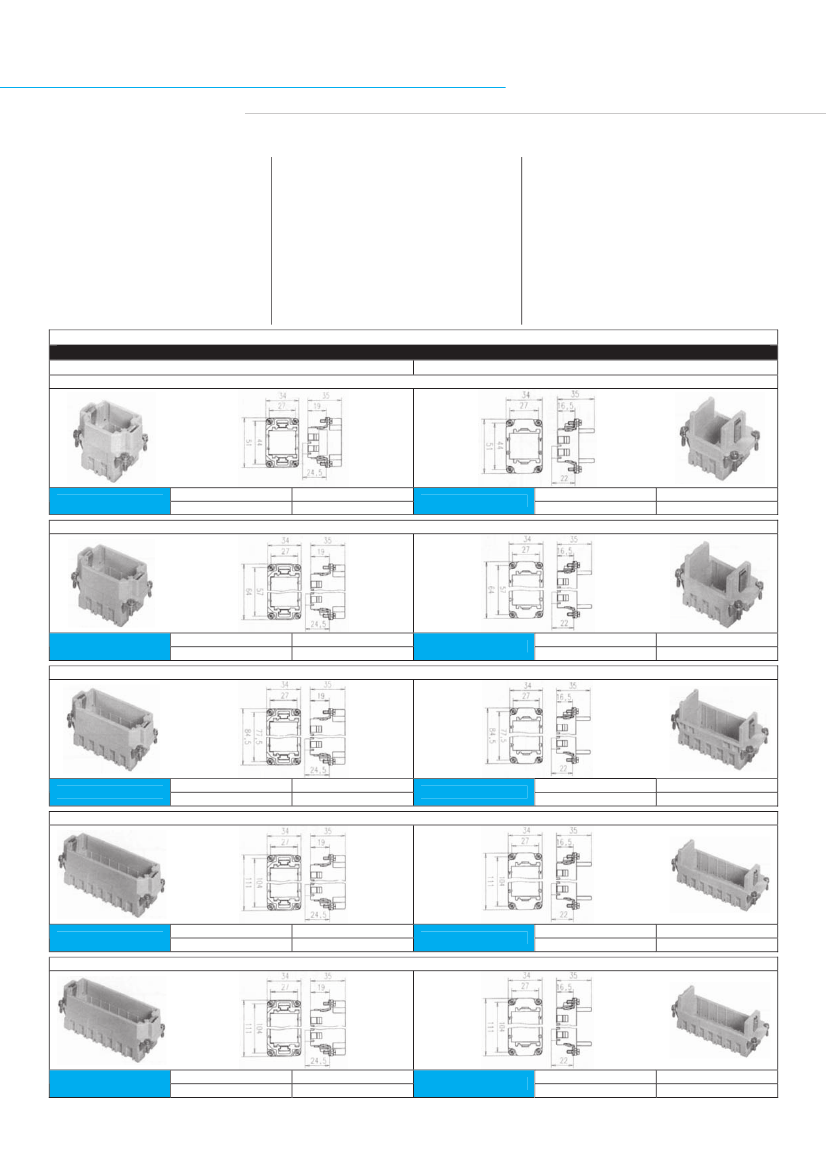

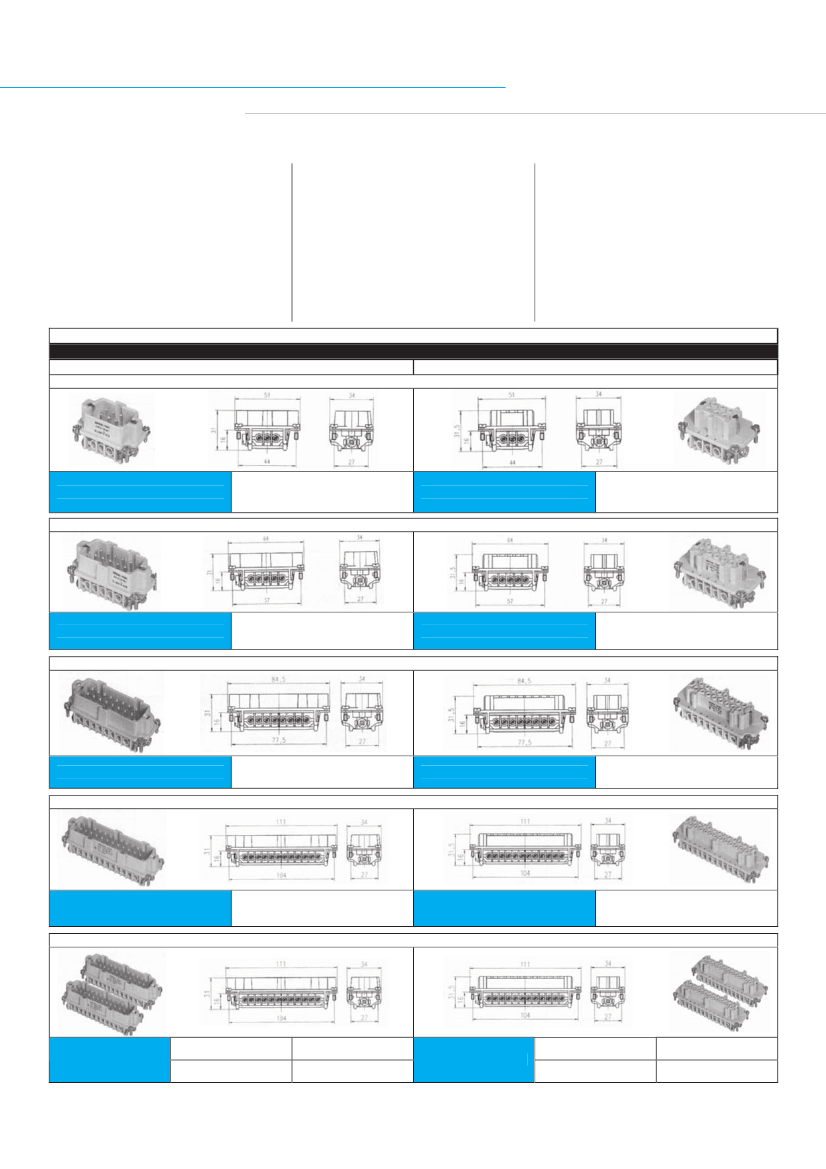

Mating Halves

Male Insert

Female Insert

3 + PE

Part Number

C146 10A003 002 4

4 + PE

Part Number

C146 10B003 002 4

Part Number

C146 10A004 002 4

10 + PE

Part Number

C146 10B004 002 2

Part Number

C146 10A010 102 4

16 + PE

Part Number

C146 10B010 102 4

Part Number

C146 10A016 102 4

Part Number

C146 10B016 102 4

32 + PE (2x16 + PE)

Both part numbers mentioned must be ordered

Part Number

ATE

C146 10A016 102 4

C146 10A016 104 4

Marked 1-16

Marker 17-32

Part Number

C146 10B016 102 4

C146 10B016 104 4

Marked 1-16

Marker 17-32

K-7
