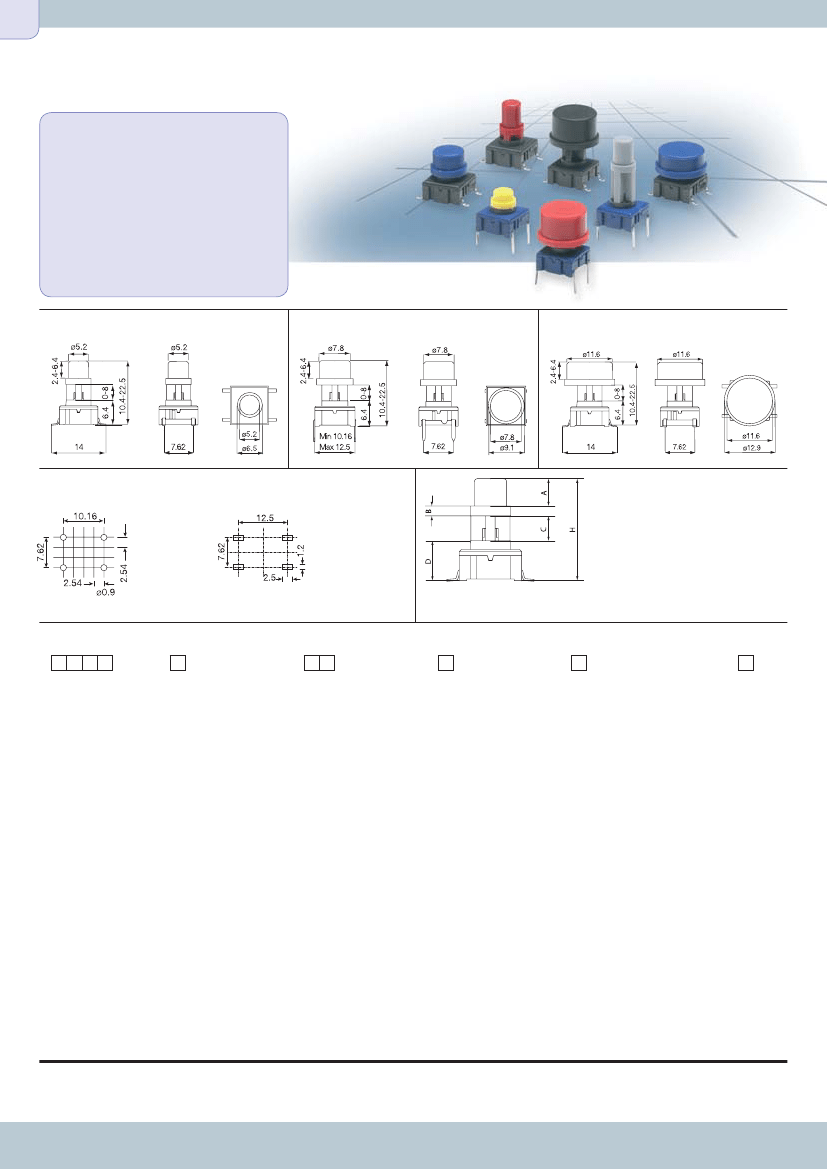

28
varimec
™
Technical Data
■
■
■
■
■
■
through-hole or SMD
50mA/24VDC
single pole/momentar y
10.000.000 operations life time
IP67 sealing
temperature range switch:
low temp: -40/+115ºC
high temp: -40/+160 ºC
■
temperature range cap:
-40/+160 ºC
double variability
Round ø5.2
Round ø7.8
Round ø11.6
PCB Layout
(through-hole)
PCB Layout
(SMD)
The Concept
H=
A=
B=
D=
C=
Overall heights from 10.4-22.5
Variable height from 2.4 to 6.4
A
cannot exceed
H
- 8.0
Fixed recess 1.6
Fixed switch 6.4
Variable from 0-8.1
C = H-A-B-D
All measurements in mm
How to order
Switch
3ETL
3ESH
3ETH
Shape and Size
A
5.2 Round
E
7.8 Round
K
11.6 Round
Colour Codes
60
63
64
68
69
blue
grey
yellow
red
black
Overall Height
H
A
10.4
B
11.0
C
12.0
D
12.5
E
13.0
F
14.0
G
15.0
H
16.0
J
19.0
K
22.5
Height above recess
A
A
2.4
B
3.0
C
3.5
D
4.0
E
4.5
F
5.0
G
5.6
H
6.4
Tape*
R
Cap alone:
Instead of part no. for switch please use 3E- and then same as above
Examples Switch and Cap:
3ETLE64CC = Switch 3ETL, 7.8 Round Cap, Yellow, Overall Height 12.0, Height above recess 3.5, (Height under recess 0.5).
Example Cap Alone:
3E-E63FF = Cap, 7.8 Round, Grey, Overall Height with switch 14.0, Height above recess 5.0, (Height under recess 1.0).
Min. order is 2.000 pcs. per shape, size and heights for parts mentioned above.
For heights not mentioned in the list a start-up fee will apply.
*Only overall height up to 12.5mm can be supplied on tape.
For updates of products and/or changes of specifications please see
www.mec.dk
