KJG6T16N26PN27 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> KJG6T16N26PN27

KJG6T16N26PN27: DescriptionMIL Series Connector, 26 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Plug; CategoryThe connector The connector; File Size82KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

KJG6T16N26PN27 Overview

MIL Series Connector, 26 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Plug

KJG6T16N26PN27 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	ITT
Reach Compliance Code	compliant
Other features	STANDARD: MIL-DTL-38999, LOW PROFILE
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	COPPER ALLOY
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT/FLUID/IMMERSION RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	NICKEL PLATED
Shell material	ALUMINUM ALLOY
Housing size	16
Termination type	CRIMP
Total number of contacts	26
Base Number Matches	1

Preview

Download Datasheet

View All

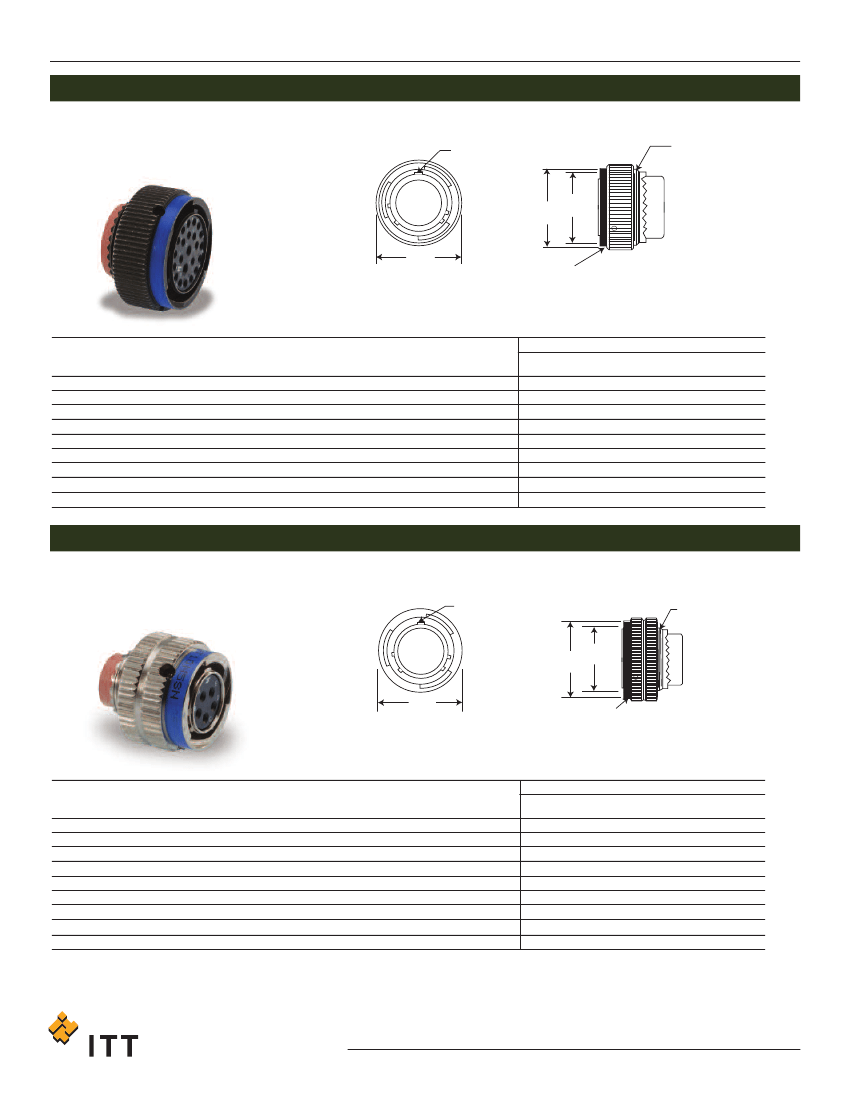

Cannon KJ

MIL-DTL-38999 Series II Connectors

Straight Plug

MS27473

(MS service class E, P, T)

KJ6

POLARIZING

KEYWAY

T THREAD

DIA.

G DIA.

BLUE BAND

(INDICATES REAR

RELEASE CONTACT

RETENTION SYSTEM)

NOTE: For backshell dimensions and configurations, see pages 26 and 28.

Overall Length With Backshells

Straight

Cable Clamp

Potting Max.

1.026 (26.06)

1.555 (39.50)

1.020 (25.91)

1.026 (26.06)

1.555 (39.50)

1.020 (25.91)

1.026 (26.06)

1.555 (39.50)

1.020 (25.91)

1.026 (26.06)

1.790 (45.47)

1.020 (25.91)

1.026 (26.06)

1.790 (45.47)

1.020 (25.91)

1.026 (26.06)

1.790 (45.47)

1.020 (25.91)

1.026 (26.06)

1.790 (45.47)

1.020 (25.91)

1.026 (26.06)

1.930 (49.02)

1.020 (25.91)

1.104 (28.04)

1.930 (49.02)

1.080 (27.43)

Shell

Size

Dia. Max.

.485 (12.32)

.606 (15.39)

.765 (19.43)

.890 (22.61)

1.014 (25.76)

1.140 (28.96)

1.264 (32.11)

1.389 (35.28)

1.514 (38.46)

Dia. Max.

.749 (19.02)

.858 (21.79)

1.030 (26.16)

1.155 (29.34)

1.280 (32.51)

1.405 (35.69)

1.530 (38.86)

1.640 (40.66)

1.765 (44.83)

Dia. Max.

.630 (16.00)

.752 (19.10)

.925 (23.50)

1.050 (26.67)

1.172 (29.77)

1.304 (33.12)

1.435 (36.45)

1.560 (39.62)

1.688 (42.88)

Thread

7/16-28UNEF-2A

9/16-24UNEF-2A

11/16-24UNEF-2A

13/16-20UNEF-2A

15/16-20UNEF-2A

1-1/16-18UNEF-2A

1-3/16-18UNEF-2A

1-5/16-18UNEF-2A

1-7/16-18UNEF-2A

Straight Plug Grounded

MS27484

(MS service class E, P, T)

KJG6

POLARIZING

KEYWAY

T THREAD

DIA.

G DIA.

BLUE BAND

(INDICATES REAR

RELEASE CONTACT

RETENTION SYSTEM)

NOTE: For backshell dimensions and configurations, see pages 26 and 28.

Overall Length With Backshells

Shell

Size

Dia. Max.

.485 (12.32)

.606 (15.39)

.765 (19.43)

.890 (22.61)

1.014 (25.76)

1.140 (28.96)

1.264 (32.11)

1.389 (35.28)

1.514 (38.46)

Dia. Max.

.749 (19.02)

.858 (21.79)

1.030 (26.16)

1.155 (29.34)

1.280 (32.51)

1.405 (35.69)

1.530 (38.86)

1.640 (40.66)

1.765 (44.83)

Dia. Max.

.630 (16.00)

.752 (19.10)

.925 (23.50)

1.050 (26.67)

1.172 (29.77)

1.304 (33.12)

1.435 (36.45)

1.560 (39.62)

1.688 (42.88)

Thread

7/16-28UNEF-2A

9/16-24UNEF-2A

11/16-24UNEF-2A

13/16-20UNEF-2A

15/16-20UNEF-2A

1-1/16-18UNEF-2A

1-3/16-18UNEF-2A

1-5/16-18UNEF-2A

1-7/16-18UNEF-2A

Straight

1.026 (26.06)

1.104 (28.04)

Cable Clamp

1.555 (39.50)

1.790 (45.47)

1.930 (49.02)

Potting Max.

1.020 (25.91)

1.080 (27.43)

Performance Specifications-Pages 3 and 4.

Contacts, Sealing Plugs, Assembly Tools - Pages 22, 28, and 29.

Contact Arrangements - Pages 20 and 21.

Dimensions shown in inches (mm)

Specifications and dimensions subject to change

www.ittcannon.com
