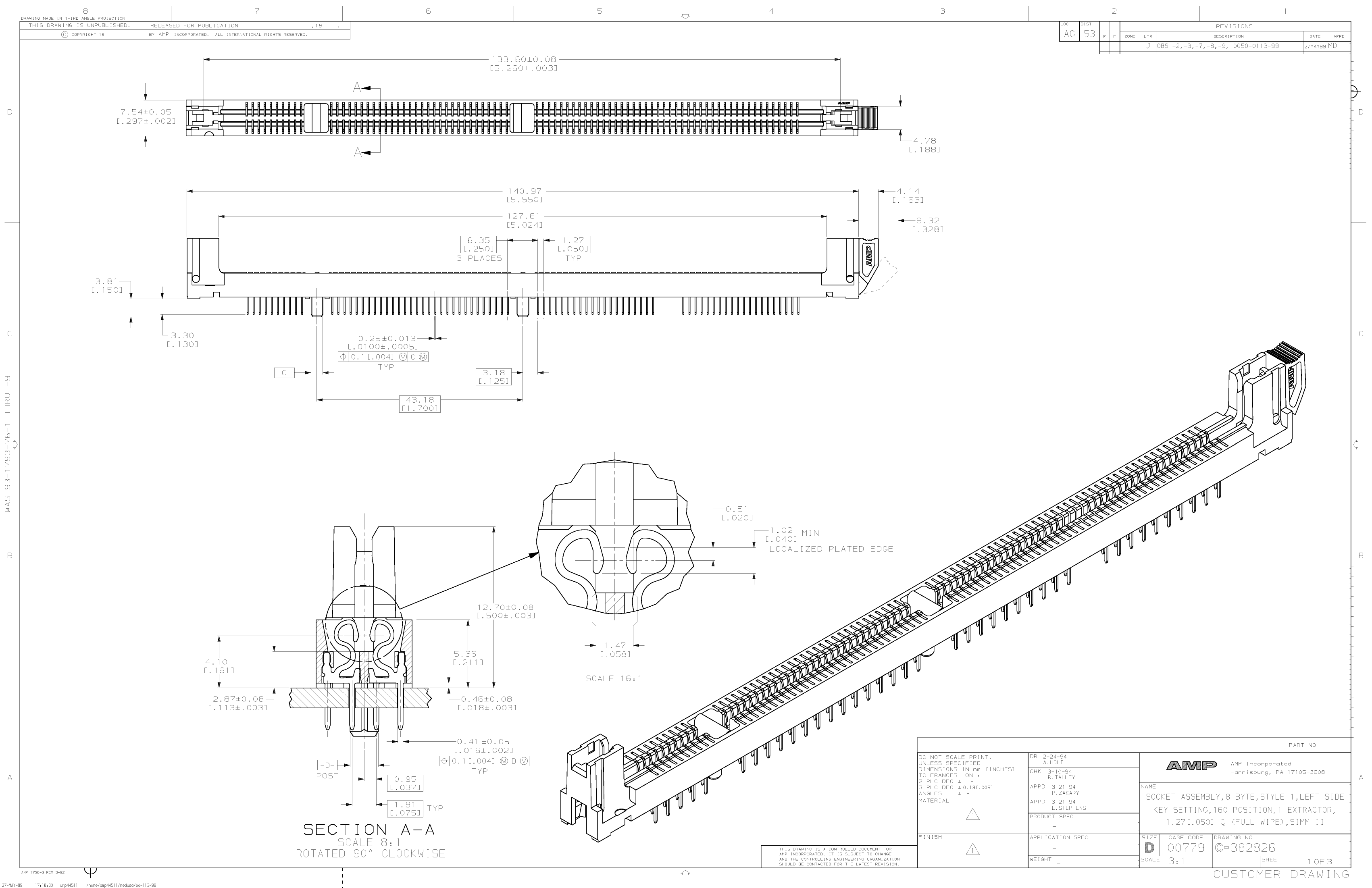

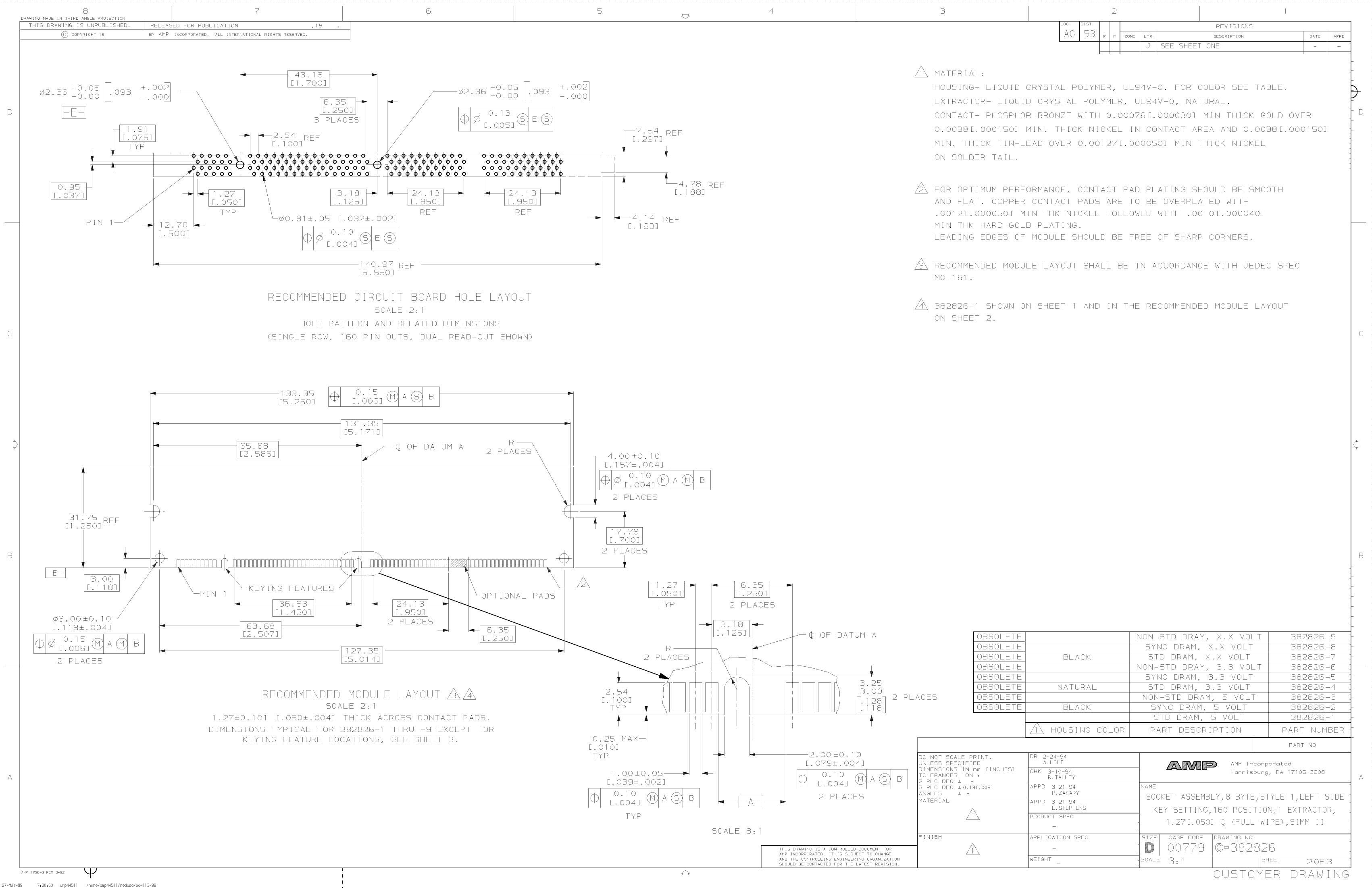

SIMM/DIMM SOCKET,80 CONTACTS,1

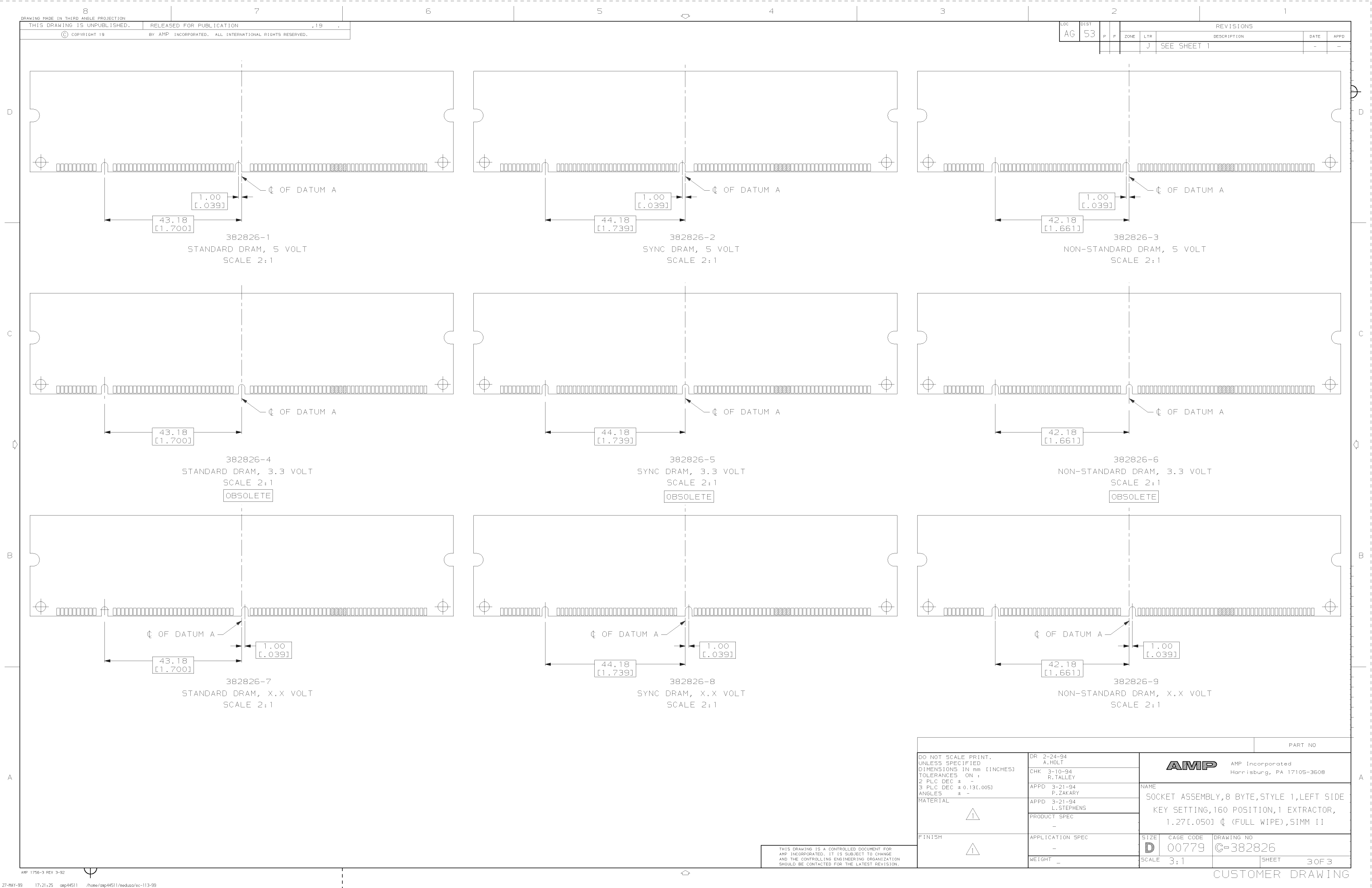

| Parameter Name | Attribute value |
| Maker | TE Connectivity |
| Reach Compliance Code | unknown |
| Other features | SYNC.DRAM,X.XVOLT |
| Board mount options | LOCATING POSTS |
| body width | 0.297 inch |
| subject depth | 0.5 inch |
| body length | 5.876 inch |
| Body/casing type | RECEPTACLE |
| Connector type | CARD EDGE CONNECTOR |
| Contact to complete cooperation | AU ON NI |
| Contact completed and terminated | GOLD |
| Contact material | PHOSPHOR BRONZE |
| Contact resistance | 20 mΩ |
| Contact style | BELLOWED TYPE |
| Dielectric withstand voltage | 1000VAC V |
| Durability | 25 Cycles |
| maximum insertion force | 1.112 N |
| Insulation resistance | 10000000000 Ω |
| insulator material | LIQUID CRYSTAL POLYMER (LCP) |
| Manufacturer's serial number | 382826 |
| Installation option 1 | EJECT LEVER |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 4 |
| Number of rows loaded | 1 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 0.075 mm |
| Plating thickness | 30u inch |
| polarization key | POLAR PIN POSITION |
| Rated current (signal) | 1 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal length | 0.13 inch |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 80 |
| Evacuation force-minimum value | .417 N |
| Base Number Matches | 1 |
| 382826-8 | 382826-9 | 382826-4 | 382826-2 | 382826-1 | 382826-5 | 382826-7 | 382826-6 | |
|---|---|---|---|---|---|---|---|---|
| Description | SIMM/DIMM SOCKET,80 CONTACTS,1 | SIMM/DIMM SOCKET,80 CONTACTS,1 | SIMM/DIMM SOCKET,80 CONTACTS,1 | SIMM/DIMM SOCKET,80 CONTACTS,1 | SIMM/DIMM SOCKET,80 CONTACTS,1 | SIMM/DIMM SOCKET,80 CONTACTS,1 | SIMM/DIMM SOCKET,80 CONTACTS,1 | SIMM/DIMM SOCKET,80 CONTACTS,1 |
| Maker | TE Connectivity | TE Connectivity | TE Connectivity | TE Connectivity | TE Connectivity | TE Connectivity | TE Connectivity | TE Connectivity |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| Other features | SYNC.DRAM,X.XVOLT | NON-STD.DRAM,X.XVOLT | STD.DRAM,3.3VOLT | SYNC.DRAM,5VOLT | STD.DRAM,5VOLT | SYNC.DRAM,3.3VOLT | STD.DRAM,X.XVOLT | NON-STD.DRAM,3.3VOLT |
| Board mount options | LOCATING POSTS | LOCATING POSTS | LOCATING POSTS | LOCATING POSTS | LOCATING POSTS | LOCATING POSTS | LOCATING POSTS | LOCATING POSTS |
| body width | 0.297 inch | 0.297 inch | 0.297 inch | 0.297 inch | 0.297 inch | 0.297 inch | 0.297 inch | 0.297 inch |
| subject depth | 0.5 inch | 0.5 inch | 0.5 inch | 0.5 inch | 0.5 inch | 0.5 inch | 0.5 inch | 0.5 inch |
| body length | 5.876 inch | 5.876 inch | 5.876 inch | 5.876 inch | 5.876 inch | 5.876 inch | 5.876 inch | 5.876 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR |
| Contact to complete cooperation | AU ON NI | AU ON NI | AU ON NI | AU ON NI | AU ON NI | AU ON NI | AU ON NI | AU ON NI |
| Contact completed and terminated | GOLD | GOLD | GOLD | GOLD | GOLD | GOLD | GOLD | GOLD |
| Contact material | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE |
| Contact resistance | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ |
| Contact style | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE |
| Dielectric withstand voltage | 1000VAC V | 1000VAC V | 1000VAC V | 1000VAC V | 1000VAC V | 1000VAC V | 1000VAC V | 1000VAC V |
| Durability | 25 Cycles | 25 Cycles | 25 Cycles | 25 Cycles | 25 Cycles | 25 Cycles | 25 Cycles | 25 Cycles |
| maximum insertion force | 1.112 N | 1.112 N | 1.112 N | 1.112 N | 1.112 N | 1.112 N | 1.112 N | 1.112 N |
| Insulation resistance | 10000000000 Ω | 10000000000 Ω | 10000000000 Ω | 10000000000 Ω | 10000000000 Ω | 10000000000 Ω | 10000000000 Ω | 10000000000 Ω |
| insulator material | LIQUID CRYSTAL POLYMER (LCP) | LIQUID CRYSTAL POLYMER (LCP) | LIQUID CRYSTAL POLYMER (LCP) | LIQUID CRYSTAL POLYMER (LCP) | LIQUID CRYSTAL POLYMER (LCP) | LIQUID CRYSTAL POLYMER (LCP) | LIQUID CRYSTAL POLYMER (LCP) | LIQUID CRYSTAL POLYMER (LCP) |
| Manufacturer's serial number | 382826 | 382826 | 382826 | 382826 | 382826 | 382826 | 382826 | 382826 |
| Installation option 1 | EJECT LEVER | EJECT LEVER | EJECT LEVER | EJECT LEVER | EJECT LEVER | EJECT LEVER | EJECT LEVER | EJECT LEVER |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE | ONE | ONE | ONE | ONE | ONE |
| PCB row number | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of rows loaded | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Maximum operating temperature | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| PCB contact pattern | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED |
| PCB contact row spacing | 0.075 mm | 0.075 mm | 0.075 mm | 0.075 mm | 0.075 mm | 0.075 mm | 0.075 mm | 0.075 mm |
| Plating thickness | 30u inch | 30u inch | 30u inch | 30u inch | 30u inch | 30u inch | 30u inch | 30u inch |
| polarization key | POLAR PIN POSITION | POLAR PIN POSITION | POLAR PIN POSITION | POLAR PIN POSITION | POLAR PIN POSITION | POLAR PIN POSITION | POLAR PIN POSITION | POLAR PIN POSITION |
| Rated current (signal) | 1 A | 1 A | 1 A | 1 A | 1 A | 1 A | 1 A | 1 A |
| Guideline | UL, CSA | UL, CSA | UL, CSA | UL, CSA | UL, CSA | UL, CSA | UL, CSA | UL, CSA |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.13 inch | 0.13 inch | 0.13 inch | 0.13 inch | 0.13 inch | 0.13 inch | 0.13 inch | 0.13 inch |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
| Evacuation force-minimum value | .417 N | .417 N | .417 N | .417 N | .417 N | .417 N | .417 N | .417 N |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
