M8340109K3601GCDSL

Description
Array/Network Resistor, Bussed, Metal Glaze/thick Film, 1.08W, 3600ohm, 50V, 2% +/-Tol, 100ppm/Cel, Through Hole Mount, 9810, SIP
CategoryPassive components    The resistor
File Size93KB,6 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

M8340109K3601GCDSL Overview

Array/Network Resistor, Bussed, Metal Glaze/thick Film, 1.08W, 3600ohm, 50V, 2% +/-Tol, 100ppm/Cel, Through Hole Mount, 9810, SIP

M8340109K3601GCDSL Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Objectid1875407056
package instructionSIP
Reach Compliance Codenot_compliant
YTEOL7.15
structureMolded Case
Component power consumption0.12 W
The first element resistor3600 Ω
JESD-609 codee0
Lead length3.43 mm
lead spacing2.54 mm
Installation featuresTHROUGH HOLE MOUNT
Network TypeBUSSED
Number of components9
Number of functions1
Number of terminals10
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package height4.75 mm
Package length24.97 mm
Package shapeRECTANGULAR PACKAGE
Package formSIP
Package width2.49 mm
method of packingTUBE
Rated power dissipation(P)1.08 W
Rated temperature70 °C
GuidelineMIL-PRF-83401
resistance3600 Ω
Resistor typeARRAY/NETWORK RESISTOR
size code9810
surface mountNO
technologyMETAL GLAZE/THICK FILM
Temperature Coefficient100 ppm/°C
Terminal surfaceTin/Lead (Sn63Pb37)
Terminal shapeFLAT
Tolerance2%
Operating Voltage50 V

M8340109K3601GCDSL Preview

MSM (Military M83401/04 to /09)
www.vishay.com
Vishay Dale
Thick Film Resistor Networks, Military, MIL-PRF-83401 Qualified,
Type RZ040 to RZ090, Single-In-Line, Molded SIP
FEATURES
• Isolated, bussed and dual terminator schematics available
• MIL-PRF-83401 qualified
• 0.195" (4.95 mm) “A” and 0.350" (8.89 mm) “C” maximum
seated heights
• Thick film resistive elements
• TCR available in “K” (±
(± 300 ppm/°C) characteristic
100
ppm/°C)
or
“M”
• All device leads are hot-solder dipped
• Rugged molded case construction
• Compatible with automatic insertion equipment
• 100 % screen tested per group A, subgroup 1 of
MIL-PRF-83401
• All devices are capable of passing the MIL-STD-202,
method 210, condition D “Resistance to Soldering Heat”
test
• Available in tube pack
STANDARD ELECTRICAL SPECIFICATIONS
POWER
VISHAY
POWER
RATING
DALE
MIL
RATING
MIL
MODEL/
SPEC. SCHEMATIC ELEMENT PACKAGE
STYLE
P
70 °C
PIN NO/
SHEET
P
70 °C
PROFILE
W
W
01 (C)
MSM06C
RZ040
04
03 (G)
05 (H)
01 (C)
MSM08C
RZ050
05
03 (G)
05 (H)
01 (C)
MSM10C
RZ060
06
03 (G)
05 (H)
01 (C)
MSM06A
RZ070
07
03 (G)
05 (H)
01 (C)
MSM08A
RZ080
08
03 (G)
05 (H)
01 (C)
MSM10A
RZ090
09
03 (G)
05 (H)
Notes
(1)
± 2 % standard, ± 1 % and ± 5 % available.
(2)
K = ± 100 ppm/°C; M = ± 300 ppm/°C.
0.20
0.20
0.11
0.20
0.20
0.11
0.20
0.20
0.11
0.12
0.12
0.07
0.12
0.12
0.07
0.12
0.12
0.07
1.00
0.60
0.88
1.40
0.80
1.32
1.80
1.00
1.80
0.60
0.36
0.60
0.84
0.48
0.84
1.08
0.60
1.08
RESISTANCE
RANGE
10 to 1M
10 to 1M
Consult factory
10 to 1M
10 to 1M
Consult factory
10 to 1M
10 to 1M
Consult factory
10 to 1M
10 to 1M
Consult factory
10 to 1M
10 to 1M
Consult factory
10 to 1M
10 to 1M
Consult factory
TOLERANCE
(1)
±%
1, 2, 5
1, 2, 5
1, 2, 5
1, 2, 5
1, 2, 5
1, 2, 5
1, 2, 5
1, 2, 5
1, 2, 5
1, 2, 5
1, 2, 5
1, 2, 5
1, 2, 5
1, 2, 5
1, 2, 5
1, 2, 5
1, 2, 5
1, 2, 5
TEMPERATURE
COEFFICIENT
(2)
(-55 °C to +125 °C)
± ppm/°C
100, 300
100, 300
100, 300
100, 300
100, 300
100, 300
100, 300
100, 300
100, 300
100, 300
100, 300
100, 300
100, 300
100, 300
100, 300
100, 300
100, 300
100, 300
0.6
0.5
0.4
1.1
0.9
0.7
WEIGHT
g
Revision: 10-Sep-15
Document Number: 31514
1
For technical questions, contact:
ff2aresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MSM (Military M83401/04 to /09)
www.vishay.com
Vishay Dale
GLOBAL PART NUMBER INFORMATION
New Global Part Numbering: M8340107K1003GCD03 (preferred part numbering format)
M
MIL
STYLE
8
3
4
0
1
0
7
K
1
0
0
3
G
C
D
0
3
SPEC SHEET
04
= 6 pin, “C” profile
05
= 8 pin, “C” profile
06
= 10 pin, “C” profile
07
= 6 pin, “A” profile
08
= 8 pin, “A” profile
09
= 10 pin, “A” profile
07
SPEC SHEET
CHARACTERISTIC
K
= 100 ppm
M
= 300 ppm
RESISTANCE
VALUE
3 digit significant
figure, followed
by a multiplier
10R0
= 10
3302
= 33 k
1004
= 1 M
1003
RESISTANCE
VALUE
TOLERANCE
CODE
F
=±1%
G
=±2%
J
=±5%
SCHEMATIC
C
= Bussed
G
= Isolated
PACKAGING
D03
=
Tin/lead, tube
DSL
=
Tin/lead, tube,
single lot
date code
D03
PACKAGING
M83401
Historical Part Number example: M8340107K1003GC (will continue to be accepted)
M83401
MIL
STYLE
K
CHARACTERISTIC
G
TOLERANCE
CODE
C
SCHEMATIC
New Global Part Numbering: M8340104KA001GHD03 (preferred part numbering format)
M
MIL
STYLE
8
3
4
0
1
0
4
K
A
0
0
1
G
H
D
0
3
SPEC SHEET
04
= 6 pin, “C” profile
05
= 8 pin, “C” profile
06
= 10 pin, “C” profile
07
= 6 pin, “A” profile
08
= 8 pin, “A” profile
09
= 10 pin, “A” profile
04
SPEC SHEET
CHARACTERISTIC
K
= 100 ppm
M
= 300 ppm
RESISTANCE
VALUE
Per std. MIL Spec
(see Impedance
Codes table)
TOLERANCE
CODE
F
=±1%
G
=±2%
J
=±5%
SCHEMATIC
H
= Dual
terminator
PACKAGING
D03
=
Tin/lead, tube
DSL
=
Tin/lead, tube,
single lot
date code
D03
PACKAGING
M83401
Historical Part Number example: M8340104KA001GH (will continue to be accepted)
M83401
MIL
STYLE
K
CHARACTERISTIC
A001
RESISTANCE
VALUE
G
TOLERANCE
CODE
H
SCHEMATIC
Note
• For additional information on packaging, refer to the Through Hole Network Packaging document (www.vishay.com/doc?31542).
DIMENSIONS
in inches (millimeters)
“A” Profile
0.030 + 0.005
- 0.015
(0.762 + 0.127
- 0.381)
Pin # 1
0.040 + 0.009
- 0.015
(1.02 + 0.229
- 0.381)
0.100 ± 0.005
(2.54 ± 0.127)
Non-Accumulative
A
0.187 + 0.008
- 0.010
(4.75 + 0.203
- 0.254)
0.135 + 0.015
- 0.010
(3.43 + 0.381
- 0.254)
“C” Profile
0.030 + 0.005
- 0.015
(0.762 + 0.127
- 0.381)
0.040 + 0.009
- 0.015
(1.02 + 0.229
- 0.381)
0.100 ± 0.005
(2.54 ± 0.127)
Non-Accumulative
A
Pin # 1
0.342 + 0.008
- 0.010
(8.69 + 0.203
- 0.254)
0.017 ± 0.004
(0.432 ± 0.102)
B
C Equal Space
0.017 ± 0.004
(0.432 ± 0.102)
B
C Equals Spaces
0.135 + 0.015
- 0.010
(3.43 + 0.381
- 0.254)
0.098 max.
(2.49 max.)
0.098 max.
(2.49 max.)
VISHAY DALE MODEL
MSM06
MSM08
MSM10
A
0.583 ± 0.015
(14.81 ± 0.381)
0.783 ± 0.015
(19.89 ± 0.381)
0.983 ± 0.015
(24.97 ± 0.381)
B
0.500
(12.70)
0.700
(17.78)
0.900
(22.86)
C
5
7
9
0.012 ± 0.004
(0.305 ± 0.102)
0.012 ± 0.004
(0.305 ± 0.102)
Revision: 10-Sep-15
Document Number: 31514
2
For technical questions, contact:
ff2aresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MSM (Military M83401/04 to /09)
www.vishay.com
Vishay Dale
MECHANICAL SPECIFICATIONS
MSM SERIES
50
< 50 ppm
200 min.
10 000M
-55 to +125
-55 to +150
Body
Terminals
Solderability
Molded epoxy
Copper alloy, hot-solder dipped
Per MIL-PRF-83401
TECHNICAL SPECIFICATIONS
PARAMETER
Maximum Operating Voltage
Voltage Coefficient of Resistance
Dielectric Strength
Insulation Resistance
Operating Temperature Range
Storage Temperature Range
UNIT
V
DC
V
eff
V
AC
°C
°C
CAGE CODE: 91637 and 2799A (formerly SH903)
MILITARY IMPEDANCE CODES
CODE
A001
A002
A003
A004
A005
A006
A007
A008
A009
A010
R
1
()
82
120
130
160
180
180
220
220
330
330
R
2
()
130
200
210
260
240
390
270
330
390
470
CODE
A011
A012
A013
A014
A015
A016
A017
A018
A019
(1)
A020
(1)
R
1
()
330
1.5K
3K
180
270
560
560
620
150
1K
R
2
()
680
3.3K
6.2K
270
270
560
1.2K
2.7K
1K
1K
Note
(1)
Offered for the M83401/09 product only
Revision: 10-Sep-15
Document Number: 31514
3
For technical questions, contact:
ff2aresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MSM (Military M83401/04 to /09)
www.vishay.com

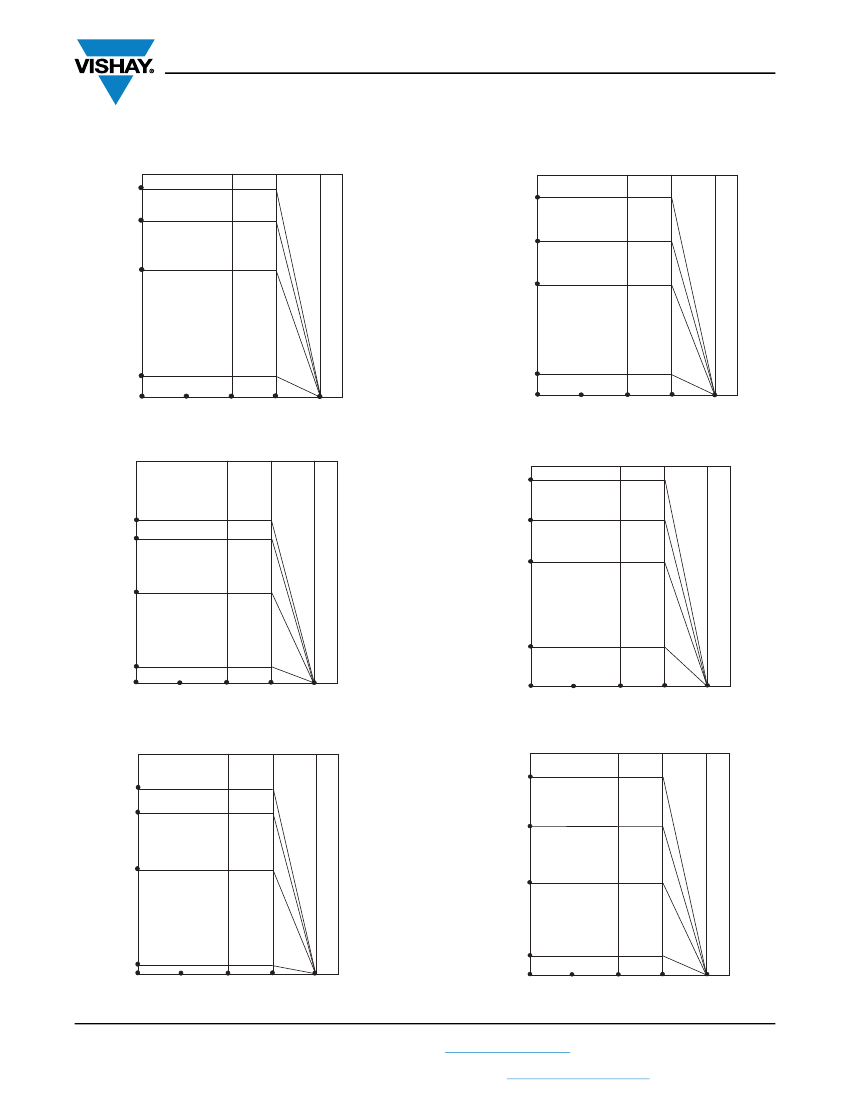

DERATING
01 Schematic
“A” Profile
1.08
MSM10A Package
1.80
MSM10C Package
Power Rating (W)
Vishay Dale
“C” Profile
Power Rating (W)
0.84
MSM08A Package
1.40
MSM08C Package
0.60
MSM06A Package
1.00
MSM06C Package
0.12
- 55
Single Resistor
0.20
Single Resistor
0
+ 25
+ 70
+ 125 + 150
Ambient Temperature °C
- 55
0
+ 25
+ 70
+ 125 + 150
Ambient Temperature °C
03 Schematic
“A” Profile
Power Rating (W)
“C” Profile
1.00
MSM10C Package
Power Rating (W)
0.60
0.48
MSM10A Package
MSM08A Package
0.80
MSM08C Package
0.60
MSM06C Package
0.36
MSM06A Package
0.20
Single Resistor
0.12
- 55
Single Resistor
0
+ 25
+ 70
+ 125 + 150
- 55
0
+ 25
Ambient Temperature °C
+ 70
+ 125 + 150
Ambient Temperature °C
05 Schematic
“A” Profile
Power Rating (W)
Power Rating (W)
MSM10A Package
MSM08A Package
1.80
“C” Profile
MSM10C Package
1.08
0.84
1.32
MSM08C Package
0.60
MSM06A Package
0.88
MSM06C Package
0.07
- 55
Single Resistor
0
+ 25
+ 70
+ 125 + 150
0.11
- 55
Single Resistor
0
+ 25
Ambient Temperature °C
+ 70
+ 125 + 150
Ambient Temperature °C
Revision: 10-Sep-15
Document Number: 31514
4
For technical questions, contact:
ff2aresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MSM (Military M83401/04 to /09)
www.vishay.com
Vishay Dale
5, 7 or 9 resistors with one pin common
“A” Profile
MSM06A01 (M8340107xxxxxxC)
MSM08A01 (M8340108xxxxxxC)
MSM10A01 (M8340109xxxxxxC)
“C” Profile
MSM06C01 (M8340104xxxxxxC)
MSM08C01 (M8340105xxxxxxC)
MSM10C01 (M8340106xxxxxxC)
CIRCUIT APPLICATIONS
01 Schematic
The MSM06A01, MSM08A01, MSM10A01, MSM06C01, MSM08C01,
and MSM10C01 molded single-in-line resistor networks provide the
user with a choice of 5, 7, or 9 nominally equal resistors, each
connected to a common pin (Pin No. 1).
Commonly used in the following applications:
1
2
3
n-1
n
• “Wired OR” pull-up
• Power Gate pull-up
• MOS/ROM pull-up/pull-down
3, 4 or 5 isolated resistors
“A” Profile
MSM06A03 (M8340107xxxxxxG)
MSM08A03 (M8340108xxxxxxG)
MSM10A03 (M8340109xxxxxxG)
• Open collector pull-up
• TTL input pull-down
• TTL unused gate pull-up
“C” Profile
MSM06C03 (M8340104xxxxxxG)
MSM08C03 (M8340105xxxxxxG)
MSM10C03 (M8340106xxxxxxG)
03 Schematic
The MSM06A03, MSM08A03, MSM10A03, MSM06C03, MSM08C03,
and MSM10C03 molded single-in-line resistor networks provide the
user with a choice of 3, 4, or 5 nominally equal resistors. Each resistor
is isolated from all others.
Commonly used in the following applications:
1
2 3
4
n-1
n
• “Wired OR” pull-up
• Power driven pull-up
• Power gate pull-up
• Line termination
4, 6 or 8 resistor pairs
“A” Profile
MSM06A05 (M8340107xxxxxxH)
MSM08A05 (M8340108xxxxxxH)
MSM10A05 (M8340109xxxxxxH)
• Long-line impedance balance
• LED current limiting
• ECL output pull-down
• TTL input pull-down
“C” Profile
MSM06C05 (M8340104xxxxxxH)
MSM08C05 (M8340105xxxxxxH)
MSM10C05 (M8340106xxxxxxH)
05 Schematic
R
2
R
1
The MSM06A05, MSM08A05, MSM10A05, MSM06C05, MSM08C05,
and MSM10C05 molded single-in-line resistor networks provide the
user with a choice of 4, 6, or 8 pair of
R
1
/R
2
resistor values for pulse
squaring and TTL dual-line terminating requirements.
n-1
n
1
2
3
PERFORMANCE
TEST
Power Conditioning
Thermal Shock
Short Time Overload
Low Temperature Operation
Moisture Resistance
Resistance to Soldering Heat
Shock
Vibration
Load Life
Terminal Strength
Insulation Resistance
Dielectric Withstanding Voltage
CONDITIONS
1.5 x rated power, applied 1.5 h “ON” and 0.5 h “OFF”
for 100 h ± 4 h at +25 °C ambient temperature
5 cycles between -65 °C and +125 °C
2.5 x rated working voltage for 5 s
45 min at full rated working voltage at -65 °C
240 h with humidity ranging from 80 % RH to 98 % RH
Leads immersed in +260 °C solder to within 1/16" of body for 10 s
Total of 18 shocks at 100
g’s
12 h at maximum of 20
g’s
between 10 Hz and 2000 Hz
1000 h at +70 °C, rated power applied
1.5 h “ON”, 0.5 h “OFF” for full 1000 h period
4 1/2 pound pull for 30 s
10 000 M (minimum)
No evidence of arcing or damage (200 V
RMS
for 1 min)
MAX.
R
(TYPICAL TEST LOTS)
± 0.50 %
R
± 0.50 %
R
± 0.25 %
R
(Characteristic K)
± 0.50 %
R
(Characteristic M)
± 0.25 %
R
(Characteristic K)
± 0.50 %
R
(Characteristic M)
± 0.50 %
R
± 0.25 %
R
± 0.25 %
R
± 0.25 %
R
± 0.50 %
R
(Characteristic K)
± 2.00 %
R
(Characteristic M)
± 0.25 %
R
-
-
Revision: 10-Sep-15
Document Number: 31514
5
For technical questions, contact:
ff2aresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Transformer Winding Problems
The company has never had transformer winding equipment. Every time we make power supplies, we have to find an external factory to make transformers. Sometimes, even a small adjustment to the transfor...
czf0408 LED Zone
How to calculate the resistance and capacitance of the bandpass filter? Please give me some advice
Design a bandpass filter with a passband range of 0.1Hz--150Hz. Both the high-pass and low-pass filters use 2nd-order Butterworth filters with an amplification factor (voltage gain) of 1. The power su...
linjin20 Analog electronics
2.4GHz RF chip CC2420 realizes ZigBee wireless communication equipment
2.4GHz RF chip CC2420 realizes ZigBee wireless communication...
lorant RF/Wirelessly
A day in the life of a TI analog engineer
[i=s]This post was last edited by dontium on 2015-1-23 12:47[/i] TI product engineer Cartel specializes in improving TI product performance and quality, and improving TI's high-quality manufacturing c...
德州仪器_视频 Analogue and Mixed Signal
The maximum number of watchDogs that can be created.
Are there any resource limitations in vxWorks?...
snailpandy Embedded System
【BearPi-HM Micro】Part 4: Familiar with the Openharmomy compilation framework and serial port interactive output
[i=s]This post was last edited by Digital Leaf on 2022-4-13 21:21[/i]After a few days of practice, I have a better understanding of Openharmomy, such as how to compile a simple program into the system...
数码小叶 Linux and Android

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

Index Files: 1809  213  1676  629  1308  37  5  34  13  27
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
