Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 7.50 / 7.62 mm (0.295 / 0.300 inch) |
Socket connectors, tension clamp connection, pitch 7.50/7.62 | BLZ 7.50-7.62 | BLZ 7.62/180
General ordering data
Order No.
Part designation
Version
EAN
Qty.
System parameters
Conductor connection system
Outgoing direction of conductor
Pitch
Pitch in inch
No. of poles
No. of rows
Screwdriver blade
Screwdriver blade standard
Tightening torque, min.
Tightening torque, max.
Clamping screw
Stripping length
L1 in mm
L1 in inch
Electric shock protection to DIN VDE 0470
Material data
Insulating material
Colour
colour chart
Insulating material group
Flammability class UL 94
CTI
Contact base material
1623080000
BLZ 7.62/5 SN OR

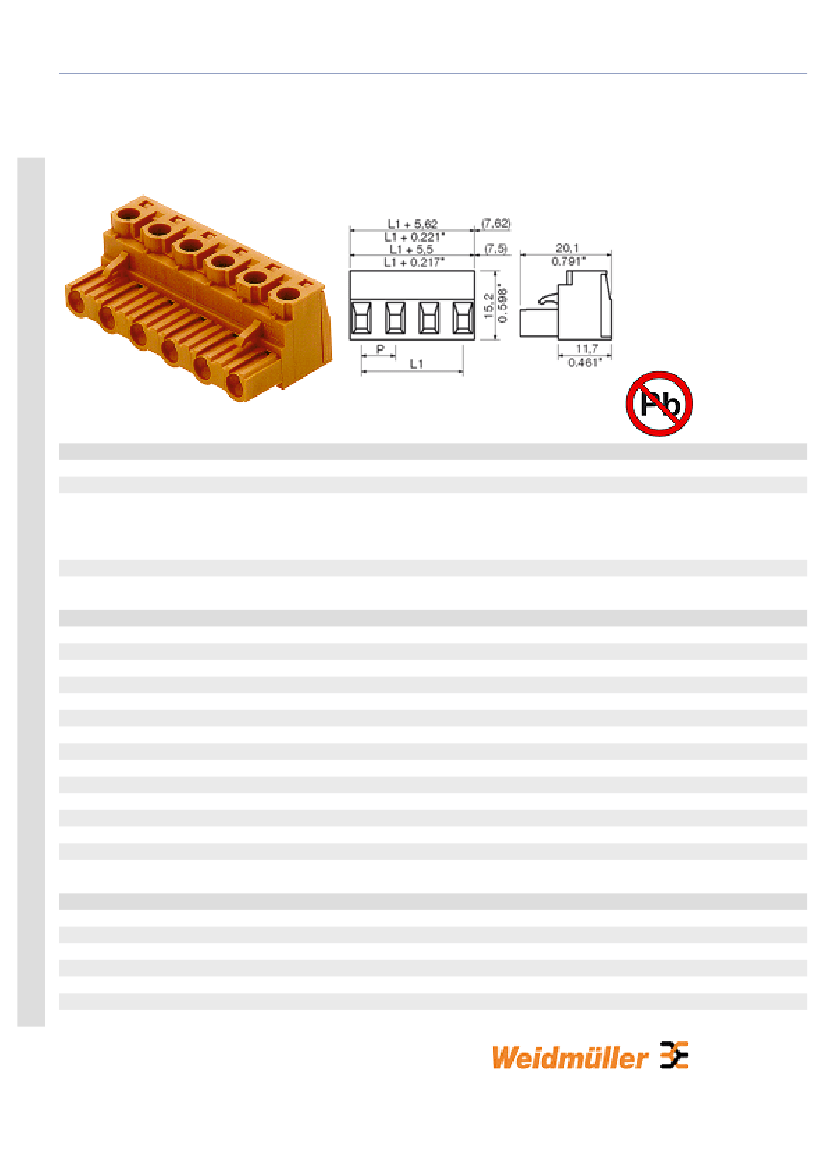

PCB plug-in connector, Female connectors,
Clamping yoke connection, Clamping range, max.:
3.31 mm², Pitch: 7.62 mm, No. of poles: 5, 180°,
Box
4008190194130
50 pc(s).
Clamping yoke connection
180°
7.62 mm
0.3 inch
5
1
0.6 x 3.5
DIN 5264
0.4 Nm
0.5 Nm
M 2.5
7 mm
30.48 mm
1.2 inch
Safe from finger touch
PBT
orange
Similar to RAL 2000
IIIa
V-0
>= 200
Copper alloy
-1-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 7.50 / 7.62 mm (0.295 / 0.300 inch) |
Socket connectors, tension clamp connection, pitch 7.50/7.62 | BLZ 7.50-7.62 | BLZ 7.62/180
Material data
Contact surface
Connectable conductors
Clamping range, min.
Clamping range, max.
AWG, min.
AWG, max.
Solid, min. H05(07) V-U
Solid, max. H05(07) V-U
Flexible, min. H05(07) V-K
Flexible, max. H05(07) V-K
With wire end ferrule, acc. to DIN 46 228/1, min.
With wire end ferrule, acc. to DIN 46 228/1, max.
w. plastic collar ferrule, DIN 46228 pt 4, min.
w. plastic collar ferrule, DIN 46228 pt 4, max.
Gauge to EN 60999 a x b; ø
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity II/2
Rated voltage for overvoltage class/pollution
severity III/2
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Short-time withstand current resistance
CSA rating data
Rated voltage (Use group D)
Rated current (Use group D)
AWG conductor (field wiring), min.
AWG conductor (field wiring), max.
UL 1059 rating data
Rated voltage (Use group D)
Rated current (Use group D)
AWG conductor, min.
AWG conductor, max.
tinned
0.13 mm²
3.31 mm²
26
12
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
2.8 mm x 2.0 mm; 2.4 mm
18.5 A
17 A
16 A
14.5 A
800 V
630 V
500 V
6 kV
6 kV
6 kV
3 x 1s with 120 A
300 V
10 A
26
12
300 V
10 A
26
12
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 7.50 / 7.62 mm (0.295 / 0.300 inch) |
Socket connectors, tension clamp connection, pitch 7.50/7.62 | BLZ 7.50-7.62 | BLZ 7.62/180
Approvals
Approvals institutes
Classifications
ETIM 2.0
ETIM 3.0
eClass 4.1
eClass 5.0
eClass 5.1
NK
EC001284
27-26-07-01
27-26-07-01
27-26-07-04
Similar products
Order No.
1623050000
1623060000
1623070000
1623090000
1623100000
1623110000
1623120000
1623130000
1623140000
Part designation
BLZ 7.62/2 SN OR
BLZ 7.62/3 SN OR
BLZ 7.62/4 SN OR
BLZ 7.62/6 SN OR
BLZ 7.62/7 SN OR
BLZ 7.62/8 SN OR
BLZ 7.62/9 SN OR
BLZ 7.62/10 SN OR
BLZ 7.62/11 SN OR
Version
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 3.31 mm², Pitch: 7.62 mm, No.
of poles: 2, 180°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 3.31 mm², Pitch: 7.62 mm, No.
of poles: 3, 180°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 3.31 mm², Pitch: 7.62 mm, No.
of poles: 4, 180°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 3.31 mm², Pitch: 7.62 mm, No.
of poles: 6, 180°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 3.31 mm², Pitch: 7.62 mm, No.
of poles: 7, 180°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 3.31 mm², Pitch: 7.62 mm, No.
of poles: 8, 180°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 3.31 mm², Pitch: 7.62 mm, No.
of poles: 9, 180°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 3.31 mm², Pitch: 7.62 mm, No.
of poles: 10, 180°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 3.31 mm², Pitch: 7.62 mm, No.
of poles: 11, 180°, Box
-3-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 7.50 / 7.62 mm (0.295 / 0.300 inch) |
Socket connectors, tension clamp connection, pitch 7.50/7.62 | BLZ 7.50-7.62 | BLZ 7.62/180
1623150000
BLZ 7.62/12 SN OR
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 3.31 mm², Pitch: 7.62 mm, No.
of poles: 12, 180°, Box
