S6003PL: DescriptionRocker Switch, SPST, On-off, Latched, Screw Terminal, Lit Window Matt Type Actuator, Panel Mount, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size278KB，2 Pages; ManufacturerBULGIN; Websitehttp://www.bulgin.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

S6003PL Overview

Rocker Switch, SPST, On-off, Latched, Screw Terminal, Lit Window Matt Type Actuator, Panel Mount, ROHS COMPLIANT

S6003PL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	4001005350
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	10
Actuator length	0.315 inch
Actuator material	NYLON
Actuator type	LIT WINDOW MATT TYPE
body width	11 mm
body height	20.2946 mm
Body length or diameter	30 mm
center contact material	SILVER ALLOY
Contact (AC) maximum rated R load	20A@277VAC
Maximum contact current (AC)	20 A
Contact function	ON-OFF
Contact resistance	0.1 mΩ
Maximum contact voltage (AC)	277 V
Dielectric withstand voltage	1500VAC V
End contact material	SILVER ALLOY
Insulation resistance	20000000 Ω
insulator material	NYLON
Installation features	PANEL MOUNT
surface mount	NO
Switch action	LATCHED
switch function	SPST
Switch type	ROCKER SWITCH
Terminal length	0.382 inch
Termination type	SCREW

Preview

Download Datasheet

View All

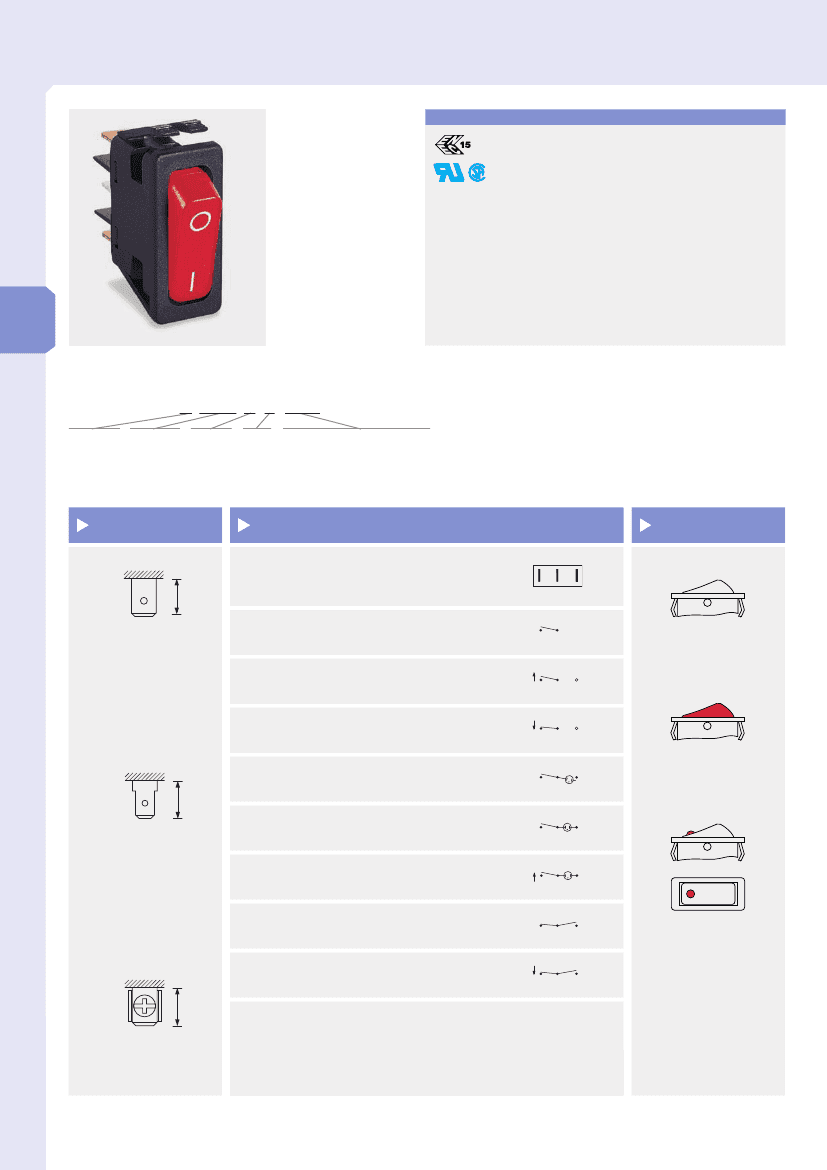

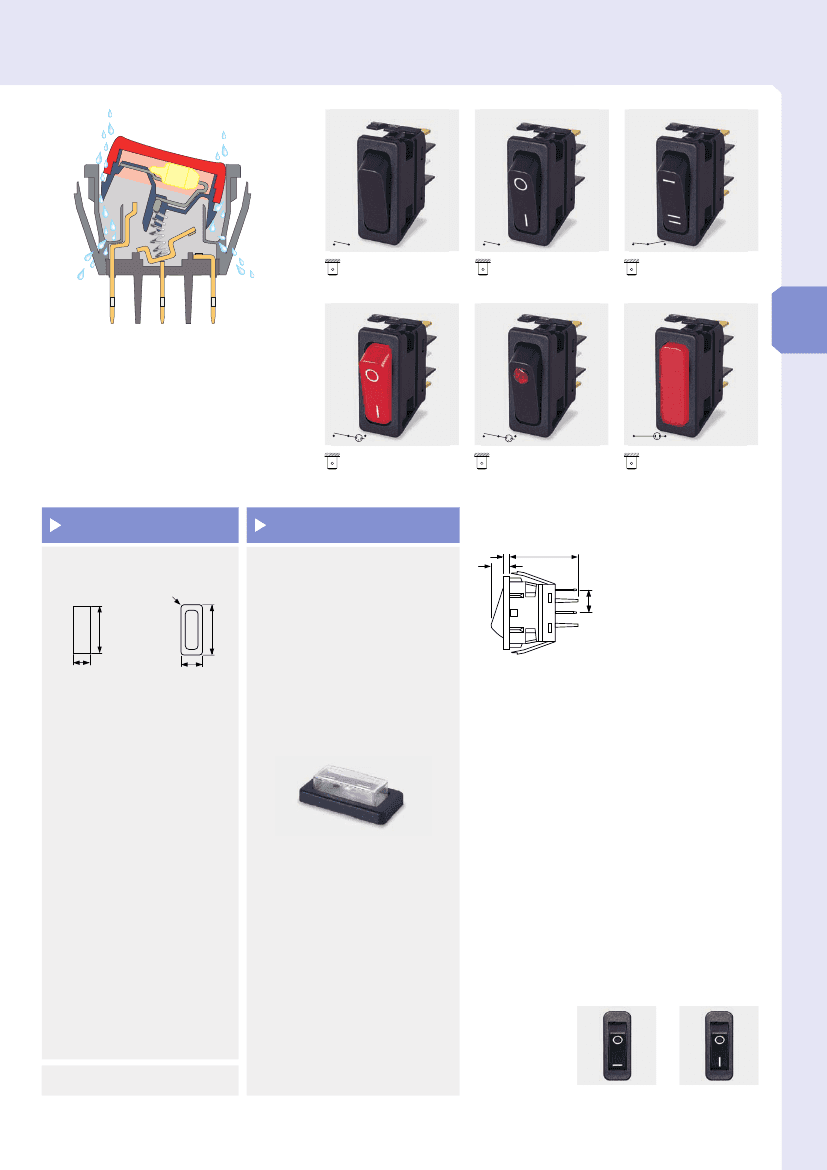

6000 SP Splash Resistant Rocker Switches

16A 250Vac

Ratings up to 20A,

277Vac

High in-rush (ON-OFF

types)

Positive switch action

Distinctive styling

Illuminated & non-

illuminated

Single pole

Panel cut out:

30.1 x 11.1mm

Approvals and specifications

European 16(4)A 250Vac T125, 10A 400Vac T125

UL CSA 20A 277Vac, 250Vac 11/2hp, 125Vac 1hp

UL 100˚C, file E45221, CSA file LR10990

3mm contact gap with Positive Break switching.

Call factory for IP details.

Technical data on pages 4 & 5 (switches), 6 (indicators).

rocker

switches

C 6003 A L ---

TERMINAL FUNCTION ROCKER BODY PRINT, COLOUR, VOLTAGE ETC

TERMINAL

C

FUNCTION

A

Softline

Approvals & ratings vary with function

ON OFF Switches - ON when pressed over terminal 3

9.7

ROCKER

Matt

1

2

3

6.3 x 0.8

6000

ON - OFF

6001

ON - OFF (momentary ON)

A

Softline

Matt

6002

H

6003

9.7

ON - OFF (momentary OFF)

Lit

ON - OFF Lit

P

Lit window

Matt

6008

ON - OFF Lit (Unswitched neutral)

4.8 x 0.8

6009

ON - OFF (momentary ON) Lit

(Unswitched neutral)

6010

ON - ON

S

9.7

6011

ON - ON (momentary 1 side)

Screw & Clamp

N/A for assemblies

with 3 terminals

For twin switches and double pole circuits see pages 20 & 21

18

tel: +44 (0)20 8979 3232 •

Arcolectric

• email: europe@elektron-technology.com
