Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
: 5.8 - 7.2 mm
Performance
Configuration
Insulator
Rated Current
3S.415 : 1 High Voltage
L: PEEK (UL 94 / V-0/3.2, depends on material thickness)
8 Amps
Specifications
Contact Type: Solder
Test voltage (kV DC) 21
Test voltage (kV AC) 15
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
1/3
Creepage dist.(mm): 28.5
Others
Endurance (Shell): 5000 mating cycles
Temp (min / max): -55°C / +250°C
Humidity (max): <=95% [at 60 deg C /140 F]
Vibration: 15 g [10 Hz - 2000 Hz]
Shock Resistance: 100 g [ 6 ms]
Salt Spray Corrosion: >144 hr
Climatical Category: 50/175/21
Shielding (min): 75 dB (10 MHz)
Shielding (min): 40 dB (1 GHz)
IP Rating: 50

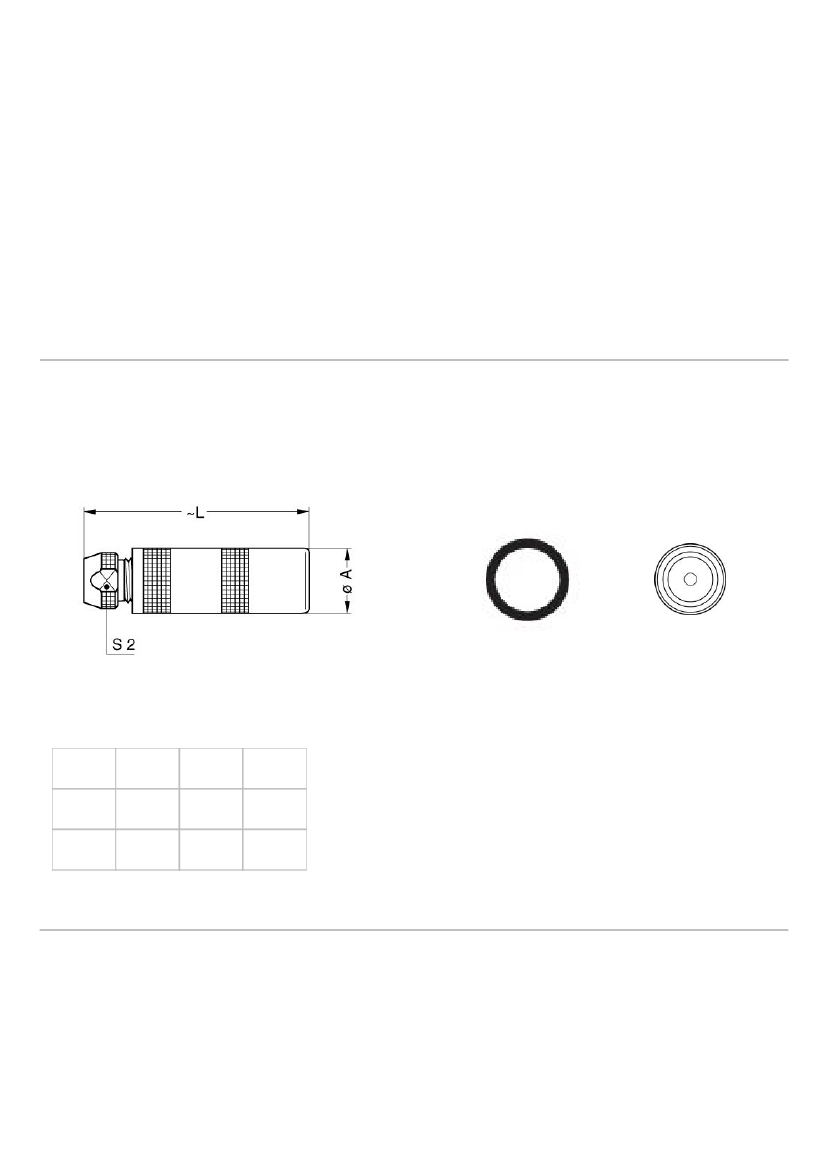

DRAWINGS
Draws
Dimensions
A
mm.
in.
17.8
0,70
L
59
2,32
S2
14
0,55
RECOMMENDED BY LEMO
Tools
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
2/3
Spanner wrench: MTZ.3S.500.014
