MS Series: Low ESR, High Volume
Ceramic Capacitors

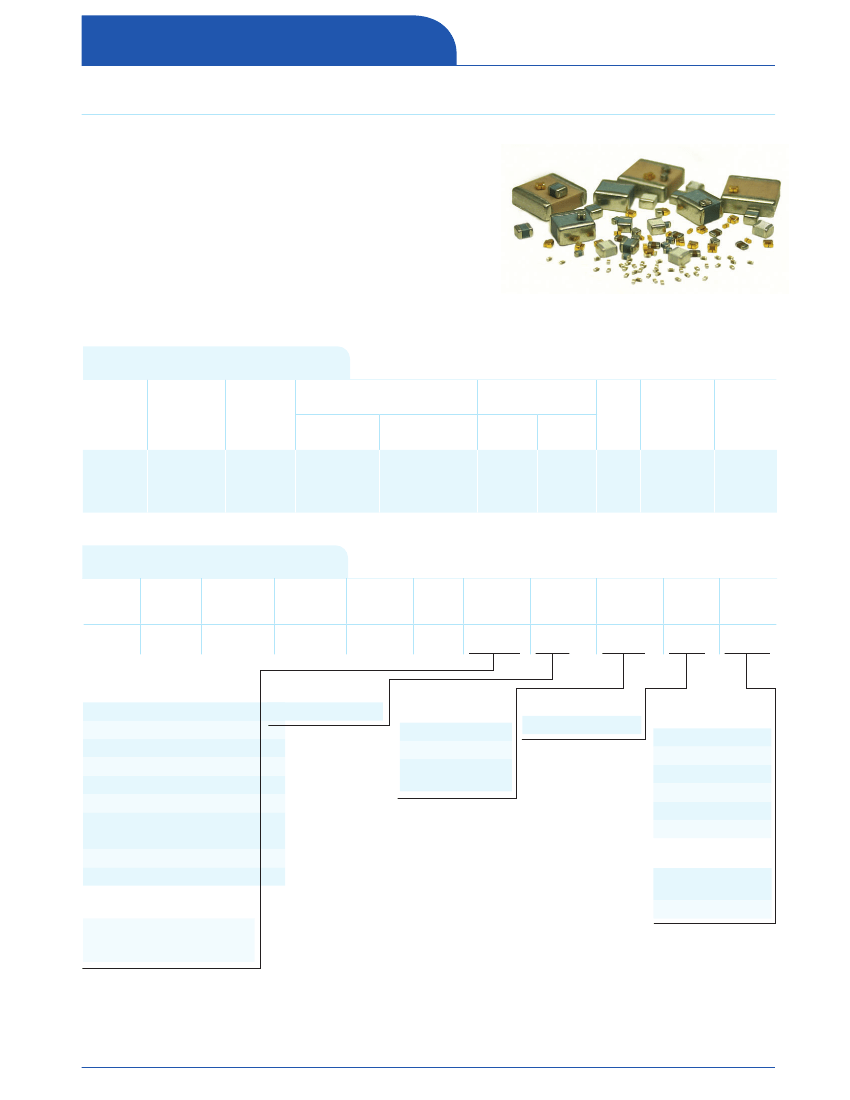

Description
Ceramic Capacitors
NPO
Low ESR, High Q
Capacitance
Range 0.2 - 2200 pF
High Working Voltage
Low Noise
Functional Applications
DC Blocking
Amplifier Matching Networks
VCO Frequency Stabilization
Filtering, Diplexers &
Antenna Matching
High RF Power Circuits
Bypass
Coupling
Tuning & Feedback
Broadcast Power Amps
Benefits
High Q
Stable TC, -55° to +125°C Operating Range
EIA 0603 & 0805 Case Size
SMD Compatibility
Oscillators
Timing Circuits
Filters
RF Power Amplifiers
& Delay Lines
Ultra Low ESR
Ceramic Dielectric
High Volume Applications
Dielectric Characteristics
Dielectric
Material
Code
Temperature
Coefficient
(ppm/°C
Maximum)
Dissipation
Dielectric Withstanding Voltage
Factor
(% @ 1MHz Voltage Rating
DWV
Maximum)
(Volts)
(Volts)
0.05
Please see
chart
(pg. 21)
250% of WVDC
for 5 sec unless
specified in chart
(pg. 21)
Insulation Resistance
(M Minimum)
@ +25°C
@ +125°C
Aging
Piezoelectric Dielectric
Effects
Absorption
MS
0 ± 30
10
6
10
4
None
None
None
Part Number Breakdown*
C 06 MS 101 J - 5 Z N - X 0 T
Multi
Layer
Case Size
Material
System
Capacitance
Code
Tolerance
Level
Voltage
Code
Termination
Code
Leading
Code
Test Level
Marking
Code
Packaging
Available
Termination Types
C04
C06
C08
C10
C11
C12
C17
C20
C22
C36
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Code Lead Types
N
None
Test Level –
All Case Sizes
X
Y
D
Standard
Reduced Visual
Customer
Specified
Code Laser Marking
0
No marking
Available
Packaging
C06
C08
C10
C11
C12
C17
T, B
T, B
T, B
T, B
T, B
T, B
Code Packaging
T
B
Tape & Reel –
Horizontal
Bulk
Code Termination System
Z
Ag Termination, Ni Barrier
Layer, Sn Plated Solder,
RoHS
*See page 6 for complete part number system.
www.dilabs.com
20
MS Series: Low ESR, High Volume
Ceramic Capacitors
Capacitance and Voltage Table
CAP CODE
0R1
0R2
0R3
0R4
0R5
0R6
0R7
0R8
0R9
1R0
1R1
1R2
1R3
1R4
1R5
1R6
1R7
1R8
1R9
2R0
2R1
2R2
2R3
2R4
2R5
2R6
2R7
2R8
2R9
3R0
3R3
3R6
6R9
4R3
4R7
5R1
5R6
6R2
6R8
7R5
8R2
9R1
100
110
120
130
150
160
180
200
220
240
270
300
330
360
390
430
470
510
560
620
680
750
820
910
101
111
121
151
181
221
271
331
391
471
511
561
621
681
CAP (pF)
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
2.0
2.1
2.2
2.3
2.4
2.5
2.6
2.7
2.8
2.9
3.0
3.3
3.6
6.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
22
24
27
30
33
36
39
43
47
51
56
62
68
75
82
91
100
110
120
150
180
220
270
330
390
470
510
560
620
680
CASE SIZE C06 0603
CASE SIZE C11 0505
CASE SIZE C17 1111
CASE SIZE C22 2225
CASE SIZE 36 3640
50V
Code 5
250V
Code 9
Code 7
1000V
2000V
Code G
2500V
Code B
Table above represents common product line. Additional available products included in table below.
Case Style
0402
0.1 - 33
0.1 - 22
0.1 - 15
0603
0.1 - 220
0.1 - 150
0.1 - 120
0.1 - 100
0.1 - 56
0505
0.2 - 330
0.2 - 220
0.2 - 180
0.2 - 150
0.2 - 100
Electrical Capacitance (pf)
0805
1206
0.2 - 680
0.5 - 2,200
0.2 - 470
0.5 - 1,500
0.2 - 390
0.5 - 1,200
0.2 - 330
0.5 - 1,000
0.2 - 220
0.5 - 680
0.2 - 100
0.5 - 330
0.5 - 150
0.5 - 82
0.5 - 18
1111/1210
0.3 - 3,300
0.3 - 2,700
0.3 - 2,200
0.3 - 1,500
0.3 - 820
0.3 - 390
0.3 - 220
0.3 - 68
1812
1.0 - 6,800
1.0 - 4,700
1.0 - 3,900
1.0 - 3,300
1.0 - 2,200
1.0 - 1,000
1.0 - 680
1.0 - 150
1.0 - 68
2220
2.0 - 15,000
2.0 - 12,000
2.0 - 10,000
2.0 - 6,800
2.0 - 4,700
2.0 - 2,200
2.0 - 1,500
2.0 - 470
2.0 - 150
2225
2.0 - 18,000
2.0 - 15,000
2.0 - 10,000
2.0 - 8,200
2.0 - 5,600
2.0 - 3,300
2.0 - 2,200
2.0 - 560
2.0 - 150
3640
50/63
100
150
200/250
300
Volts (V)
500
630
1000
2000
3000
Capacitance values are available in E24 series values. Other values may be avilable on request, consult factory for details.
4.0 - 15,000
4.0 - 6,800
4.0 - 4,700
4.0 - 1,500
4.0 - 470
21
www.dilabs.com
MS Series: Low ESR, High Volume
Ceramic Capacitors

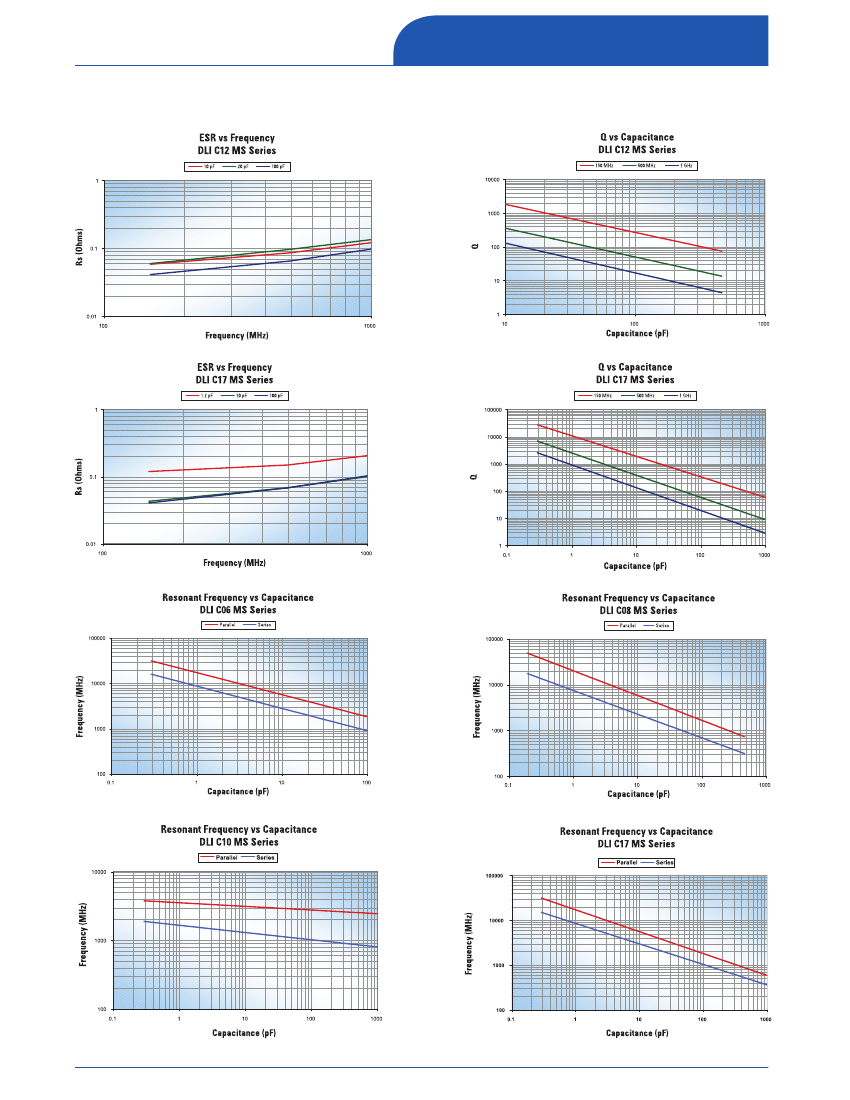

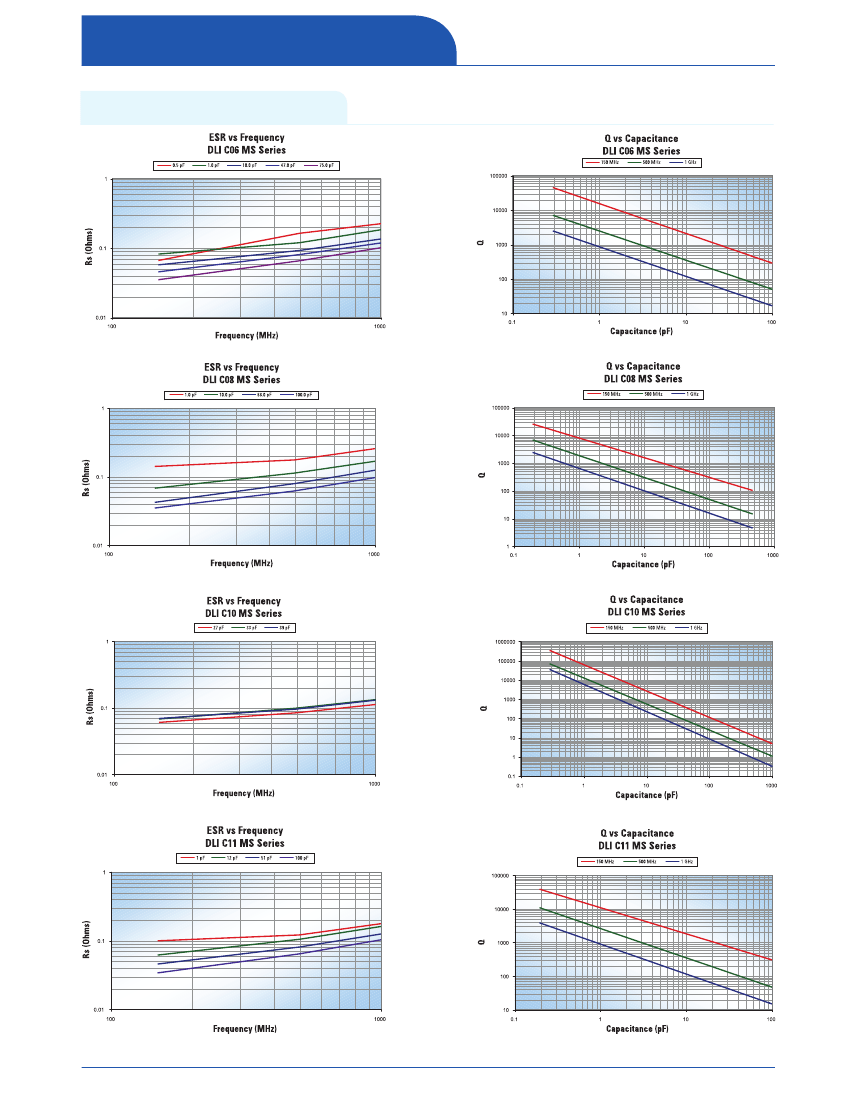

RF Characteristics
The information above represents typical device performance.
www.dilabs.com
22
MS Series: Low ESR, High Volume
Ceramic Capacitors
The information above represents typical device performance.
23
www.dilabs.com
