CR2103AA datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> CR2103AA

Preview

CR2103AA: DescriptionBi-directional Glass passivated junction; CategoryAnalog mixed-signal IC Trigger device; File Size80KB，2 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric View All

CR2103AA Overview

Bi-directional Glass passivated junction

CR2103AA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Littelfuse
Parts packaging code	SFM
package instruction	IN-LINE, R-PSIP-T3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum breakover voltage	250 V
Minimum breakover voltage	250 V
Configuration	DELTA CONNECTED, 3 ELEMENTS
Maximum off-state DC voltage	170 V
Maximum holding current	150 mA
JESD-30 code	R-PSIP-T3
On-state non-repetitive peak current	100 A
Number of components	3
Number of terminals	3
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Repeated peak reverse voltage	170 V
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SILICON SURGE PROTECTOR

Preview

Download Datasheet

View All

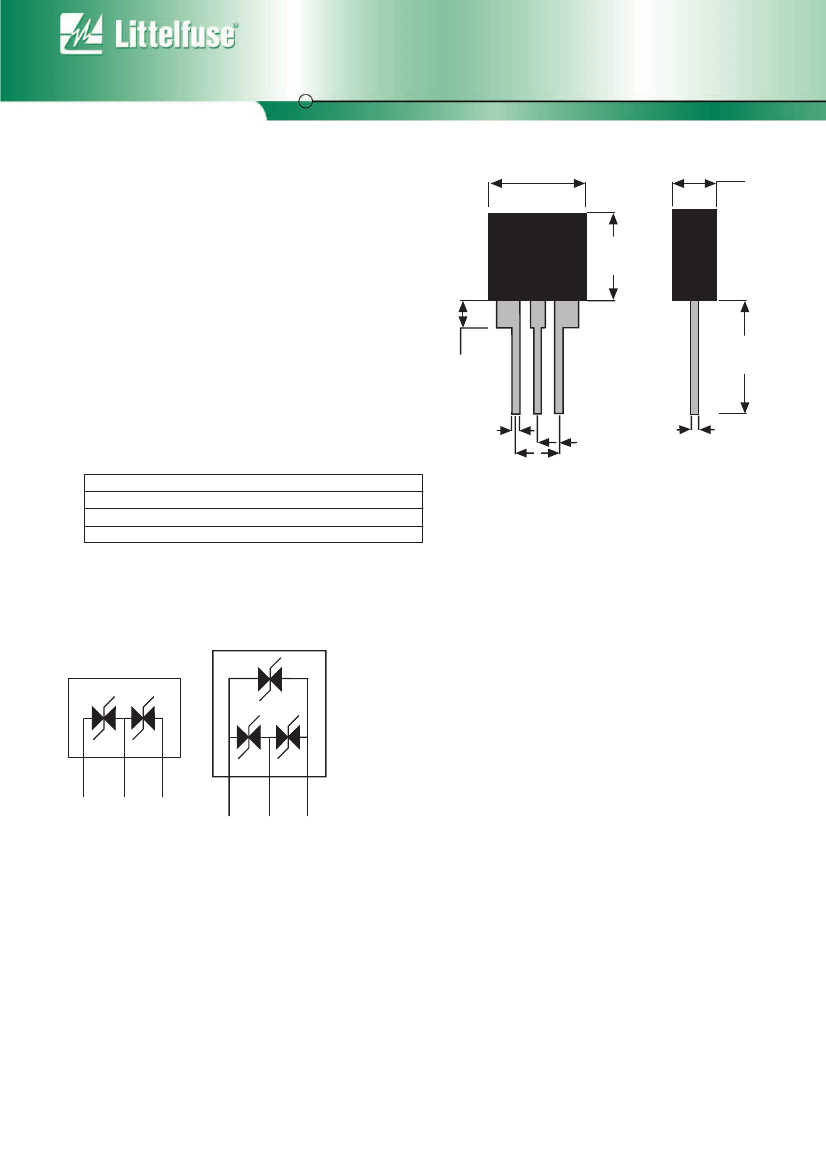

TO - 220 series SiBOD

™

FEATURES

G

Bi-directional

G

Glass passivated junction

G

High-surge capabilities

G

Low capacitance

G

Operation & storage temperature -55°C to 175°C

9.1/

9.5

10.1/10.3

4.9/

5.1

MECHANICAL CHARACTERISTICS

G

Modified TO-220 Outline

G

Terminals: Solderable to MIL-STD-202

Method 208

G

Weight 1.4 grammes (approx)

3.5

15.25/

15.65

NOTES

0.8

(i) VBR IS MEASURED @ 1mA USING A PULSE OF 20mSEC OR LESS

5.08

2.54

0.46/

0.61

(ii)

PEAK PULSE CURRENT (A)

10 / 1000µS WAVE SHAPE

10 / 560µS WAVE SHAPE

10 / 160µS WAVE SHAPE

TYPE AA

-

50.0

100.0

TYPE AB

-

100.0

150.0

TYPE AC

100.0

-

200.0

(iii) ALL TESTING PERFORMED @ 25°C

EQUIVALENT CIRCUIT

CR XXX 2 XX SERIES

CR XXX 3 XX SERIES

TIP

(A)

GND

RING

(B)

TIP

(A)

GND

RING

(B)
