228RZM025Q1820CC: DescriptionAluminum Electrolytic Capacitor, Aluminum (wet); CategoryPassive components capacitor; File Size679KB，3 Pages; ManufacturerIllinois Capacitor; Websitehttp://www.illinoiscapacitor.com/

Download Datasheet Parametric View All

228RZM025Q1820CC Overview

Aluminum Electrolytic Capacitor, Aluminum (wet)

228RZM025Q1820CC Parametric

Parameter Name	Attribute value
Objectid	1316081081
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	0
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
Manufacturer's serial number	RZM
Number of terminals	2

Preview

Download Datasheet

View All

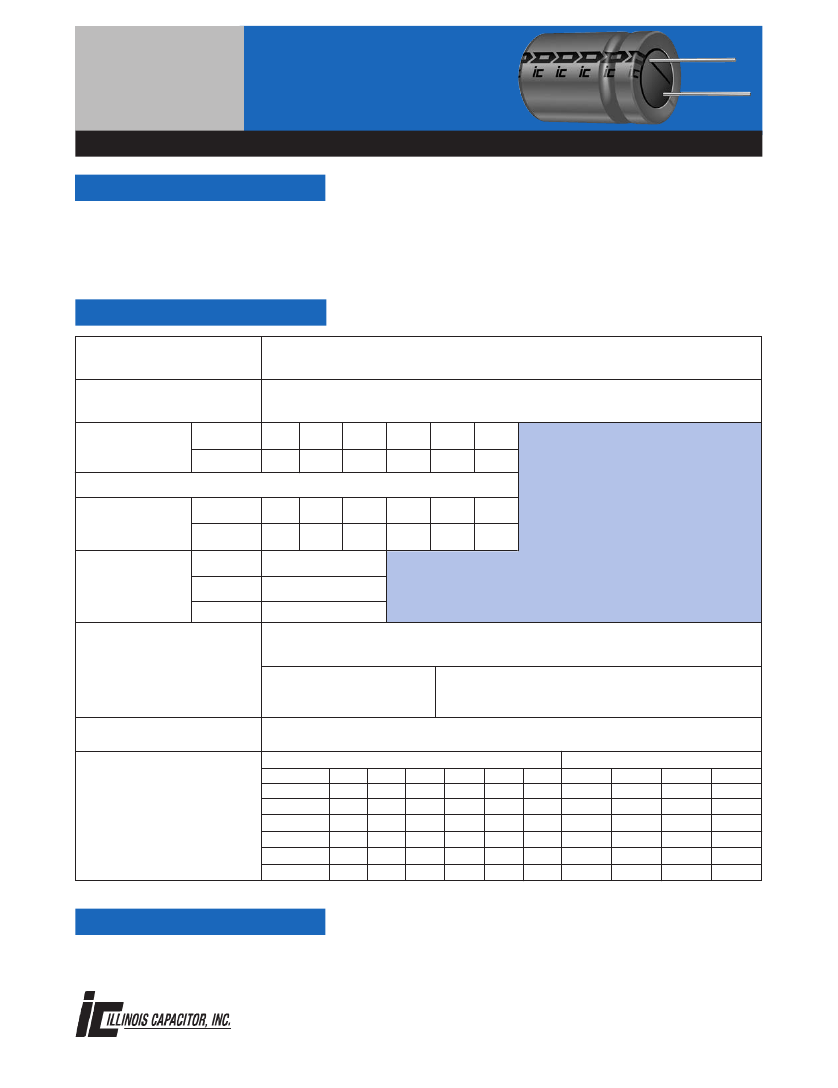

RZM

FEATURES

+105°C High

Frequency Radial Lead

Aluminum Electrolytic

Capacitors

For All Applications Including Switching Power Supplies

I

Up to 3,000 Hrs. of Load Life at +105°C

and at Full Rated Voltage and Ripple Current

I

Low Impedance

I

Low ESR

SPECIFICATIONS

Capacitance Tolerance

I

Capacitance Range: .47 µF to 15,000 µF

Voltage Range: 6.3 WVDC to 50 WVDC

100 kHz Operating Frequency Range

Solvent Tolerant End Seals Standard

± 20% at 120Hz, 20°C

-55°C to +105°C

6.3

.26

Operating Temperature Range

Dissipation Factor

120Hz, 20°C

WVDC

tan

δ

10

.22

16

.18

25

.16

35

.14

50

.12

Note:

For above D.F. specifications, add .02 for every 1,000 µf above 1,000 µf

Impedance Ratio

(Max.) @120Hz

WVDC

-55°C/20°C

WVDC

6.3

6

10

6

16

4

25

4

35

4

50

3

≤

50 WVDC

1 minute

.03 CV

Leakage Current

Time

2,000 hours at +105°C with rated voltage and with ripple current, Case dia.(5.0, 6.3)

3,000 hours at +105°C with rated voltage and with ripple current, Case dia.(8.0 and larger)

Load Life

Capacitance change

Dissipation factor

Leakage current

≤

20% of initial measured value

≤

200% of initial specified value

≤

initial specified value

1,000 hours at +105°C with no voltage applied.

Units will meet load life specifications

Frequency (Hz)

Capacitance (F)

≤

4.7

4.7< C

≤

33

33 < C

≤

100

100 < C

≤

270

270 < C

≤

1000

C > 1000

50

.30

.38

.48

.60

.68

.82

120

.43

.51

.60

.72

.83

.91

300

.54

.62

.71

.80

.90

.98

1K

.70

.76

.85

.91

.96

.98

10K

.83

.87

.90

.95

1.0

100K

1.0

+105

1.0

Temperature(°C)

+85

1.73

Shelf Life

+65

2.19

+50

2.4

Ripple Current Multipliers

1.73

SPECIAL ORDER OPTIONS

•

Special tolerances: ±10% (K), -10% + 30% (Q)

(See pages 33 thru 37)

•

Tape and Reel/Ammo-Pack

•

Cut, Formed, Cut and Formed, and Snap In Leads

®

3757 W. Touhy Ave., Lincolnwood, IL 60712 • (847) 675-1760 • Fax (847) 673-2850 • www.illcap.com

62
