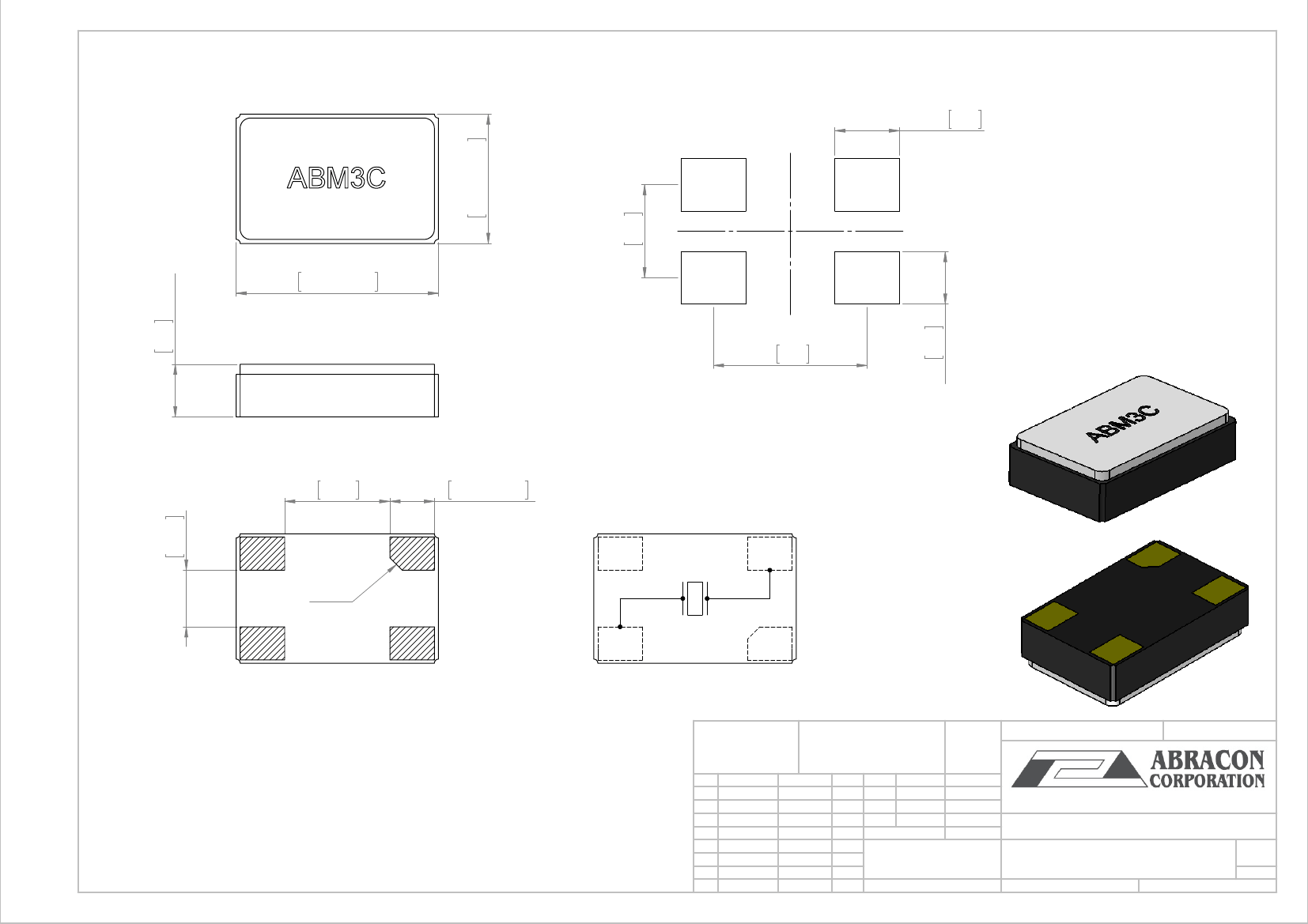

Recommended Land Pattern
2X 0.063
1.6
0.126±0.006
3.20±0.15
0.051 MAX.
1.3
0.197±0.006
5.00±0.15
2X 0.051
1.3
DEBUR AND
BREAK SHARP
EDGES
0.09
2.3
0.15
3.8
0.102
2.60
0.055
1.40
0.043±0.006
1.10±0.15
4
3
1
C0.012
[0.3]
2
GND
4
Bottom View
3
1
Top View
GND
2
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN INCH(MM)
SURFACE FINISH:
TOLERANCES:
LINEAR:
ANGULAR:
NAME
DRAWN
CHK'D
APPV'D
MFG
Q.A
MATERIAL:
DWG NO.
SAAZVAT
XXXXXX
Note:
Due to the availability of raw materials, this part may be
manufactured with the chamfer on pin 1, 2 or 3. Be advised that
this does not affect the electrical characteristics of the crystal in
any way.
FINISH:
DO NOT SCALE DRAWING
REVISION
-
SIGNATURE
DATE
30332 Esperanza, Rancho Santa margarita, California 92688
TITLE:
Crystal
ABM3C
SHEET 1 OF 1
A3
WEIGHT:
SCALE:13:1
