SRATS-23.9990MHZ datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> SRATS-23.9990MHZ

SRATS-23.9990MHZ: DescriptionSeries - Fundamental Quartz Crystal, 3.999MHz Nom, HERMETIC SEALED PACKAGE-2; CategoryPassive components Crystal/resonator; File Size299KB，2 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

SRATS-23.9990MHZ Overview

Series - Fundamental Quartz Crystal, 3.999MHz Nom, HERMETIC SEALED PACKAGE-2

SRATS-23.9990MHZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1543760916
package instruction	HERMETIC SEALED PACKAGE-2
Reach Compliance Code	unknown
YTEOL	0
Other features	AT CUT
Ageing	5 PPM/YEAR
Crystal/Resonator Type	SERIES - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.005%
frequency tolerance	30 ppm
load capacitance	18 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	3.999 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	D3.2XH10.5 (mm)/D0.126XH0.413 (inch)
Series resistance	200 Ω
surface mount	YES

Preview

Download Datasheet

View All

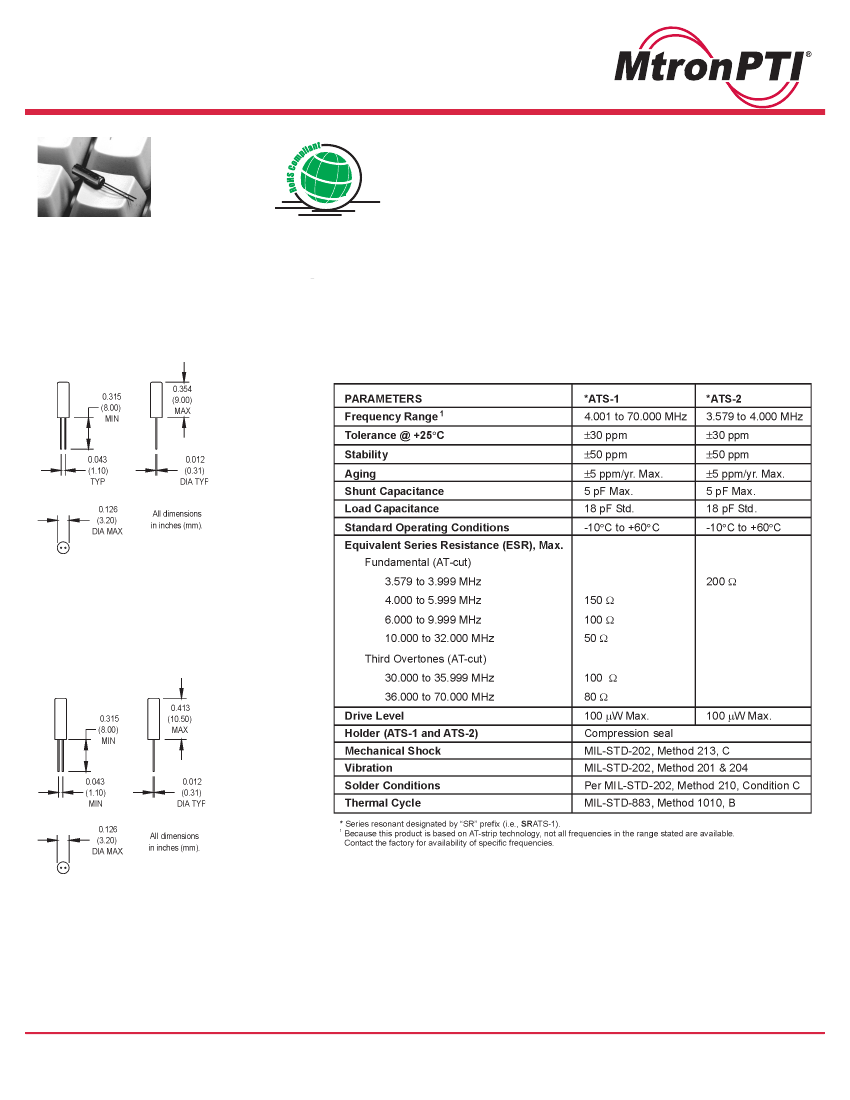

ATS-1 and ATS-2 Crystals

OBSOLETE

Hermetically sealed AT-strip crystals for incorporation in fre-

quency and time domain products

ATS-1 and ATS-2 crystals provide a convenient component

for incorporation into other components or subsystems. These

units are engineered for assembly in all common solder reﬂow

processes, including typical IR and vapor phase reﬂow temper-

ature proﬁles.

This product is not

recommended for new designs

ATS-1 00.0000 MHz (customer speciﬁed frequency)

ATS-1-R 00.0000 MHz (RoHS Compliant and customer speciﬁed frequency)

M1009Sxxx - Contact factory for datasheet.

This product is not

recommended for new designs

ATS-2 00.0000 MHz (customer speciﬁed frequency)

ATS-2-R 00.0000 MHz (RoHS Compliant and customer speciﬁed frequency

M1020Sxxx - Contact factory for datasheet.

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com for our complete offering and detailed datasheets. Contact us for your application speciﬁc requirements: MtronPTI 1-800-762-8800.

Revision: 11-11-10
