EQ2401-18M-440 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> EQ2401-18M-440

EQ2401-18M-440: DescriptionRF Connector Adapter, SMA-SMA, Male-Male, ROHS COMPLIANT; CategoryThe connector The connector; File Size38KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric View All

EQ2401-18M-440 Overview

RF Connector Adapter, SMA-SMA, Male-Male, ROHS COMPLIANT

EQ2401-18M-440 Parametric

Parameter Name	Attribute value
Objectid	8008313731
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	2
Adapter type	SMA-SMA
Characteristic impedance	50 Ω
Connector type	RF STRAIGHT ADAPTER
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE-MALE
Contact material	BERYLLIUM COPPER
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
voltage standing wave ratio	1.8

Preview

Download Datasheet

View All

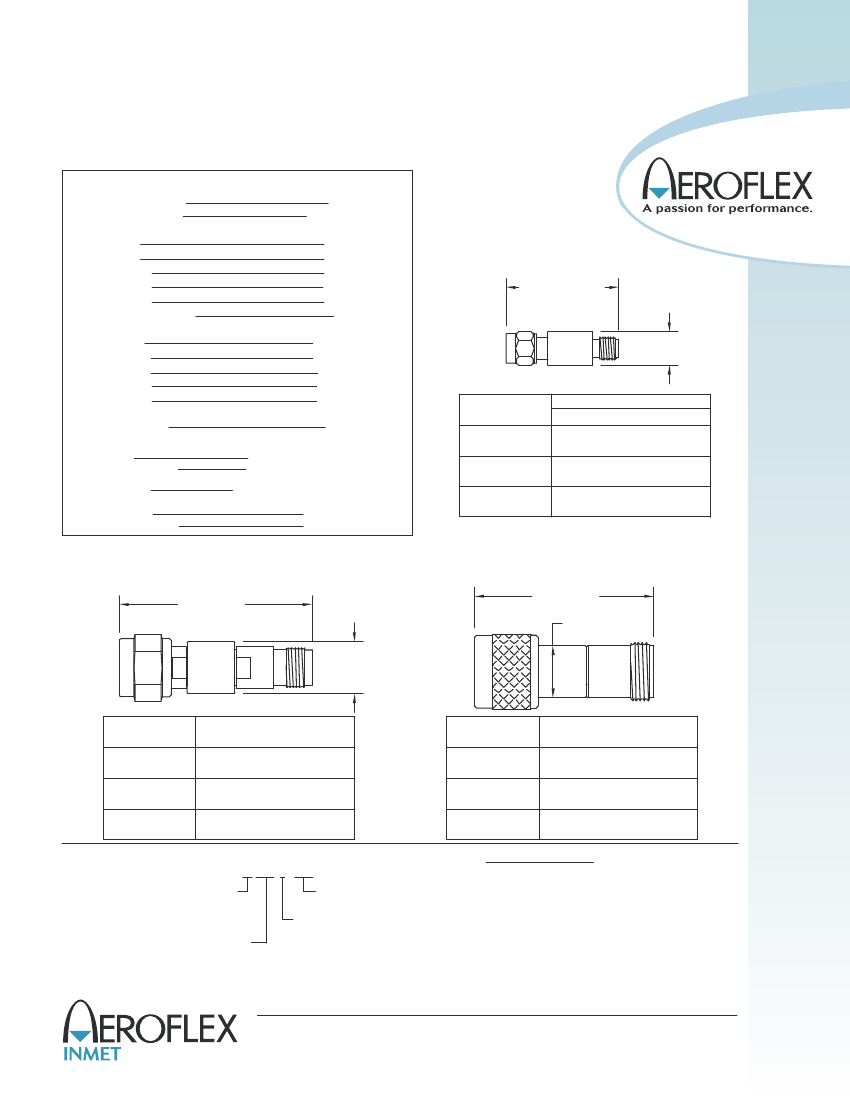

EQUALIZER

Negative Slope, 8-18 GHz, Fixed

SPECIFICATIONS:

Models: EQ2401-XX, EQ2401-XXM, EQ2401-XXF

Electrical:

Frequency Range

Response Shape

Insertion Loss at 18 GHz:

2 - 4 dB

5 - 6 dB

7 - 9 dB

10 - 1 dB

13 - 16 dB

Amplitude at 8 GHz

Linearity:

2 - 4 dB

5 - 6 dB

7 - 9 dB

10 - 1 dB

13 - 16 dB

VSWR:

Input/Output

8 - 18 GHz

Negative Slope

1.5 dB

2.0 dB

2.5 dB

4.0 dB

5.0 dB

2 to 16 dB

(Relative to loss at 18 GHz)

±0.5 dB

±0.75 dB

±1.0 dB

±1.5 dB

±2.5 dB

1.80:1 Max.

Passivated Stainless Steel

Gold Plated Beryllium Copper

-54°C to +125°C

-65°C to +125°C

Female/Female

Model Number:

EQ2401-XX

SMA CONNECTORS

LENGTH

SEE TABLE

Ø.360 [9.14]

Connector

Configuration

Male/Female

Male/Male

OVERALL LENGTH

3 - 16 dB

1.205 ±.025

[30.61 ±0.64]

1.330 ±.030

[33.78 ±0.76]

1.060 ±.015

[26.92 ±0.38]

Mechanical:

Housing

SMA Connectors

Mates with MIL

-STD-348

Conductors

Temperature Range:

Operating

Non-Operating

For Epoxy sealed Connector add -440 to Model Number

Model Number:

EQ2401T-XX

TNC CONNECTORS

See Website forTypical Performance Graphs and

Application Notes

Model Number:

EQ2401N-XX

TYPE N CONNECTORS

LENGTH

Ø.56 [14.22]

Ø.56

[14.22]

Connector

Configuration

Male/Female

Male/Male

Female/Female

OVERALL LENGTH

2.07 ±.03

[52.58 ±0.76]

1.96 ±.03

[49.78 ±0.76]

2. 6 ±.03

[54.86 ±0.76]

Connector

Configuration

Male/Female

Male/Male

Female/Female

OVERALL LENGTH

1.90 ±.03

[48.26 ±0.76]

1.82 ±.03

[46.23 ±0.76]

1.99 ±.03

[50.55 ±0.76]

HOW TO ORDER:

Model Number:

EQ2401Z-XXY-ZZZ

Connector Type

= SMA

N = Type N

T = TNC

dB Value

440 = Epoxy Sealed

Connectors.

Model Number:

EQ2401N-18F

Connector Configuration

18 dB; Type N - Fem/Fem

= Male/Female

F = Fem/Fem

Model Number:

EQ2401-06

M = Male/Male

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only. 6 dB; SMA - Male/Fem; Epoxy Sealed S/A

Design, specifications are subject to change without notice. Contact factory for technical

EQ2401: REV B

specifications before purchasing or use.

Ordering Examples:

Model Number:

EQ2401-03

3 dB; SMA - Male/Fem

Aeroflex / Inmet, Inc.

• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex.com/inmet • inmetsales@aeroflex.com
