MMKP383
www.vishay.com
Vishay BCcomponents
AC and Pulse Double Metallized Polypropylene Film Capacitors
MMKP Radial Potted Type
FEATURES
• 7.5 mm to 37.5 mm lead pitch; 7.5 mm bent
back pitch
• Low contact resistance
• Low loss dielectric
• Small dimensions for high density packaging
• Supplied loose in box and taped on reel or
ammopack
• Mounting: radial
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
APPLICATIONS
• Where steep pulses occur e.g. SMPS
(switch mode power supplies)
• Electronic lighting e.g. ballast
• Motor control circuits
• S-correction
• For flyback applications please use 1400 V series
QUICK REFERENCE DATA
Capacitance range (E24 series)
Capacitance tolerance
Climatic testing class according to IEC 60068-1
Rated DC temperature
Rated AC temperature
Maximum application temperature
Reference specifications
Dielectric
Electrodes
Construction
Encapsulation
Leads
Marking
0.00047 μF to 4.7 μF
±5%
55/105/56
85 °C
105 °C
105 °C
IEC 60384-17
Polypropylene film
Metallized
Mono and internal serial construction
Flame retardant plastic case and epoxy resin
UL-class 94 V-0
Tinned wire
C-value; tolerance; rated voltage; sub-class; manufacturer’s type; code for dielectric
material; manufacturer location; manufacturer's logo; year and week
Note
• For more detailed data and test requirements, contact
dc-film@vishay.com
VOLTAGE RATINGS
Rated DC voltage
Rated AC voltage
Rated peak to peak voltage
250
125
350
400
200
560
630
220
630
1000
350
1000
1400
500
1400
1600
550
1600
2000
700
2000
2500
900
2500
Revision: 15-Jan-15
Document Number: 28173
1
For technical questions, contact:
dc-film@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MMKP383
www.vishay.com
COMPOSITION OF CATALOG NUMBER
Voltage (V
DC
)
Example
147
210
310
410
510
610
470 pF
1 nF
10 nF
100 nF
1000 nF
10 000 nF
0.00047 μF
0.001 μF
0.01 μF
0.1 μF
1.0 μF
10.0 μF
025 = 250
040 = 400
063 = 630
100 = 1000
140 = 1400
160 = 1600
200 = 2000
250 = 2500
Vishay BCcomponents
P
1
(mm)
5
7.5
10
15
22.5
27.5
37.5
Pitch Code
B
C
D
F
I
K
P
Multiplier (nF)
0.01
0.1
1
10
100
1000
1
2
3
4
5
6
Capacitance Code
(numerically)
Special Code for Terminal
2
4
5
(#)
2 pins
4 pins P
2
= 10.2 mm
4 pins P
2
= 20.3 mm
Customized
1 2
3
456
MKP
3
8
3
7
1
89
47
10 11 12
2
5
0
13
J
14
I
15
P
16
2
17
T
18
0
Special
0 =
Standard
Type
J
Tolerance
± 5%
A
Special
tolerance
Other =
Special
It (mm)
3.5 + 1.0/- 0.5
3.5 ± 0.3
5±1
25 ± 2
Lead Length Code
A
P
M
I
0:
Space
holder
Pitch (mm)
≤ 10
≥ 15
All
All
Packing Code
B/T
R
Z
H
W
G
Packing Style
Bulk/loose
(1)
Tape and reel; (H: 16.0 mm; 500 mm)
Tape and reel; (H: 16.0 mm; 356 mm)
Ammo (H: 16.0 mm)
Tape and reel (H: 18.5 mm; 500 mm)
Ammo (H: 18.5 mm)
Remark
Excluding bent back
For bent back only
For bent back only
For bent back only
Pitch 5 mm to 22.5 mm
Pitch ≤ 10 mm
Notes
• For detailed tape specifications refer to packaging information
www.vishay.com/doc?28139
(1)
Packaging will be bulk for all capacitors with pitch
15 mm and such with long leads (> 5 mm).
Capacitors with short leads up to 5 mm and pitch > 15 mm will be in tray and asking code will be “T”.
Revision: 15-Jan-15
Document Number: 28173
2
For technical questions, contact:
dc-film@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MMKP383
www.vishay.com
Vishay BCcomponents
CAP.
(μF)
0.0068 min.
2.7 max.
0.0047 min.
1.5 max.
0.00047 min.
4.7 max.
0.0043 min.
1.8 max.
0.0022 min.
0.68 max.
0.0027 min.
0.56 max.
0.0010 min.
0.56 max.
0.0010 min.
0.3 max.
ELECTRICAL DATA
(For Detailed Ratings go to
www.vishay.com/doc?28183)
U
RDC
(V)
250
400
630
1000
1400
1600
2000
2500
DIMENSIONS
in millimeters
l
l
w
h
lt
w
h h'
F'
(1)
P
Ø dt
10
F
H
Ø dt
15
I
Marking
h
w
Ø d
t
P
1
± 0.5
P
2
± 0.5
6 -2
Note
(1)
| F-F' | < 0.3 mm
F = 7.5 mm + 0.6 mm / - 0.1 mm
Ø dt ± 10 % of standard diameter specified
Revision: 15-Jan-15
Document Number: 28173
3
For technical questions, contact:
dc-film@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MMKP383
www.vishay.com
MOUNTING
Normal Use
The capacitors are designed for mounting on printed-circuit boards. The capacitors packed in bandoliers are designed for
mounting on printed-circuit boards by means of automatic insertion machines.
For detailed tape specifications refer to packaging information
www.vishay.com/doc?28139
Specific
Method of Mounting to Withstand Vibration and
Shock
In order to withstand vibration and shock tests, it must be ensured that the stand-off pips are in good contact with the
printed-circuit board:
• For original pitch = 15 mm the capacitors shall be mechanically fixed by the leads
• For larger pitches the capacitors shall be mounted in the same way and the body clamped
Space
Requirements on Printed-Circuit Board
The maximum space for length (l
max.
), width (w
max.
) and height (h
max.
) of film capacitors to take in account on the printed circuit
board is shown in the drawings.
For products with pitch
15 mm,
w
=
l
= 0.3 mm and
h
= 0.1 mm
For products with 15 mm < pitch
27.5 mm,
w
=l = 0.5 mm and
h
= 0.1 mm
For products with pitch = 37.5 mm,
w
=
l
= 0.7 mm and
h
= 0.5 mm
Eccentricity as in drawing. The maximum eccentricity is smaller than or equal to the lead diameter of the product concerned.
Vishay BCcomponents
w
max.
= w +
Δw
Eccentricity
I
max.
= I +
ΔI
h
max.
= h +
Δh
Seating plane
SOLDERING CONDITIONS
For general soldering conditions and wave soldering profile we refer to the document “Soldering Guidelines for Film
Capacitors”:
www.vishay.com/doc?28171
STORAGE TEMPERATURE
T
stg
= -25 °C to +35 °C with RH maximum 75 % without condensation
RATINGS AND CHARACTERISTICS REFERENCE CONDITIONS
Unless otherwise specified, all electrical values apply to an ambient free temperature of 23 °C ± 1 °C, an atmospheric pressure
of 86 kPa to 106 kPa and a relative humidity of 50 % ± 2 %.
For reference testing, a conditioning period shall be applied over 96 h ± 4 h by heating the products in a circulating air oven at
the rated temperature and a relative humidity not exceeding 20 %.
Revision: 15-Jan-15
Document Number: 28173
4
For technical questions, contact:
dc-film@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MMKP383
www.vishay.com
CHARACTERISTICS
Δ
C/C
(%)
1 kHz
typical
Impedance
(Ω)
4
10
3
Vishay BCcomponents
2
10
2
10
1
0
max.
1 nF
100 nF
2.2 µF
4.7 µF
10
0
-2
10
-1
-4
min.
- 20
20
60 T
amb
(°C) 100
10
-2
10
-3
10
4
10
5
10
6
-6
- 60
10
7
f (Hz)
10
8

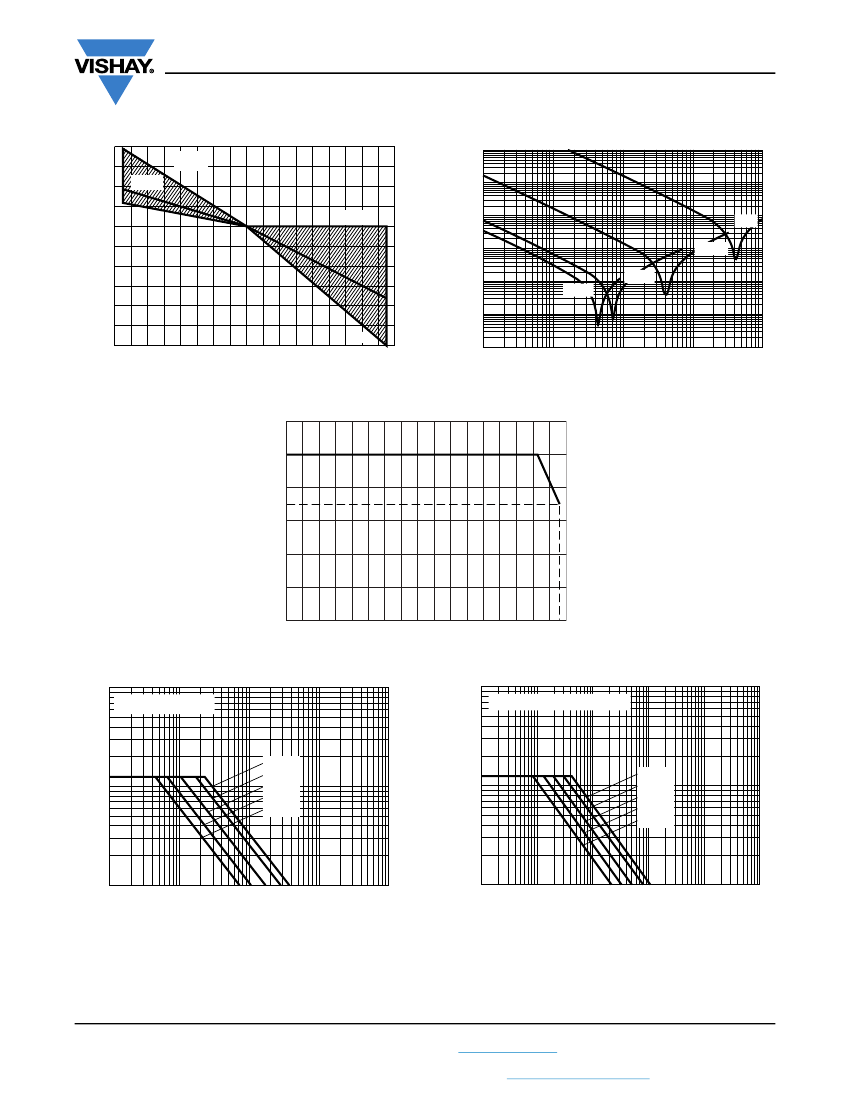

Capacitance as a function of ambient temperature (typical curve)
