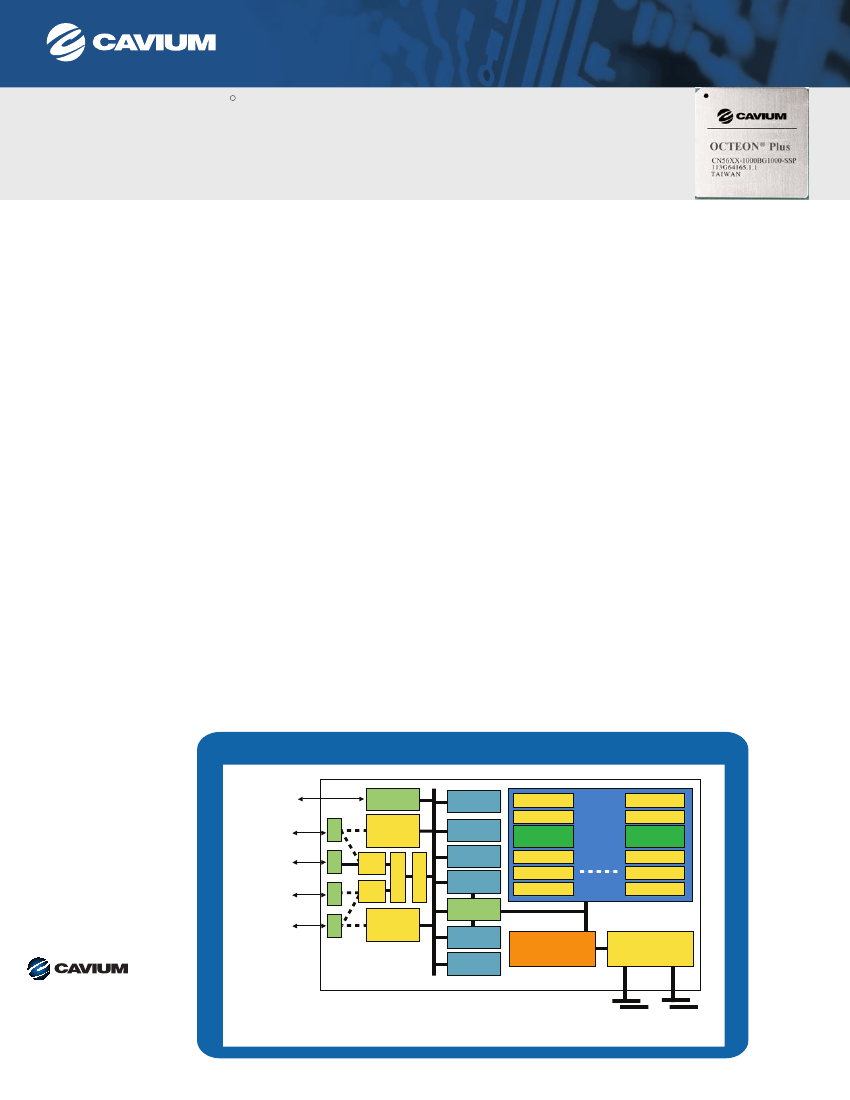

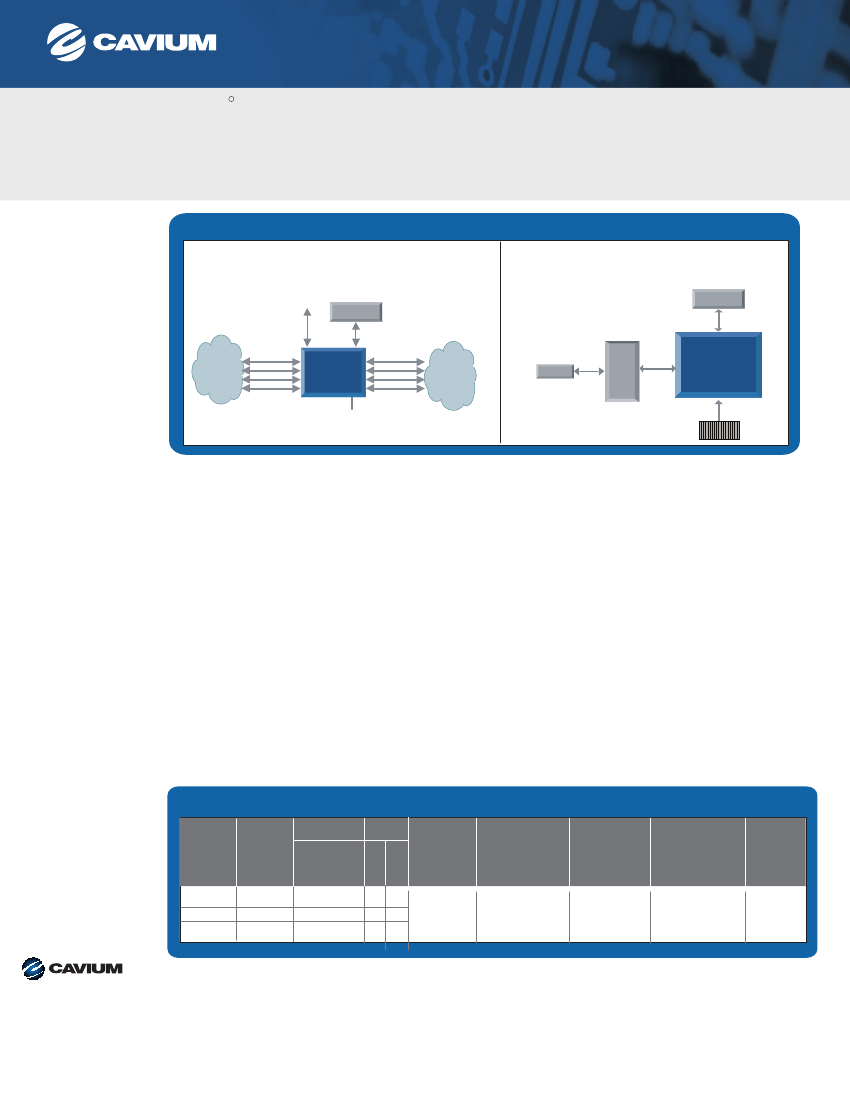

Multi-Core MIPS64 Processors
R
OCTEON Plus CN56XX 8 to 12-Core MIPS64-Based SoCs
Product Brief
T
he OCTEON® Plus CN56XX family of Multi-core MIPS64 processors targets intelligent networking, control plane, security, and wireless
®
OVERVIEW
applications in next-generation equipment from 4Gbps to 10Gbps performance. The family includes six di erent software-compatible parts,
with eight to twelve cnMIPS64 cores on a single chip that integrate next-generation SERDES based networking I/Os along with the most
advanced security and application hardware acceleration to deliver a robust performance, power and real-estate value proposition over
alternative solutions. Industry’s rst Network Services Processors with less than 3 Watt/GHz power consumption across the 3.6 GHz to
10 GHz range.
FEATURES
Software compatible with the leading OCTEON family
•
8-12 cnMIPS Plus CPU cores (MIPS64/32 compatible)
•
Available in 600 MHz to 800 MHz versions
•
Enhanced MIPS64 integer (Release 2) instruction set
•
Dual-issue, ve-stage pipeline, optimized latencies
•
Auto instruction pre-fetching and advanced data
pre-fetching features to minimize memory stalls
High-performance coherent memory subsystem
•
2MB ECC protected 8-way set associative L2
cache with locking, partitioning features for optimal
performance
•
Integrated mainstream dual DDR2 memory controller
with ECC, up to DDR2-800, up to 144bit wide
Integrated coprocessors for application acceleration
•
Packet I/O processing, QoS, TCP Acceleration
•
Support for IPsec, SSL, SRTP, WLAN and 3G/UMB/LTE
security (includes DES, 3DES, AES-GCM, AES up to 256,
SHA1, SHA-2 up to SHA-512, RSA up to 8192, DH, KASUMI)
•
Compression/Decompression
High-density, high-bandwidth serial I/O for networking
•
16 high-speed SERDES, exibly con gured in blocks of 4
•
Flexible combinations of PCI Express x4, x8, XAUI (10GE),
SGMII (GbE/2GbE)
Comprehensive development environment with Linux,
VxWorks, FreeBSD and C/C++ support
Optimized power consumption: 10W – 30W
•
Package: 40 x 40 mm 1217 FCBGA
BENEFITS
Market-leading performance
•
Up to 21.6 Billion instructions per second
•
Over 10+ Gbps application performance
- Up to 23 Mpps 64B IP forwarding
- Up to 20+ Gbps for TCP, IPsec, SSL, KASUMI
- Up to 12Gbps for Compression/Decompression
Sophisticated hardware based QoS support
•
Queuing, scheduling
•
Very low latency for real-time tra c
Scalable per-core security coprocessor architecture for lower
latency, reduced interconnect overhead, and higher small
packet performance
Reduced BOM cost with essential interfaces
Flexible architecture allows host and coprocessor
Implementations in a single chip
Industry-standard programming model without any need for
Proprietary tools or micro-coding
Software compatible with entire OCTEON family
to deliver 1- 16 CPU scalability
Highest performance, optimized power and integration
for Networking and Wireless control plane, L4-L7 data
and security services
OCTEON
®
Plus CN56XX
- Block Diagram
Boot/flash
GPIO, MISC,
USB2.0, FE
4x
x16 Serdes
enables
combination of
PCIe (2 controllers),
XAUI, SGMII or
1000B-X interfaces
with
PCIe switching*
Other I/O
4x SGMII
or 4x 1000B-X
or XAUI
Switch
PCIe
Core
PCIe
Core
PCIe Engines
Scheduler/
Sync. Order
TCP Unit
DMA Engines
Packet
Input
I/O Bridge
Packet
Output
Compression/
Decompression
I/O Bus
Packet
Security
MIPS64 r2
Integer Core
32K Icache
16K Dcache
2K Write Buffer
Coherent, Low Latency
Interconnect
2 MB
L2 Cache
Packet
4x
8 to 12
cnMIPS64
cores
Security
MIPS64 r2
Integer Core
32K Icache
16K Dcache
2K Write Buffer
4x
4x
4x SGMII
or 4x 1000B-X
or XAUI
Hyper Access DDR2
Memory Controller
2315 N. First Street
San Jose, CA 95131
T
408-943-7100
F
408-577-1992
E
sales@cavium.com
www.cavium.com
*Interface Options
•
8 - lanes PCIe + 8 - lanes PCIe
•
8 - lanes PCIe + 4 - lanes PCIe + [4x SGMII or XAUI]
•
2x [4-lanes PCIe] + 2x [4x SGMII or XAUI]
DDR2 up to 800 MHz
1x or 2x 72-bit wide
(with ECC)
Multi-Core MIPS64 Processors
R
OCTEON Plus CN56XX 8 to 12-Core MIPS64-Based SoCs
Product Brief
OCTEON Plus CN56XX - Based System Block Diagram
OCTEON Plus Single Chip Router/Appliance
PCIe x4 or x8
®
®
OCTEON Plus Offload Server/Networking NIC
2x MiniDIMM (w/ECC)
System
DRAM
System
DRAM
72 or 144-bit
4x SGMII or
1x XAUI
WAN/LAN
4x SGMII or
1x XAUI
OCTEON
CN56XX
USB 2.0
LAN/Fabric
1x 10Gbps
4x FC
4x GE
MAC
or
PHY
XAUI
or
PCIe
or
GE
OCTEON
CN56XX
PCI Express
4-8 Lanes
APPLICATIONS
•
Next-generation integrated, standalone routers and
appliances
•
Uni ed Threat Management (UTM) appliances with
Firewall, VPN (IPsec, SSL), IDS, IPS and Anti-virus
scanning
•
Application aware/L4+ content processing and switching
•
Network acceleration cards for security, TCP,
content processing, and compression
•
Integrated management and route processor cards
•
Switch/router line card and services card control
and datapath processing
•
Wireless LAN switch/appliance security and packet
processing
•
Wireless WAN security, control and packet processing
including 3G/4G/LTE and WiMAX
SOFTWARE SUPPORT
•
Cavium SDK includes:
-
Up to 12-way SMP LINUX support
-
Cavium Simple Executive for data plane applications
-
Complete GNU tool-chain, GDB, DDD and viewzilla
for tuning
-
Optimized C libraries for security, regular expression,
de/compression processing o oad
-
Support for run-to-completion or pipelined software
models
•
Complete production quality development toolkits for IP,
IPsec, SSL, TCP, SSL-VPN available
•
Comprehensive ecosystem support
-
Popular third-party operating systems and toolchains,
including MontaVista Linux, Wind River VxWorks,
ENEA OSE, and FreeBSD
-
Broad range of third-party application software vendors
-
Broad choices of ODM appliances, ATCA, and AMC cards
•
MIPS64/32 support enables thousands of MIPS and other
C/C++ applications to be easily ported to OCTEON
OCTEON Plus CN56XX - Product Family
Performance
Device
cnMIPS
cores
Max. Available
Instructions
Per Second
14.4G
18.0G
21.6G
Option
N
S
P
Y
Y
Y
C
P
L2 Cache
Packet
Interfaces
PCI
Express
Main Memory IO
w/ECC
Package
®
CN5640
CN5645
CN5650
8
10
12
Y
Y
Y
2MB
2x
[4x SGMII or 1x XAUI]
2x
[x4 or x8 lanes]
DDR2 up to 800 MHz
1x or 2x 72-bit wide
1217 FCBGA
2315 N. First Street
San Jose, CA 95131
T
408-943-7100
F
408-577-1992
E
sales@cavium.com
www.cavium.com
Device Options:
Device Speed Grade (600LP = 600 MHz Low Power, 600 = 600 MHz, 750 = 750 MHz, 800 = 800 MHz)
Option code for device family listed below:
CP = Communications Processor: Includes networking, TCP acceleration and QoS
NSP = Network Services Processor: Includes, encryption, de/compression, networking, TCP acceleration and QoS
2011 Cavium, Inc. All Rights reserved. NITROX and OCTEON are registered trademarks of Cavium, Inc.
All other brands and product names are registered trademarks of their respective owners.
CN56XX-PB-1.3 Printed in the USA
