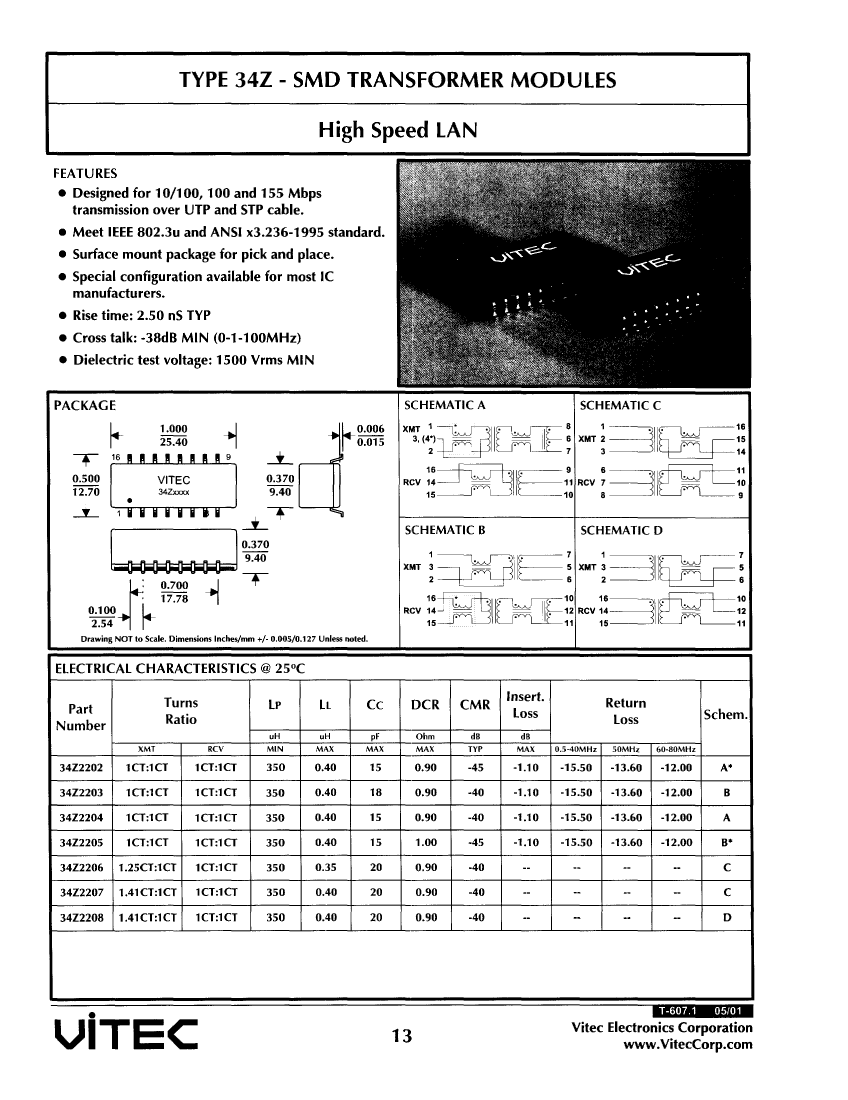

34Z2208

Description
Datacom Transformer, LAN Application(s), 1.41CT:1CT; 1CT:1CT
CategoryPower management    transformer
File Size120KB,1 Pages
ManufacturerVitec Electronics Corporation
Download Datasheet Parametric Compare View All

34Z2208 Overview

Datacom Transformer, LAN Application(s), 1.41CT:1CT; 1CT:1CT

34Z2208 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
ECCN codeEAR99
applicationLAN
high9.4 mm
Insulation voltage1500 V
length25.4 mm
Manufacturer's serial number34Z
Installation featuresSURFACE MOUNT
Number of functions1
physical size25.4mm X 9.4mm X 9.4mm
Primary inductance350 µH
Maximum pulse rise time2.5 ns
surface mountYES
Transformer typeDATACOM TRANSFORMER
Turns ratio (Np:Ns)1.41CT:1CT; 1CT:1CT
width9.4 mm
Base Number Matches1

34Z2208 Related Products

34Z2208 34Z2207 34Z2204 34Z2206 34Z2205 34Z2203
Description Datacom Transformer, LAN Application(s), 1.41CT:1CT; 1CT:1CT Datacom Transformer, LAN Application(s), 1.41CT:1CT; 1CT:1CT Datacom Transformer, LAN Application(s), 1CT:1CT; 1CT:1CT Datacom Transformer, LAN Application(s), 1.25CT:1CT; 1CT:1CT Datacom Transformer, LAN Application(s), 1CT:1CT; 1CT:1CT Datacom Transformer, LAN Application(s), 1CT:1CT; 1CT:1CT
Reach Compliance Code unknown unknow unknown unknown unknown unknown
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
application LAN LAN LAN LAN LAN LAN
high 9.4 mm 9.4 mm 9.4 mm 9.4 mm 9.4 mm 9.4 mm
Insulation voltage 1500 V 1500 V 1500 V 1500 V 1500 V 1500 V
length 25.4 mm 25.4 mm 25.4 mm 25.4 mm 25.4 mm 25.4 mm
Manufacturer's serial number 34Z 34Z 34Z 34Z 34Z 34Z
Installation features SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT
Number of functions 1 1 1 1 1 1
physical size 25.4mm X 9.4mm X 9.4mm 25.4mm X 9.4mm X 9.4mm 25.4mm X 9.4mm X 9.4mm 25.4mm X 9.4mm X 9.4mm 25.4mm X 9.4mm X 9.4mm 25.4mm X 9.4mm X 9.4mm
Primary inductance 350 µH 350 µH 350 µH 350 µH 350 µH 350 µH
Maximum pulse rise time 2.5 ns 2.5 ns 2.5 ns 2.5 ns 2.5 ns 2.5 ns
surface mount YES YES YES YES YES YES
Transformer type DATACOM TRANSFORMER DATACOM TRANSFORMER DATACOM TRANSFORMER DATACOM TRANSFORMER DATACOM TRANSFORMER DATACOM TRANSFORMER
Turns ratio (Np:Ns) 1.41CT:1CT; 1CT:1CT 1.41CT:1CT; 1CT:1CT 1CT:1CT; 1CT:1CT 1.25CT:1CT; 1CT:1CT 1CT:1CT; 1CT:1CT 1CT:1CT; 1CT:1CT
width 9.4 mm 9.4 mm 9.4 mm 9.4 mm 9.4 mm 9.4 mm
Base Number Matches 1 1 1 1 1 1
