U32D
Series
Large Can
Screw Terminal
High Ripple
Current Capability
Extended
Temperature
Range to 105 C
Dimensions in
Inches

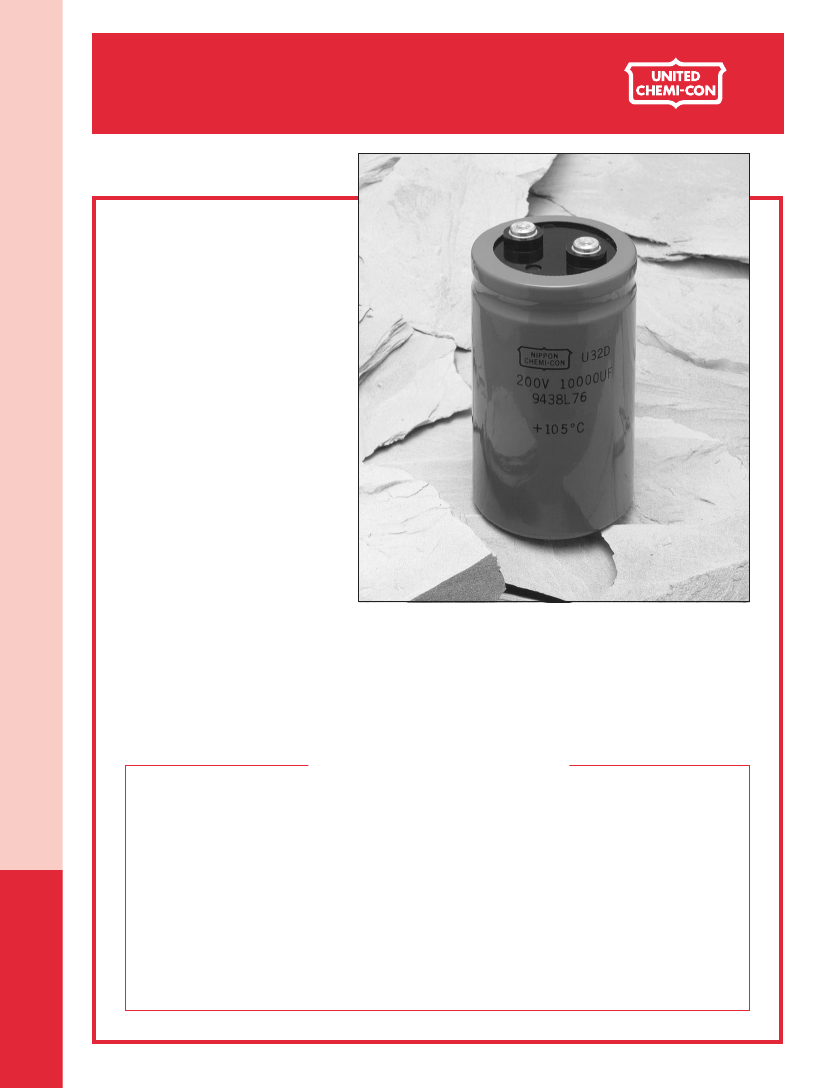

The U32D series allows for extremely high ripple currents for applications such as inverter designs
and motor controllers. The extended temperature range allows for a high operating temperature
without sacrificing life. All dimensions are based on the original 36D case sizes which are in inches.
A stud mount can is available upon request.
Summary of Specifications
Screw terminals, high, low, English and Metric; stud mount also available.
Capacitance range: 180µF to 2.2F.
Voltage range: 6.3 to 400VDC.
Operating temperature range: 40 C to 105 C.
Leakage current: 0.02CV(µA) or 5mA, whichever is smaller, after 5 minutes at
Standard capacitance tolerance: 20%
Nominal case diameter: 1.375” to 3.500”; length: 1.625” to 8.625”
Rated lifetime: 2,000 hours at 105 C with rated ripple current applied.
L ARGE CAN -105 C
25 C.
U32D
384
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
U32D Series
U32D Specifications
Item
Operating Temperature Range
Rated Voltage Range
Capacitance Range
Capacitance Tolerance
Leakage Current
I
40 to 105 C
6.3 to 400VDC
180 F to 2.2F at
20% ( M ) at
25 C, 120Hz
Characteristics
25 C, 120Hz
25 C.
0.02CV ( A ) or 5mA, whichever is smaller, after 5 minutes at
Where I = Leakage current ( A ), C = Nominal capacitance ( F ) and V = Rated voltage ( V )
Ripple Current Multipliers
Refer to Section 4 of the
Mini-Glossary for explanation
of Ripple Current Multipliers.
Ambient Temperature ( C )
≤
45 C
1.41
65 C
1.29
85 C
1.00
105 C
0.57
Frequency (Hz )
DC Rated Voltage
6.3 - 50V
63 - 80V
Case Diameter
Ø
35 -
Ø
76
Ø
35
Ø
51-
Ø
76
Ø
35
50Hz
0.95
0.90
0.95
0.82
0.90
0.95
0.80
0.81
0.82
0.80
120Hz
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
300Hz
1.03
1.06
1.03
1.12
1.06
1.03
1.19
1.14
1.12
1.19
1kHz
1.05
1.10
1.05
1.22
1.10
1.05
1.34
1.26
1.22
1.34
10kHz
1.09
1.18
1.09
1.30
1.18
1.09
1.46
1.36
1.30
1.46
50kHz
1.12
1.22
1.12
1.33
1.22
1.12
1.52
1.41
1.33
1.52
100V
Ø
51
Ø
63 -
Ø
76
Ø
35
160 - 250V
Ø
51-
Ø
63
Ø
76
315 - 400V
Ø
35 -
Ø
89
Life Validation Test
The following specifications shall be satisfied when the capacitors are restored to 25 C
after subjecting them to the DC rated voltage for 2,000 hours at 105 C with the rated ripple
current applied.
Capacitance change:
≤
20% from initial measurement
ESR change
:
≤
200% of initial specified limit
Leakage current
:
≤
initial specified limit
Shelf Test
The following specifications shall be satisfied when the capacitors are restored to 25 C after
exposing them for 500 hours at 105 C without voltage applied. The rated voltage shall be
applied to the capacitors for a minimum of 30 minutes, at least 24 hours and not more than
48 hours before the measurements.
Capacitance change:
≤
20% from initial measurement
ESR change
:
≤
200% of initial specified limit
Leakage current
:
≤
initial specified limit
Part Numbering System for U32D Series
U32D
200
LG
103
M
63X105
When ordering, always specify complete catalog number for U32D Series.
HP
Lead Code: HP = High Post 10 - 32 Screw Thread (Standard ).
LP = Low Post 10 - 32 Screw Thread.
CP = Low Post, High Current 1/4- 28 Screw Thread.
(Available only for
Ø
D2.500” and
Ø
D3.000”)
ML = Low Post M5 Screw Thread.
LL = High Post M5 Screw Thread.
CC = High Post, High Current, M6 Screw Thread.
(Available only for
Ø
D3.500”)
Note:
Ø
D3.500” available with lead codes LL or CC only.
Case Code: Expressed in Millimeters. See Tables for inch/mm sizes.
Capacitance Tolerance: M = 20%
Capacitance Value: Expressed in Microfarads. The first two digits are
significant figures, and the third digit indicates the number of zeros
for capacitance of 100 F or more. R indicates the decimal point for
capacitance less than 100 F (e.g. R10 = .10 F; 1R0 = 1.0 F;
10R = 10 F; 101 = 100 F; 102 = 1,000 F; 103 = 10,000 F ).
Lead Configuration: LG = Screw Terminals.
DC Rated Voltage: Expressed in Volts (e.g. 200 = 200WVDC).
Series Name: Indicates Basic Capacitor Design.
L ARGE CAN -105 C
U32D
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
385
U32D Series
Diagram of Dimensions
Large Can / Screw Terminals
Terminal Specifications in Inches
Terminal
Code
HP
LP
CP
ML
Thread
Thread
Depth
0.375
0.219
0.344
0.219
0.375
0.354
0.354
Available
Can
Unit: inches and mm
Diameter
1.375 – 3.000
1.375 – 3.000
2.500 – 3.000
1.375 – 3.000
1.375 – 3.000
3.500 only
3.500 only
J
0.032
Height
0.250
0.063
0.093
0.063
0.250
0.197
0.197
Ø
S
0.010
Dia.
Ø
T
0.010
Dia.
H
Max.
Height
L
L
L
L
L
L
L
0.472
0.276
0.315
0.276
0.472
0.472
0.472
F
Vent
S
T
10 - 32 NF- 2B
10 - 32 NF- 2B
1
/
4
- 28 NF- 2B
M5
M5
LL
(≤
Ø
3.0)
LL
(
Ø
3.5)
M5
CC
M6
0.313
0.313
0.688
0.313
0.313
0.393
0.512
0.438
—
—
0.438
0.438
0.610
0.689
Terminal Specifications in Millimeters
J
PVC
Sleeve
L
Terminal
Code
HP
LP
CP
ML
Thread
Thread
Depth
9.5
5.6
8.7
5.6
9.5
9.0
9.0
Available
Can
Diameter
35.0 – 76.2
35.0 – 76.2
63.5 – 76.2
35.0 – 76.2
35.0 – 76.2
89.0 only
89.0 only
J
0.8
Height
6.4
1.6
2.4
1.6
6.4
5.0
5.0
Ø
S
Ø
T
0.25
Dia.
8.0
8.0
17.50
8.0
8.0
10.00
13.00
0.25
Dia.
11.1
—
—
11.1
11.1
15.5
17.5
H
Max.
Height
L
L
L
L
L
L
L
12
7
8
7
12
12
12
L
'
MAX.
H
10 - 32 NF- 2B
10 - 32 NF- 2B
1
/ - 28 NF- 2B
4
M5
M5
LL
(≤
Ø
76)
LL
(
Ø
89)
M5
CC
M6
D
D
'
Insulating
Disk
Refer to the Mounting Hardware page at the beginning of the Large Can section for mounting
brackets and accessories.
Dimensions in Inches and Millimeters
Bare Can
Case
*Code*
inches
Ø
D
0.032
With Insulating Sleeve
mm
inches
L
1.60
041
054
067
079
092
105
117
130
143
048
054
067
079
092
105
117
130
143
079
105
117
130
143
092
105
117
130
143
219
105
117
130
143
Ø
D
'
Max.
Terminal Spacing
inches
L
'
Max.
044.5
057.2
069.9
082.6
095.3
108.0
120.7
133.4
146.1
050.8
057.2
069.9
082.6
095.3
108.0
120.7
133.4
146.1
082.6
108.0
120.7
133.4
146.1
095.3
108.0
120.7
133.4
146.1
222.3
108.0
120.7
133.4
146.1
F
0.016
mm
F
0.40
mm
Ø
D
'
Max.
L
0.063
1.625
2.125
2.625
3.125
3.625
4.125
4.625
5.125
5.625
1.875
2.125
2.625
3.125
3.625
4.125
4.625
5.125
5.625
3.125
4.125
4.625
5.125
5.625
3.625
4.125
4.625
5.125
5.625
8.625
4.125
4.625
5.125
5.625
Ø
D
0.813
L
'
Max.
1.750
2.250
2.750
3.250
3.750
4.250
4.750
5.250
5.750
2.000
2.250
2.750
3.250
3.750
4.250
4.750
5.250
5.750
3.250
4.250
4.750
5.250
5.750
3.750
4.250
4.750
5.250
5.750
8.750
4.250
4.750
5.250
5.750
Typical
Weight
(grams)
043
063
082
105
122
129
162
179
201
113
133
176
213
261
381
326
337
408
329
473
562
607
675
598
700
802
944
10040
14030
925
987
10850
11210
35X41
35X54
35X67
35X79
35X92
35X105
35X117
35X130
35X143
51X48
51X54
51X67
51X79
51X92
51X105
51X117
51X130
51X143
63X79
63X105
63X117
63X130
63X143
76X92
76X105
76X117
76X130
76X143
76X219
89X105
89X117
89X130
89X143
1.375
35.0
1.453
36.9
0.500
12.7
2.000
50.8
2.078
52.8
0.875
22.2
2.500
63.5
2.578
65.5
1.125
28.6
3.000
76.2
3.078
78.2
1.250
31.8
L ARGE CAN -105 C
U32D
3.500
89.0
3.578
90.9
1.240
31.5
*
The case code does not indicate actual size.
386
