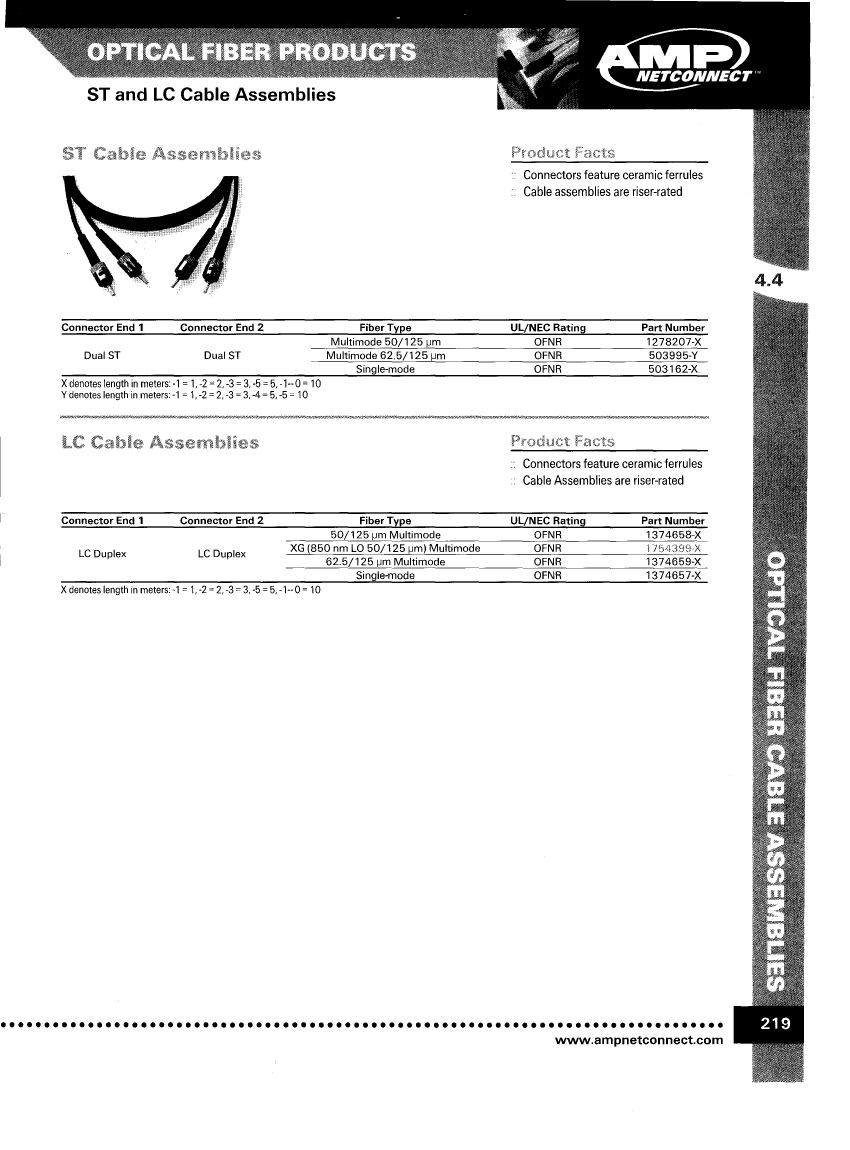

Preview

503162-5: DescriptionINTERCONNECTION DEVICE; CategoryThe connector The connector; File Size209KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

503162-5 Overview

INTERCONNECTION DEVICE

503162-5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	TE Connectivity
Reach Compliance Code	unknown
Connector type	INTERCONNECTION DEVICE
Base Number Matches	1

Preview

Download Datasheet

View All

503162-5 Related Products

	503162-5	1374657-5	177-710-5-51GP8J7-18RDN	177-710-5-51GS6K7-18SZN	177-740-2-51GS8J5-18FCN	177-740-2-51GS8J5-18MNN
Description	INTERCONNECTION DEVICE	INTERCONNECTION DEVICE	Cable Assembly, 28AWG,	Cable Assembly, 26AWG,	Cable Assembly, 28AWG,	Cable Assembly, 28AWG,
Reach Compliance Code	unknown	unknown	unknown	compliant	compliant	compliant
Is it Rohs certified?	incompatible	incompatible	-	conform to	conform to	conform to
Objectid	-	-	7004965744	7004967038	7005060780	7005060802
YTEOL	-	-	8.23	8.75	9.35	8.23
Other features	-	-	STANDARD: MIL-DTL-83513	STANDARD: MIL-DTL-83513, EMI SHIELDED	STANDARD: MIL-DTL-83513, EMI SHIELDED	STANDARD: MIL-DTL-83513
Certification	-	-	MIL	MIL	MIL	MIL
Conductor surface treatment	-	-	SILVER	SILVER	SILVER	SILVER
conductor material	-	-	COPPER	COPPER	COPPER	COPPER
ConnectorSide1	-	-	MICRO-D MALE	MICRO-D FEMALE	MICRO-D FEMALE	MICRO-D FEMALE
ConnectorSide2	-	-	MICRO-D MALE	MICRO-D FEMALE	MICRO-D FEMALE	MICRO-D FEMALE
Connector bracket type	-	-	CABLE ASSEMBLY	CABLE ASSEMBLY	CABLE ASSEMBLY	CABLE ASSEMBLY
structure	-	-	STRANDED	STRANDED	STRANDED	STRANDED
Cross-sectional area	-	-	0.081 mm2	0.129 mm2	0.081 mm2	0.081 mm2
DIN compliance	-	-	NO	NO	NO	NO
IEC compliance	-	-	NO	NO	NO	NO
insulator material	-	-	CROSSLINKED ETHYLENE-TETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE	CROSSLINKED ETHYLENE-TETRAFLUOROETHYLENE	CROSSLINKED ETHYLENE-TETRAFLUOROETHYLENE
length	-	-	0.466 mm	0.467 mm	0.467 mm	0.467 mm
MIL compliance	-	-	YES	YES	YES	YES
Number of conductors	-	-	51	51	51	51
Maximum operating temperature	-	-	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-	-	-55 °C	-55 °C	-55 °C	-55 °C
Rated current	-	-	3 A	3 A	3 A	3 A
Rated voltage	-	-	150 V	150 V	150 V	150 V
resistance	-	-	0.244 Ω	0.125 Ω	0.244 Ω	0.244 Ω
shield	-	-	NO	YES	YES	NO
stay	-	-	7X36	19X38	7X36	7X36
Wire gauge	-	-	28 AWG	26 AWG	28 AWG	28 AWG
Wire and Cable Names	-	-	FLEXIBLE CORD AND FIXTURE WIRE	FLEXIBLE CORD AND FIXTURE WIRE	FLEXIBLE CORD AND FIXTURE WIRE	FLEXIBLE CORD AND FIXTURE WIRE
