230624168455

Description
Fixed Resistor, Metal Film, 0.25W, 8450000ohm, 1600V, 1% +/-Tol, 200ppm/Cel, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT
CategoryPassive components    The resistor
File Size136KB,7 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

230624168455 Overview

Fixed Resistor, Metal Film, 0.25W, 8450000ohm, 1600V, 1% +/-Tol, 200ppm/Cel, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT

230624168455 Parametric

Parameter NameAttribute value
Objectid7045730918
package instructionAXIAL LEADED, ROHS COMPLIANT
Reach Compliance Codeunknown
ECCN codeEAR99
YTEOL6.65
Other featuresFLAME PROOF, RATED AC VOLTAGE (V): 1150
Manufacturer's serial number2306
Installation featuresTHROUGH HOLE MOUNT
Number of terminals2
Maximum operating temperature155 °C
Minimum operating temperature-55 °C
Package shapeTUBULAR PACKAGE
method of packingTR
Rated power dissipation(P)0.25 W
Rated temperature70 °C
resistance8450000 Ω
Resistor typeFIXED RESISTOR
surface mountNO
technologyMETAL FILM
Temperature Coefficient200 ppm/°C
Terminal shapeWIRE
Tolerance1%
Operating Voltage1600 V

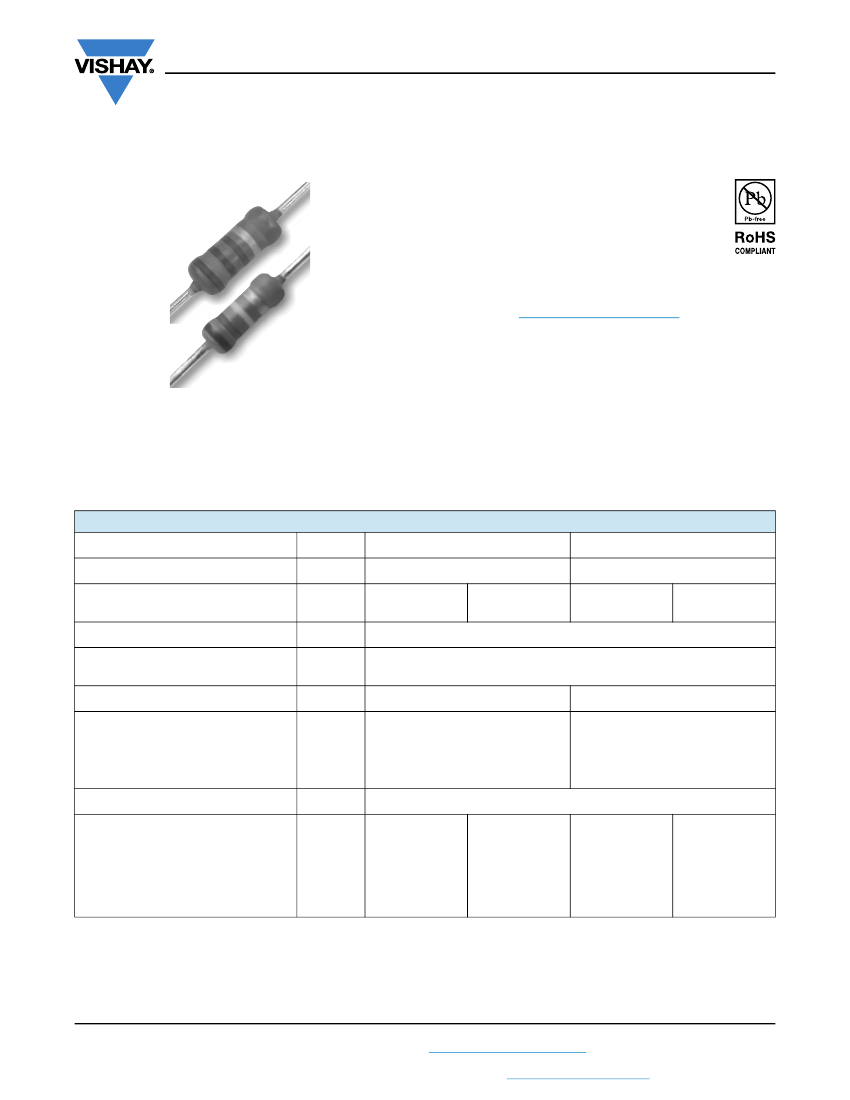

230624168455 Preview

HVR25, HVR37
www.vishay.com
Vishay BCcomponents
High Ohmic (up to 10 M)/High Voltage (up to 3.5 kV)
Metal Film Leaded Resistors
FEATURES
• Technology: Metal film
• High pulse loading (up to 10 kV) capability
• Small size (0207/0411)
• Compatible with lead (Pb)-free and lead
containing soldering processes
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
APPLICATIONS
• Power supplies
• Electronic ballast
A homogenous film of metal alloy is deposited on a high
grade ceramic body. After a helical groove has been cut in
the resistive layer, tinned electrolytic copper wires are
welded to the end-caps. The resistors are coated with a
blue, non-flammable lacquer, which provides electrical,
mechanical, and climatic protection.
• White goods
• Television
TECHNICAL SPECIFICATIONS
DESCRIPTION
Resistance Range
Resistance Tolerance
Temperature Coefficient
Climatic Category
(LCT/UCT/days)
Rated Dissipation,
P
70
Maximum Permissible Voltage
U
max.
DC
V
RMS
Basic Specification
Stability After:
Load (1000 h,
P
70
)
Long Term Damp Heat Test (56 days)
Soldering (10 s, 260 °C)
± (5 %
R
+ 0.1

± (1.5 %
R
+ 0.1

± (5 %
R
+ 0.1

± (1.5 %
R
+ 0.1

1150
IEC 60115-1
2500
1600
3500
W
0.25
UNIT
%
ppm/K
HVR25
100K to 10M
± 5;
E24 series
± 1;
E24/E96 series
200
55/155/56
0.5
HVR37
100K to 10M
± 5;
E24 series
± 1;
E24/E96 series
± (1.5 %
R
+ 0.1

± (1.5 %
R
+ 0.1

± (1.5 %
R
+ 0.1

± (1.5 %
R
+ 0.1

± (1 %
R
+ 0.1

± (1 %
R
+ 0.1

± (1 %
R
+ 0.1

± (1 %
R
+ 0.1

Revision: 26-May-14
Document Number: 30260
1
For technical questions, contact:
filmresistorsleaded@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
HVR25, HVR37
www.vishay.com
Vishay BCcomponents
(1)
PART NUMBER AND PRODUCT DESCRIPTION
Part Number: HVR2500001503JA100
H
MODEL/SIZE
HVR2500
HVR3700
V
R
2
5
0
0
0
0
1
5
0
3
J
A
1
0
0
SPECIAL
Up to 2 digits
00
= Standard
VARIANT
0
= Neutral
TCR/MATERIAL
0
= Standard
VALUE
3 digit value
1 digit multiplier
MULTIPLIER
3
= *10
3
4
= *10
4
5
= *10
5
TOLERANCE
F
=
1%
J
=
5%
PACKAGING
(2)
A1
A5
R5
N4
Product Description: HVR25 5 % A1 150K
HVR25
Model
HVR25
HVR37
5%
TOLERANCE
±1%
±5%
A1
PACKAGING
(2)
A1
A5
R5
N4
150K
RESISTANCE VALUE
150K
= 150 k
4M64
= 4.64 M
Notes
(1)
The PART NUMBER is shown to facilitate the introduction of the unified part numbering system
(2)
Please refer to table PACKAGING, see next page
PACKAGING
AMMO PACK
MODEL
TAPING
PIECES
5000
Axial, 52 mm
HVR25
Radial
HVR37
Axial, 52 mm
1000
4000
1000
A1
N4
A1
5000
R5
CODE
A5
PIECES
5000
CODE
R5
REEL
DIMENSIONS
L
1
Ø
D
Ø
d
L
2
A
DIMENSIONS
- Resistor types, mass and relevant physical dimensions
TYPE
HVR25
HVR37
L
1 max.
(mm)
6.5
10
L
2 max.
(mm)
7.5
12
D
max.
(mm)
2.5
4
Ød
(mm)
0.58
0.05
0.70
0.03
A
(mm)
52.5
1.5
52.5
1.5
MASS
(mg)
220
500
Revision: 26-May-14
Document Number: 30260
2
For technical questions, contact:
filmresistorsleaded@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
HVR25, HVR37
www.vishay.com
PRODUCTS WITH RADIAL LEADS (HVR25)
Vishay BCcomponents
P
2
P
H
1
H
H
0
L
1
L
W
0
W
F
P
0
P
1
D
0
DIMENSIONS
- Radial taping
SYMBOL
P
P
0
P
1
P
2
F
W
W
0
H1
H
0
H
D
0
L
L
1
PARAMETER
Pitch of components
Feed-hole pitch
Feed-hole centre to lead at topside at the tape
Feed-hole center to body center
Lead-to-lead distance
Tape width
Minimum hold down tape width
Component height
Lead wire clinch height
Height of component from tape center
Feed-hole diameter
Maximum length of snipped lead
Minimum lead wire (tape portion) shortest lead
VALUE
12.7
12.7
3.85
6.35
4.8
18.0
5.5
29
16.5
19.5
4.0
11.0
2.5
TOLERANCE
1.0
0.2
0.5
1.0
0.7/-0
0.5
-
Max.
0.5
1
0.2
-
-
UNIT
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
Note
• Please refer document number 28721 “Packaging” for more detail
MARKING
The nominal resistance and tolerance are marked on the resistor using four or five colored bands in accordance with IEC 60062,
marking codes for resistors and capacitors. Standard values of nominal resistance are taken from the E24 and E24/E96 series
for resistors with a tolerance of
5 % or
1 % respectively. The values of the E24/E96 series are in accordance with IEC 60063.
Yellow and grey are used instead of gold and silver because metal particles in the lacquer could affect high-voltage properties.
Revision: 26-May-14
Document Number: 30260
3
For technical questions, contact:
filmresistorsleaded@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
HVR25, HVR37
www.vishay.com
FUNCTIONAL PERFORMANCE
Power Dissipation
P
Vishay BCcomponents
100
0
- 55
0
70
155
Ambient temperature
ϑ
amb
Derating - Standard Operation
Maximum dissipation (P
max.
) in percentage of rated power as a function of ambient temperature (T
amb
)
PULSE LOADING CAPABILITY
Note
• Maximum allowed peak pulse voltage in accordance with IEC 60065, 14.1.a; 50 discharges from a 1 nF capacitor charged to
U
max.
;
12 discharges/min
12
11
10
9
Û
max.
(kV)
8
7
6
HVR25
R
=
(4.0 %
R
+ 0.1
)
5
4
10
-2
10
-1
10
0
10
1
10
2
R
(MΩ)
12
11
10
9
Û
max.
(kV)
8
7
6
HVR37
For 5 % tolerance
R
=
(4.0 %
R
+ 0.1
)
For 1 % tolerance
R
=
(2.0 %
R
+ 0.1
)
5
4
10
-2
10
-1
10
0
10
1
10
2
R
(MΩ)
Revision: 26-May-14
Document Number: 30260
4
For technical questions, contact:
filmresistorsleaded@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
HVR25, HVR37
www.vishay.com
TESTS AND REQUIREMENTS
Essentially all tests are carried out in accordance with IEC 60115-1, category 55/155/56 (rated temperature range
- 55 °C to + 155 °C; damp heat, long term, 56 days) and along the lines of IEC 60068-2-xx test method. The tests are carried
out under standard atmospheric conditions according to IEC 60068-1, 5.3 unless otherwise specified. In some instances
deviations from IEC recommendations were necessary for our method of specifying.
Vishay BCcomponents
PERFORMANCE
IEC
60115-1
CLAUSE
4.8
IEC
60068-2-xx
TEST
METHOD
-
TEST
Temperature
coefficient
PROCEDURE
Between
-55 °C and +155 °C
1000 h;
loaded with
P
70
or
U
max.
;
1.5 h ON; 0.5 h OFF
for 5 % tolerance
for 1 % tolerance
56 days; 40 °C;
90 % to 95 % RH
loaded with 0.01
P
70
for 5 % tolerance
for 1 % tolerance
4.23
4.23.2
4.23.3
4.23.4
4.23.6
2 (Ba)
30 (Db)
1 (Aa)
30 (Db)
Climatic sequence
Dry heat
Damp heat,
cyclic
Cold
Damp heat,
(accelerated)
remaining cycles
Rapid change of
temperature
16 h, 155 °C
24 h; 25 °C to 55 °C
90 % to 100 % RH; 1 cycle
2 h, -55 °C
5 days; 25 °C to 55 °C
90 to 100 % RH
30 min at LCT;
30 min at UCT;
LCT = -55 °C;
UCT = 155 °C;
5 cycles
Room temperature;
dissipation 6.25 x
P
70
(voltage not more than 2 x limiting
voltage,
10 000 V
max.
);
10 cycles 5 s ON and 45 s OFF
for 5 % tolerance
for 1 % tolerance
4.12
4.16
4.16.2
4.16.3
4.16.4
21 (Ua1)
21 (Ub)
21 (Uc)
-
Noise
Robustness of
terminations:
Tensile all samples
Bending half number
of samples
Torsion other half of
samples
Load 10 N; 10 s
Load 5 N; 4 x 90°
3 x 360° in opposite direction
Frequency 10 Hz to 500 Hz;
displacement
1.5 mm or acceleration 10
g;
3 directions;
total 6 h (3 x 2 h)
No damage
(1 %
R
+ 0.1
)
IEC 60195
(2 %
R
+ 0.1
)
(1 %
R
+ 0.1
)
Max. 5 μV/V
Max. 2.5 μV/V
(1.5 %
R
+ 0.1
)
(5 %
R
+ 0.1
)
(1.5 %
R
+ 0.1
)
(5 %
R
+ 0.1
)
(1.5 %
R
+ 0.1
)
REQUIREMENTS
PERMISSIBLE CHANGE (R)
HVR25
200 ppm/K
HVR37
4.25.1
-
Endurance at 70 °C
4.24
78 (Cab)
Damp heat,
steady state
4.19
14 (Na)
No visual damage
(1 %
R
+ 0.1
)
4.13
-
Short time overload
4.22
6 (Fc)
Vibration
(1.0 %
R+
0.1
)
Revision: 26-May-14
Document Number: 30260
5
For technical questions, contact:
filmresistorsleaded@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
DSP2812 Program
When debugging a program with CCS3.3, I encountered this error: declaration may not appear after executable statement in block. Please help me find a solution....
zhangma521 TI Technology Forum
Let's start with 'router'
Usually, when a family wants to share the Internet, they will buy a "SOHO router" for about 100 to 300 yuan in the market, and connect the WAN port of such a small box to the Internet through ADSL (PP...
richiefang RF/Wirelessly
【Learn Power Supply from TI】Series----2012 TI Industrial Technology and Product Seminar Materials (Welcome to download!!!)
[size=6][color=darkred]2012 TI Industrial Technology and Product Seminar Materials (PDF format, welcome to download!!!)[/color][/size]...
qwqwqw2088 Analogue and Mixed Signal
Vs2005 cannot connect to WINCE 6 devices via activesync?
2440 runs wince 6 usb device OK. It can sync with winxp through activesync, but there is an error when using the tools in the target->remote tools->menu in vs2005. It can connect using the tools in th...
联合国 Embedded System
Does the main USB of 2440 need to be 5V power supply?
It is used to connect USB mouse and keyboard. From: EEWORLD cooperation group 63762526, group owner: wangkj...
WLJP PCB Design
Sincerely seek advice
I am currently studying the course Computer Structure and Organization. I don't understand the mapping from virtual memory to physical memory, and the page organization problem. I can't understand it ...
LXD13204234670 Embedded System

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

Index Files: 1829  2827  1261  1469  740  37  57  26  30  15
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
