HCPL-0500.R1: DescriptionLogic IC Output Optocoupler, 1-Element, 2500V Isolation, 1MBps, SOP-8; CategoryLED optoelectronic/LED photoelectric; File Size542KB，9 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

HCPL-0500.R1 Overview

Logic IC Output Optocoupler, 1-Element, 2500V Isolation, 1MBps, SOP-8

HCPL-0500.R1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	SOP-8
Reach Compliance Code	compliant
Other features	UL RECOGNIZED
Configuration	SINGLE
Nominal data rate	1 MBps
Maximum forward current	0.025 A
Maximum insulation voltage	2500 V
JESD-609 code	e0
Number of components	1
Maximum on-state current	0.008 A
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	LOGIC IC OUTPUT OPTOCOUPLER
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

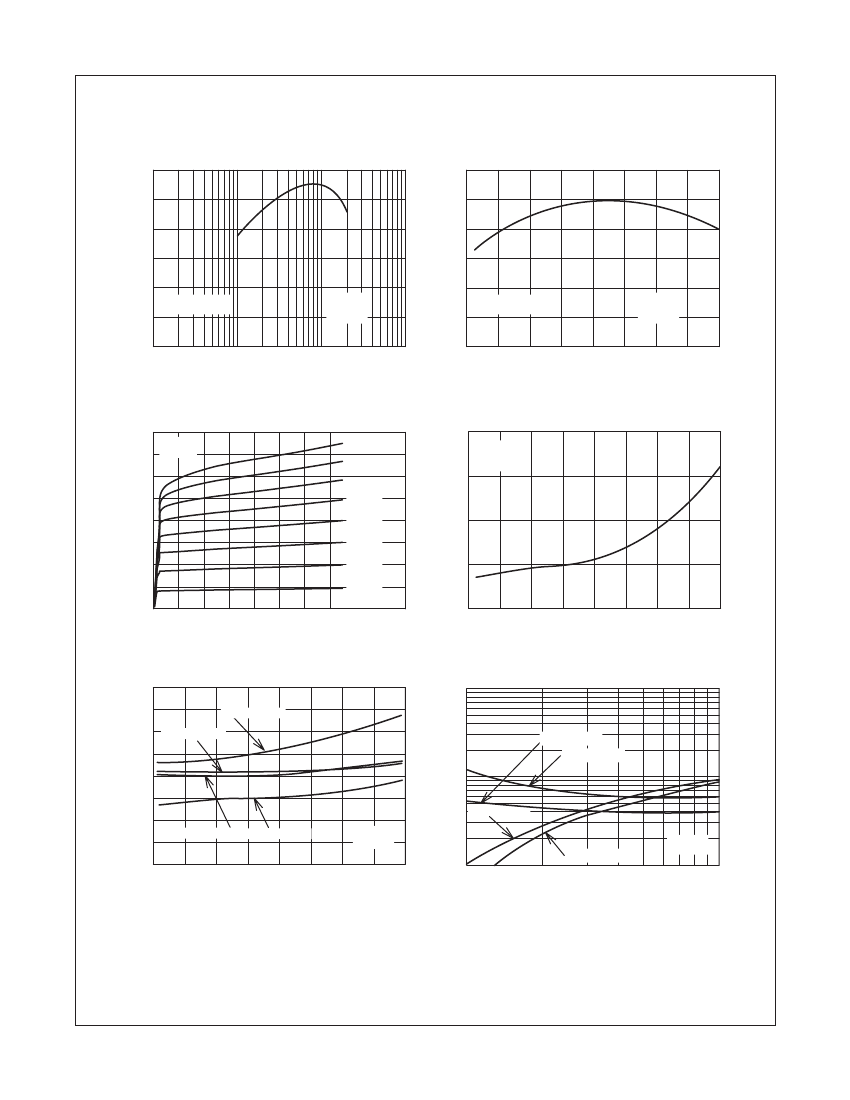

Preview

Download Datasheet

View All

HCLP0XXX High Speed Transistor Optocouplers

May 2006

HCPL0452, HCPL0453, HCPL0500, HCPL0501,

HCPL0530, HCPL0531, HCPL0534

High Speed Transistor Optocouplers

Single Channel: HCPL0452 HCPL0453 HCPL0500 HCPL0501

Dual Channel: HCPL0530 HCPL0531 HCPL0534

Features

■

High speed – 1 MBit/s

■

15kV/µs minimum common mode transient immunity at

= 1500V (HCPL0453/0534)

■

Open collector output

■

Guaranteed performance over temperature: 0°C to 70°C

■

U.L. recognized (File # E90700)

■

VDE0884 recognized (ﬁle#136616)

– approval pending for HCPL0530/0531/0453

– ordering option V, e.g., HCPL0500V

■

BSI recognized (ﬁle# 8661, 8662)

– HCPL0452/0500/0501 only

Description

The HCPL05XX, and HCPL04XX optocouplers consist of an

AlGaAs LED optically coupled to a high speed photodetector

transistor housed in a compact 8-pin small outline package.

A separate connection for the bias of the photodiode improves

the speed by several orders of magnitude over conventional

phototransistor optocouplers by reducing the base-collector

capacitance of the input transistor. The HCPL04XX devices do

not have the base bonded out to a lead for additional noise mar-

gin. The HCPL053X devices have two channels per package for

optimum mounting density.

Truth Table

(positive Logic)

LED

OFF

Applications

■

Line receivers

■

Pulse transformer replacement

■

Output interface to CMOS-LSTTL-TTL

■

Wide bandwidth analog coupling

LOW

HIGH

Package Dimensions

0.164 (4.16)

0.144 (3.66)

N/C 1

8 V

+ 1

8 V

SEATING PLANE

+ 2

7 V

Pin 1

0.202 (5.13)

0.182 (4.63)

6 V

0.019 (0.48)

N/C 4

5 GND

+ 4

5 GND

0.143 (3.63)

0.123 (3.13)

0.010 (0.25)

0.006 (0.16)

0.021 (0.53)

0.011 (0.28)

0.008 (0.20)

0.003 (0.08)

0.050 (1.27)

TYP

0.244 (6.19)

0.224 (5.69)

BASE NOT CONNECTED

FOR HCPL0452, HCPL0453

HCPL0500, HCPL0501

HCPL0530/HCPL0531/HCPL0534

Lead Coplanarity : 0.004 (0.10) MAX

NOTE

All dimensions are in inches (millimeters)

www.fairchildsemi.com

HCLP0XXX Rev. 1.0.3

HCPL-0500.R1 Related Products

	HCPL-0500.R1	HCPL0500R1V	HCPL-0501.R1	HCPL-0452.R1
Description	Logic IC Output Optocoupler, 1-Element, 2500V Isolation, 1MBps, SOP-8	optocoupler sgl trans out 8-soic	Logic IC Output Optocoupler, 1-Element, 2500V Isolation, 1MBps, SOP-8	Logic IC Output Optocoupler, 1-Element, 2500V Isolation, 1MBps, SOP-8
Is it Rohs certified?	incompatible	conform to	incompatible	incompatible
Maker	Fairchild	Fairchild	Fairchild	Fairchild
package instruction	SOP-8	SOP-8	SOP-8	SOP-8
Reach Compliance Code	compliant	unknown	compliant	compliant
Other features	UL RECOGNIZED	UL RECOGNIZED, OPEN COLLECTOR OUTPUT	UL RECOGNIZED	UL RECOGNIZED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Nominal data rate	1 MBps	1 MBps	1 MBps	1 MBps
Maximum forward current	0.025 A	0.025 A	0.025 A	0.025 A
Maximum insulation voltage	2500 V	2500 V	2500 V	2500 V
JESD-609 code	e0	e3	e0	e0
Number of components	1	1	1	1
Maximum on-state current	0.008 A	0.008 A	0.008 A	0.008 A
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	LOGIC IC OUTPUT OPTOCOUPLER	LOGIC IC OUTPUT OPTOCOUPLER	LOGIC IC OUTPUT OPTOCOUPLER	LOGIC IC OUTPUT OPTOCOUPLER
Terminal surface	Tin/Lead (Sn/Pb)	Matte Tin (Sn)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
