FHR2-302510.5OHMSK1% datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> FHR2-302510.5OHMSK1%

FHR2-302510.5OHMSK1%: DescriptionFixed Resistor, Metal Foil, 40W, 10.5ohm, 500V, 1% +/-Tol, -15,15ppm/Cel; CategoryPassive components The resistor; File Size356KB，4 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

FHR2-302510.5OHMSK1% Overview

Fixed Resistor, Metal Foil, 40W, 10.5ohm, 500V, 1% +/-Tol, -15,15ppm/Cel

FHR2-302510.5OHMSK1% Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1181124823
Reach Compliance Code	compliant
Country Of Origin	Israel
ECCN code	EAR99
YTEOL	10
structure	Rectangular
JESD-609 code	e3
lead spacing	20.32 mm
Manufacturer's serial number	FHR2-3025
Number of terminals	2
Maximum operating temperature	130 °C
Minimum operating temperature	-40 °C
Package height	24 mm
Package length	30 mm
Package shape	RECTANGULAR PACKAGE
Package form	Radial
Package width	5.5 mm
Rated power dissipation(P)	40 W
resistance	10.5 Ω
Resistor type	FIXED RESISTOR
series	FHR2-3025
technology	METAL FOIL
Temperature Coefficient	15 ppm/°C
Terminal surface	Matte Tin (Sn)
Tolerance	1%
Operating Voltage	500 V

FHR2-302510.5OHMSK1% Preview

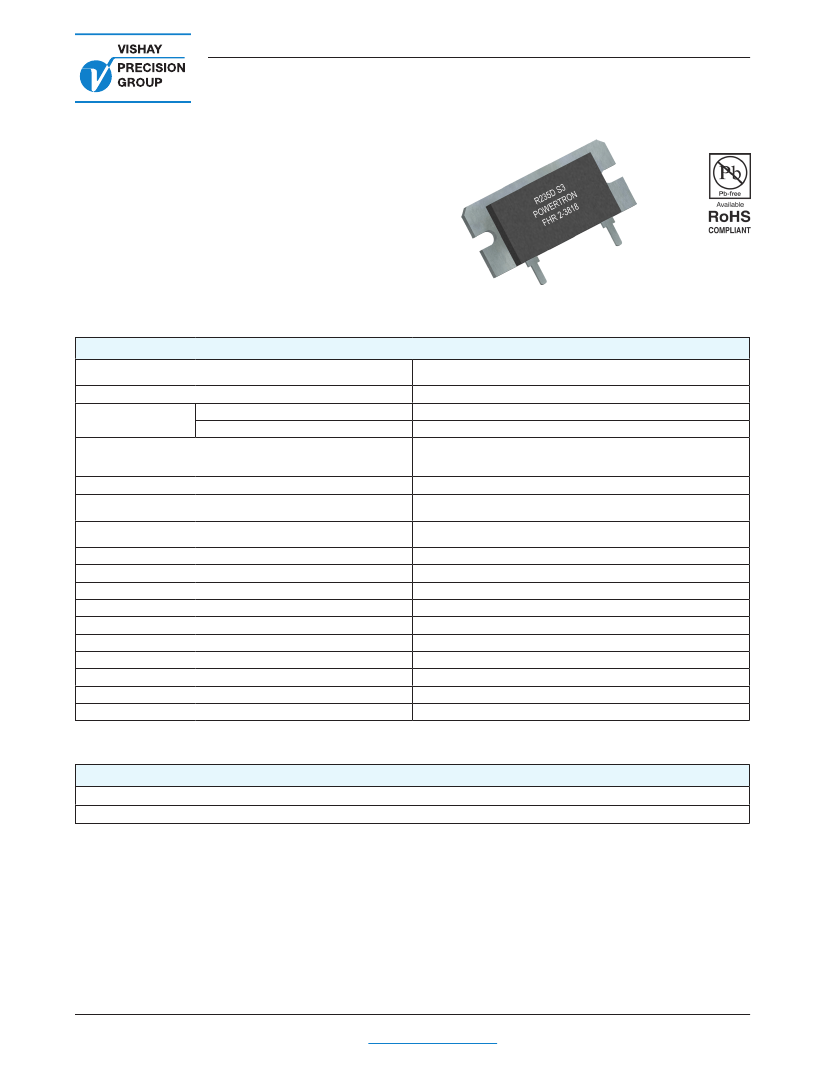

FHR 2-3025 3818

Powertron

FEATURES

•

Resistances from 0.01Ohm to 100Ohms

Power Rating to 40Watt

Resistance Tolerances to ±0.5%

TCR to ±50ppm/K

Very Low Inductance

Stability to 0.1%

TABLE 1—SPECIFICATIONS

TYPE

Resistance Range

Power Rating

Tolerances

from 0R01

from 0R02

Thermal Resistance

Stability (1000h)

Temperature Coefficient

Voltage Proof

Maximum Current

Thermal EMF

Operating Temperature Range

Resistor Material

Housing

Substrate

Connector Material

Terminals

Max. torque

Free air 70°C

With heatsink

40W

0.5% / 1% / 2% / 5%

0.25% / 0.5% / 1% / 2% / 5%

2.0 K/W

0.1% / 0.2% / 0.5%

(depends on stress)

±50ppm/K (20 to 60°C)

other specifications upon request

500 VDC

150 A

<0.1 μV/K

–40°C to 130°C

CuNiMn-Foil

Epoxy

Anodized aluminium

Cu / tinned

1 Nm

FHR 2-3025

FHR 2-3818

0.010 to 100Ohms

ORDERING INFORMATION

Part Number - Resistance - Contact - Tolerance

FHR 2-3818 0.050 Ohms A 1%

Document No.: 64206

Revision: 22-04-2013

For technical questions,

contact

powertron@vishaypg.com

www.powertron.de

FHR 2-3025 3818

Powertron

FIGURE 1—TEMPERATURE COEFFICIENT

4000

2000

Limit 2

-2000

∆R/R

(ppm)

-4000

Nominal

∆R/R

-6000

-8000

-10000

Limit 1

-12000

-40

-20

100

120

140

Temperature (°C)

FIGURE 2—DERATING

Power Rating Notes -

120

Power ( % from

nominal power)

100

0.5%

0.2%

0.1%

The FHR Series Resistors must be attached to a suitable heat-

sink. The maximum internal resistor temperature is 130°C.

To specify an appropriate heatsink use the following formula :

= T

MAX

- ( P x R

) - T

100

115

130

Where:

Temperature of the backplate (°C)

= Thermal Resistance of Heatsink ( K/W )

= Thermal Resistance of Resistor ( K/W )

MAX

= Maximum Temperature of Resistor

= Ambient Temperature of Heatsink ( °C )

P = Power Through Resistor ( W )

www.powertron.de

For technical questions,

contact

powertron@vishaypg.com

Document No.: 64206

Revision: 22-04-2013

FHR 2-3025 3818

Powertron

FIGURE 3—DIMENSIONS

in mm (inches)

FHR 2-3025

Dimension

±0.2 (±0.008)

±0.4 (±0.016)

±0.1 (±0.004)

±0.2 (±0.008)

±0.1 (±0.004)

±0.2 (±0.008)

±0.1 (±0.004)

±0.2 (±0.008)

±0.4 (±0.016)

±0.2 (±0.008)

±0.1 (±0.004)

±0.2 (±0.008)

A-Contact

K-Contact

24.00 (0.94)

30.00 (1.18)

1.40 (0.06)

4.00 (0.16)

27.00 (1.06)

15.00 (0.59)

1.5x45° (0.06x45°)

20.32 (0.80)

1.50 (0.06)

1.10 (0.04)

3.20 (0.13)

2.00 (0.08)

max.5.5 (0.22)

30.40 (1.20)

15.00 (0.59)

3.60 (0.14)

3.30 (0.13)

2.80 (0.11)

FHR 2-3818

Dimension

±0.2 (±0.008)

±0.3 (±0.012)

±0.4 (±0.016)

±0.2 (±0.008)

±0.3 (±0.012)

±0.2 (±0.008)

±0.1 (±0.004)

±0.2 (±0.008)

±0.1 (±0.004)

±0.2 (±0.008)

±0.4 (±0.016)

±0.2 (±0.008)

±0.1 (±0.004)

±0.2 (±0.008)

A-Contact

K-Contact

17.00 (0.67)

38.00 (1.50)

1.40 (0.06)

8.50 (0.33)

32.00 (1.26)

27.00 (1.06)

1.5x45° (0.06x45°)

20.32 (0.80)

1.50 (0.06)

1.10 (0.04)

3.20 (0.13)

2.00 (0.08)

max.5.5 (0.22)

23.40 (0.92)

15.00 (0.59)

3.60 (0.14)

3.30 (0.13)

2.80 (0.11)

Document No.: 64206

Revision: 22-04-2013

For technical questions,

contact

powertron@vishaypg.com

www.powertron.de

Legal Disclaimer Notice

Vishay Precision Group

Disclaimer

ALL PRODUCTS, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Vishay Precision Group, Inc., its affiliates, agents, and employees, and all persons acting on its or their

behalf (collectively, “Vishay Precision Group”), disclaim any and all liability for any errors, inaccuracies or

incompleteness contained herein or in any other disclosure relating to any product.

The product specifications do not expand or otherwise modify Vishay Precision Group’s terms and

conditions of purchase, including but not limited to, the warranty expressed therein.

Vishay Precision Group makes no warranty, representation or guarantee other than as set forth in the terms

and conditions of purchase.

To the maximum extent permitted by applicable law, Vishay Precision

Group disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and

all liability, including without limitation special, consequential or incidental damages, and (iii) any and

all implied warranties, including warranties of fitness for particular purpose, non-infringement and

merchantability.

Information provided in datasheets and/or specifications may vary from actual results in different

applications and performance may vary over time. Statements regarding the suitability of products for

certain types of applications are based on Vishay Precision Group’s knowledge of typical requirements that

are often placed on Vishay Precision Group products. It is the customer’s responsibility to validate that a

particular product with the properties described in the product specification is suitable for use in a particular

application.

No license, express, implied, or otherwise, to any intellectual property rights is granted by this document, or

by any conduct of Vishay Precision Group.

The products shown herein are not designed for use in life-saving or life-sustaining applications unless

otherwise expressly indicated. Customers using or selling Vishay Precision Group products not expressly

indicated for use in such applications do so entirely at their own risk and agree to fully indemnify Vishay

Precision Group for any damages arising or resulting from such use or sale. Please contact authorized

Vishay Precision Group personnel to obtain written terms and conditions regarding products designed for

such applications.

Product names and markings noted herein may be trademarks of their respective owners.

Document No.: 63999

Revision: 27-Apr-2011

www.vishaypg.com

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
