GN0031R930BE7080 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> GN0031R930BE7080

GN0031R930BE7080: DescriptionFixed Resistor, Wire Wound, 2W, 1.93ohm, 0.1% +/-Tol, -50,50ppm/Cel,; CategoryPassive components The resistor; File Size194KB，3 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

GN0031R930BE7080 Overview

Fixed Resistor, Wire Wound, 2W, 1.93ohm, 0.1% +/-Tol, -50,50ppm/Cel,

GN0031R930BE7080 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	886181109
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	7.3
Other features	PRECISION, NON INDUCTIVE
structure	Tubular
JESD-609 code	e3
Lead diameter	0.508 mm
Lead length	38.1 mm
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	250 °C
Minimum operating temperature	-65 °C
Package diameter	2.39 mm
Package length	10.31 mm
Package form	Axial
method of packing	TR
Rated power dissipation(P)	2 W
Rated temperature	25 °C
Guideline	MIL-PRF-26
resistance	1.93 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	WIRE WOUND
Temperature Coefficient	50 ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WIRE
Tolerance	0.1%
Operating Voltage	1.9647 V

Preview

Download Datasheet

View All

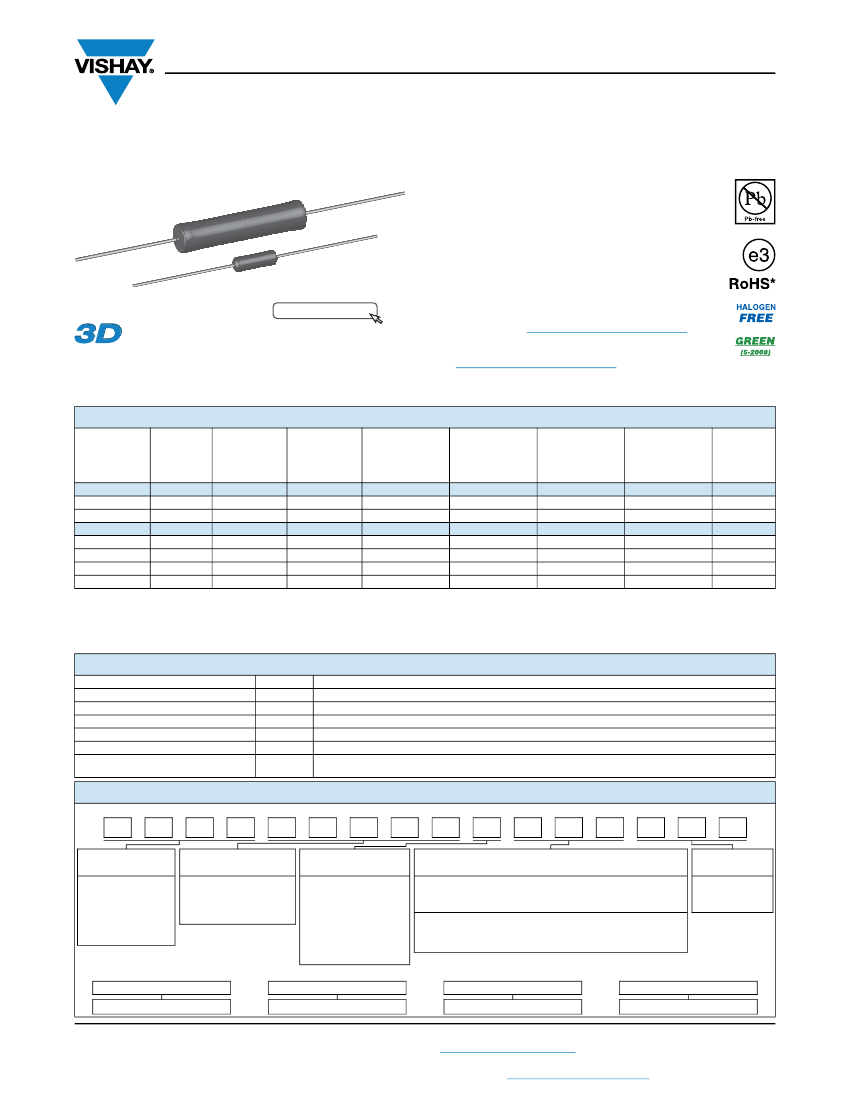

G, GN

www.vishay.com

Vishay Dale

Wirewound Resistors, Miniature, Industrial, Precision Power,

Silicone Coated, Axial Lead

FEATURES

• From 1.4 to 4 times higher power ratings than

conventional resistors of equivalent size

• High temperature coating (> 350 °C)

• Complete welded construction

• Meets applicable requirements of MIL-PRF-26

• Available in non-inductive styles (type GN) with

Ayrton-Perry winding for lowest reactive

components

• Excellent stability in operation (typical

resistance shift < 0.5 %)

• MIL-PRF-26 qualified, type RW resistors can

be found at:

www.vishay.com/doc?30281

• Material categorization:

for definitions of compliance please see

www.vishay.com/doc?99912

Available

DESIGN SUPPORT TOOLS

Models

Available

click logo to get started

Available

Note

This datasheet provides information about parts that are RoHS-compliant and / or parts that are non RoHS-compliant. For example, parts

with lead (Pb) terminations are not RoHS-compliant. Please see the information / tables in this datasheet for details

STANDARD ELECTRICAL SPECIFICATIONS

GLOBAL

MODEL

HIST.

MODEL

POWER

RATING

(1)

25 °C

U ± 0.05 %

to ± 5 %

1.0

1.5

2.0

4.0

5.0

7.0

POWER

RATING

(1)

25 °C

V±3%

to ± 5 %

5.0

7.0

10.0

RESISTANCE

RANGE



± 0.05 %

RESISTANCE

RANGE



± 0.1 %

RESISTANCE

RANGE



± 0.25 %

RESISTANCE

RANGE



± 0.5 %, ± 1 %,

± 3 %, ± 5 %

WEIGHT

(typical)

G001...80

G-1-80

1.0 to 1K

0.499 to 1K

0.499 to 3.4K

0.1 to 3.4K

0.20

G001...380

G-1-380

0.499 to 1K

0.1 to 1K

0.20

G002

G-2

1.0 to 1.3K

0.499 to 1.3K

0.499 to 4.9K

0.1 to 4.9K

0.21

G003...80

G-3-80

1.0 to 2.74K

0.499 to 2.74K 0.499 to 10.4K

0.1 to 10.4K

0.34

G003...380

G-3-380

0.499 to 2.74K 0.499 to 2.74K

0.1 to 2.74K

0.34

G005

G-5

0.499 to 6.5K

0.1 to 24.5K

0.80

G05C

G-5C

0.499 to 8.6K

0.1 to 32.3K

1.20

G010

G-10

0.499 to 25.7K 0.499 to 25.7K

0.1 to 95.2K

3.60

Notes

• G002, G005, G05C, and G010: Core consists of beryllium oxide ceramic

• Models not available as lead (Pb)-free: G001...380 and G003…380

• Shaded area indicates most popular models

(1)

Vishay Dale G models have two power ratings depending on operation temperature and stability requirements. Models not available for

characteristic V are: G001…80, G001…380, G002, G003…80, and G003…380

TECHNICAL SPECIFICATIONS

PARAMETER

Temperature Coefficient

Maximum Working Voltage

Insulation Resistance

Terminal Strength

Operating Temperature Range

Power Rating

UNIT

ppm/°C



°C

G RESISTOR CHARACTERISTICS

± 20 for 10



and above; ± 50 for 1



to 9.9

;

± 90 for 0.5



to 0.99



(P x

1/2

1000 M minimum dry, 100 M minimum after moisture test

5 minimum for G001...80 thru G003...380, 10 minimum for all others

Characteristic U = -65 to +250, characteristic V = -65 to +350

Characteristic U = +250 °C max. hot spot temperature, ± 0.5 % max.

R

in 2000 h load life

Characteristic V = +350 °C max. hot spot temperature, ± 3.0 % max.

R

in 2000 h load life

GLOBAL PART NUMBER INFORMATION

Global Part Numbering example: G00310R00FS7080

SPECIAL

(up to 3 digits)

(dash number)

From

1 to 999

as applicable

GLOBAL MODEL

(4 or 5 digits)

(see Standard

Electrical

Specifications

Global Model

column for

options)

TOLERANCE CODE

(1 digit)

= 0.05 %

= 0.1 %

= 0.25 %

= 0.5 %

= 1.0 %

= 3.0 %

= 5.0 %

= 10.0 %

Historical Part Numbering example: G-3-80 10



1 % S70

G-3-80



HISTORICAL MODEL

RESISTANCE VALUE

(5 digits)

= decimal

= thousand

15R00

= 15



10K00

= 10 k

PACKAGING

(3 digits)

E70

= lead (Pb)-free, tape / reel (smaller than G010)

E73

= lead (Pb)-free, tape / reel (500 pieces)

E12

= lead (Pb)-free, bulk

S70

= tin / lead, tape / reel (smaller than G010)

S73

= tin / lead, tape / reel (500 pieces)

B12

= tin / lead, bulk

TOLERANCE CODE

S70

PACKAGING

Revision: 15-Nov-17
