SOT-23 Formed SMD Package
CMBT4124
GENERAL PURPOSE TRANSISTOR
N–P–N transistor
Marking
CMBT4124 = 5C

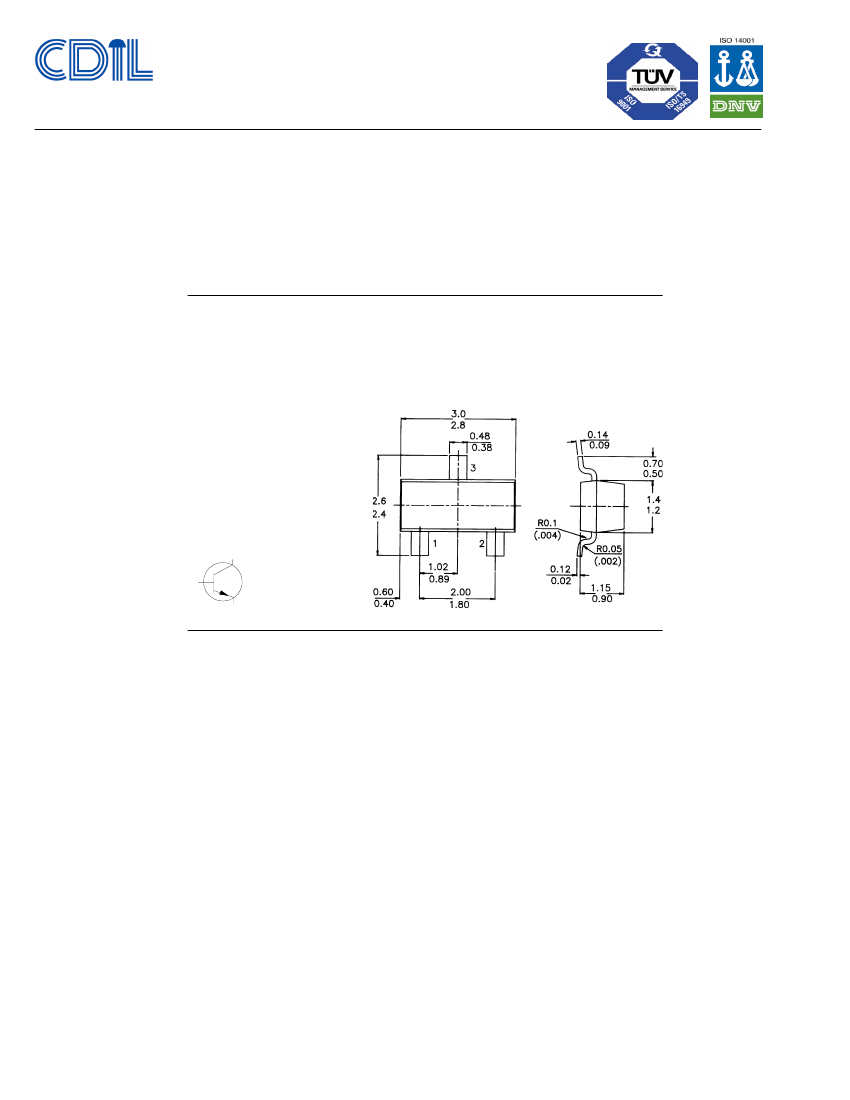

PACKAGE OUTLINE DETAILS
ALL DIMENSIONS IN m
m
Pin configuration
1 = BASE
2 = EMITTER
3 = COLLECTOR
3
1
2
ABSOLUTE MAXIMUM RATINGS
Collector–base voltage (open emitter)
Collector–emitter voltage (open base)
Emitter–base voltage (open collector)
Collector current (d.c.)
Total power dissipation at T
amb
= 25°C
D.C. current gain
–I
C
= 2 mA; –V
CE
= 1 V
–V
CBO
–V
CEO
–V
EBO
–I
C
P
tot
h
FE
max.
max.
max.
max.
max
min.
max.
30
25
5
200
225
120
360
V
V
V
mA
mW
RATINGS
(at T
A
= 25°C unless otherwise specified)
Limiting values
Collector–base voltage (open emitter)
–V
CBO
Collector–emitter voltage (open base)
–V
CEO
Emitter–base voltage (open collector)
–V
EBO
Collector current (d.c.)
–I
C
P
tot
Total power dissipation at T
amb
= 25°C
Storage temperature
T
stg
Junction temperature
Tj
max.
30
max.
25
max.
5
max.
200
max
225
–55 to +150
max.
150
V
V
V
mA
mW
°C
°C
Continental Device India Limited
Data Sheet
Page 1 of 3
CMBT4124
THERMAL CHARACTERISTICS
T
j
= P (R
th j–t
+ R
th s–a
) + T
amb
Thermal resistance
from junction to ambient
R
th j–a
556
°C/mW
CHARACTERISTICS
(at T
A
= 25°C unless otherwise specified)
Collector–emitter breakdown voltage
–V
(BR)CEO
min.
–I
C
= 1 mA; I
B
= 0
Collector–base breakdown voltage
–V
(BR)CBO
min.
–I
C
= 10
mA;
I
E
= 0
Emitter–base breakdown voltage
–V
(BR)EBO
min.
–I
E
= 10
mA;
I
C
= 0
Collector cut–off current
–I
CBO
max.
–V
CB
= 20 V; I
E
= 0 V
Emitter cut–off current
I
EBO
max.
V
BE
= 3 V; I
C
=0
Output capacitance at f = 100 kHz
C
c
max.
I
E
= 0; –V
CB
= 5 V
Input capacitance at f = 100 kHz
C
e
max.
I
C
= 0; –V
BE
= 0.5 V
Saturation voltages
–I
C
= 50 mA; –I
B
= 5 mA
–I
C
= 50 mA; –I
B
= 5 mA
D.C. current gain
–I
C
= 2 mA; –V
CE
= 1 V
–I
C
= 50 mA; –V
CE
= 1 V
Noise figure at R
S
= 1 kW
–I
C
= 100
mA;
–V
CE
= 5 V
f = 10 Hz to 15.7 kHz
Small signal current gain
V
CE
= 1V; I
C
= 2 mA; f = 1 KHz
25
30
5
50
50
4
8
V
V
V
nA
nA
pF
pF
–V
CEsat
–V
BEsat
h
FE
h
FE
max.
max.
min.
max.
min.
0.3
0.95
120
360
60
V
V
NF
max.
6
dB
h
fe
min.
max.
120
480
Transition frequency
V
CE
= 20V; I
C
= 10 mA; f = 100 MHz
f
T
min.
300
MHz
