REVISION D

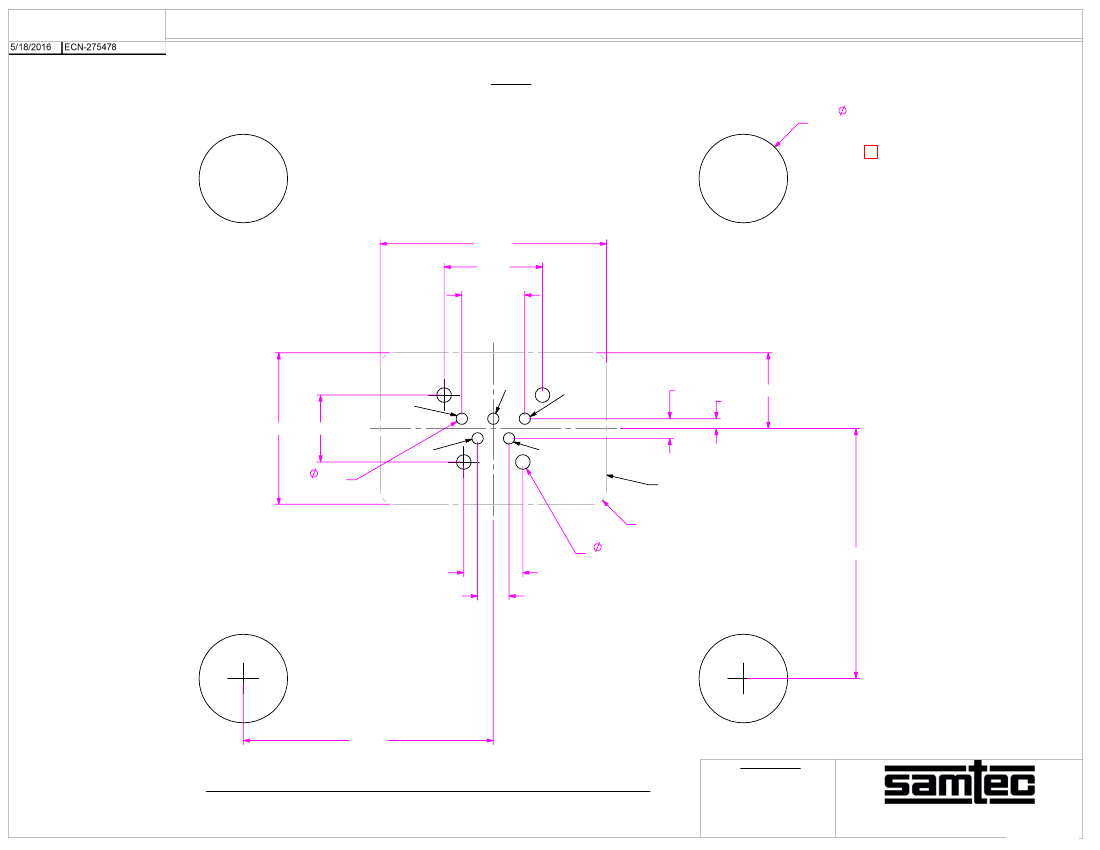

RECOMMENDED PCB LAYOUT FOR MUSBS-05-S-B-TH-XX-TR
FIG 1
(MUSBS-05-S-B-TH-XX-TR SHOWN)
DESIGNED & DIMENSIONED
IN MILLIMETERS
4.50 (NPTH)
(MOUNTING HOLES
FOR PF OPTION ONLY)
D
11.50
5.00
3.20
C
L
3
1
7.70
3.40
C
L
2
0.58
(PTH)
4
5
1.00
0.50
3.85
CONNECTOR OUTLINE
R0.70 (TYP)
0.74
(PTH)
12.70
3.00
1.60 (TYP)
12.70
ALL DIMENSIONS ARE SYMMETRIC ABOUT THE CENTERLINE
F:\DWG\MISC\Mktg\Footprnt\MUSBS-05-S-B-TH-XX-TR-FOOTPRINT.SLDDRW
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
SHEET
1
OF
2
REVISION D
8.00
R1.06
C
L
R0.85
"A"
6.98
C
L
DETAIL "A"
SCALE 4 : 1
RECOMMENDED PANEL CUT OUT
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
MUSBS-05-B-TH-XX-TR
MUSBS-05-S-B-TH-XX-TR
SHEET
2
OF
2
F:\DWG\MISC\Mktg\Footprnt\MUSBS-05-S-B-TH-XX-TR-FOOTPRINT.SLDDRW
BY:
T NEWTON 11/19/2008
