FRM1WSGR-FT15R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> FRM1WSGR-FT15R

FRM1WSGR-FT15R: DescriptionFixed Resistor, Metal Film, 1W, 15ohm, 250V, 2% +/-Tol,; CategoryPassive components The resistor; File Size238KB，2 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/; Environmental Compliance

Download Datasheet Parametric View All

FRM1WSGR-FT15R Overview

Fixed Resistor, Metal Film, 1W, 15ohm, 250V, 2% +/-Tol,

FRM1WSGR-FT15R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	747195074
Reach Compliance Code	compliant
Country Of Origin	Mainland China, Taiwan
ECCN code	EAR99
YTEOL	5.7
structure	Cylindrical
Lead diameter	0.55 mm
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package diameter	3.3 mm
Package length	9 mm
Package shape	CYLINDRICAL PACKAGE
Package form	Axial
method of packing	TR
Rated power dissipation(P)	1 W
resistance	15 Ω
Resistor type	FIXED RESISTOR
series	FRM
technology	METAL FILM
Tolerance	2%
Operating Voltage	250 V

Preview

Download Datasheet

View All

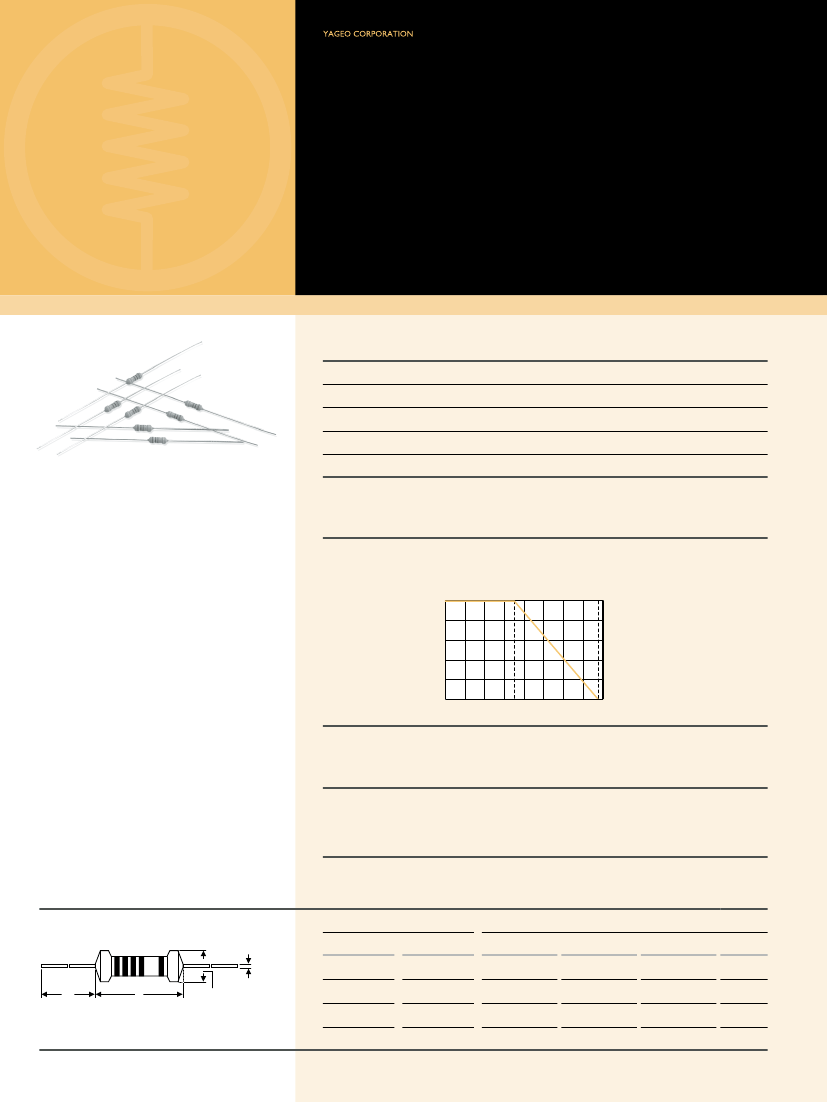

Leaded ResistoRs

Metal Film Resistors

Fusible &

Flame-Proof Type

Normal & Miniature Style [ FRM Series ]

FeatURes

Power Rating

Resistance Tolerance

T.C.R.

Flameproof Multi-layer Coating Meets

Flameproof Feature Meets Overload Test

1/4W, 1/2W, 1W, 2W, 3W

±2%, ±5%

±200ppm/°C

UL-94V-0

UL-1412

iNtRodUCtioN

The FRM Series Metal Film Fusible &

Flame-Proof Resistors are manufactured using

a vacuum sputtering system to deposit multiple

layers of mixed metal alloys and passivative

materials onto a carefully treated high grade

ceramic substrate. After a helical groove has

been cut in the resistive layer, tinned connecting

leads of electrolytic copper are welded to the

end-caps. The resistors are coated with layers

of gray color lacquer for normal size & pink

color lacquer for miniature size. Overload

protection without risk of fire. Wide range of

overload currents.

deRatiNG CURVe

For resistors operated in ambient temperatures above 70°C, power rating must be derated

in accordance with the curve below.

Rated Load (%)

100

100 120 140 160

155 °C

Ambient Temperature (°C)

FUsiNG CHaRaCteRistiCs

R≤2.0

Fusing time within 60 seconds at 36 times of rated power

R≥2.2

Fusing time within 60 seconds at 25 times of rated power

Fusing residual resistive value at least 100 times rated resistance

diMeNsioNs

stYLe

Normal

ød

th color code: white

øD

FRM-25

FRM-50

FRM100

FRM200

Miniature

FRM50S

FRM1WS

FRM2WS

FRM3WS

diMeNsioN

6.3±0.5

9.0±0.5

11.5±1.0

15.5±1.0

ød

2.4±0.2

3.3±0.3

4.5±0.5

5.0±0.5

28±2.0

26±2.0

35±2.0

33±2.0

Unit: mm

ød

0.55±0.05

0.8±0.05
