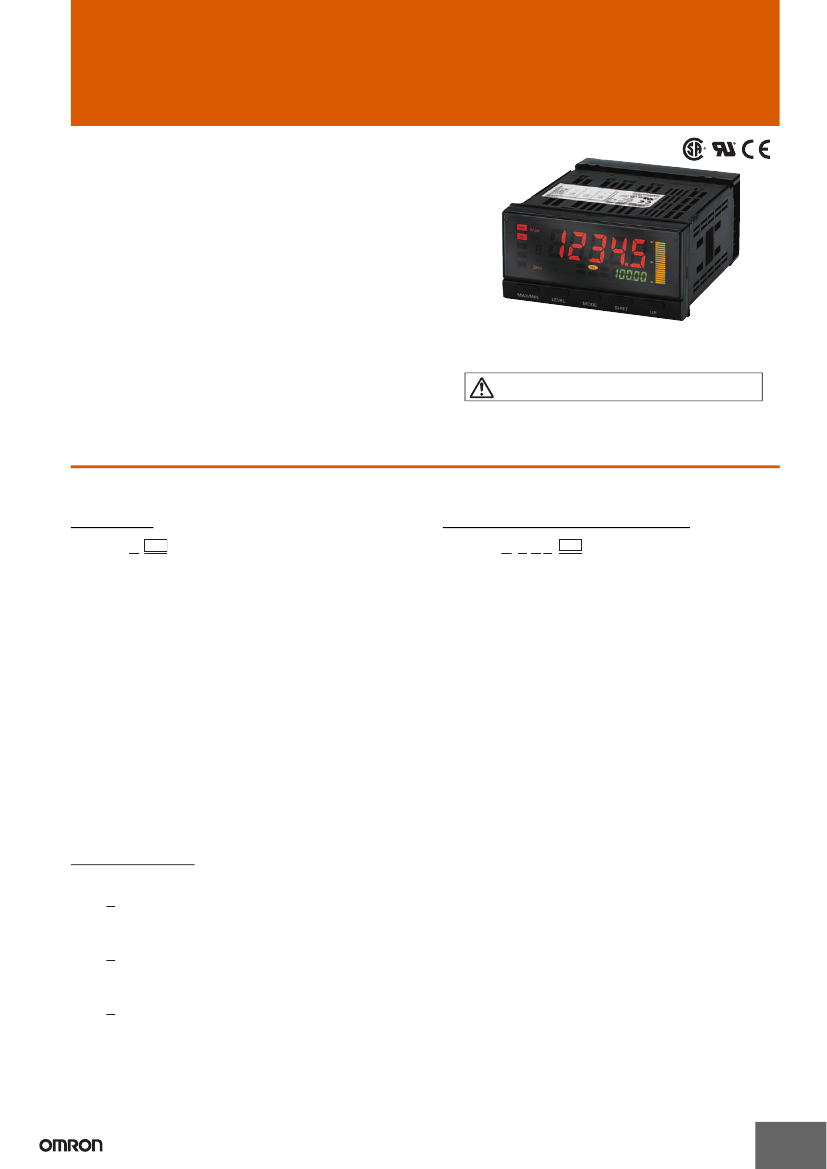

Weighing Indicator

K3HB-V

CSM_K3HB-V_DS_E_10_3

An Ideal Indicator for OK/NG Judgements in Automated and

Picking Machines, Measuring Factors such as Pressure,

Load, Torque, and Weight Using Load Cell Signal Input.

• Easy recognition of judgement results using color display that can be switched

between red and green.

• Equipped with a position meter for monitoring operating status trends.

• External event input allows use in various measurement and discrimination applications.

• Input 0.001 mVDC or higher (0.000 to 19.999 mV range supported).

External power takeoff of 100 mA at 10 VDC provided. (Models with 5-VDC

power takeoff also available.)

• Series expanded to include DeviceNet models.

• Short body with depth of only 95 mm (from behind the front panel), or 97 mm

for DeviceNet models.

• UL certification approval (Certification Mark License).

• CE Marking conformance by third party assessment body.

• Water-resistant enclosure conforms to NEMA 4X (equivalent to IP66).

• Capable of high-speed sampling at 50 times per second (20 ms)

• Easy-to-set two-point scaling allows conversion and display of any user-set values.

Visual confirmation of judgement results is not supported on models that do not have an

output or models that do not support DeviceNet.

You can change the display color by setting it, but you cannot switch it based on the judgement results.

For the most recent information on models that have been certified for

safety standards, refer to your OMRON website.

Refer to

Safety Precautions for All Digital Panel

Meters.

Model Number Structure

■

Model Number Legend

Base Units and Optional Boards can be ordered individually or as sets.

Base Units

Base Units with Optional Boards

K3HB-V@

1. Input Sensor Code

LC: Load cell input (DC low-voltage input)

5. Supply Voltage

100-240 VAC: 100 to 240 VAC

24 VAC/VDC: 24 VAC/VDC

K3HB-V@-@@@

1 2 3 4

2. Sensor Power Supply/Output Type Code

None

Relay output (PASS: SPDT) + Sensor power supply

(10 VDC +/−5%, 100 mA) (See note 1.)

L1B:

Linear current output (0 to 20 or 4 to 20 mA DC) + Sensor power

supply (10 VDC +/−5%, 100 mA) (See note 2.)

L2B:

Linear voltage output (0 to 5, 1 to 5, or 0 to 10 VDC) + Sensor

power supply (10 VDC +/−5%, 100 mA) (See note 2.)

Sensor power supply (10 VDC +/−5%, 100 mA)

FLK1B: Communications (RS-232C) + Sensor power supply

(10 VDC +/−5%, 100 mA) (See note 2.)

FLK3B: Communications (RS-485) + Sensor power supply

(10 VDC +/−5%, 100 mA) (See note 2.)

CPE:

Relay output (PASS: SPDT) + Sensor power supply

(5 VDC +/−5%, 100 mA) (See note1.)

L1E:

Linear current output (DC0(4)

−20

mA) + Sensor power supply

(5 VDC +/−5%, 100 mA) (See note 2.)

L2E:

Linear voltage output (DC0(1)

−5

V, 0−10 V)+ Sensor power

supply (5 VDC +/−5%, 100 mA) (See note 2.)

Sensor power supply (5 VDC +/−5%, 100 mA)

FLK1E: Communications (RS-232C) + Sensor power supply

(5 VDC +/−5%, 100 mA) (See note 2.)

FLK3E: Communications RS-485) + Sensor power supply

(5 VDC +/−5%, 100 mA) (See note 2.)

Note: 1.

CPA can be combined with relay outputs only.

Only one of the following can be used by each Digital Indicator: RS-

232C/RS-485 communications, a linear output, or DeviceNet

communications.

None:

CPB:

Optional Boards

Sensor Power Supply/Output Boards

3. Relay/Transistor Output Type Code

None: None

C1: Relay contact (H/L: SPDT each)

C2: Relay contact (HH/H/LL/L: SPST-NO each)

T1: Transistor (NPN open collector: HH/H/PASS/L/LL)

T2: Transistor (PNP open collector: HH/H/PASS/L/LL)

BCD

BCD output + transistor output (NPN open collector: HH/H/PASS/L/LL)

DRT: DeviceNet (See note 2.)

A Special BCD Output Cable (sold separately) is required.

K33-@

Relay/Transistor Output Boards

K34-@

Event Input Boards

4. Event Input Type Code

None: None

1: 5 inputs (M3 terminal blocks), NPN open collector

2: 8 inputs (10-pin MIL connector), NPN open collector

3: 5 inputs (M3 terminal blocks), PNP open collector

4: 8 inputs (10-pin MIL connector), PNP open collector

K35-@

Note:

The following combinations are not possible.

• Communications (FLK@B/E) + DeviceNet (DRT)

• Communications (FLK@B/E) + BCD output (BCD)

• Linear current/voltage (L@B/E) + DeviceNet (DRT)
