TCO-5851-26.00MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> TCO-5851-26.00MHZ

TCO-5851-26.00MHZ: DescriptionOscillator, 16MHz Min, 30MHz Max, 26MHz Nom; CategoryPassive components oscillator; File Size209KB，1 Pages; ManufacturerSeiko Epson Corporation; Environmental Compliance

Download Datasheet Parametric View All

TCO-5851-26.00MHZ Overview

Oscillator, 16MHz Min, 30MHz Max, 26MHz Nom

TCO-5851-26.00MHZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	106099170
Reach Compliance Code	unknown
YTEOL	0
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	30 MHz
Minimum operating frequency	16 MHz
Nominal operating frequency	26 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	LCC4,.09X.12,102/63
Certification status	Not Qualified
Maximum slew rate	2 mA
Nominal supply voltage	2.8 V
surface mount	YES

Preview

Download Datasheet

View All

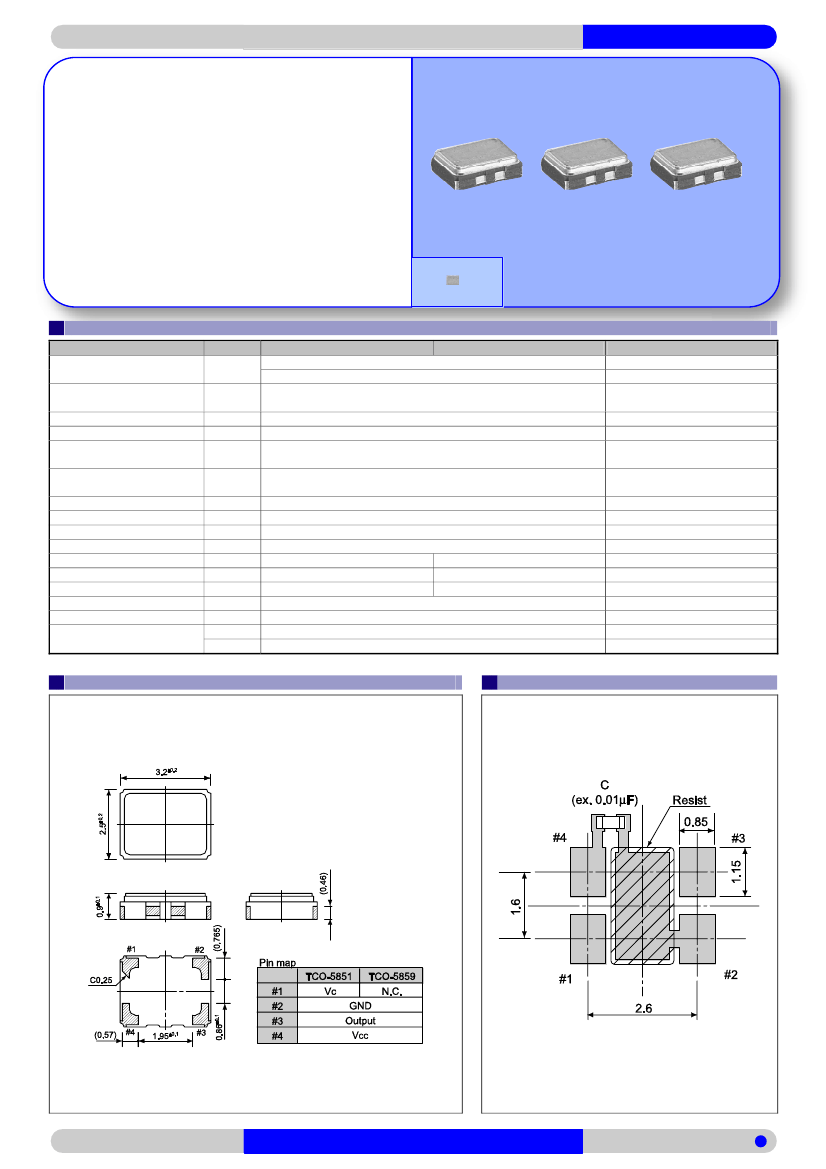

Crystal oscillator

TCXO

MINIATURE SIZE LOW PROFILE, HIGH-STABILITY

TCO-5850

Series

•

Frequency range

•

Supply voltage

•

Applications

•

Features

•

Lead(Pb)-free

16 MHz to 30 MHz

2.8 V Typ.

Cellular phone (GPS)

Miniature size

High frequency stability

Lead free completely

Actual size

Specifications (characteristics)

Item

Output frequency range

Supply voltage

Storage temperature range

Operating temperature range

Frequency tolerance

Frequency/temperature

coefficient

Frequency/laod coefficient

Frequency/Voltage coefficient

Frequency aging

Current consumption

Input resistance

Frequency control range

Frequency change polarity

Symmetry

Output level

Output load condition

Symbol

TCO-5851

stg

use

tol

-T

-Load

-V

age.

cont

SYM

Load_R

Load_C

TCO-5859

16 MHz to 30 MHz

16.368 MHz, 19.2 MHz, 26 MHz

2.8 V

±0.14

-40

°C

to +85

°C

-30

°C

to +85

°C

±2.0 ×

10 Max.

±0.8 ×

10 Max.

±0.2 ×

10 Max.

-6

±0.2 ×

10 Max.

-6

±1.0 ×

10 Max.

2.0 mA Max.

-6

Remarks

Standard frequency

Supply voltage range :

2.4 V to 5.5 V

After reflow

=1.4 V, +25

°C)

-30

°C

to +85

°C

10 kΩ // 10 pF

10 %

=2.8 V

±0.14

+25

°C,

First year

500 kΩ Min.

-6

±5.0 ×

10 to

±12.0 ×

Positive polarity

40 % to 60 %

0.8 V Min.

10 kΩ

10 pF

(Unit:mm)

=1.4 V

±1.0

GND level (DC cut)

Peak to peak

Note : Please contact us for inquiries about specifications other than the above.

External dimensions

Footprint (Recommended)

(Unit:mm)

http://www.epsontoyocom.co.jp
