TG5032SBN26.000000M-CJGHAA0 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> TG5032SBN26.000000M-CJGHAA0

TG5032SBN26.000000M-CJGHAA0: DescriptionTCVCXO, CLIPPED SINE OUTPUT; CategoryPassive components oscillator; File Size592KB，2 Pages; ManufacturerSeiko Epson Corporation

Download Datasheet Parametric View All

TG5032SBN26.000000M-CJGHAA0 Overview

TCVCXO, CLIPPED SINE OUTPUT

TG5032SBN26.000000M-CJGHAA0 Parametric

Parameter Name	Attribute value
Objectid	8136746624
Reach Compliance Code	unknown
YTEOL	0
JESD-609 code	e4
Oscillator type	CLIPPED SINE
Terminal surface	Gold (Au)

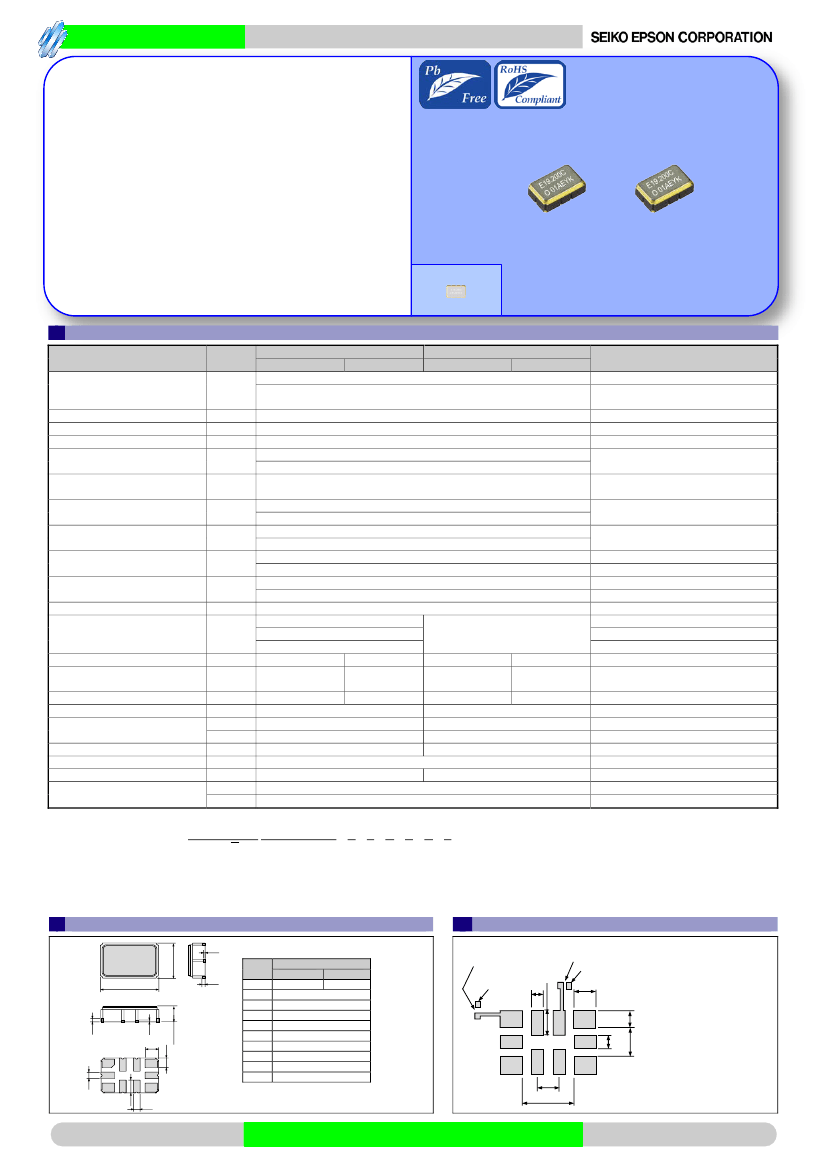

TG5032SBN26.000000M-CJGHAA0 Preview

Crystal oscillator

TCXO / VC-TCXO

ULTRA HIGH STABILITY

Product Number (please contact us)

TG5032CBN : X1G004571xxxx00

TG5032SBN : X1G004581xxxx00

TG5032CBN

TG5032SBN

•Frequency

range

10 MHz to 50 MHz

•Supply

voltage

3.3 V Typ. / 5.0 V Typ.

•Frequency

/ temperature characteristics

±0.28×10

-6

Max. (for Stratum3)

•Frequency

aging

±3.0×10

-6

Max./20years(for Stratum3)

•External

dimensions

5.0 × 3.2 × 1.45 mm (10 pins)

•Applications

Network system, Stratum3, Microwave BTS

•Features

Ultra high stability

Actual size

Specifications (characteristics)

TG5032CBN (CMOS)

TG5032SBN (Clipped sine wave)

VC-TCXO

TCXO

VC-TCXO

TCXO

10 MHz to 50 MHz

Output frequency range

10, 12.8, 15.36, 16.368, 16.384, 19.2, 19.44, 20, 24.576, 25,

25.6, 26, 30.72, 32.736, 32.768, 38.4, 38.88, 40, 49.152, 50 MHz

Supply voltage

C: 3.3 V ±5%, H: 5.0 V ±5% (Supply voltage range :2.7 V to 5.5 V)

Storage temperature

T_stg

-40 ºC to +90 ºC

Operating temperature

T_use

G: -40 ºC to +85 ºC

±1.0 × 10

-6

Max. (10 MHz≦f

≦40

MHz)

a) Frequency tolerance

f_tol

±0.9 × 10

-6

Max. (40 MHz＜f

≦50

MHz)

a) Frequency/temperature

B: ±0.28 × 10

-6

Max.(for Stratum3)

-T

characteristics

H: ±0.25 × 10

-6

Max. (for Stratum3) : Option

±0.1 ×10

-6

Max. (10 MHz≦f

≦40

MHz)

a) Frequency/load coefficient

-Load

±0.2 ×10

-6

Max. (40 MHz＜f

≦50

MHz)

±0.1 ×10

-6

Max. (10 MHz≦f

≦40

MHz)

Frequency/voltage coefficient

-V

±0.2 ×10

-6

Max. (40 MHz＜f

≦50

MHz)

±0.5 ×10

-6

Max.

a) Frequency aging

f_age

±3.0 ×10

-6

Max. (for Stratum3)

±0.01 × 10

-6

Max.( +25 °C , 24 hours)

Holdover stability

(Constant temperature)

±0.04 × 10

-6

Max.( +25 °C , 24 hours)

Free-run accuracy

±4.6 × 10

-6

Max.

5.0 mA Max. / 6.0 mA Max.

Current consumption

6.0 mA Max. / 8.0 mA Max.

5.0 mA Max.

8.0 mA Max. / 10.0 mA Max.

Input resistance

Rin

100 kΩ Min.

―

100 kΩ Min.

―

-6

±5 ×10 to

Frequency control range

f_cont

―

±10 ×10

-6

±10 ×10

-6

Frequency change polarity

―

Positive polarity

―

Positive polarity

―

Symmetry

SYM

45 % to 55 %

―

90 % V

Min.

―

Output voltage

10 % V

Max.

―

Output level

―

0.8 V Min.

Start-up time

t_str

2.0 sec. Max.(Filter: Standard) / 5.0 ms Max.(Non-Filter: Option)

Output load condition

Load

15 pF Max.

10 kΩ//10 pF

70% V

Min.

Input voltage

30% V

Max.

* Note : Please contact us for requirements not listed in this specification.

Item

Symbol

Product Name

(Standard form)

Conditions / Remarks

Standard frequency

Storage as single product

After reflow, +25 ºC

-40 ºC to +85 ºC

Load ±10 %

±5%

+25 °C, First year

+25 °C , 20 years

After 10 days of continuous operation.

After 48 hours of continuous operation.

This includes Item a).

10 MHz≦f

≦26

MHz (3.3V / 5.0V)

26 MHz＜f

≦40

MHz (3.3V / 5.0V)

40 MHz＜f

≦50

MHz (3.3V / 5.0V)

- GND (DC)

=1.5 V ± 1.0 V at V

=3.3 V

=2.5 V ± 2.0 V at V

=5.0 V

GND level (DC cut)

Peak to Peak

T=0 at 90% Vcc

OE terminal(Enable voltage)

OE terminal(Disable voltage)

External

#10

TG5032 C BN 19.200000MHz C B G H G A

①

②

③

④ ⑤ ⑥ ⑦ ⑧ ⑨

①Model ②Output

(C: CMOS, S: Clipped sine wave)

③Frequency ④Supply

voltage

(C: 3.3 V Typ.)

⑤Frequency/temperature

characteristics (B:

±0.28 ×

-6

Max.)

⑥Operating

temperature (G: -40

°C

to +85

°C)

⑦OE

function (H: Active High)

⑧V

function(F: Filter and VC-TCXO, G: Filter and TCXO, A: Non-Filter and VC-TCXO, N: Non-Filter and TCXO)

⑨Internal

identification code (“A” is default)

dimensions

(Unit :mm)

Footprint (Recommended)

(Unit :mm)

3.20±0.2

0.15

Marking

5.00±0.2

Pin map

Connection

VC-TCXO

TCXO

N.C.

GND

N.C.

OUT

N.C. or Filter

N.C.

Please set By-pass capacitor

(0.1μF) near the Vcc pad

To GND

Please set optional phase noise

filter capacitor (0.1μF)

To GND

1.35

0.90

1.20

#10

0.60

1.35

0.30

0.70

#10

#2 1.20 #3

2.50

1.20

0.60

OE pin = "H" or "open": Specified frequency output.

OE pin = "L" : Output is high impedance.

1.30 1.00

To maintain stable operation,

provide a 0.1 μF by-pass

capacitor at a location as near as

possible to the power source

terminal of the crystal product

(between V

- GND).

1.45±0.2

0.30

0.15

0.70

PROMOTION OF ENVIRONMENTAL MANAGEMENT SYSTEM

CONFORMING TO INTERNATIONAL STANDARDS

At Seiko Epson, all environmental initiatives operate under the

Plan-Do-Check-Action (PDCA) cycle designed to achieve continuous

improvements. The environmental management system (EMS)

operates under the ISO 14001 environmental management standard.

All of our major manufacturing and non-manufacturing sites, in

Japan and overseas, completed the acquisition of ISO 14001

certification.

ISO 14000 is an international standard for environmental

management that was established by the International

Standards Organization in 1996 against the background of

growing concern regarding global warming, destruction of

the ozone layer, and global deforestation.

WORKING FOR HIGH QUALITY

In order provide high quality and reliable products and services

than meet customer needs,

Seiko Epson made early efforts towards obtaining ISO9000 series

certification and has acquired ISO9001 for all business

establishments in Japan and abroad. We have also acquired ISO/TS

16949 certification that is requested strongly by major automotive

manufacturers as standard.

►Explanation

of the mark that are using it for the catalog

►Pb

free.

►Complies

with EU RoHS directive.

*About the products without the Pb-free mark.

Contains Pb in products exempted by EU RoHS directive.

(Contains Pb in sealing glass, high melting temperature type solder or other.)

►Designed

for automotive applications such as Car Multimedia, Body Electronics, Remote Keyless Entry etc.

ISO/TS16949 is the international standard that added the

sector-specific supplemental requirements for automotive

industry based on ISO9001.

►Designed

for automotive applications related to driving safety (Engine Control Unit, Air Bag, ESC etc ).

Notice

•

This material is subject to change without notice.

Any part of this material may not be reproduced or duplicated in any form or any means without the written permission of Seiko Epson.

The information about applied data, circuitry, software, usage, etc. written in this material is intended for reference only. Seiko Epson

does not assume any liability for the occurrence of customer damage or infringing on any patent or copyright of a third party. This

material does not authorize the licensing for any patent or intellectual copyrights.

When exporting the products or technology described in this material, you should comply with the applicable export control laws and

regulations and follow the procedures required by such laws and regulations.

You are requested not to use the products (and any technical information furnished, if any) for the development and/or manufacture of

weapon of mass destruction or for other military purposes. You are also requested that you would not make the products available to

any third party who may use the products for such prohibited purposes.

These products are intended for general use in electronic equipment. When using them in specific applications that require extremely

high reliability, such as the applications stated below, you must obtain permission from Seiko Epson in advance.

/ Space equipment (artificial satellites, rockets, etc.) / Transportation vehicles and related (automobiles, aircraft, trains,

vessels, etc.) / Medical instruments to sustain life / Submarine transmitters / Power stations and related / Fire work equipment

and security equipment / traffic control equipment / and others requiring equivalent reliability.

•

All brands or product names mentioned herein are trademarks and/or registered trademarks of their respective.

Seiko Epson Corporation

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
