QuadFALC
®
Four-channel E1/T1/J1 Framer and Line
Interface Component
PEF 22554
The QuadFALC® is an addition to Infineon's market leading FALC®
family of advanced E1/T1/J1 Framer And Line Interface Unit (LIU)
components. As a four port E1/T1/J1 framer and line interface unit
(LIU),QuadFALC is optimized for a range of network equipment including
Radio network Controllers, Node B line cards, PBX or SDH/SONET ADMs.
The QuadFALC features a unique clock generation unit that accepts
any reference clock between 1.02 andd 20 MHz as well as integrated
analog switches for impedance matching or protection switching. Using
industry leading QuadFALC Evaluation support tools, system developers
can shorten design cycles while creating a wide range of highly flexible, low
BOM E1/T1/J1 line cards.
■
■
■
■
■
■
■
Programmable frame formats
– E1: Double- & CRC Multi-frame
– T1: F4, F12 (D4), Ext. Super Frame (ESF),
F72 (SLC96)
Detects and generates LOS, AIS and RAI alarms
CRC-4 performance monitoring
PRBS generation and monitoring
Detects & generates LOS, AIS & RAI alarms
System bus data rate scalable from 1.544 Mbit/s
up to 16 Mbit/s
Synchronization Supply Message (SSM)
generation and extreaction
Applications
■
■
■
■
■
■
HDLC Controllers
■
Wireless base stations
Router
Multi-service access platforms,
Digital loop carriers
Remote access servers/concentrators
SONET/SDH Add/Drop multiplexers
■
■
■
12 HDLC controllers (three per channel)
including 128-byte deep FIFO buffers each
CAS controller with micro-processor or system
interface serial access
Supports signaling system #7
ANSI T1.403 Bit-Oriented Messages (BOM),
generates periodical performance reports
Analog Line Interfaces
■
■
■
■
■
■
■
■
Four independent E1/T1/J1 long haul/short haul line interface units
Software programmable T1/E1/J1
Integrated analog switch for impedance matching (E1-75/120, T1-100 ,
J1-110) and protection switching (only PG-LBGA-160 package)
Crystal-less wander and jitter attenuation/compensation according to TR
62411 and ETS-TBR 12/13
Clock generation unit accepts any frequency reference clock from 1.02
MHz to 20 MHz
Programmable transmit pulse shape for flexible pulse generation
Receiver sensitivity exceeds -36 dB@772 kHz and -43 dB@1024 kHz
Clock signal generation & extraction according to ITU-T G.703 Sec. 13
General Features
■
■
■
■
■
■
■
Frame Aligners
■
■
■
ITU-T G.704 frame alignment/synthesis for 2.048/1.544 Mbit/s
Software and pin compatible to previous
QuadFALC versions
Intel® or Motorola® type 8/16-bit microprocessor
interface
Serial SPI bus and serial SCI bus slave
interfaces
Low power operation (150mW / channel typical)
Dual voltage 1.8 V/3.3 V or single voltage 3.3 V
power supply
PG-LBGA-160, 15x15 mm with 1.0 mm ball pitch
PG-TQFP-144, 20x20 mm, 0,5 mm pitch
-40°C to +85°C operation
Rohs compliant packages
w w w. i n f i n e o n . c o m / f a l c
C O M M U N I C AT I O N
N e v e r
s t o p
t h i n k i n g .
Product Brief
QuadFALC PEF 22554

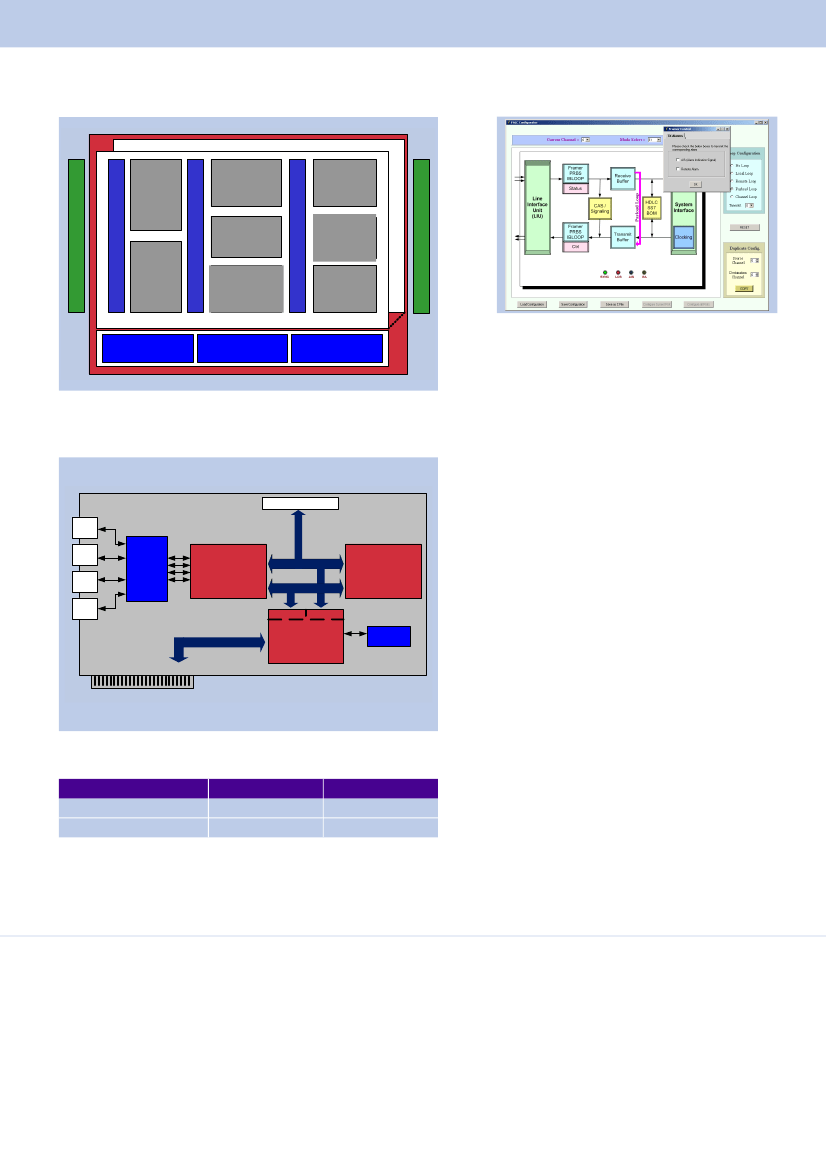

Block Diagram
Configuration Assistant
To o l
Transmission Line
CAS Signaling
Controller
HDLC/BOM
Controller
Transmit
Line
Interface
Frame Generation
Alarm Generation
PRBS Generation
Transmit
System
Interface
4
1
Switching Network
Payload Loop
Remote Loop
Local Loop
Long/Short
Haul
Receive
Line
Interface
Receive Framer
Alarm Detection
PRBS Monitor
Line Decoder
Receive
System
Interface
Clock
Microcontroller
Interface
JTAG Boundary
Scan
The FALC Configuration Assistant supports the
user during design phase.
All QuadFALC functional blocks can be configured
by a GUI supporting the low level API driver.
System Application - VoIP
Primary Access Board
Documentation and
Support Package
■
■
PCM Connector
E1/
T1
E1/
T1
E1/
T1
E1/
T1
■
■
External
Protection
Circuitry
QuadFALC
PEF22554
PCM interface
DELIC
PEB20570/71
■
■
µP interface
Line-card Controller
and Switching
µP
HDLC
■
MUNICH256
PCI bus
PEB20256
EEPROM
(X25020)
■
Data Sheet
Application Notes
Hardware Evaluation System EASY 22554 with
Schematics and Layout information
WinEASY Software for MS Windows
98SE/NT/2000/XP CD-ROM Support Package
Support Software (portable low level API driver)
Configuration Assistant for rapid porting of device
configuration to customer designs.
Analog front end calculator
Flexible master clocking calculator
HLDC Controller
PCI (3.3V)
Product Summary
Type
PEF 22554 HT
PEF 22554 E
Description
QuadFALC
QuadFALC
Package
PG-TQFP-144
PG-LBGA-160
