AM1D-S-125-V2-03-T-PVD datasheet, PDF

Datasheet> All Categories > The connector> The connector> AM1D-S-125-V2-03-T-PVD

AM1D-S-125-V2-03-T-PVD: DescriptionBoard Connector, 3 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size119KB，1 Pages; ManufacturerAntelec; Websitehttp://www.antelec.fr; Environmental Compliance

Download Datasheet Parametric View All

AM1D-S-125-V2-03-T-PVD Overview

Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT

AM1D-S-125-V2-03-T-PVD Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1588262309
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1.25 mm
Termination type	SURFACE MOUNT
Total number of contacts	3
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

1.25 mm

www.antelec.fr

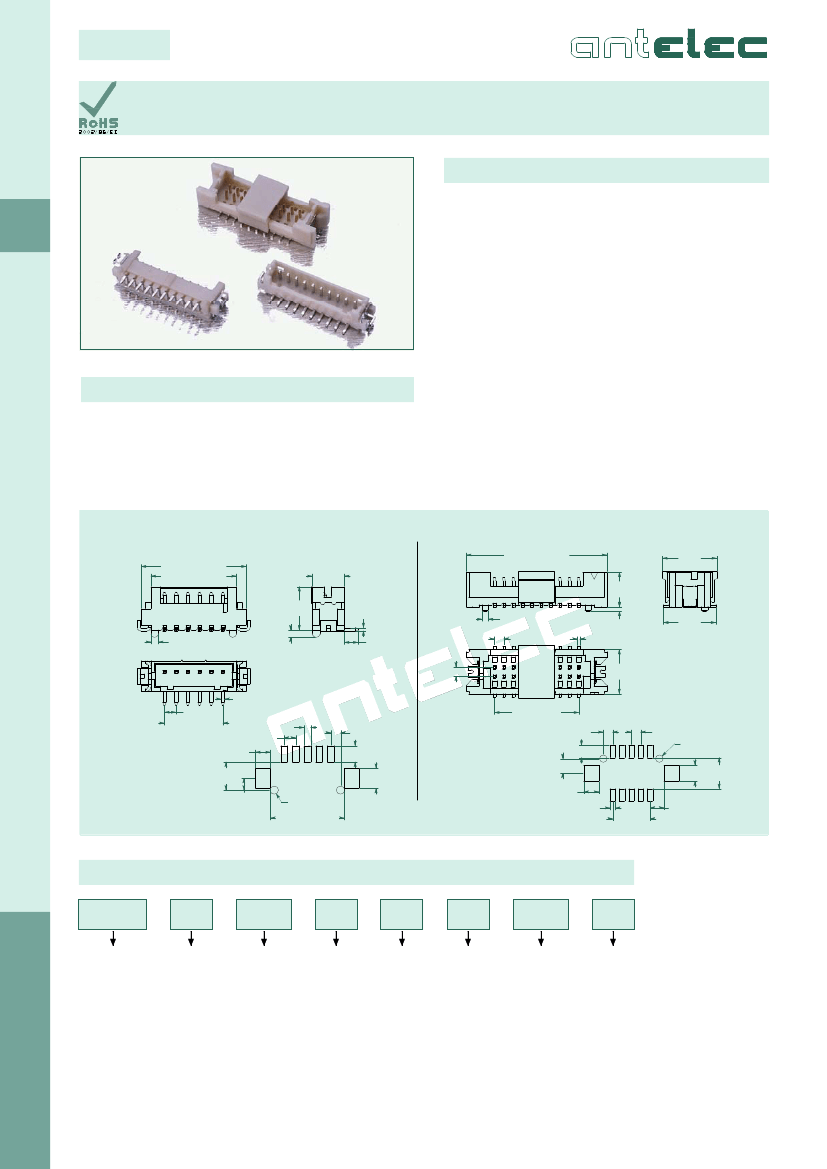

Wafer straight SMT type with walls version 2

Product specifications

Current rating : 1 A AC, DC

Voltage rating : 150 Volts AC, DC

Dielectric withstanding voltage : 500 Volts AC during 1 mn

Insulation resistance : > 500 MΩ

Contact resistance : < 20 mΩ

Operating temperature : -35°C to +85°C

Max processing temperature : 260°C during 5 sec

Contact : phosphor bronze

Plating : tin

Insulator : nylon-6T, UL94V-0

Number of pins :

1 row : 2 to 15 pins

2 rows : 10, 20, 30, 40 pins

WTB

Mates with

FA(S ou D)-PV-XX-125-V2-26/30

1 Row straight SMT

(N x 1.25) + 3.75

(N x 1.25) + 1.65

3.40

2 Rows straight SMT

(N x 1.25) + 6.25

7.25

4.80

0.35

Ø 0.80

1.25

0.35

0.60

7.00

Ø 0.80

0.80

1.50

1.25

6.10

0.35

1.25

(N-1) x 1.25

1.25

(N-1) x 1.25

0.70

1.60

3.10

1.30

Ø 0.90

(N x 1.25) + 1.65

1.05

1.80

2.20

1.25

1.70

1.25

Ø 1.00

PCB layout

(tolerance ± 0.05 mm)

PCB layout

(tolerance ± 0.05 mm)

2.00

0.70

(N-1)x1.25

1.85

2.20

4.30

Create your part number

AM1D

WIRE TO BOARD 1.25

Antelec

pin header

1 row

straight

or AM2D for

pin header

2 rows

straight

SMT

version

125

Pitch

1.25 mm

Version 2

Total

number

of contacts

Tin

PVD

With bump

and walls

In Bulk or

B/A for Reel

with pad

230

info@antelec.fr

tel: +33 (0)1 49 80 14 14

fax: +33 (0)1 49 80 14 15
