T492C685M020CS

Description
CAPACITOR, TANTALUM, SOLID, POLARIZED, 20V, 6.8uF, SURFACE MOUNT, 2413, CHIP
CategoryPassive components    capacitor
File Size1MB，5 Pages
ManufacturerKEMET
Websitehttp://www.kemet.com
Download Datasheet Parametric View All

T492C685M020CS Overview

CAPACITOR, TANTALUM, SOLID, POLARIZED, 20V, 6.8uF, SURFACE MOUNT, 2413, CHIP

T492C685M020CS Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Objectid1941923517
package instruction, 2413
Reach Compliance Codecompliant
ECCN codeEAR99
YTEOL0
capacitance6.8 µF
Capacitor typeTANTALUM CAPACITOR
dielectric materialsTANTALUM (DRY/SOLID)
JESD-609 codee0
leakage current0.0014 mA
Manufacturer's serial numberT492
Installation featuresSURFACE MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package shapeRECTANGULAR PACKAGE
method of packingTR, EMBOSSED PLASTIC, 7/13 INCH
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)20 V
size code2413
surface mountYES
Delta tangent0.06
Terminal surfaceTin/Lead (Sn/Pb)
Terminal shapeJ BEND

T492C685M020CS Preview

SOLID TANTALUM CHIP CAPACITORS
T492 SERIES—Style CWR11 Per Mil-PRF-55365/8
•
•
•
•
•
•
Established reliability military version of
Industrial Grade T491 series
Taped and reeled per EIA 481-1
Precision-molded, laser-marked case
Symmetrical, compliant terminations
100% Surge Current test available for all case sizes
Operating Temperature: -55˚C to + 125˚C
CATHODE (-) END
VIEW
W
SIDE VIEW
•
Qualified to MIL-PRF-55365/8, Style CWR11:
– Termination Code H, solder-plated
– Weibull failure rate codes B, C and D
– Capacitance values and voltages as shown
in following part number table. (Contact
KEMET for latest qualification status)
T492 OUTLINE DRAWINGS
B
B
ANODE (+) END
VIEW
BOTTOM VIEW
H
K
X
S
T
G
S
R
P
Termination
cutout at
KEMET’s
Option,
either end
E
A
L
F
DIMENSIONS –
Millimeters (Inches)
CASE SIZE
KEMET
A
B
C
D
COMPONENT
L*
W*
1.6 ± 0.2
(.063 ± .008)
2.8 ± 0.2
(.110 ± .008)
3.2 ± 0.3
(.126 ± .012)
4.3± 0.3
(.169 ± .012)
EIA
3216-18
H*
1.6 ± 0.2
(.063 ± .008)
1.9 ± 0.2
(.075 ± .008)
2.5 ± 0.3
(.098 ± .012)
2.8 ± 0.3
(.110 ± .012)
K*
±0.20
±(.008)
F*
±-0.1
±(.004)
S*
±0.3
B
±0.15
±(.012) (Ref) ± (.006)
0.4
(.016)
0.4
(.016)
0.5
(.020)
0.5
(.020)
X
(Ref)
0.10 ± 0.10
(.004 ± .004)
0.10 ± 0.10
(.004 ± .004)
0.10 ± 0.10
(.004 ± .004)
0.10 ± 0.10
(.004 ± .004)
P
(Ref)
0.4
(.016)
0.5
(.020)
0.9
(.035)
0.9
(.035)
R
(Ref)
0.4
(.016)
1.0
(.039)
1.0
(.039)
1.0
(.039)
T
(Ref)
0.13
(.005)
0.13
(.005)
0.13
(.005)
0.13
(.005)
A
(Min)
0.8
(.031)
1.1
(.043)
2.5
(.098)
3.8
(.150)
G
(Ref)
1.1
(.043)
1.8
(.071)
2.8
(.110)
3.5
(.138)
E
(Ref)
1.3
(.051)
2.2
(.087)
2.4
(.094)
3.5
(.138)
3.2 ± 0.2
(.126 ± .008)
3528-21
3.5 ± 0.2
(.138 ± .008)
6032-28
6.0 ± 0.3
(.236 ± .012)
7343-31
7.3 ± 0.3
(.287 ± .012)
0.9
(.035)
1.1
(.043)
1.4
(.055)
1.5
(.059)
1.2
(.047)
2.2
(.087)
2.2
(.087)
2.4
(.094)
0.8
(.031)
0.8
(.031)
1.3
(.051)
1.3
(.051)
Notes:
1. Metric dimensions govern.
2. (Ref) - Dimensions provided for reference only.
* Mil-C-55365/8 Specified Dimensions
ORDERING INFORMATION —
MIL-PRF-55365 Part Number
CWR11
Style
Capacitors, Chip, Fixed Tantalum
Established Reliability, (encapsulated)
M
H
105
K
B
A
Surge Current Option
A = +25°C after
A = +25°C
Weibull
B = -55° +85° after Weibull
Z
before Weibull
C = -55°, & +85°C
= None
Voltage
D = 6V
F = 10V
H = 15V
J = 20V
K = 25V
M - 35V
Failure Rate Symbol*
(*See Note Below)
B = (0.1%/1000 hrs.
C = (0.01%/1000 hrs.
D = (0.001%/1000 hrs.
Termination Finish Code
H = Solder Plated
Capacitance Tolerance
M = ±20%
K = ±10%
J = ±5%
Capacitance Picofarad Code
First two digits represent significant figures.
Third digit specifies number of zeros to follow.
T492 SERIES ORDERING INFORMATION —
KEMET Part Number
T
Tantalum
Series
T492 - Precision Molded, Style CWR11
492
B
105
K
035
B
S
4250
Surge Current Option
4250 = +25°C after Weibull
4251 = -55° +85°C after Weibull
4252 = -55, & +85°C before Weibull
Case Size
A, B, C, D
Lead Material
S = Tin-Lead (Sn/Pb) Coated
(5% Pb minimum)
Contact KEMET Sales Rep for addi-
tional lead material options.
Capacitance Picofarad Code
First two digits represent significant figures.
Third digit specifies number of zeros to follow.
Capacitance Tolerances
M = ±10%; K = ±10%; J = ±5%
Failure Rate Symbol
(* See note below)
Voltage
As shown
B
(0.1%/1000 hrs.);
C
(0.01%/1000 hrs.);
D
(0.001%/1000 hrs.)
* Part Number Example: T492B105K035BS (14 digits - no spaces)
* See www.kemet.com for Pb Free transition.
*Note on Failure Rates: Exponential failure rate levels M, P, R and S are inactive for new design per Mil-C-55365.
Parts qualified to Weibull failure rate levels are substitutable for exponential failure rate levels.
20
©KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, (864) 963-6300
SOLID TANTALUM CHIP CAPACITORS
T492 SERIES—Style CWR11 Per Mil-PRF-55365/8
T492 (CWR11) RATINGS AND PART NUMBER REFERENCE
Capaci-
tance
F
Case
Size
KEMET
Part Number
Mil-C-55365/8
Part Number
DC
DF
Leakage % @ +25 C
A @ +25 C 120 Hz
Max
Max
ESR
@ +25 C
100kHz
Max
1.5
2.2
3.3
4.7
6.8
10.0
15.0
22.0
47.0
1.0
1.5
2.2
3.3
4.7
6.8
15.0
33.0
0.68
1.0
1.5
2.2
3.3
4.7
10.0
22.0
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
15.0
0.33
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10.0
0.10
0.15
0.22
0.33
0.47
0.68
1.0
1.5
2.2
3.3
4.7
A
A
A
B
B
B
C
C
D
A
A
A
B
B
B
C
D
A
A
A
B
B
B
C
D
A
A
A
B
B
B
C
C
D
A
A
B
B
B
C
C
C
D
D
A
A
A
A
B
B
B
C
C
C
D
6 Volt Rating at +85 C (4 Volt Rating at +125 C)
T492A155(1)006(2)S CWR11DH155(1)(2)
0.5
T492A225(1)006(2)S CWR11DH225(1)(2)
0.5
T492A335(1)006(2)S CWR11DH335(1)(2)
0.5
T492B475(1)006(2)S CWR11DH475(1)(2)
0.5
T492B685(1)006(2)S CWR11DH685(1)(2)
0.5
T492B106(1)006(2)S CWR11DH106(1)(2)
0.6
T492C156(1)006(2)S CWR11DH156(1)(2)
0.9
T492C226(1)006(2)S CWR11DH226(1)(2)
1.4
T492D476(1)006(2)S CWR11DH476(1)(2)
2.8
10 Volt Rating at +85 C (7 Volt Rating at 125 C)
T492A105(1)010(2)S CWR11FH105(1)(2)
0.5
T492A155(1)010(2)S CWR11FH155(1)(2)
0.5
T492A225(1)010(2)S CWR11FH225(1)(2)
0.5
T492B335(1)010(2)S CWR11FH335(1)(2)
0.5
T492B475(1)010(2)S CWR11FH475(1)(2)
0.5
T492B685(1)010(2)S CWR11FH685(1)(2)
0.7
T492C156(1)010(2)S CWR11FH156(1)(2)
1.5
T492D336(1)010(2)S CWR11FH336(1)(2)
3.3
15 Volt Rating at +85 C (10 Volt Rating at +125 C)
T492A684(1)015(2)S CWR11HH684(1)(2)
0.5
T492A105(1)015(2)S CWR11HH105(1)(2)
0.5
T492A155(1)015(2)S CWR11HH155(1)(2)
0.5
T492B225(1)015(2)S CWR11HH225(1)(2)
0.5
T492B335(1)015(2)S CWR11HH335(1)(2)
0.5
T492B475(1)015(2)S CWR11HH475(1)(2)
0.7
T492C106(1)015(2)S CWR11HH106(1)(2)
1.6
T492D226(1)015(2)S CWR11HH226(1)(2)
3.3
20 Volt Rating at +85 C (13 Volt Rating at +125 C)
T492A474(1)020(2)S CWR11JH474(1)(2)
0.5
T492A684(1)020(2)S CWR11JH684(1)(2)
0.5
T492A105(1)020(2)S CWR11JH105(1)(2)
0.5
T492B155(1)020(2)S CWR11JH155(1)(2)
0.5
T492B225(1)020(2)S CWR11JH225(1)(2)
0.5
T492B335(1)020(2)S CWR11JH335(1)(2)
0.7
T492C475(1)020(2)S CWR11JH475(1)(2)
1.0
T492C685(1)020(2)S CWR11JH685(1)(2)
1.4
T492D156(1)020(2)S CWR11JH156(1)(2)
3.0
25 Volt Rating at +85 C (17 Volt Rating at +125 C)
T492A334(1)025(2)S CWR11KH334(1)(2)
0.5
T492A474(1)025(2)S CWR11KH474(1)(2)
0.5
T492B684(1)025(2)S CWR11KH684(1)(2)
0.5
T492B105(1)025(2)S CWR11KH105(1)(2)
0.5
T492B155(1)025(2)S CWR11KH155(1)(2)
0.5
T492C225(1)025(2)S CWR11KH225(1)(2)
0.6
T492C335(1)025(2)S CWR11KH335(1)(2)
0.9
T492C475(1)025(2)S CWR11KH475(1)(2)
1.2
T492D685(1)025(2)S CWR11KH685(1)(2)
1.7
T492D106(1)025(2)S CWR11KH106(1)(2)
2.5
35 Volt Rating at +85 C (23 Volt Rating at +125 C)
T492A104(1)035(2)S CWR11MH104(1)(2)
0.5
T492A154(1)035(2)S CWR11MH154(1)(2)
0.5
T492A224(1)035(2)S CWR11MH224(1)(2)
0.5
T492A334(1)035(2)S CWR11MH334(1)(2)
0.5
T492B474(1)035(2)S CWR11MH474(1)(2)
0.5
T492B684(1)035(2)S CWR11MH684(1)(2)
0.5
T492B105(1)035(2)S CWR11MH105(1)(2)
0.5
T492C155(1)035(2)S CWR11MH155(1)(2)
0.5
T492C225(1)035(2)S CWR11MH225(1)(2)
0.8
T492C335(1)035(2)S CWR11MH335(1)(2)
1.2
T492D475(1)035(2)S CWR11MH475(1)(2)
1.7
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
4.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
4.0
4.0
6.0
6.0
6.0
6.0
6.0
6.0
4.0
4.0
4.0
6.0
6.0
6.0
6.0
6.0
6.0
4.0
4.0
4.0
4.0
6.0
6.0
6.0
6.0
6.0
6.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
6.0
6.0
6.0
6.0
8.0
8.0
8.0
5.5
4.5
3.5
3.0
2.2
1.1
10.0
8.0
8.0
5.5
4.5
3.5
2.5
1.1
Molded
Case

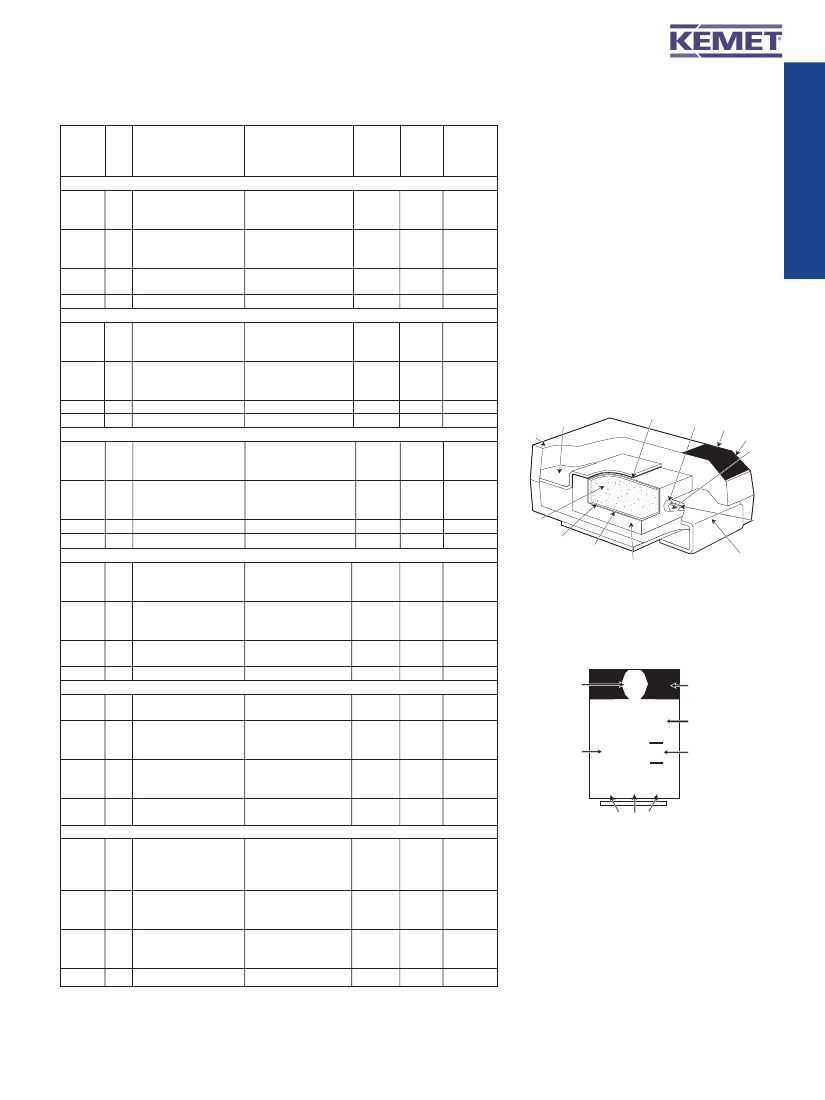

CONSTRUCTION
Negative
Termination*
Silver Adhesive
Washer
Polarity
Stripe (+)
Polarity
Bevel (+)
Tantalum
Wire
12.0
10.0
8.0
5.5
5.0
4.0
2.5
1.1
14.0
12.0
10.0
6.0
5.0
4.0
3.0
2.4
1.1
15.0
14.0
7.5
6.5
6.5
3.5
3.5
2.5
1.4
1.2
24.0
21.0
18.0
15.0
10.0
8.0
6.5
4.5
3.5
2.5
1.5
Tantalum
(Ta
2
O
5
)
Weld
Mn0
2
Coat
(First Layer)
(Second Layer)
Carbon
Silver Paint
(Third Layer)
Positive
Termination
Sn/Pb (5% Pb minimum)
CAPACITOR MARKINGS
T492 Series — All Case Sizes
Jan
Brand
Rated
Voltage
J
156
20
K
513
Print Week Code:
1st Digit = Year
2nd & 3rd Digits = Week
Polarity
Indicator (+)
Picofarad
Code
KEMET
I. D. Symbol
"513" =
The 13th week of 2005
Note on Failure Rates:
Exponential failure rate
levels M, P, R and S are
inactive for new design
per MIL-C-55365. Parts
qualified to Weibull failure
rate levels are substitutable
for exponential failure
rate levels.
Note: ESR limits are per
Mil-C-55365/8
To complete Part Numbers:
(1) Insert “M” for ±20% tolerance, “K” for ±10% tolerance or “J” for ±5% tolerance.
(2) Insert Failure Rate Symbol: B (0.1%/1000 hours), C (0.01%/1000 hours) or
D (0.001%/1000 hours).
©KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, (864) 963-6300
21
Solid Tantalum Surface Mount
TANTALUM AND ALUMINUM CHIP CAPACITORS
Packaging Information

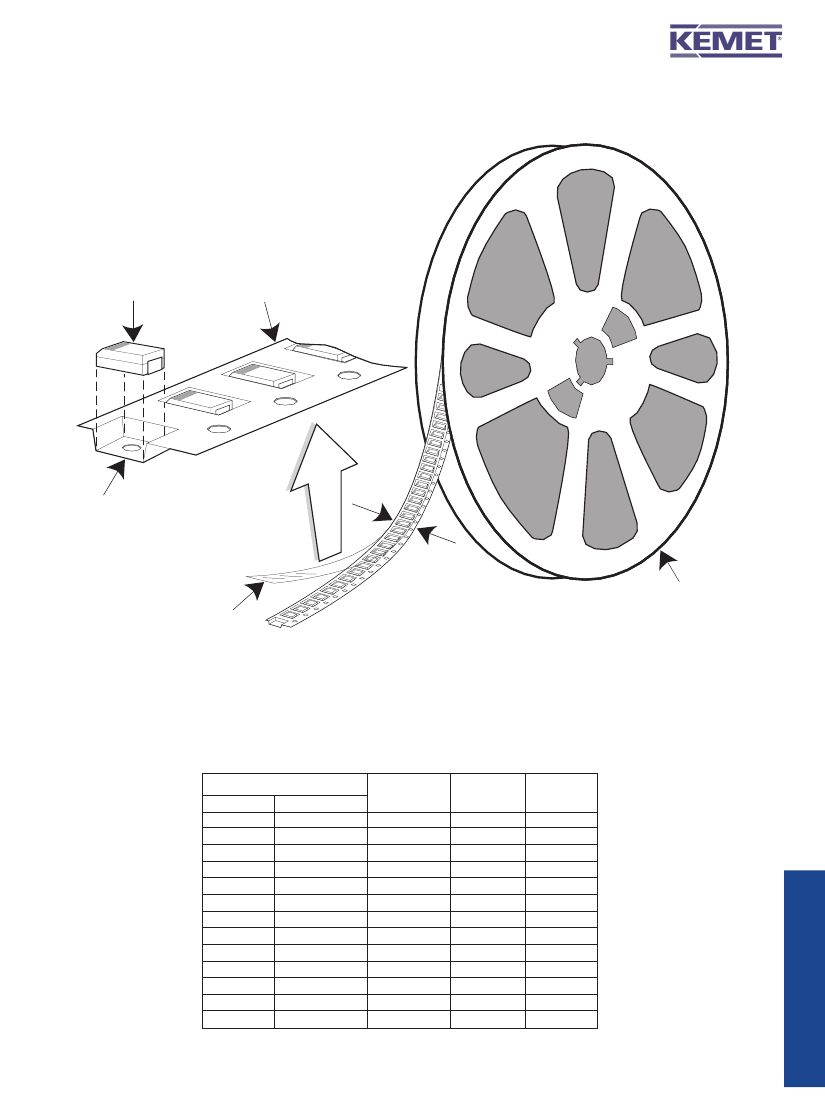

Tape & Reel Packaging
KEMET’s Molded Tantalum and Aluminum Chip
Capacitor families are packaged in 8 mm and 12 mm plastic
tape on 7" and 13" reels, in accordance with EIA Standard
481-1: Taping of Surface Mount Components for Automatic
Handling. This packaging system is compatible with all tape
fed automatic pick and place systems.
Right Hand
Orientation
Only
Embossed Carrier
(+)
(–)
Embossment
Top Tape Thickness
.10mm (.004") Max Thickness
8mm
±.30
8mm (0.315")
(.315
±.012")
or
or
12mm (0.472")
12mm
±.30
(.472
±.012")
178mm (7.00")
180mm (7.0")
or
or
330mm (13.00")
330mm (13.0")
Labeling:
Bar code labeling (standard or custom) shall be on the side of the reel opposite the sprocket holes.
Refer to EIA-556.
QUANTITIES PACKAGED PER REEL
Case Code
KEMET
EIA
R
2012-12
S
3216-12
T
3528-12
U
6032-15
W
7343-15
V
7343-20
A
3216-18
B
3528-21
C
6032-28
D
7343-31
Y
7343-40
X
7343-43
E
7260-38
Tape
Width-mm
8
8
8
12
12
12
8
8
12
12
12
12
12
7" Reel*
2,500
2,500
2,500
1,000
1,000
1,000
2,000
2,000
500
500
500
500
500
13" Reel*
10,000
10,000
10,000
5,000
3,000
3,000
9,000
8,000
3,000
2,500
2,000
2,000
2,000
* No c-spec required for 7" reel packaging. C-7280 required for 13" reel packaging.
©KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, (864) 963-6300
91
Packaging
TANTALUM, CERAMIC AND
ALUMINUM CHIP CAPACITORS
Packaging Information
Performance Notes
1. Cover Tape Break Force:
1.0 Kg Minimum.
2. Cover Tape Peel Strength:
The total peel strength of the cover tape from the carrier tape shall be:
Tape Width
Peel Strength
8 mm
0.1 Newton to 1.0 Newton (10g to 100g)
12 mm
0.1 Newton to 1.3 Newton (10g to 130g)
The direction of the pull shall be opposite the direction of the carrier tape travel. The pull angle of the carrier
tape shall be 165 to 180 from the plane of the carrier tape. During peeling, the carrier and/or cover tape
shall be pulled at a velocity of 300 ±10 mm/minute.
3. Reel Sizes:
Molded tantalum capacitors are available on either 180 mm (7") reels (standard) or 330 mm (13")
reels (with C-7280). Note that 13” reels are preferred.
4. Labeling:
Bar code labeling (standard or custom) shall be on the side of the reel opposite the sprocket holes.
Refer to EIA-556.

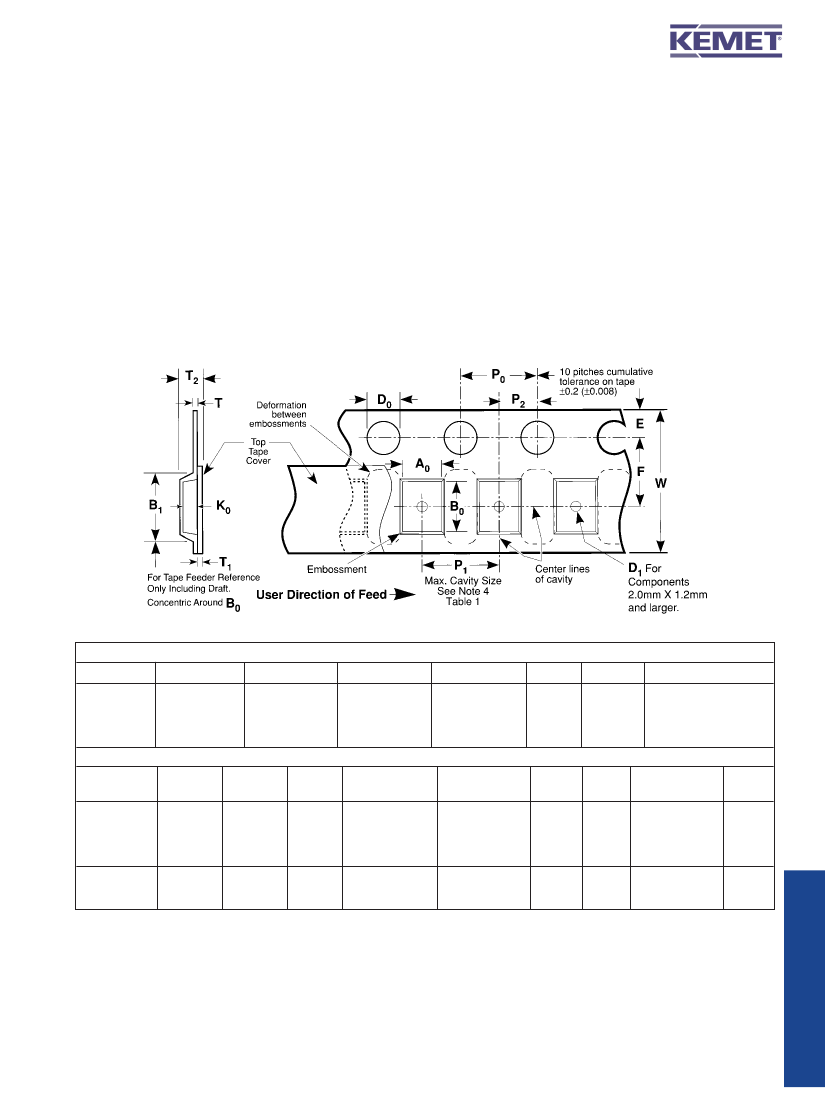

Embossed Carrier Tape Configuration:
Figure 1
Table 1 — EMBOSSED TAPE DIMENSIONS
(Metric will govern)
Constant Dimensions — Millimeters (Inches)
Tape Size
8 mm
and
12 mm
D
0
E
P
0
4.0 ±0.10
(0.157 ±0.004)
P
2
2.0 ±0.05
(0.079 ±0.002)
T Max
0.600
(0.024)
T
1
Max
0.100
(0.004)
1.5
1.75 ±0.10
+0.10 -0.0
(0.059
(0.069 ±0.004)
+0.004, -0.0)
Pitch
Single
(4 mm)
B
1
Max.
Note 1
4.4
(0.173)
12 mm
Double
(8 mm)
8.2
(0.323)
D
1
Min.
Note 2
1.0
Variable Dimensions — Millimeters (Inches)
Tape Size
8 mm
F
3.5 ±0.05
P
1
4.0 ±0.10
R Min.
Note 3
25.0
T
2
Max
2.5
(0.098)
W
8.0 ±0.30
(.315 ±0.012)
A
0
B
0
K
0
Note 4
(0.039) (0.138 ±0.002)
1.5
5.5 ±0.05
(0.059) (0.217 ±0.002)
(0.157 ±0.004) (0.984)
8.0 ±0.10
30.0
(0.315 ±0.004) (1.181)
4.6
12.0 ±0.30
(0.181) (0.472 ±0.012)
NOTES
1. B1 dimension is a reference dimension for tape feeder clearance only.
2. The embossment hole location shall be measured from the sprocket hole controlling the location of the embossment. Dimensions of
embossment location and hole location shall be applied independent of each other.
3. Tape with components shall pass around radius “R” without damage (see sketch A). The minimum trailer length (Fig. 2) may require
additional length to provide R min. for 12 mm embossed tape for reels with hub diameters approaching N min. (Table 2)
4. The cavity defined by A
0
,
B
0
,
and K
0
shall be configured to surround the part with sufficient clearance such that the chip does not pro-
trude beyond the sealing plane of the cover tape, the chip can be removed from the cavity in a vertical direction without mechanical
restriction, rotation of the chip is limited to 20 degrees maximum in all 3 planes, and lateral movement of the chip is restricted to 0.5 mm
maximum in the pocket (not applicable to vertical clearance.)
©KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, (864) 963-6300
93
Packaging
TANTALUM, CERAMIC AND
ALUMINUM CHIP CAPACITORS
Packaging Information
Embossed Carrier Tape Configuration (cont.)
Sketch D:
Tape Camber (Top View)
1mm (0.039) Max.
1mm (0.039) Max.
250mm (9.843)
Allowable camber to be 1 mm/250 mm.
400mm (15.75) Min.

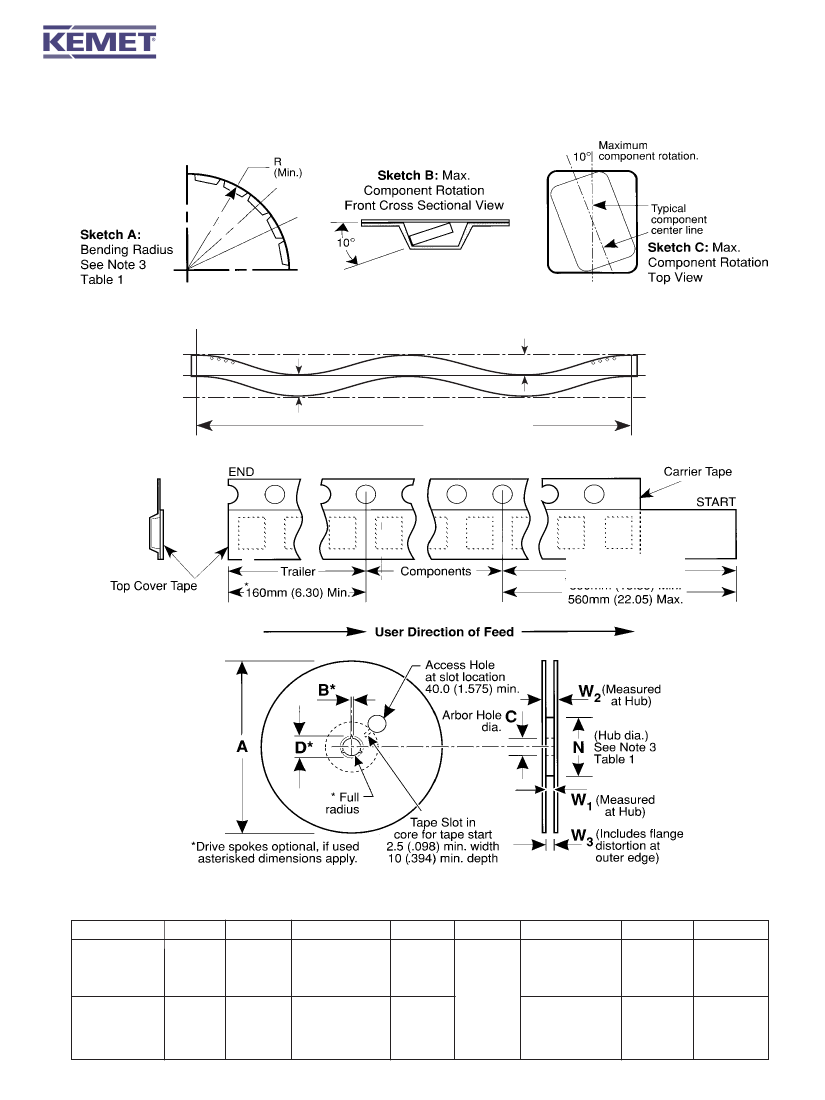

Figure 2:
Tape Leader
& Trailer
Dimensions
(Metric
Dimensions
Will Govern)
Figure 3:
Reel Dimensions (Metric Dimensions will govern)
Table 2 – REEL DIMENSIONS (Metric will govern)
Tape Size
8 mm
A Max
330.0
(12.992)
B* Min
1.5
(0.059)
C
13.0 ± 0.20
(0.512 ± 0.008)
D* Min
20.2
(0.795)
N Min
50.0
(1.969)
See
Note 3
Table 1
W
1
8.4
+1.5, -0.0
(0.331
+0.059, -0.0)
12.4
+2.0, -0.0
(0.488
+0.078, -0.0)
W
2
Max
14.4
(0.567)
W
3
7.9 Min
(0.311)
10.9 Max
(0.429)
11.9 Min
(0.469)
15.4 Max
(0.606)
12 mm
330.0
(12.992)
1.5
(0.059)
13.0 ± 0.20
(0.512 ± 0.008)
20.2
(0.795)
18.4
(0.724)
94
©KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, (864) 963-6300
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Homemade C3355 transistor 1km FM transmitter circuit diagram

Light control switch circuit

One of the thyristor liquid level automatic control circuits (fill-in type) b

Use the forward and reverse start and stop control circuit preselected by the transfer switch

025 Power supply circuit diagram of CASPER TM-5159 VGA color display

Anti-electric shock verbal warning circuit

Please help me find this type of sensor
Is there a sensor installed in the object model, when the hand or other objects touch the surface of the object model with the sensor, there will be a signal output. How to choose this kind of sensor?...
Elvise Sensor
Ambilight-FPGA-HDMI Video Atmosphere Light Controller DIY
FPGA-HDMI1080p video atmosphere light controller Brief IntroductionThe FPGA-based 1080p video atmosphere light controller analyzes the HDMI video signal, analyzes the color signal of the edge of the p...
tziang FPGA/CPLD
The technology behind RFID
The RFID (Radio Frequency Identification) system consists of two parts: a read/write unit and an electronic transceiver. The reader sends electromagnetic pulses via an antenna, the transceiver receive...
frozenviolet Automotive Electronics
How to reduce the brightness of the digital tube
How to reduce the brightness of the common cathode digital tube directly connected to the MCU IO port without adding a current limiting resistor? Dynamic scanning of three-digit digital tube...
邱海涛qht 51mcu
Understanding wireless communications starts with understanding these 20 professional terms
[color=rgb(51, 51, 51)][/color][color=rgb(51, 51, 51)][font=微软雅黑, 微软雅黑, "][size=12px][list] [*][b]Detailed description[/b] [/list][/size][/font][/color] [color=rgb(51, 51, 51)][font=微软雅黑, 微软雅黑, "][siz...
btty038 RF/Wirelessly
Parallel and redundancy technology of rail-type switching power supply
[p=30, null, left][font=宋体][color=#000000] With the continuous enlargement, complexity and integration of industrial control systems, the requirements for the energy provider of the control system - i...
灞波儿奔 Analogue and Mixed Signal
Shortcut:   A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components

  1. M24C02-RMB6G
  2. MAX8559ETA22+
  3. CWR-500(CSP)
  4. CR10A1622FT
  5. NIN-FC1R5JTRFNIN-FC1R5JTRF
  6. M20-9451005
  7. SV57AC113MAA
  8. FLKM-I
  9. AME8500CEETBE20
  10. 1N4742AT/R13
  11. 2EZ14_R2_00001
  12. 1N5935B

Popular Articles

  1. Shenzhen AWC Automotive Electronics Exhibition in October presents a panoramic view of new automotive OEM technologies
  2. SEMI: Global power and compound semiconductor fab equipment spending will reach $7 billion this year
  3. Function and importance of SF6 moisture meter
  4. Xinwei Communication: Non-mobile phone receiving terminals gradually become the growth driver of the company's wireless charging business
  5. ATmega168 clock system and its distribution
  6. Shockingly launched, Mir Electronics' high-end product MYC-JX8MPQ core board starts pre-sale
  7. WPG World Peace Group launches single-chip secure smart door lock solution based on Nations products
  8. 10 Factors to Consider When Choosing a Basic Oscilloscope
  9. [C51 self-study notes] Flashing light + running light (four methods) + 74HC573 chip + keil4 software simulation (debug)
  10. [C51 self-study notes] Digital tube (static and dynamic display) + 74HC138 + dot matrix dynamic display

Technical ResourceMore

  1. Relay comprehensive parameter detection principle
  2. IRFR_U3910 pdf
  3. Development of a new type of compensation circuit for low power switching power supply
  4. Linux open source operating system
  5. Computer Level 2C
  6. CYCLONE 3C120 circuit diagram
  7. Specifications for the use of standard and medium-length digital projection
  8. Design of C-band Ceramic Resonant Oscillator
  9. Design of 100BASE-TX Industrial Ethernet Repeater Based on FPGA
  10. 0001. Communication between PC and MCU (RS232 protocol)

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 794  1288  1447  45  723  16  26  30  1  15
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
