KPBA-3010SYKCGKC datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> KPBA-3010SYKCGKC

KPBA-3010SYKCGKC: DescriptionDual Color LED, Super Bright Yellow/green, Water Clear, 2mm, 3 X 1 MM, 2 MM HEIGHT, ROHS COMPLIANT, SMD, 3 PIN; CategoryLED optoelectronic/LED photoelectric; File Size149KB，5 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric View All

KPBA-3010SYKCGKC Overview

Dual Color LED, Super Bright Yellow/green, Water Clear, 2mm, 3 X 1 MM, 2 MM HEIGHT, ROHS COMPLIANT, SMD, 3 PIN

KPBA-3010SYKCGKC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kingbright
package instruction	3 X 1 MM, 2 MM HEIGHT, ROHS COMPLIANT, SMD, 3 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
color	SUPER BRIGHT YELLOW/GREEN
Configuration	COMMON ANODE, 2 ELEMENTS
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	150.0/50.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	DUAL COLOR LED
total height	1 mm
method of packing	TAPE AND REEL
peak wavelength	590/574 nm
shape	RECTANGULAR
size	2 mm
surface mount	YES
perspective	140 deg
Base Number Matches	1

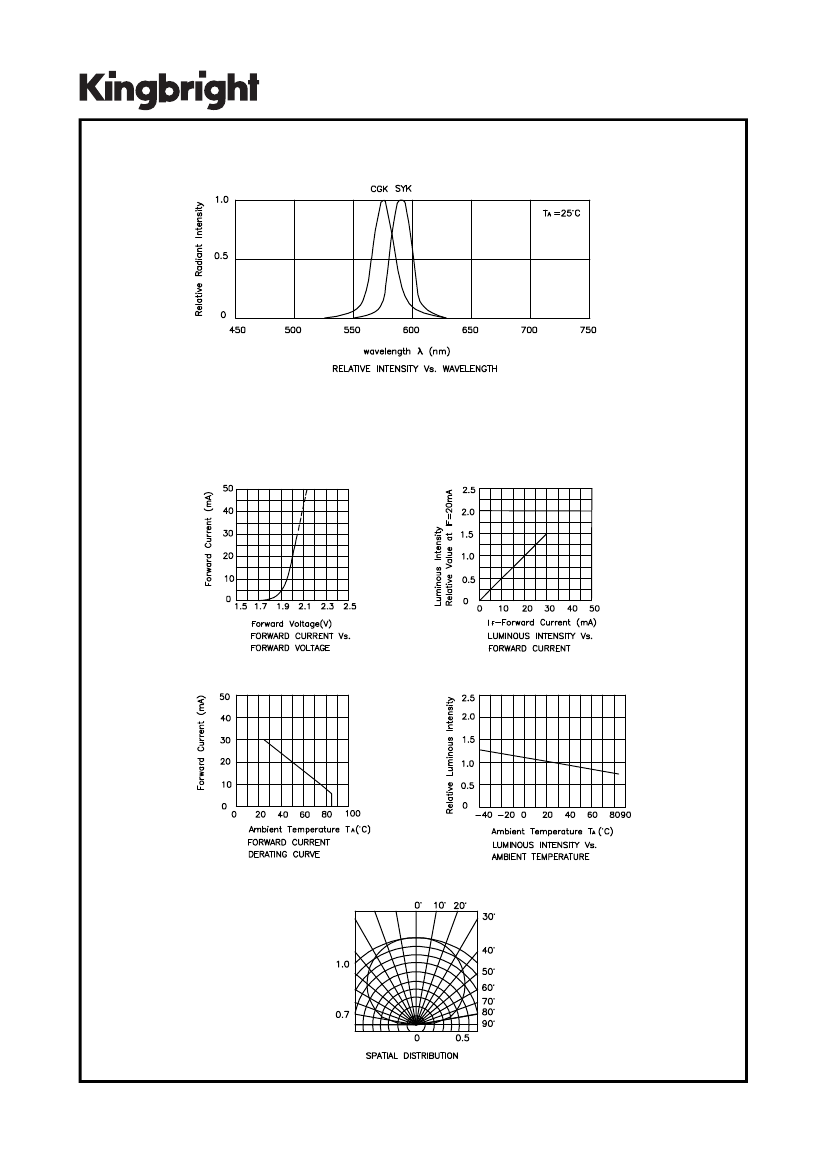

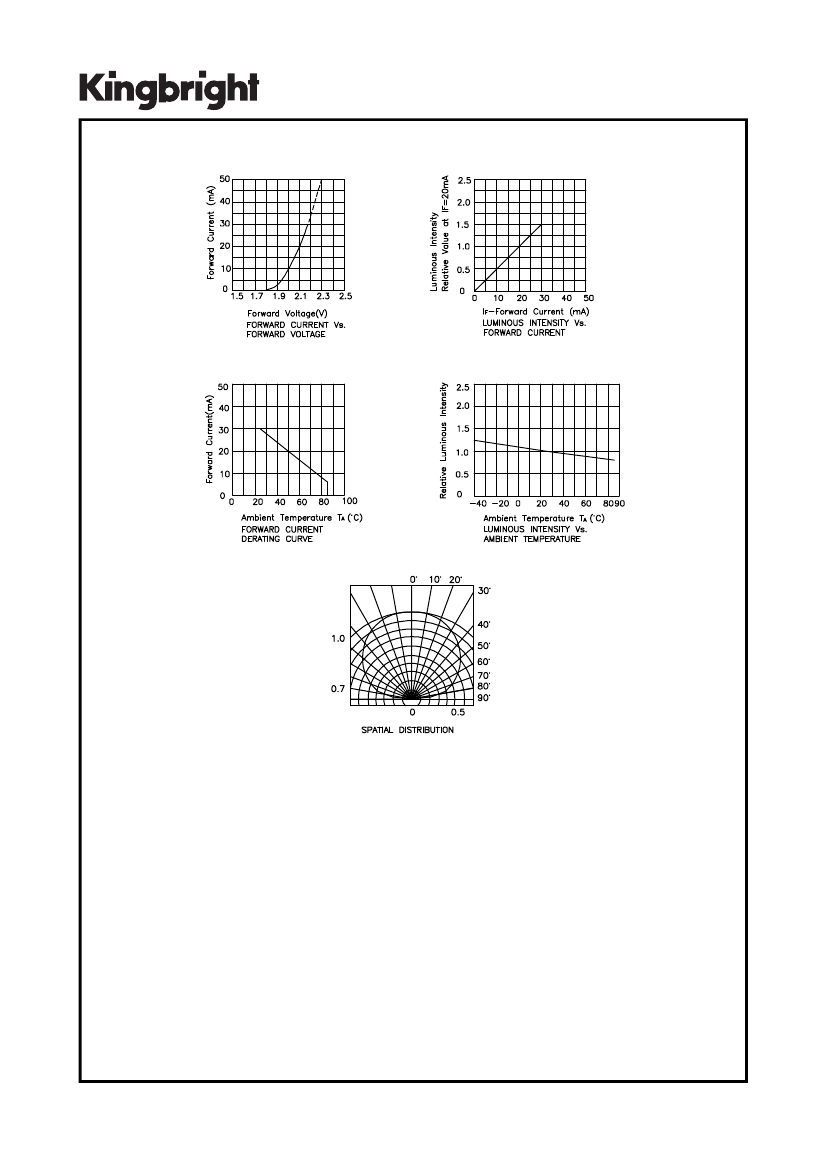

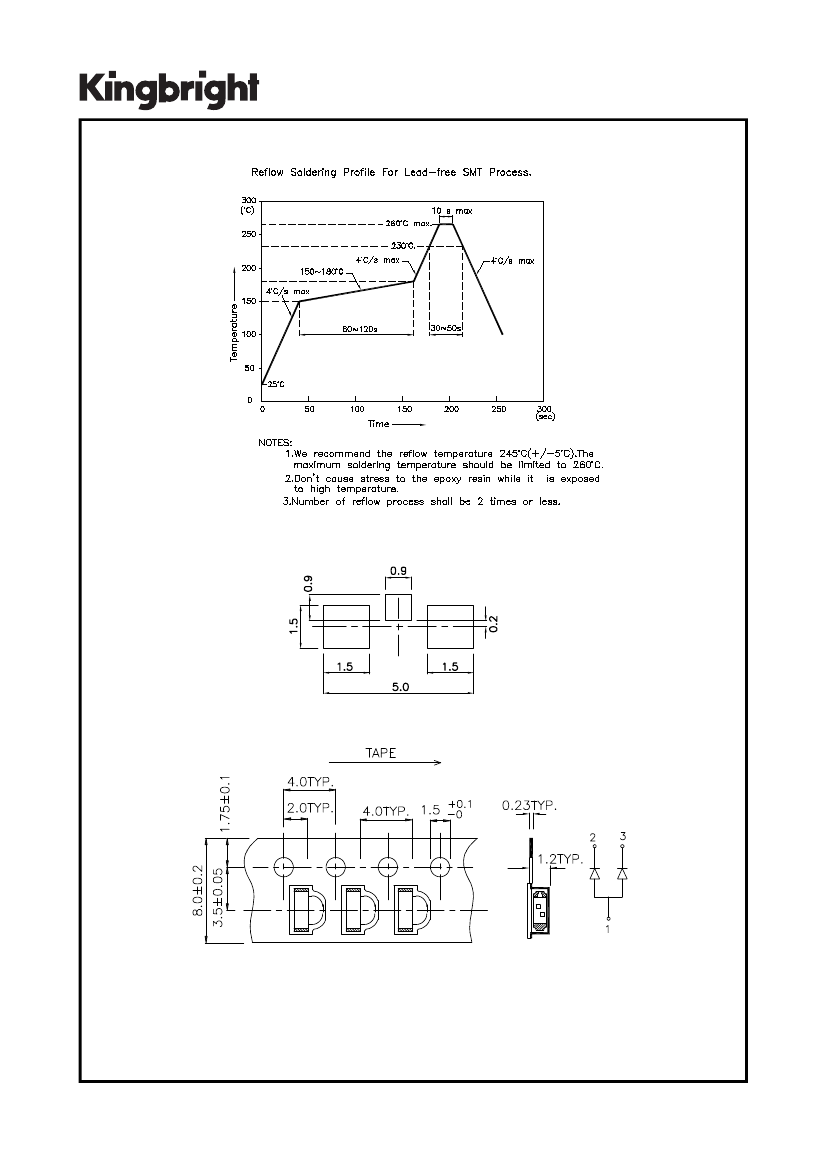

Preview

Download Datasheet

View All

3.0mmx1.0mm RIGHT ANGLE SMD CHIP

LED LAMP

KPBA-3010SYKCGKC

SUPER BRIGHT YELLOW

GREEN

Features

3.0mmx1.0mm RIGHT ANGLE SMT LED, 2.0mm THICKNESS.

LOW POWER CONSUMPTION.

WIDE VIEWING ANGLE.

IDEAL FOR BACKLIGHT AND INDICATOR.

VARIOUS COLRS AND LENS TYPES AVAILABLE.

PACKAGE : 2000PCS / REEL.

RoHS COMPLIANT.

Description

The Super Bright Yellow source color devices are

made with DH InGaAlP on GaAs substrate Light

Emitting Diode.

The Green source color devices are made with

InGaAlP on GaAs substrate Light Emitting Diode.

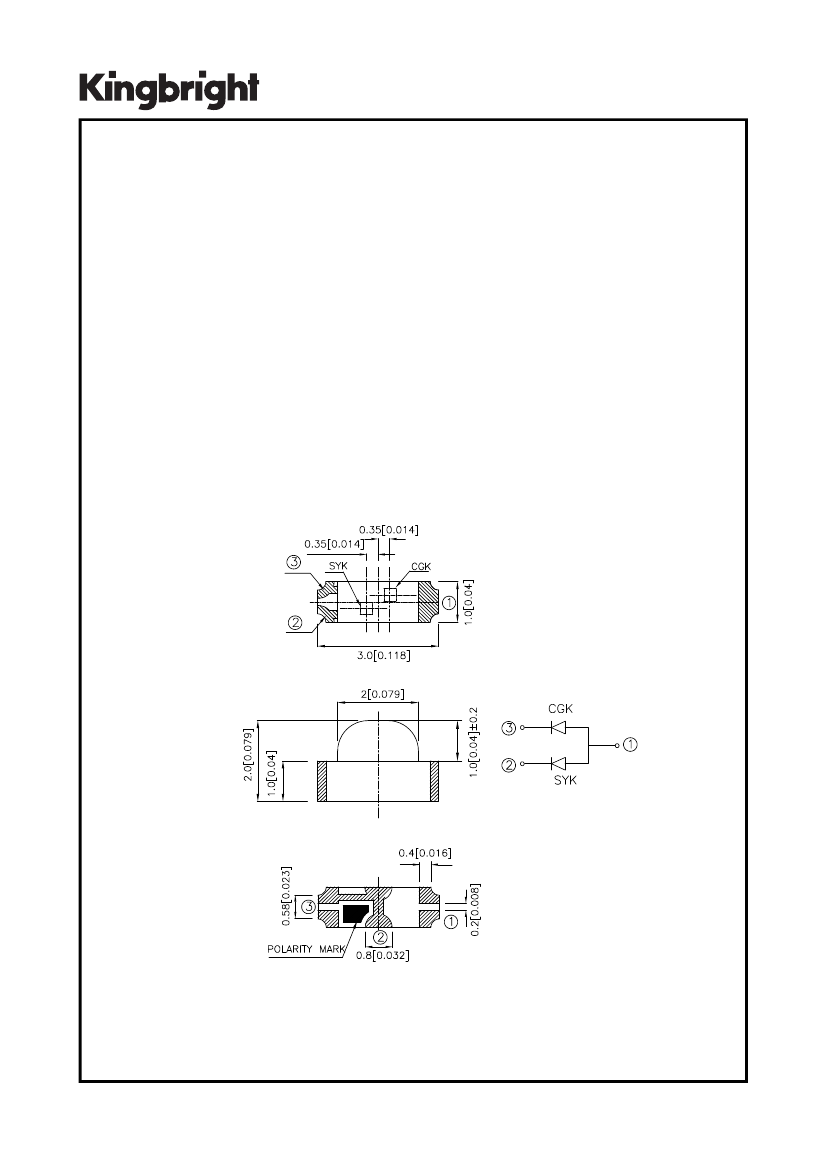

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0.15(0.006")

unless otherwise noted.

3. Specifications are subject to change without notice.

SPEC NO: DSAC0141

APPROVED: J. Lu

REV NO: V.7

CHECKED: Allen Liu

DATE: OCT/24/2005

DRAWN: Y.L.LI

PAGE: 1 OF 5
