ECL25US09-E Overview

AC/DC converter 9V 25w

Preview

Download Datasheet

View All

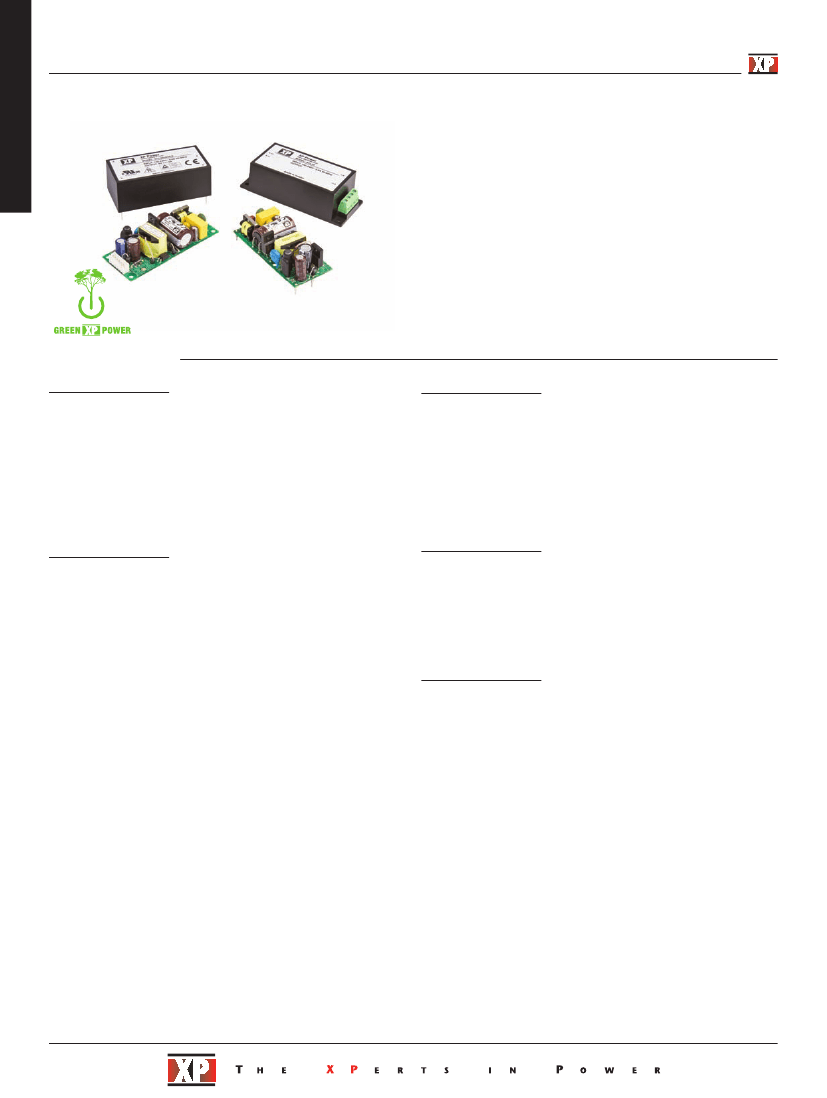

AC DC

5 30 Watts

ECL Series

•

Ultra Compact Size

Single, Dual & Triple Outputs

xppower.com

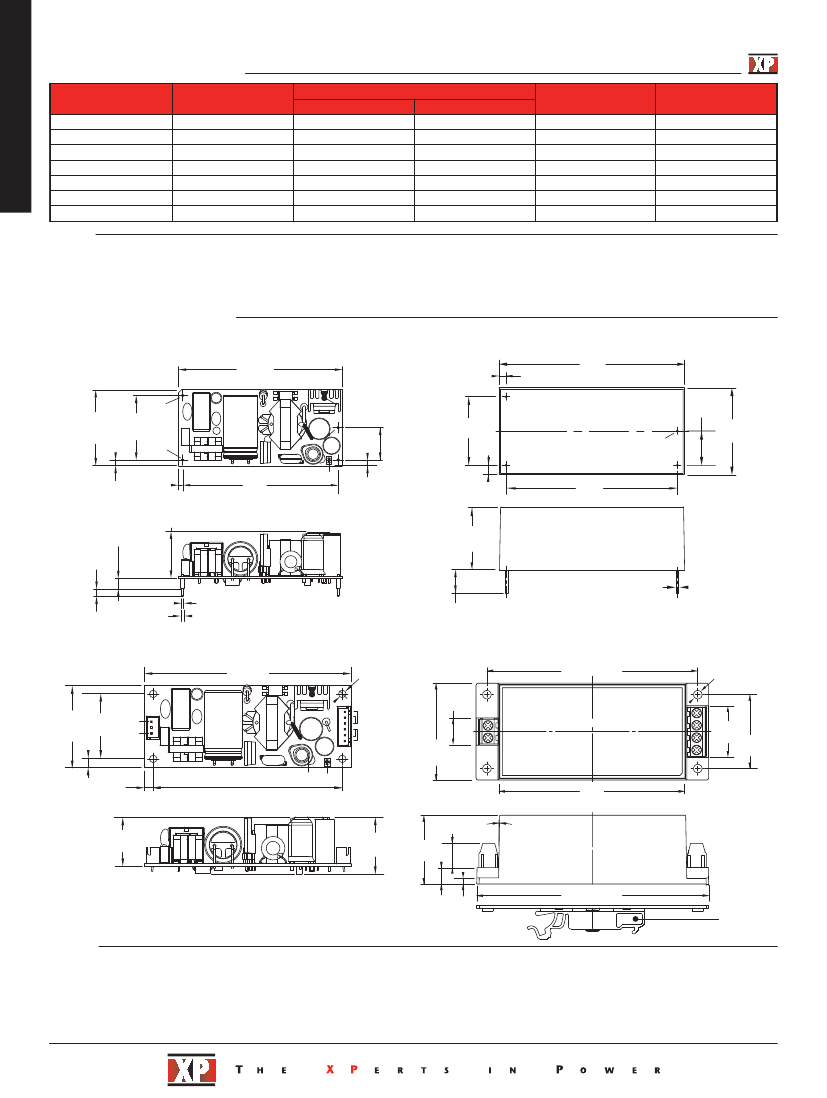

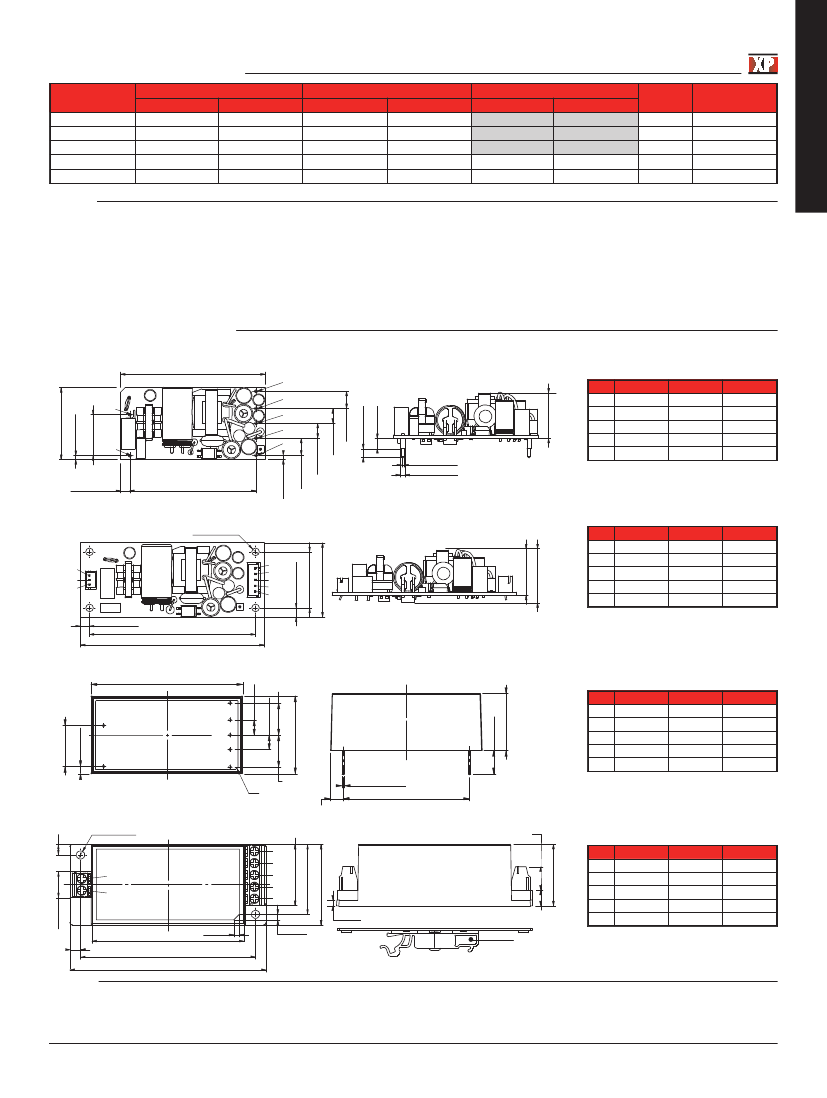

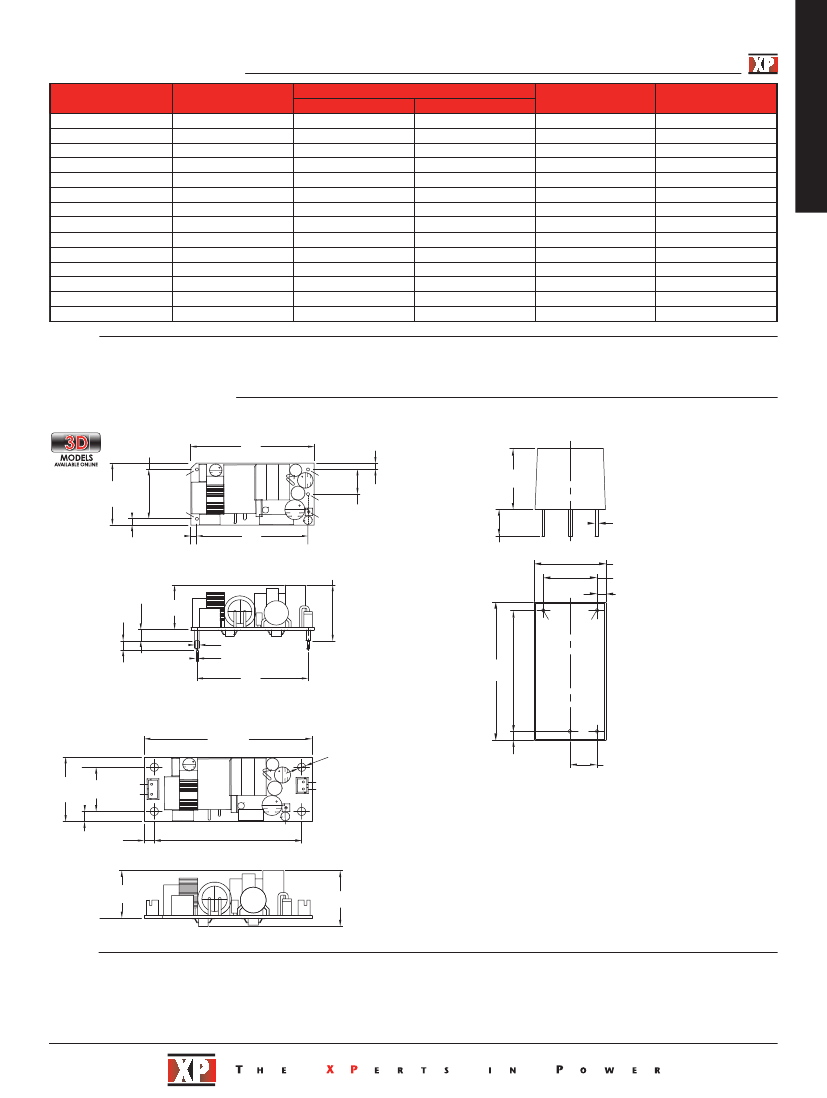

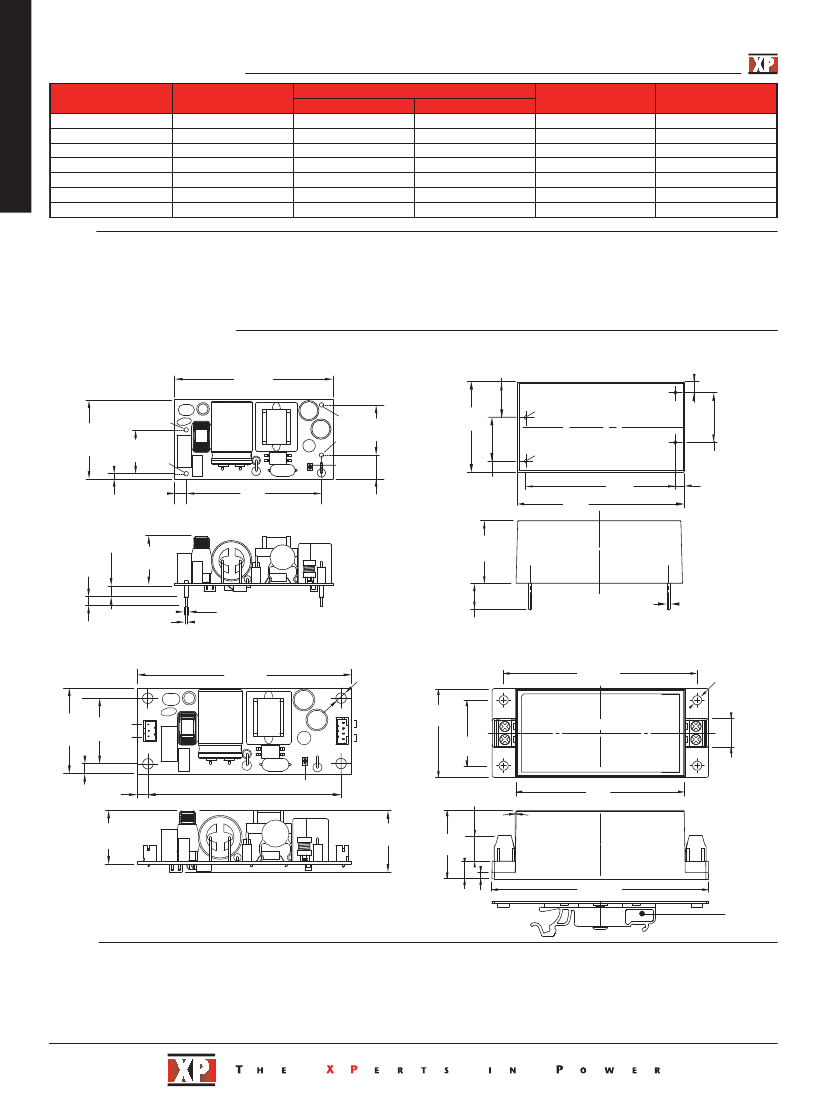

Open Frame PCB & Chassis Mount

Encapsulated PCB & Chassis Mount

<0.3 W No Load Input Power

Peak Load Capability

3 Year Warranty

Specification

Input

• 85-264 VAC (120-370 VDC)

• 47-63 Hz

• ECL05: 0.1 A rms, ECL10: 0.2 A rms

ECL15: 0.3 A rms, ECL25: 0.4 A rms

ECL30: 0.8 A rms at 230 VAC

Inrush Current

• 20 A at 115 VAC, 40 A at 230 VAC,

cold start at 25 °C

Earth Leakage Current

• Class II construction no earth

Power Factor

• EN61000-3-2, class A

No Load Input Power

• <0.3 W

Input Protection

• ECL05/10: Internal T1 A/250 VAC fuse

ECL15/25/30: Internal T2 A/250 VAC fuse

Input Voltage

Input Frequency

Input Current

General

Efficiency

Isolation

Switching Frequency

Power Density

•

See tables

3000 VAC Input to Output

70 kHz typical

ECL05: 2.25 W/In

(PCB Mount version)

ECL10: 5.50 W/In

(PCB Mount version)

ECL15: 5.30 W/In

(PCB Mount version)

ECL25: 5.90 W/In

(PCB Mount version)

ECL30: 7.10 W/In

(PCB Mount version)

• ECL05/10: >450 kHrs,

ECL15/25/30: >400 kHrs,

to MIL-HDBK-217F at 25 °C, GB

MTBF

Output

• See tables

• ±5% on output 1 only, on multiple output

versions, V2 & V3 will track by same

percentage, (not ‘-E’ or ‘-S’ versions)

Initial Set Accuracy

• ±1% for output 1,

±1% for output 2 of UD01 & UD02 versions,

±5% for output 2 & output 3 of other versions

Minimum Load

• Single output versions: none,

Multi output versions:

UD01 & UD02: 10% V1 & V2

UD03: 10% V1, 20% V2

UT02 & UT03: 10% V1, 20% V2 & V3

to meet regulation specifications

Start Up Delay

• 3 s max

Start Up Rise Time

• 14 ms max

Hold Up Time

• 16 ms typical for single output versions,

12 ms typical for multiple output versions,

at full load & 115 VAC

Line Regulation

• ±0.5% max for single output versions and

output 1 of multiple output versions,

±0.9% max for output 2 & output 3 of

multiple output versions

Load Regulation

• 1% max for single output versions,

for multiple output versions (see note 5)

Cross Regulation

• Multi output versions only (see note 5)

Transient Response

• 4% max deviation, recovery to within

1% in 500 µs for a 25% load change

Ripple & Noise

• Single output versions:

3.3-5 V versions: 50 mV pk-pk,

12-15 V versions: 120 mV pk-pk,

24-48 V versions: 200 mV pk-pk,

Multiple output versions: 1% pk-pk on any

output, 20 MHz bandwidth

Overvoltage Protection

• 115-140% Vnom, 195-216% Vnom

ECL05/10/15/25 with 3.3 V

Overload Protection

• Single output versions: ECL05/10/15:

120-150%, ECL25: 120-170% of total

power

Multiple output versions: 140-200% of

total power

Short Circuit Protection

• Trip and restart (hiccup mode)

Temperature

• 0.05%/°C

Coefficient

Output Voltage

Output Voltage Trim

Environmental

Operating Temperature

• -20 °C to +70 °C, derate linearly from

100% at +50 °C to 50% at +70 °C

Cooling

• Convection-cooled

Operating Humidity

• 95% RH, non-condensing

Storage Temperature

• -40 °C to +85 °C

Operating Altitude

• 3000 m

Vibration

• 2 g, 10 Hz to 500 Hz, 10 mins/cycle,

60 mins each cycle

EMC & Safety

Emissions

Harmonic Currents

Voltage Flicker

ESD Immunity

Radiated Immunity

EFT/Burst

Surge

Conducted Immunity

Magnetic Fields

Dips & Interruptions

Safety Approvals

•

EN55022, level B conducted & radiated

EN61000-3-2, class A

EN61000-3-3

EN61000-4-2, level 3 Perf Criteria A

EN61000-4-3, 10 V/m 80% mod

Perf Criteria A

EN61000-4-4, level 3, Perf Criteria A

EN61000-4-5, installation class 3,

Perf Criteria A

EN61000-4-6, 10 Vrms Perf Criteria A

EN61000-4-8, 10 A/m, Perf Criteria A

EN61000-4-11, 30% for 10 ms,

60% for 100 ms, 100% for 5000 ms

Perf Criteria A, B, B

IEC60950-1, EN60950-1, UL60950-1,

CSA22.2 No. 234 per cUL
