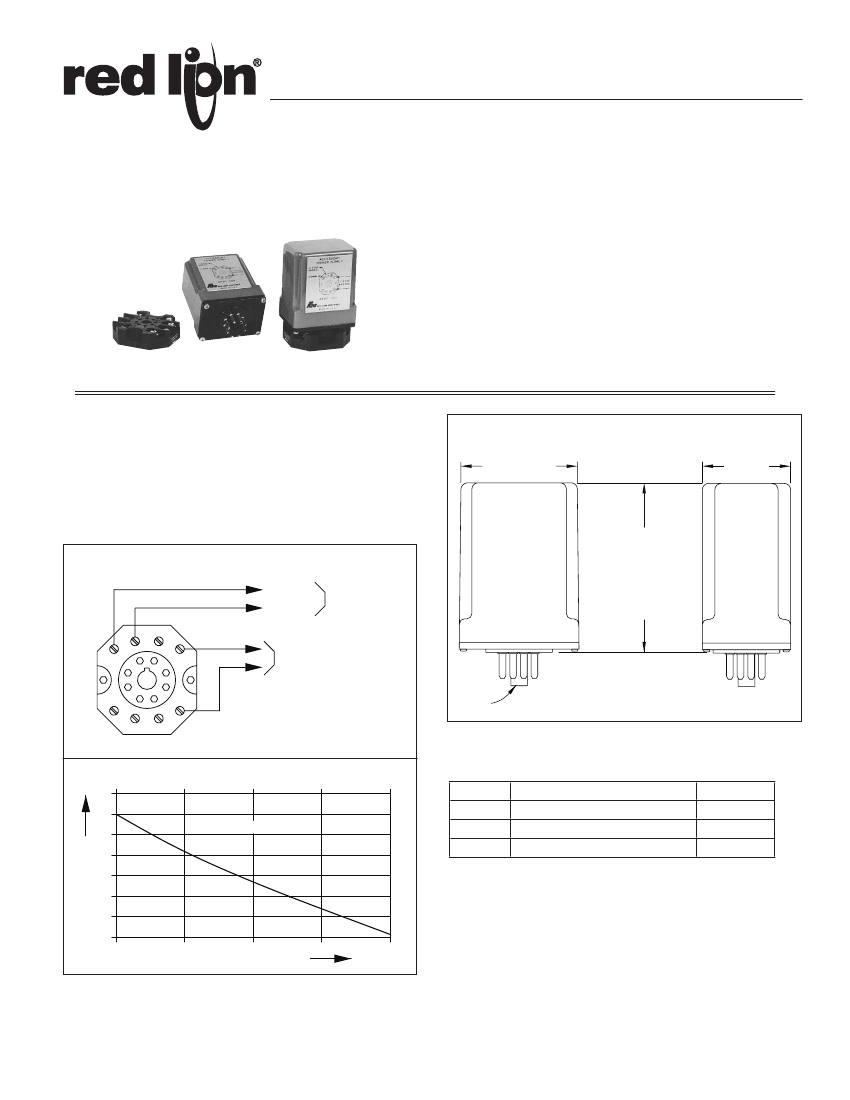

MODEL APS - OCTAL PLUG-IN ACCESSORY POWER SUPPLY
PROVIDES . . .
+12 VDC “HELPER” SUPPLY FOR LOAD SHARING WITH
UNREGULATED COUNTER SYSTEMS WITH UNUSUAL SENSOR
AND ACCESSORY LOADS, OR . . .
“STAND-ALONE” APPLICATIONS FOR POWERING SENSORS
AND ACCESSORIES
DESCRIPTION
The Model APS is an unregulated +12 VDC supply designed to load share
when connected in parallel with internal power supplies of many Red Lion
Controls Counters and Rate Indicators. It can also be used as a general purpose
“Stand-alone” power supply to power other control circuits, sensors and
accessories. The APS is designed for 115 VAC ±10%, 50/60 Hz primary
supply. Operating temperature range is -20° to +50°C. Output current is per
regulation curve.
DIMENSIONS In inches (mm)
2.38 (60.5)
1.75
(44.5)
TYPICAL CONNECTION DIAGRAM
COMMON
+12V
TO OTHER
COUNTERS
2.90
(73.7)
SEATED
HEIGHT
ABOVE
SOCKET
1
2
8
7
115VAC
50/60HZ
3
4
5
6
KEY
MODEL APS01
OUTPUT VOLTS/CURRENT REGULATION CURVE
17
16
15
OUTPUT D.C. VOLTS
14
13
12
11
10
100
200
OUTPUT D.C. CURRENT (MA)
300
400
115VAC 50/60 HZ INPUT
ORDERING INFORMATION
MODEL NO.
DESCRIPTION
PART NUMBER
APS01
SKT1
--
115 VAC Accessory Power Supply
Base Mount 8-pin Octal Socket
DIN Rail 8-pin Socket
APS01000
SKT10000
SKTDIN00

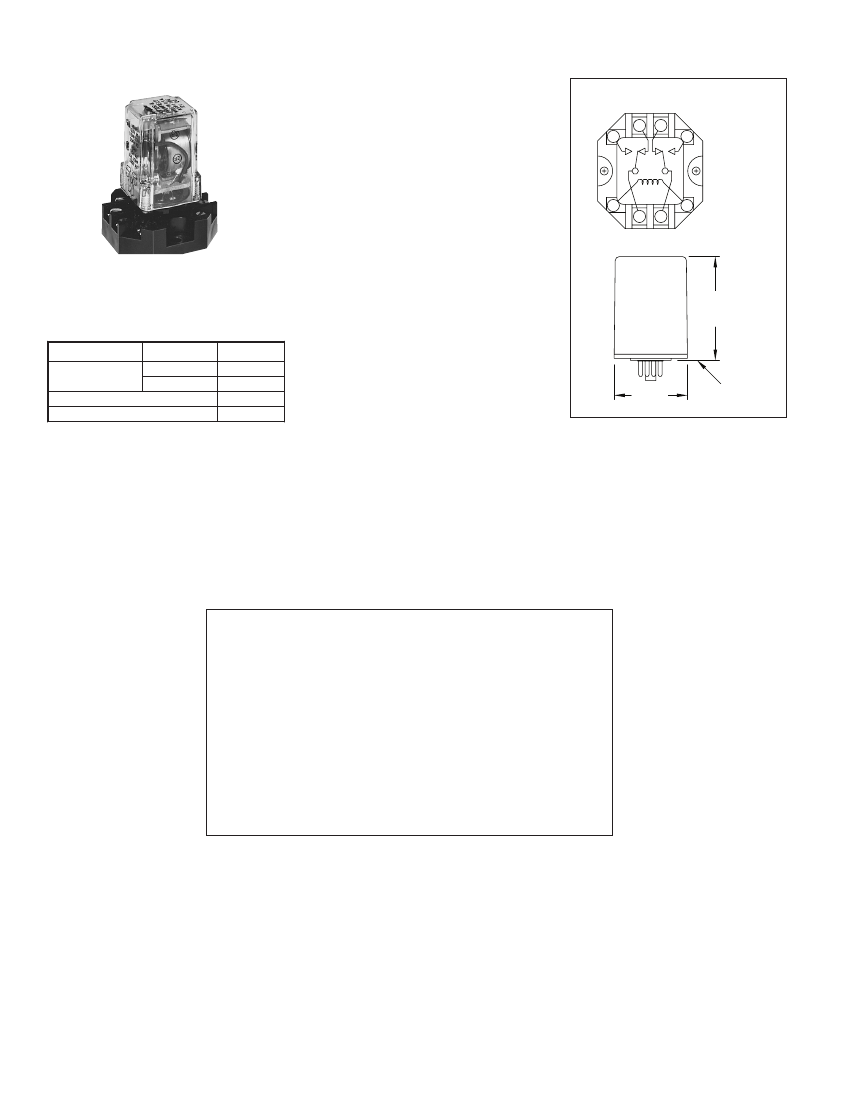

ACCESSORY PLUG-IN RELAY
These industrial relays have a mechanical life
expectancy in excess of 10 million cycles, and are both
UL and CSA recognized.
CONTACTS SHOWN IN
DE-ENERGIZEDPOSITION
5
6
4
3
RELAY SPECIFICATIONS
PLUG-IN RELAYS PROVIDED FOR
EASY SERVICING & MAINTENANCE
ORDERING INFORMATION
DESCRIPTION
COIL VOLTAGE
PART NUMBER
COIL:
12 VDC Coil - 120
Ω
±10%,
Rated +12 VDC @ 100 mA.
115 VAC Coil - 2250
Ω
±10%,
Rated 115 VAC @ 52 mA.
CONTACTS:
10 A @ 115 and 230 VAC
(1/6 HP @ 115 V, 1/3 HP @ 230 VAC)
OPERATING TIMES:
Energize
- 30 msec max.
De-energize
- 30 msec max.
Operating times do not include bounce time
(approx. 3 msec).
OPERATING TEMPERATURE RANGE:
-45° to +60°C
ELECTRICAL LIFE:
In excess of 100,000 operations
@ rated load.
WEIGHT:
3 oz
(85.1 g)
Mating sockets sold separately. See Ordering Information.
7
8
1
2
RELAY
2.3
(58.4)
MAX.
DPDT Plug-in Relay
12 VDC
115 VAC
RLY10000
RLY30000
SKT10000
SKTDIN00
Base Mount 8-pin Octal Socket
DIN Rail 8-pin Socket
1.5 (38)
MAX.
SEATING
PLAIN
