MSM2816A-450AS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> MSM2816A-450AS

MSM2816A-450AS: DescriptionEEPROM, 2KX8, 450ns, Parallel, MOS, CDIP24,; Categorystorage storage; File Size345KB，8 Pages; ManufacturerLAPIS Semiconductor Co., Ltd.

Download Datasheet Parametric Compare View All

MSM2816A-450AS Overview

EEPROM, 2KX8, 450ns, Parallel, MOS, CDIP24,

MSM2816A-450AS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	LAPIS Semiconductor Co., Ltd.
package instruction	DIP, DIP24,.6
Reach Compliance Code	unknown
Maximum access time	450 ns
command user interface	NO
Data polling	NO
JESD-30 code	R-XDIP-T24
JESD-609 code	e0
memory density	16384 bit
Memory IC Type	EEPROM
memory width	8
Number of terminals	24
word count	2048 words
character code	2000
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2KX8
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	MOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
switch bit	NO
Base Number Matches	1

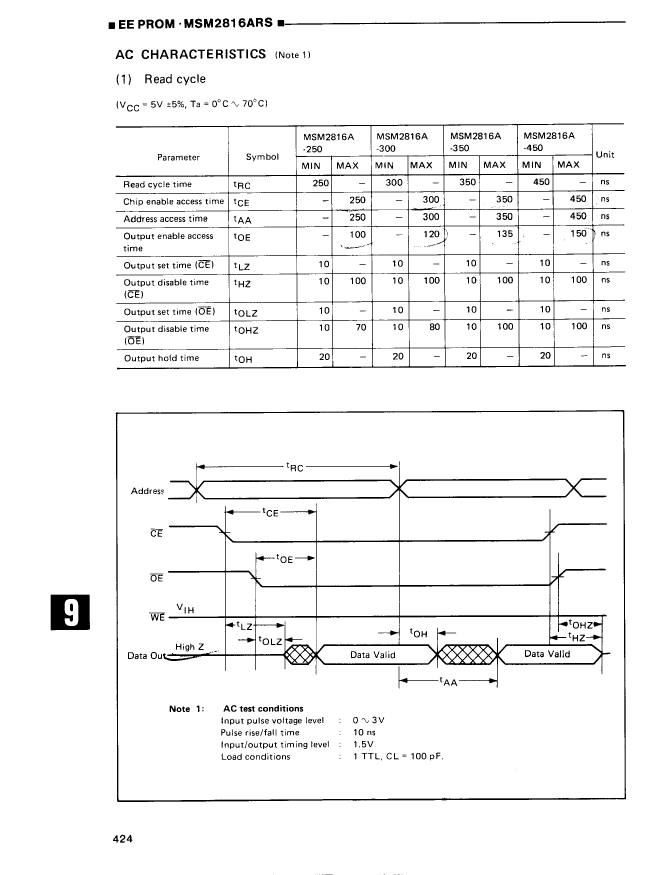

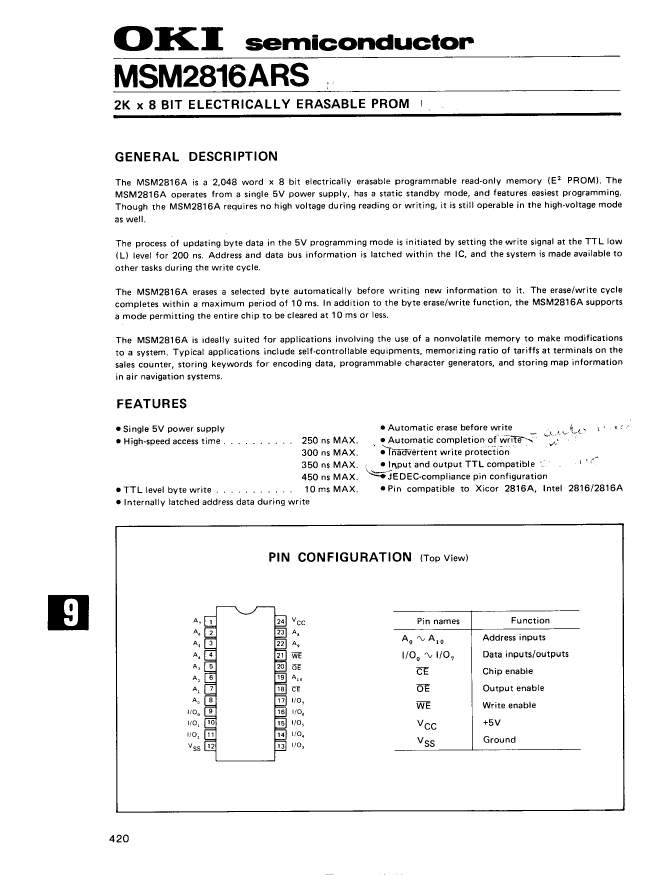

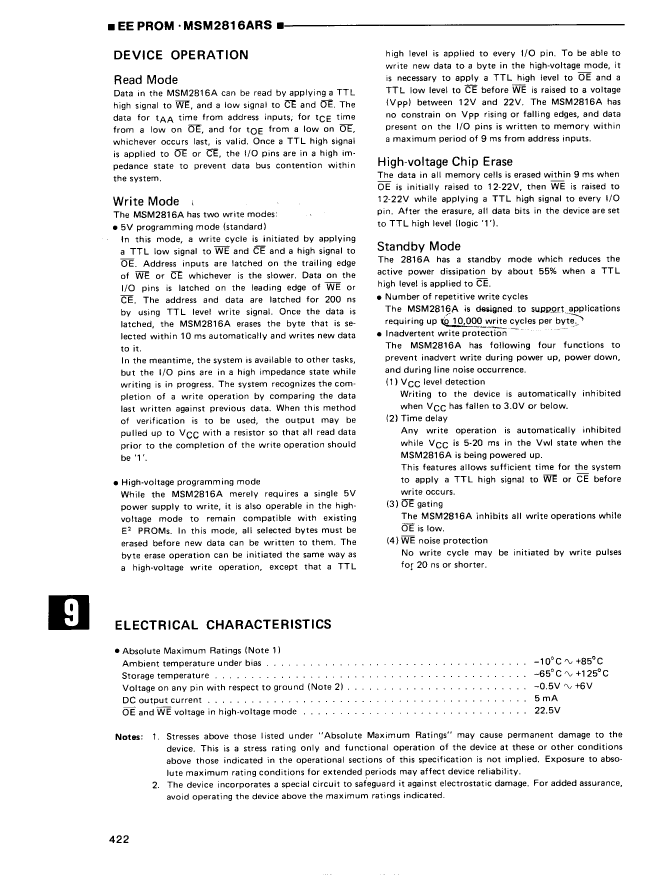

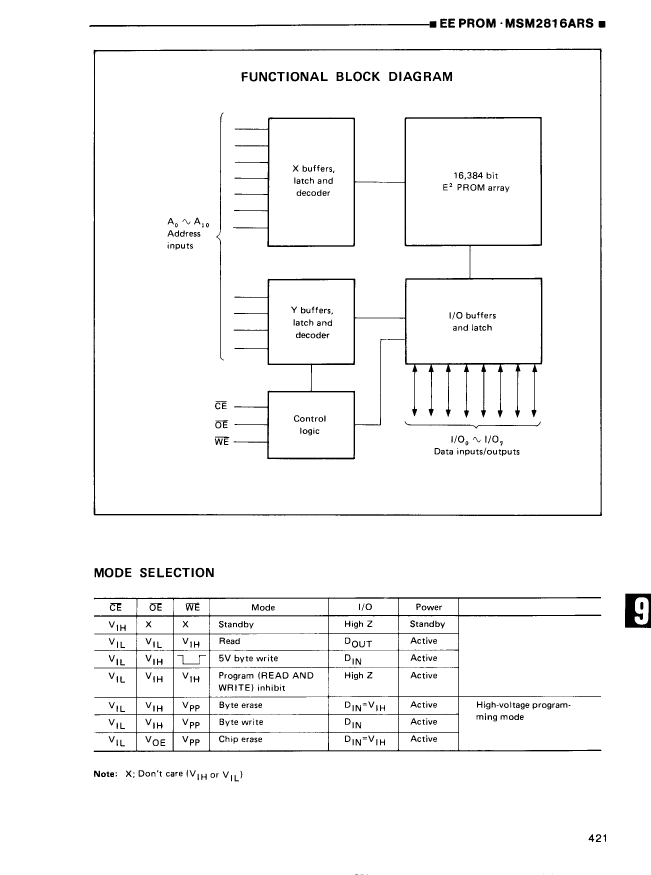

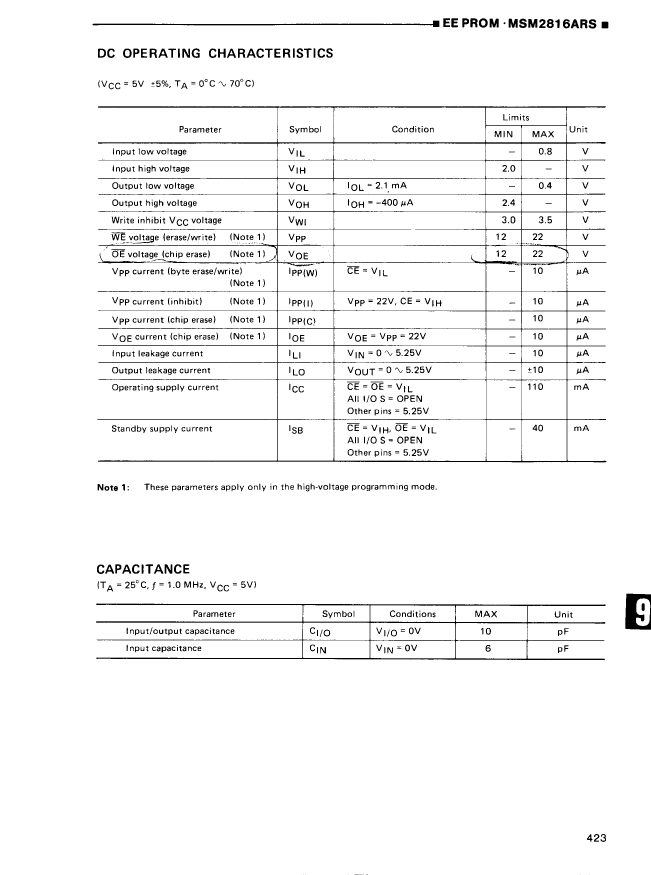

Preview

Download Datasheet

View All

MSM2816A-450AS Related Products

	MSM2816A-450AS	MSM2816A-250AS	MSM2816A-250RS	MSM2816A-350AS	MSM2816A-350RS	MSM2816A-300RS	MSM2816A-300AS	MSM2816A-450RS
Description	EEPROM, 2KX8, 450ns, Parallel, MOS, CDIP24,	EEPROM, 2KX8, 250ns, Parallel, MOS, CDIP24,	EEPROM, 2KX8, 250ns, Parallel, MOS, PDIP24,	EEPROM, 2KX8, 350ns, Parallel, MOS, CDIP24,	EEPROM, 2KX8, 350ns, Parallel, MOS, PDIP24,	EEPROM, 2KX8, 300ns, Parallel, MOS, PDIP24,	EEPROM, 2KX8, 300ns, Parallel, MOS, CDIP24,	EEPROM, 2KX8, 450ns, Parallel, MOS, PDIP24,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6
Reach Compliance Code	unknown	unknow	unknow	unknow	unknow	unknow	unknow	unknown
Maximum access time	450 ns	250 ns	250 ns	350 ns	350 ns	300 ns	300 ns	450 ns
command user interface	NO	NO	NO	NO	NO	NO	NO	NO
Data polling	NO	NO	NO	NO	NO	NO	NO	NO
JESD-30 code	R-XDIP-T24	R-XDIP-T24	R-PDIP-T24	R-XDIP-T24	R-PDIP-T24	R-PDIP-T24	R-XDIP-T24	R-PDIP-T24
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
memory density	16384 bit	16384 bi	16384 bi	16384 bi	16384 bi	16384 bi	16384 bi	16384 bit
Memory IC Type	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM
memory width	8	8	8	8	8	8	8	8
Number of terminals	24	24	24	24	24	24	24	24
word count	2048 words	2048 words	2048 words	2048 words	2048 words	2048 words	2048 words	2048 words
character code	2000	2000	2000	2000	2000	2000	2000	2000
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	2KX8	2KX8	2KX8	2KX8	2KX8	2KX8	2KX8	2KX8
Package body material	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	MOS	MOS	MOS	MOS	MOS	MOS	MOS	MOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
switch bit	NO	NO	NO	NO	NO	NO	NO	NO
Base Number Matches	1	1	1	1	1	1	1	1
