C06MS2R2A9ZX-V datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> C06MS2R2A9ZX-V

C06MS2R2A9ZX-V: DescriptionCeramic Capacitor, Multilayer, Ceramic, 250V, 2.27% +Tol, 2.27% -Tol, C0G, 30ppm/Cel TC, 0.0000022uF, Surface Mount, 0603; CategoryPassive components capacitor; File Size416KB，2 Pages; ManufacturerDielectric Laboratories; Environmental Compliance

Download Datasheet Parametric View All

C06MS2R2A9ZX-V Overview

Ceramic Capacitor, Multilayer, Ceramic, 250V, 2.27% +Tol, 2.27% -Tol, C0G, 30ppm/Cel TC, 0.0000022uF, Surface Mount, 0603

C06MS2R2A9ZX-V Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1698820186
package instruction	, 0603
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	0
capacitance	0.0000022 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
JESD-609 code	e3
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	2.27%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR
positive tolerance	2.27%
Rated (DC) voltage (URdc)	250 V
size code	0603
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND

Preview

Download Datasheet

View All

15676 DieLabs.qxp

2/10/06

1:48 PM

Page 10

C06 0603

FUNCTIONAL APPLICATIONS

DC Blocking

Amplifier Matching Networks

VCO Frequency Stabilization

Filtering and Diplexers

Antenna Matching

BENEFITS

Stable TC

EIA 0603 Case Size

SMD Compatibility

-55 to +125 C Operating Range

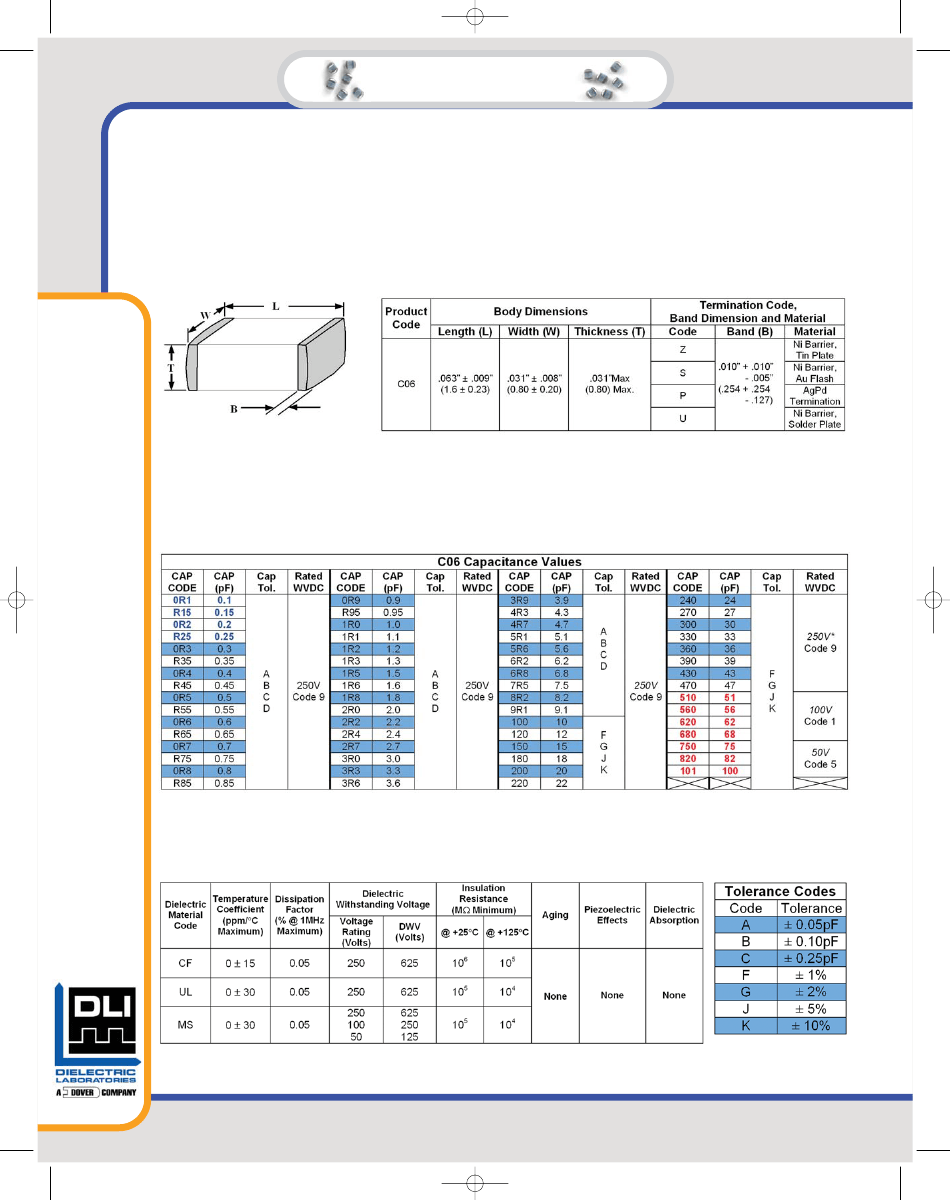

Mechanical Specifications

Dielectric Laboratories

Laser Markings available in Horizontal orientation only, Code L.

The MS material system is available in Z termination only.

U termination is not available in the UL material system.

Capacitance Table

*MS capacitors in the cap range 36pF to 47pF are 150V rated, Code 8.

Cap values in

red

are available in MS only, in

blue

available in UL, CF, and AH only.

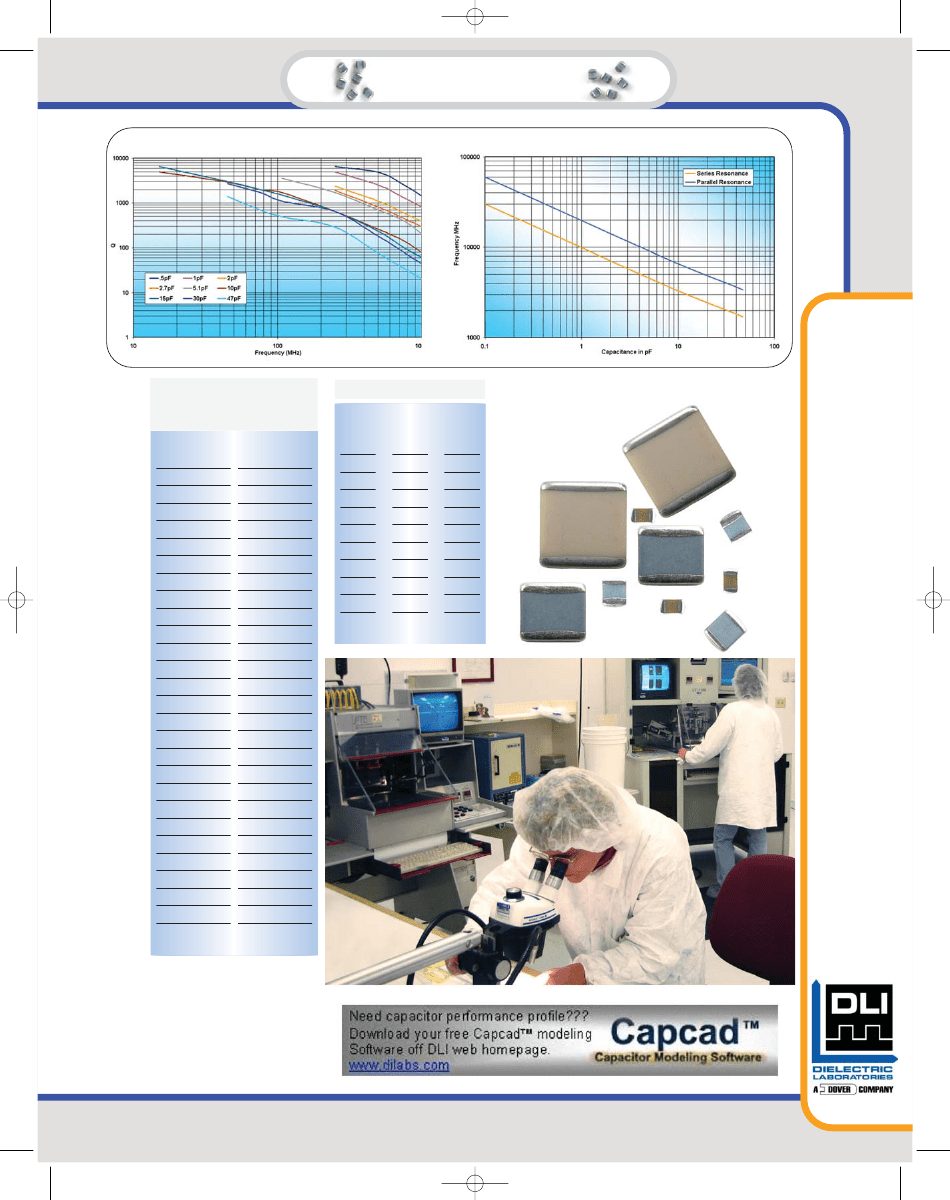

Electrical Specifications

www.dilabs.com
